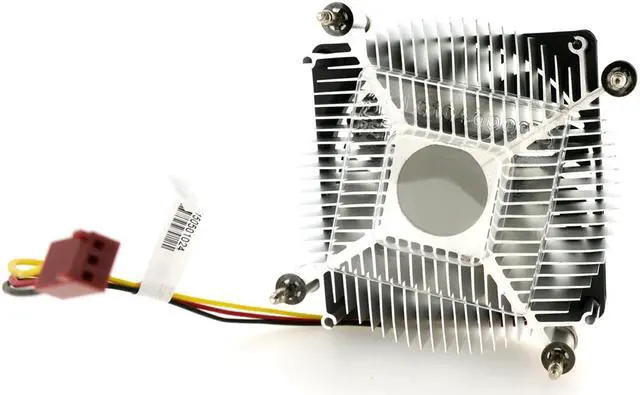

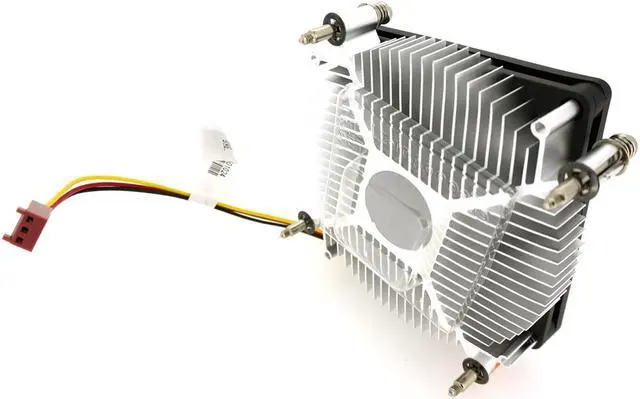

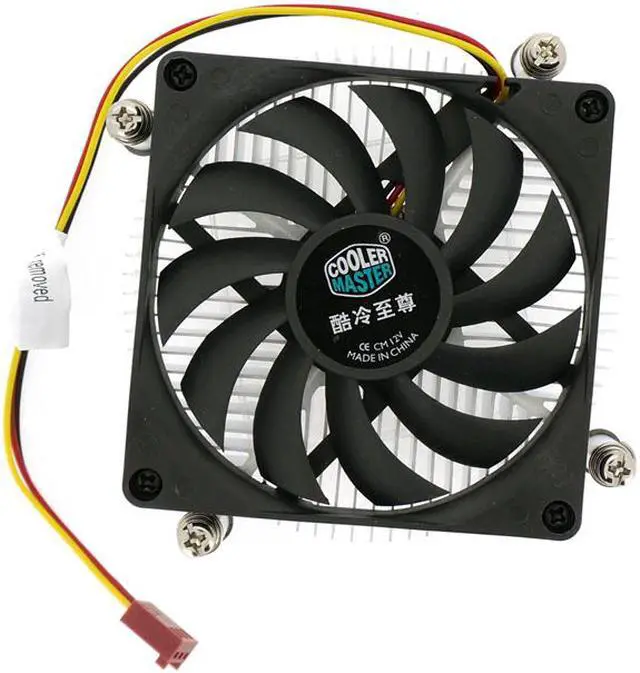

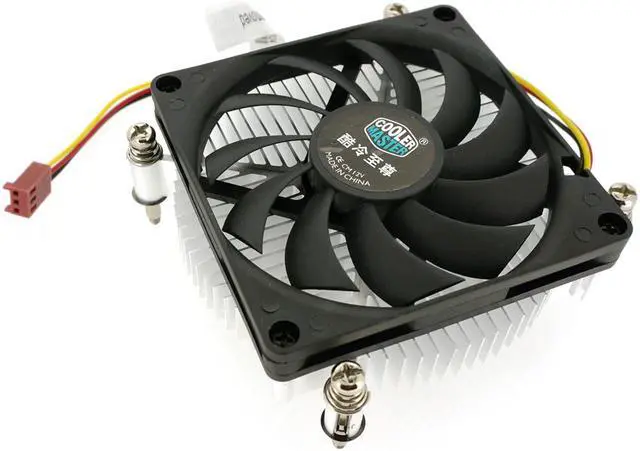

i50C is a newly designed air cooler that compatible with intel LGA 115X or 775 sockets. Compact design perfectly fits All-in-One systems or limited form factor cases. Aluminum fins stacked with copper provide excellent heat dissipation. 95mm diameter fan with long life expectancy, durable materials, strong airflow, and low noise output.
Features:
• Compatible Intel CPU Socket LGA 1150/1151/1155/1156
• Recommended for TDP ≤ 84W
• 60mm Height For All-in-one PC or 2U limited form factor cases.
• 3-pin Fan Connector with tachometer pin for motherboard BIOS with fan speed monitoring.
• Aluminum fins stacked with copper provide excellent heat dissipation.
• 95mm diameter fan with long life expectancy, durable materials, strong airflow, and low noise output.
• Thermal Grease pre-pasted on heatsink.
Specifications:
Support CPU Socket:
Intel LGA 1156 / 1155 / 1151 / 1150 / 775
•;
Overall Dimensions: 95 x 95 x 67.5 mm ( 3.7 x 3.7 x 2.6 inch)
•;
Overall Weight: 367g / 0.81 lb
Heat Sink:
•;
Heat Sink Dimensions: 90 x 90 x 35 mm ( 3.5 x 3.5 x 1.4 inch)
•;
Heat Sink Material: Aluminum Extrusion, Pressure-inserted Copper Block
Fan:
•;
Fan Dimensions: 95 x 95 x 25 mm ( 3.7 x 3.7 x 1 inch)
•;
Fan Speed: 2200RPM±10%
•;
Fan Air Flow: 39.57 CFM ± 10%
•;
Fan Air Pressure: 1.81 mm H 2 O ± 10%
•;
Fan Life Expectancy: 40, 000 hours (>4 years constant use)
•;
MTTF: 280, 000 hours
•;
Fan Noise Level: 26.7 dBA ± 10%
•;
Bearing Type: Rifle Bearing
•;
Power Connector: 3-Pin
•;
Fan Rated Voltage: 12VDC
•;
Fan Rated Current: 0.18A
•;
Power Consumption: 2.16W
Package and Contents:
• 1 x Cooling Fan

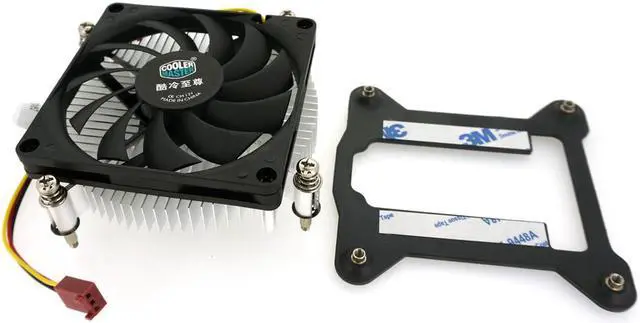

• 1 x Mounting Backplate
• Installation Instruction printed on Retail Box

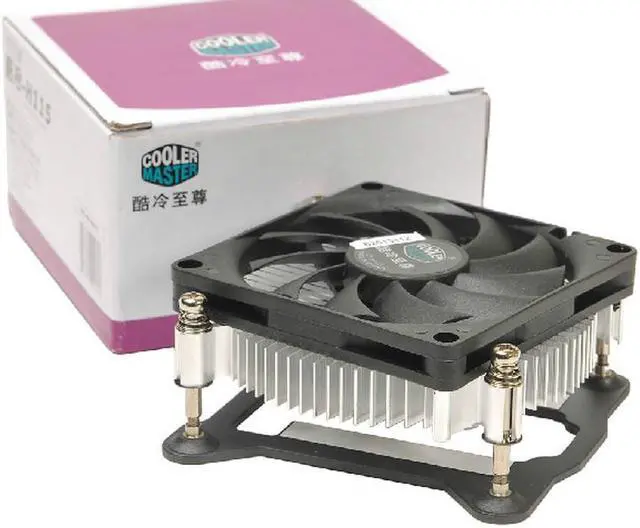

• Item in retail packaging
• Ship in well protected packing
