| Product Rating: |

|
| Total Reviews: |
17 |
Good case, no SATA on power supply
- Pros: Solid case, heavy, sturdy. Lots of fans.
5.25" bays could house a 3.5" HDD without needing brackets to bring the total potential drive capacity to 10 drives if you have no need for an internal optical drive.
- Cons: The power supply has no SATA power, was a tight squeeze to put an EATX motherboard in the case (luckily i have small fingers).
Newegg claiming this has redundant power is false, the PSU is not redundant.
- Other Thoughts: Wouldn't hesitate to buy another one, just need to order a SATA power adapter with it.
SuperO quality

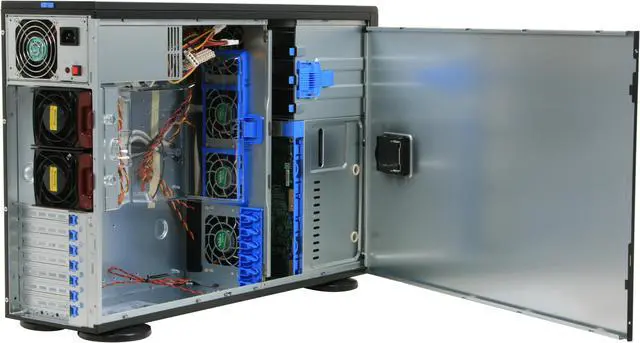

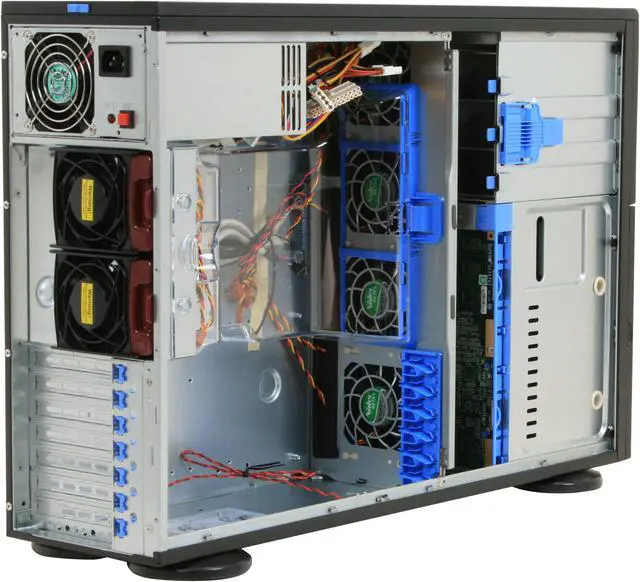

- Pros: - MASSIVE airflow

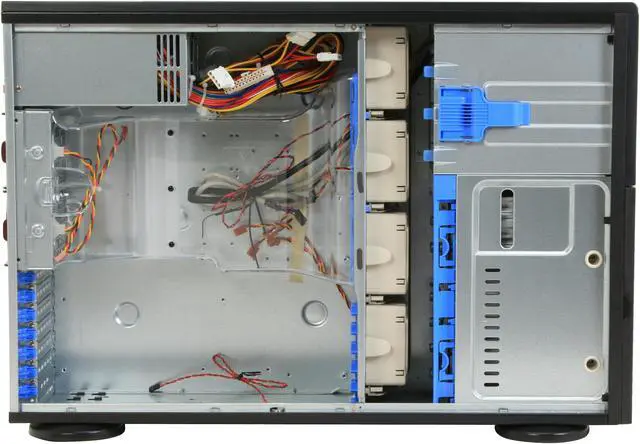

- easy to manage wiring and drives
- air duct keeps memory/CPUs cool
- did I mention MASSIVE airflow!
- doubles as air filter for large room (clean filters often!)
- Cons: Mobo needs 6 fan headers (or Sunbeam MFPP)
NOT a suitable case for a quiet environment
Super Solid Screaming Deep Dish Goodness...
- Pros: - Very solid build quality
- Spacious
- Heavy, chunky power supply (see caveat...)
- 8 hot swap bays, included SATA backplane can be swapped for SCSI

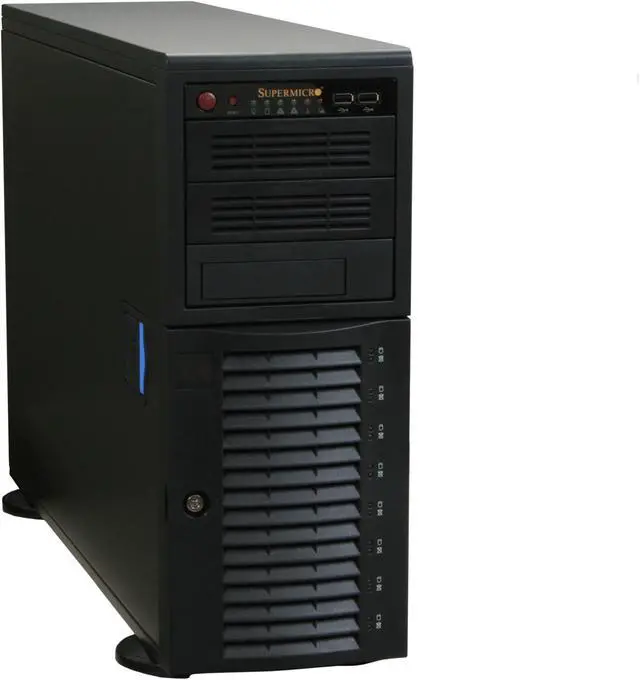

- Copious front panel LEDs
- Lockable front panel
- Support for passive CPU heatsinks via fan hood
- Cons: - Very sparse documentation with no explanations of some headers or disassembly processes
- Other Thoughts: These things were cons in my case, but are things I can't fault the product for. You should likely keep these factors in mind, however. I used this case for a Core i7 based workstation. For servers these are less relevant.
- The fans are ***unbelievably*** loud. There are *6* *5000 RPM* fans in this beast. This provides a phenomenal amount of cooling, amd the fans are all 4 pin PWM controlled, but you'll need something like part# N82E16811999171 to make this thing in to a friendly desk-side companion. At 10% duty cycle this thing'll support 4 HDDs, a GeForce 260, 6 memory modules and an overclocked Core i7 running Prime95 in a 70F degree room for hours and hours.
This case is very, very deep. This may be a problem for some on size grounds, but for me the major consideration was the reach of certain internal cables. Specifically, I spec'd a front panel card reader, audio jacks and USB/Firewire device. While I certainly blame the card reader I think its cables would have been
| Model |
| Brand |
SUPERMICRO |
| Model |
CSE-743T-650B |
| Spec |
| Color |
Black |
| Motherboard Compatibility |
12" x 13" E-ATX |
| Form Factor |
4U |
| Power Supply |
650W Redundant |
| Expansion |
| External 5.25" Drive Bays |
2x 5.25" Peripheral Drive Bay
1x 5.25" Bay For Floppy Drive |

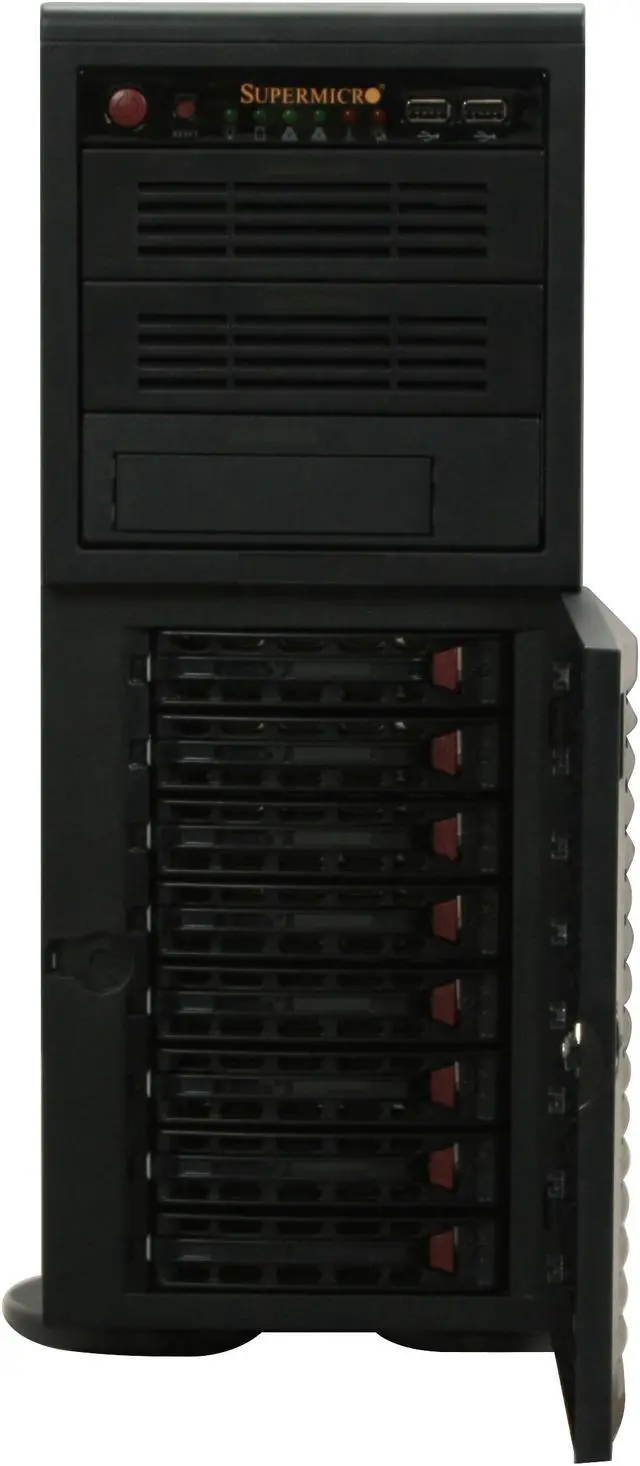

| Hot-Swap Drive Bays |
8 |
| Expansion Slots |
7 |
| Front Ports |
| Front Ports |
USB |
| Cooling System |
| 80mm Fans |

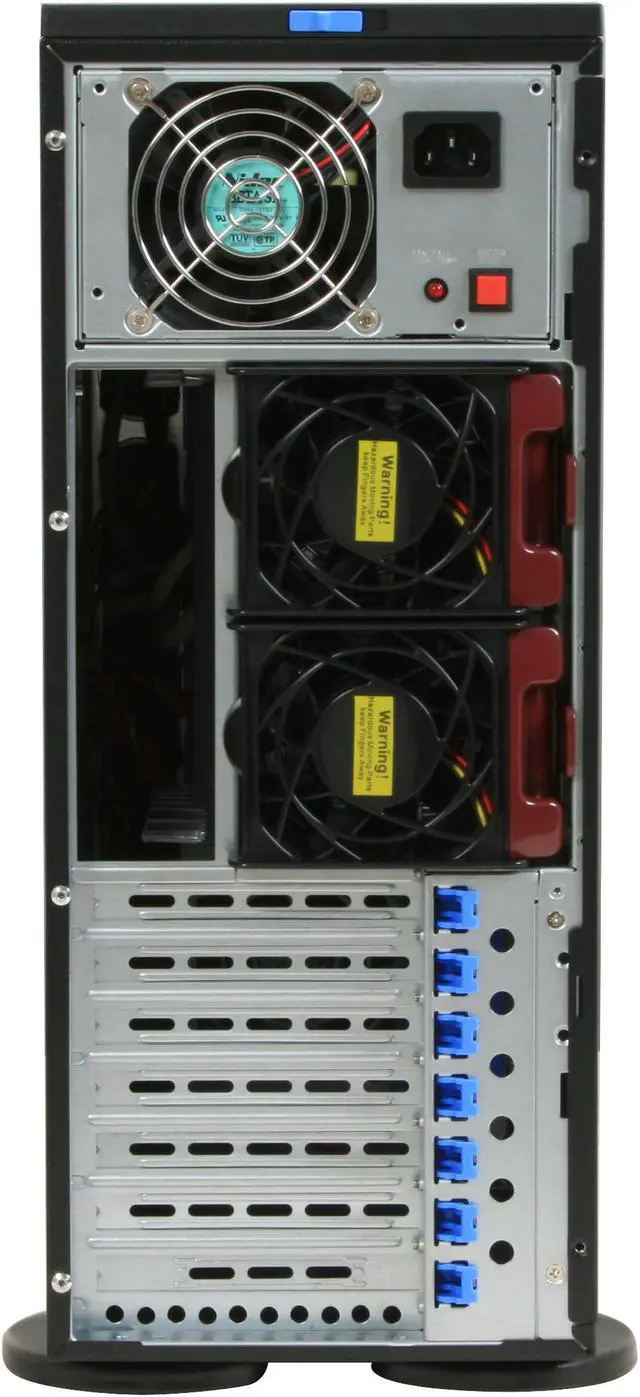

4x 5000 RPM Hot-swappable PWM Cooling Fans, 2x 5000 RPM Rear Exhaust Fan |
| Physical Spec |
| Dimensions(L x W x H) |
7" x 17.2" x 25.5" |
| Features |
| Features |

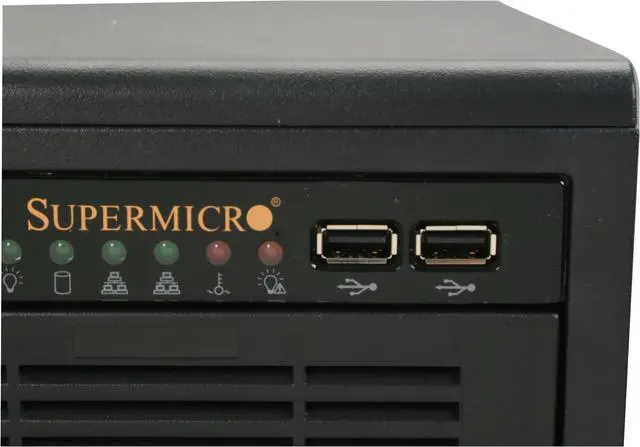

2x Front USB Ports
Locking Bezel with Filter
Power Switch, Reset Switch & 6 LED Indicators |
| Packaging |

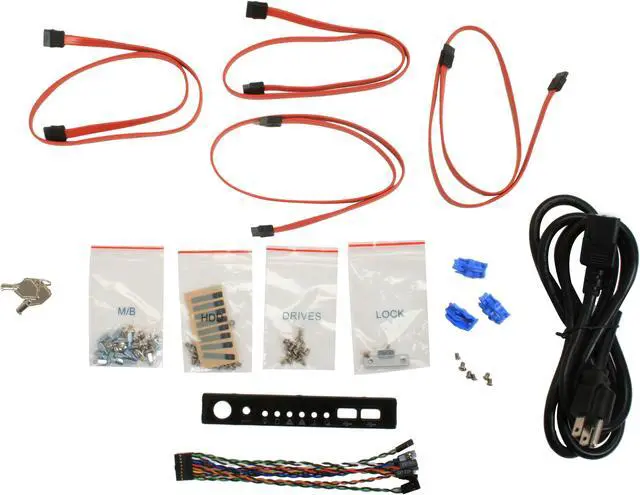

| Package Contents |
CSE-743T-650B
4 x SATA Cable
Power Cord
Screws
Keys
Other Accessories |
|
|
Reviewed By: on 6/8/2009
Tech Level: high - Ownership: 1 day to 1 week
