Coboc HM-SPL-4KUP-1X2 2 Ports 1 in 2 out 4K2K HDMI Scaler splitter w/4K2K,1080P,3D HDCP Supports - Up & Down Scaling 1080P and UHD 4K at 24/25/30fps input.
- 1 x 2 Ports HDMI Scaler Splitter
- 4K2K and 1080P
- Up Scaling 1080P@24/25/30fps to 4K x 2K
- Down Scaling 4K@24/25/30fps to 1080p
- Two Display Output the Highest Supported Resolution
Overview
Specs
Reviews (3)
Any questions? Our AI beta will help you find out quickly.
Try me now
The Coboc HM-SPL-4KUP-1X2 is a high-performance HDMI scaler splitter with three HDMI ports (one input and two outputs). It supports two output modes – bypass mode and scaler mode*.
Most importantly, it boasts the ability of HDMI singal Up & Down scaling. It can upscale 1080p@24Hz signal to UHD 4K @30fps resolutions, and downscale 4K2K signal to 1080p@24Hz to compatible HD/4K monitors simultaneously via an HDMI cable. It also supports 3D video output. You’ll enjoy superior video quality. Plus, it’s compliant with HDCP.
Note: *In scaler mode, make sure that the HDMI output of your source defaults to or can be set to refresh rate at 24/25/30Hz.

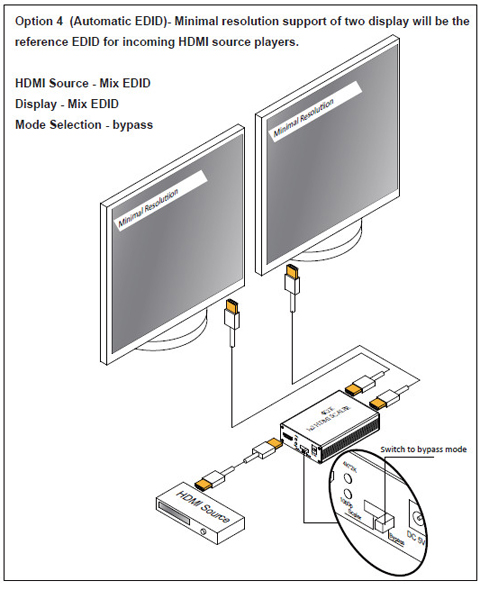

Two output modesThis device incorporates two output modes. In bypass mode, it reads and mixes all sources and displays EDID information, and outputs the highest resolution that all sources and displays support. In scaler mode, it reads and analyzes the EDID information from two displays simultaneously, realizes the handshake of displays individually, and outputs the highest supported resolution between sources and displays, ensuring maximum compatibility in any system.

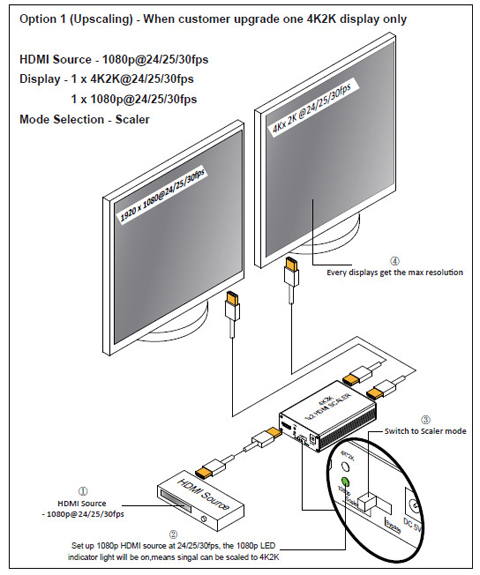

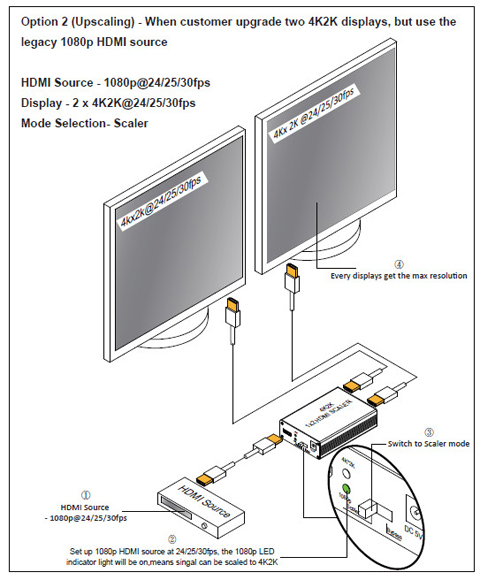

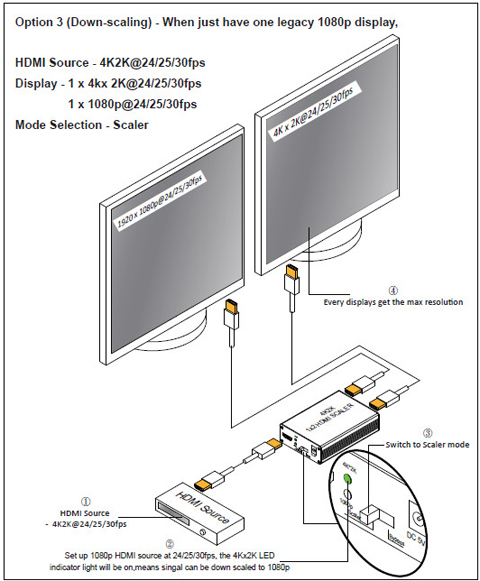

High resolution supportThe ability of HDMI signal Up & Down scaling is a crucial function when working with 1080P or 4K sources in a complex AV system and distributing the HDMI source to multiple displays which have varying resolution support. When user upgrades 4K display in the AV system, this device can function as an HDMI up-scaler to automatically integrate a 1080P@24/25/30Hz source into 4K x 2K at corresponding refresh rate. When users upgrade 4K source in the AV system, it can be used as HDMI down-scaler to automatically integrate a 4K2K@24/25/30 source into 1080P at corresponding refresh rate.
Two output modesThis device incorporates two output modes. In bypass mode, it reads and mixes all sources and displays EDID information, and outputs the highest resolution that all sources and displays support. In scaler mode, it reads and analyzes the EDID information from two displays simultaneously, realizes the handshake of displays individually, and outputs the highest supported resolution between sources and displays, ensuring maximum compatibility in any system.
High resolution supportThe ability of HDMI signal Up & Down scaling is a crucial function when working with 1080P or 4K sources in a complex AV system and distributing the HDMI source to multiple displays which have varying resolution support. When user upgrades 4K display in the AV system, this device can function as an HDMI up-scaler to automatically integrate a 1080P@24/25/30Hz source into 4K x 2K at corresponding refresh rate. When users upgrade 4K source in the AV system, it can be used as HDMI down-scaler to automatically integrate a 4K2K@24/25/30 source into 1080P at corresponding refresh rate.Warranty & Returns
