Item#:N82E16812197005

MASSCOOL XWT-GHQ04 IDE to SATA Convert - Retail

Image Viewer

$10.99

Special Offers: No interest for up to 12 months. Plus, New Preferred Account Customers: Save $20 off $100.
Subject to credit approval. Details; No Payments for up to 6 months. Minimum purchase required.
Subject to credit approval. Details

Manufacturer Contact Info

Return Policies

This item is covered by Newegg.com's Standard Return Policy.

Return for refund within: 30 days
Return for replacement within: 30 days
Restocking Fee: Yes

Review Summary (read all 35 Reviews, write a review)

43%

14%

31%

Product Rating:
Total Reviews:	35

Murphy Strikes Again - Fixed?

Reviewed By: Jiblet_the_EE on 11/10/2009

Tech Level: high - Ownership: 1 week to 1 month

Pros: If the unit functions, it functions well. Very compact. Inexpensive.

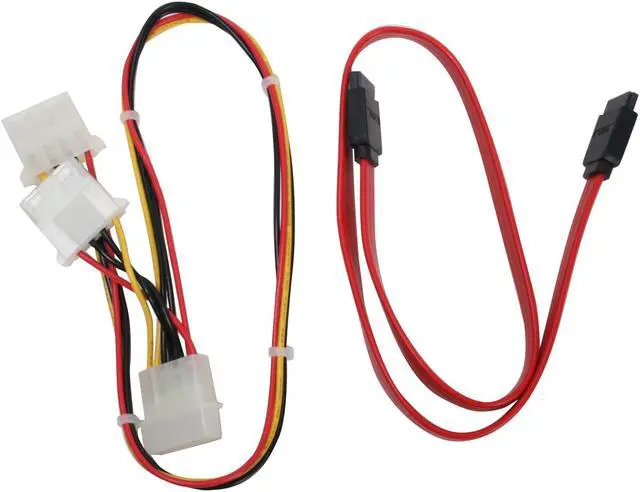

Cons: No manual. No website information. Drive LED non-functional. Wrong cable supplied. I got a IDE to FDD converter instead a Y-IDE/FDD breakout. Most power supplies have a pigtail with two 4-pin Molex connectors and an FDD connector on the end. Since newer MBs do not have FDD support the connector should be available to power the adapter.

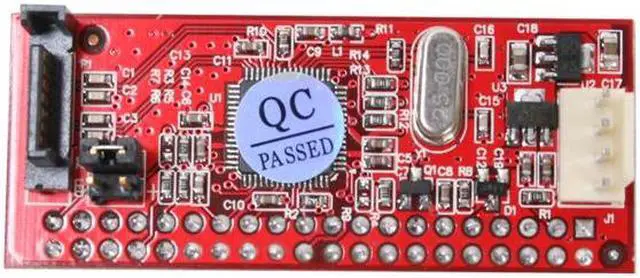

Other Thoughts: I found the problem with this unit. I had the same symptoms as KJ (10/30/09), all SATA ports taken down. I also got the system to boot occasionally, but it was extremely slow. These units are all tested in China and they probably work. When they do work, a metalized-mylar "QC passed" sticker is placed on the body of the main IC. This randomly couples pins of the IC capacitively. I removed the sticker from the IC and my unit has worked flawless since. Murphy strikes in China!

The HDD jumper position should be irrelevant, since there is no master/slave with SATA connections.

Did you find this review helpful? Yes

doesn't preform

Reviewed By: KJ on 10/30/2009

Tech Level: high - Ownership: less than 1 day

This user purchased this item from Newegg

Pros: none.

Cons: This device doesn't work. When plugged into a SATA port on the mobo it causes the computer not to recognize any sata device plugged into the PC. Made changes in the BIOS, but no effect. I will be returning these.

Did you find this review helpful? Yes

Works

Reviewed By: Lexsin on 10/19/2009

Tech Level: somewhat high - Ownership: 1 month to 1 year

This user purchased this item from Newegg

Pros: Works great, bought another one.

Cons: None

Did you find this review helpful? Yes

Model
Brand	MASSCOOL
Model	XWT-GHQ04
Spec
Type	IDE to SATA
Specifications	chipset:sil3811 IDE Drive to SATA Bus Bridge board Convert standard ATA 5 or ATA6 IDE drive mechanisms into SATA mechanisms Drive access LED connector IDE 40pin drive connector Standard 4-pin power connector
