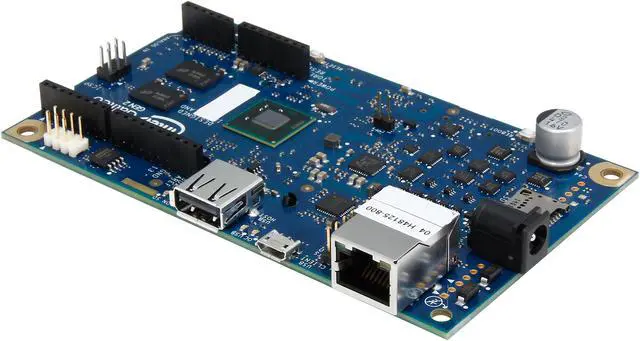

Intel Galileo2 Quark X1000 @ 400MHz PCBA Motherboard / CPU Combo
- zQuark X1000 @ 400MHz256
- 256 MByte DDR3
- 10/100 Ethernet
- MicroSD (Maximum 32 GB)
Overview
Specs
Reviews (3)
See all Q & A
Any questions? Our AI beta will help you find out quickly.
Try me now
Intel Galileo Gen 2
Overview
The 2nd generation Intel® Galileo board provides a programmable control PCB for the Maker community, students, and professional developers. Based on the Intel® Quark™ SoC X1000, a 32-bit Intel® Pentium® processor-class system on a chip (SoC), the genuine Intel® processor and surrounding native I/O capabilities of the Intel® Galileo board (Gen 2) provide a fully featured offering for a wide variety of applications.
Arduino-certified and designed to be hardware and software pin-compatible with a wide range of Arduino Uno R3 shields, the Intel® Galileo Gen 2 board also provides a simpler and more cost-effective development environment compared to the Intel® Atom™ processor- and Intel® Core™ processor-based designs.
2nd Generation Product Enhancements
The Intel Galileo board (Gen 2) delivers improved features and functionality in the following areas:
- 12 GPIOs fully native for greater speed and improved drive strength.
- 12-bit PWM for more precise control of servos and smoother response.
- 12 V Power-over-Ethernet capable.
- Power supplies from 7 V to 15 V are supported.
- Serial console UART header is compatible with FTDI USB converters.
- Console UART1 can be redirected to Arduino* headers in sketches, which can eliminate the need for soft-serial.
Arduino Uno R3*-Compatible
Getting familiar with the board and developing applications is a snap because the Intel Galileo board (Gen 2) matches the Arduino 1.0 pinout and is also software-compatible with the Arduino Software Development Environment.
Open Source Hardware
The Intel Galileo board (Gen 2) is an open source hardware design. Schematics, Cadence Allegro board files, and bill of materials (BOM) are freely available for download.
Extensive Expandability
In addition to Arduino hardware and software compatibility, the Intel Galileo board (Gen 2) includes the following industry-standard I/O ports and features:
- Full-sized mini-PCI Express* slot
- 10/100 Mbps Ethernet* RJ45 port with PoE support
- Micro-SD slot
- TTL UART 6-pin header
- USB 2.0 Host port
- USB 2.0 Client port
Target Software
Use the Arduino Software Development Environment to create programs for Galileo called "sketches." To run a sketch on the board:
- Connect power.
- Connect the board’s USB Client port to a computer.
- Upload the sketch using the IDE interface.
Intel® Galileo Gen 2 Support Model
Primary Support Provided via Online Community
- Board documentation: drivers, downloads, schematics, BOM, etc.
- Peer-to-Peer support
- Organic support content created by members of user community
- Worldwide members participating around the clock with project advice/answers/comments
- As-needed support from Intel
- Entrance to the online warranty process for end-users
- Entrance to the online 1:1 customer support as needed
Value Proposition
Combines the simplicity of Arduino development environment with performance of Intel technology and advanced capabilities of full Linux software stack.
Intel® Galileo Gen 2 is the latest in a line of development platforms from Intel. It combines the simplicity of the Arduino development environment with performance of Intel technology and advanced capabilities of full Linux software stack.
Compare
| Galileo | Galileo Gen 2 | |
|---|---|---|
| Physical | ||
| 2Form Factor | 6-Layer PCBA (no enclosure) | 6-Layer PCBA (no enclosure) |
| Dimensions | Approx. 3.9 x 2.75 inches (100 x 70mm) | Approx. 4.8 x 2.8 inches (123.8 x 72.0mm) Uno |
| GuideArduino Compatible | mmUno R3 / Arduino 1.0 pinout (both 3.3V or 5V Shield support) |
Uno R3 / Arduino 1.0 pinout (both 3.3V or 5V Shield support) |
| Major Galileo Components | ||
| SoC | Quark X1000 @ 400MHz | Quark X1000 @ 400MHz |
| RAM | 256MByte DDR3; 512KByte embedded SRAM |
256MByte DDR3; 512KByte embedded SRAM |
| Flash Storage | 8MByte NOR Flash; 8Kbit EEPROM |
8MByte NOR Flash; 8Kbit EEPROM |
| LAN | 10/100 Ethernet (RJ-45 connector) with support for Power-over-Ethernet | 10/100 Ethernet (RJ-45 connector) with support for Power-over-Ethernet |
| PCI-E | Mini-PCI Express 1x SlotUSB | Mini-PCI Express 1x SlotUSB |
| USB | USB 2.0 Host Port (micro-USB Type B); USB 2.0 Client Port (micro-USB Type B) |
USB 2.0 Host Port (standard Type A); USB 2.0 Client Port (micro-USB Type B) |
| External Interfaces | ||
| LAN | LAN10/100 Ethernet (RJ-45 connector) with support for Power-over-Ethernet | LAN10/100 Ethernet (RJ-45 connector) with support for Power-over-Ethernet |
| PCI-E | EMini-PCI Express 1x Slot | EMini-PCI Express 1x Slot |
| USB | USB 2.0 Host Port (micro-USB Type B); USB 2.0 Client Port (micro-USB Type B) |
USB 2.0 Host Port (standard Type A); USB 2.0 Client Port (micro-USB Type B) |
| Digital I/O | 14 GPIOs w prog interrupts (including 6 PWM) | 20 Improved speed (12 fully native; 6 PWM) |
| Analog In | 6 – AD converter | 6 – improved AD converter |
| UART | RS-232 UART Port, 3.5mm jack | 2 Controllers (UART 0 to Arduino headers 0, 1; UART 1 to 6-pin 3.3V USB TTL FTDI header; optionally directed to Arduino 2,3) |
| I2C | 1 Master (to Arduino headers) | 1 Master (to Arduino headers) |
| SPI | 1 Master (to Arduino headers) | 1 Master (to Arduino headers) |
| SD Card | MicroSD (Maximum 32GB) | MicroSD (Maximum 32GB) |
| JTAG | 10-pin connector | 10-pin connector |
| PWM | 6 (8-bit) | 6 (improved 12 bit) |
| NOR Flash | 7-pin connector for ext. programmer | 7-pin connector for ext. programmer |
| RTC Battery | 2-pin header 2 | 2-pin header 2 |
| Firmware + Software | ||
| Supported OS | Yocto 1.4 - Poky Linux | Yocto 1.4 - Poky Linux |
| Supported Hosts | Mac OS X, Windows, Linux | Mac OS X, Windows, Linux |
| Development System | Arduino IDE customized for Galileo | Arduino IDE customized for Galileo |
| User Programs | Arduino Sketches; full Linux access | Arduino Sketches; full Linux access |
| Power | ||
| Input (DC) | Power Adapter (5VDC only) | Power Adapter (7V – 15VDC) |
| Input (PoE) | none | Power-over-Ethernet support with user-supplied PoE module installation |
| Inbox | ||
| Development Board | Intel Galileo | Intel Galileo Gen 2 |
| Power Supply | International, 5VDC | International, 12VDC |
| Documentation | Safety & Regulatory flyer | Safety & Regulatory flyer |
