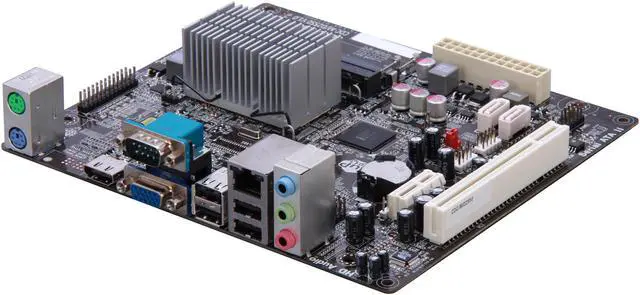

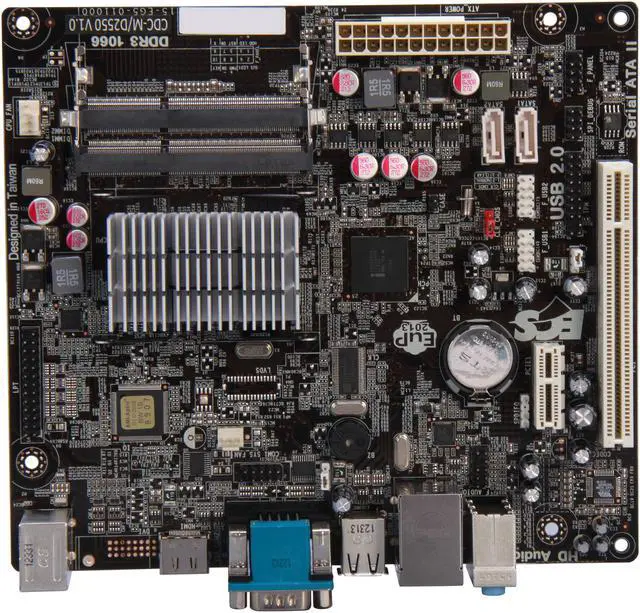

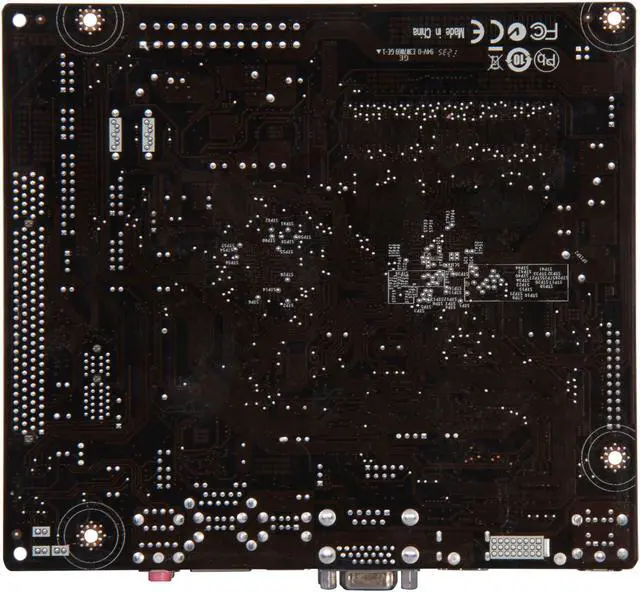

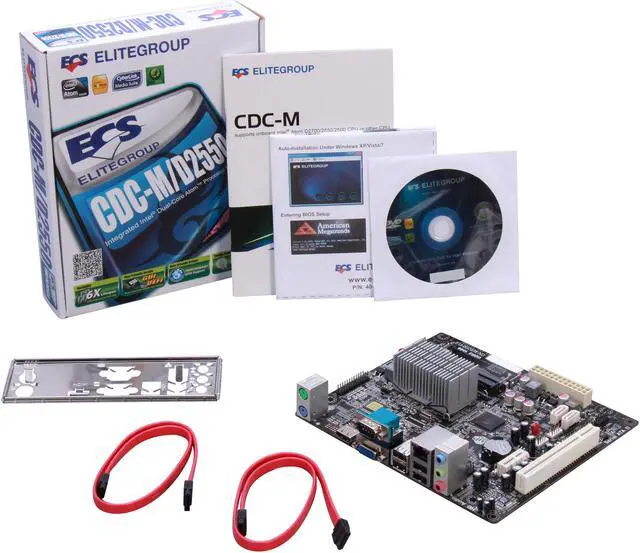

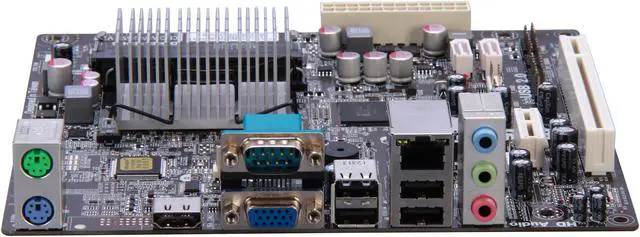

ECS CDC-M/D2550(1.0) Intel Atom D2550 Intel NM10 Micro ATX Motherboard / CPU / VGA Combo
- Intel Atom
- DDR3 1066
- Intel GMA 3650
Specs
Reviews (4)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the ECS (EliteGroup) CDC-M/D2550(1.0)
| Brand | ECS |
|---|---|
| Model | CDC-M/D2550(1.0) |
| Combo Type | Motherboard / CPU / VGA Combo |
| CPU | Intel Atom D2550 |
|---|
| CPU Type | Intel Atom |
|---|
| North Bridge | Intel NM10 |
|---|
| Number of Memory Slots | 2x204pin SO-DIMM |
|---|---|
| Memory Standard | DDR3 1066 |
| Maximum Memory Supported | 4GB |
| PCI Express x1 | 1 x PCI Express x1 |
|---|---|
| PCI Slots | 1 x PCI Slot |
| SATA | 2 x SATA 3.0Gb/s |
|---|
| Onboard Video Chipset | Intel GMA 3650 |
|---|
| Audio Channels | 6 Channels |
|---|
| Max LAN Speed | 100Mbps |
|---|
| PS/2 | 1 x PS/2 keyboard/mouse port |
|---|---|
| Video Ports | D-Sub |
| HDMI | 1 x HDMI |
| USB 1.1/2.0 | 4 x USB 2.0 |
| Onboard USB | 4 x USB 2.0 |
|---|---|
| Other Connectors | 1 x 24-pin ATX Power Supply Connector 1 x 4-pin ATX Power Supply Connector 2 x USB 2.0 headers support additional 4 USB ports 1 x CPU_Fan Connector(4 pins smart fan) 1 x SYS_Fan connector(3 or 4 pins smart fan) 1 x Front panel switch/Led header 1 x Serial Port header 1 x Print port header 2 x Serial ATA connectors 1 x Case open header 1 x clear CMOS header 1 x S/PDIF header 1 x Buzzer |
| Form Factor | Micro ATX |
|---|---|
| Dimensions (W x L) | 7.48" x 6.69" |
| First Listed on Newegg | December 13, 2012 |
|---|
