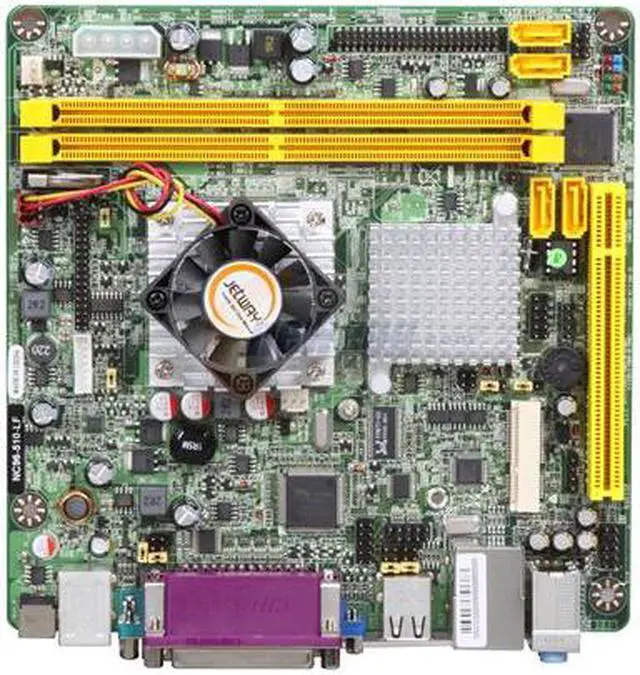

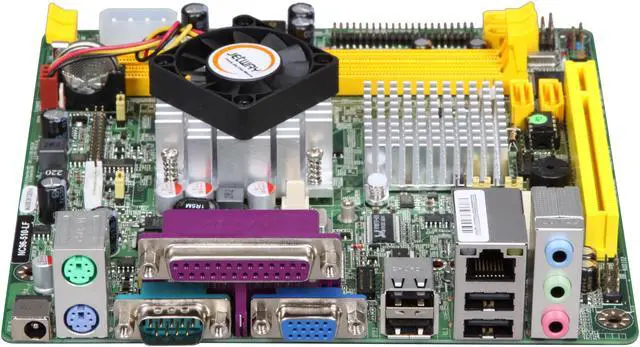

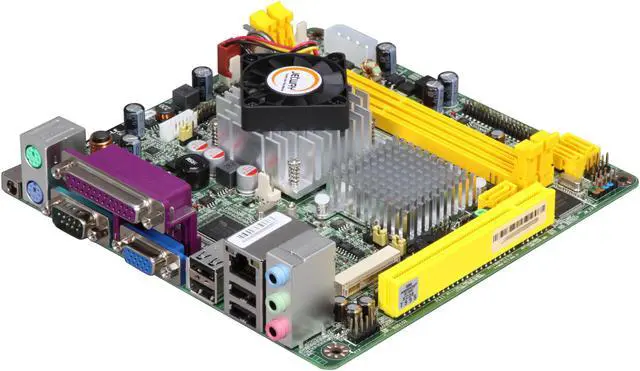

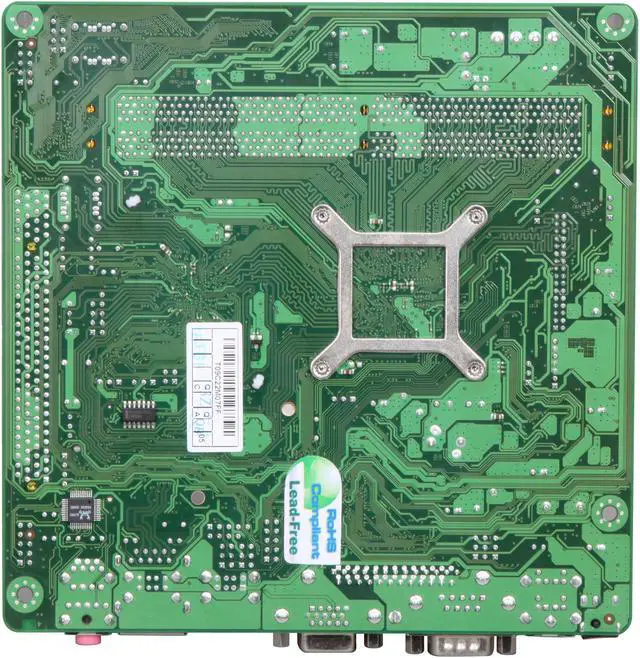

JetWay JNC96-510-LF Intel Atom D510 Intel NM10 Mini ITX Motherboard / CPU Combo
- Intel Atom
- DDR2 800/667
- Intel GMA 3150
Specs
Reviews (3)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the JETWAY JNC96-510-LF
| Brand | JetWay |
|---|---|
| Model | JNC96-510-LF |
| Combo Type | Motherboard / CPU Combo |
| CPU | Intel Atom D510 |
|---|---|
| With Cooler | Yes |
| CPU Type | Intel Atom |
|---|---|
| FSB | 667MHz |
| North Bridge | Intel NM10 |
|---|
| Number of Memory Slots | 2x240pin |
|---|---|
| Memory Standard | DDR2 800/667 |
| Maximum Memory Supported | 4GB |
| Channel Supported | Dual Channel |
| PCI Slots | 1 x PCI Slot |
|---|---|
| Mini Card Slots | 1 x Mini PCIe |
| PATA | 1 x ATA 100 2 Dev. Max |
|---|---|
| SATA | 4 x SATA 3.0Gb/s |
| SATA RAID | 0/1/0+1 JBOD |
| Onboard Video Chipset | Intel GMA 3150 |
|---|
| Audio Chipset | Realtek ALC662 |
|---|---|
| Audio Channels | 6 Channels |
| LAN Chipset | Realtek 8111DL |
|---|---|
| LAN Speed | 10/100/1000Mbps |
| Max LAN Speed | 1Gbps |
| PS/2 | 2 |
|---|---|
| COM | 1 |
| LPT | 1 |
| Video Ports | D-Sub |
| USB 1.1/2.0 | 4 x USB 2.0 |
| Audio Ports | 3 Ports |
| Onboard USB | 3 x USB 2.0/1.1 headers for 6 USB 2.0 ports |
|---|
| Form Factor | Mini ITX |
|---|---|
| Dimensions (W x L) | 6.7" x 6.7" |
| First Listed on Newegg | January 26, 2010 |
|---|
