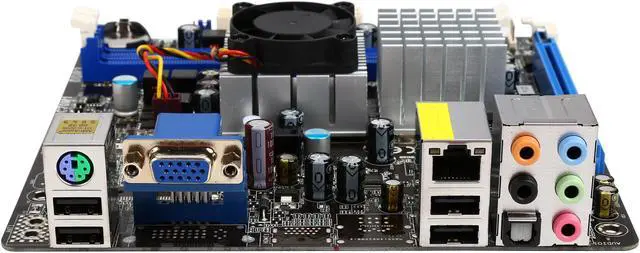

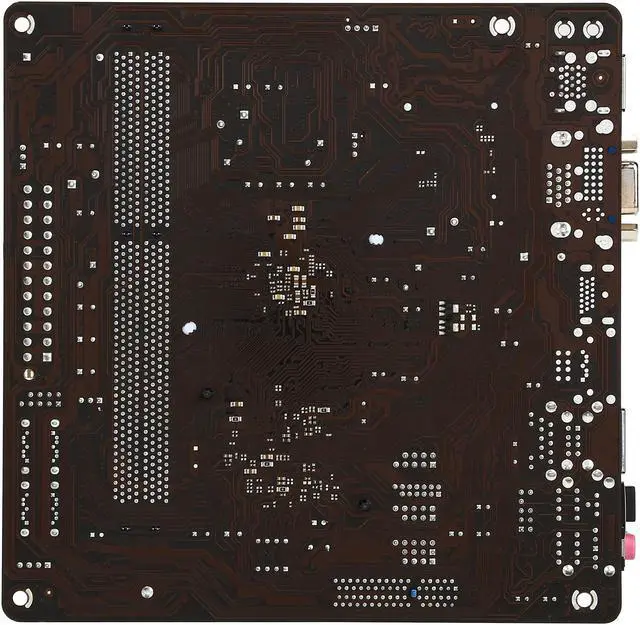

ASRock C70M1 AMD Dual-Core Ontario C-70 APU Supports AMD's Cool 'n' Quiet Technology UMI 2.5 GT/s AMD A50M Mini ITX Motherboard / CPU / VGA Combo
- DDR3 1333(OC)/ 1066/ 800 non-ECC, un-buffered
- Integrated AMD Radeon HD 6290 graphics DX11 class iGPU, Pixel Shader 5.0 Max. shared memory 512MB Supports D-Sub with max. resolution up to 2560x1600 @ 60Hz
Learn more about the ASRock C70M1
| Brand | ASRock |
|---|---|
| Model | C70M1 |
| Combo Type | Motherboard / CPU / VGA Combo |
| CPU | AMD Dual-Core Ontario C-70 APU Supports AMD's Cool 'n' Quiet Technology UMI 2.5 GT/s |
|---|
| North Bridge | AMD A50M |
|---|
| Number of Memory Slots | 2x240pin |
|---|---|
| Memory Standard | DDR3 1333(OC)/ 1066/ 800 non-ECC, un-buffered |
| Maximum Memory Supported | 16GB |
| PCI Express x16 | 1 x PCI Express 2.0 x16 Slot (PCIE1 @ x4 mode) |
|---|
| SATA | 4 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug |
|---|
| Onboard Video Chipset | Integrated AMD Radeon HD 6290 graphics DX11 class iGPU, Pixel Shader 5.0 Max. shared memory 512MB Supports D-Sub with max. resolution up to 2560x1600 @ 60Hz |
|---|
| Audio Chipset | Realtek ALC887 |
|---|---|
| Audio Channels | 7.1 Channels |
| LAN Chipset | Realtek 8111E |
|---|---|
| LAN Speed | 10/100/1000Mbps |
| PS/2 | 1 x PS/2 keyboard/mouse port |
|---|---|
| Video Ports | 1 x VGA Port |
| USB 1.1/2.0 | 4 x USB 2.0 |
| S/PDIF Out | 1 x Optical |
| Audio Ports | HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone |
| Onboard USB | 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) |
|---|---|
| Other Connectors | 1 x CIR Header 1 x COM Port Header 1 x CPU Fan Connector (3-pin) 2 x Chassis Fan Connectors (1 x 4-pin, 1 x 3-pin) 1 x 24 pin ATX Power Connector 1 x Front Panel Audio Connector |
| Features | AMD Dual-Core Ontario C-70 APU Supports DDR3 1333(OC), 2 DIMM slots, Max. capacity up to 16GB Integrated AMD Radeon HD 6290 graphics, DX11 class iGPU, Pixel Shader 5.0 1 x PCI Express 2.0 x16 slot 4 x SATA3, 8 x USB 2.0 (4 Front, 4 Rear) 7.1 CH HD Audio (Realtek ALC887 Audio Codec) Supports ASRock XFast RAM, XFast LAN, OMG, Dehumidifier, UEFI System Browser BIOS: 32Mb AMI UEFI Legal BIOS with GUI support Supports "Plug and Play" ACPI 1.1 Compliant wake up events Supports jumperfree SMBIOS 2.3.1 support DRAM, FCH, +1V, +1.8V Voltage multi-adjustment Unique Feature: ASRock Instant Boot ASRock Instant Flash ASRock APP Charger ASRock XFast LAN ASRock XFast RAM ASRock Crashless BIOS ASRock OMG (Online Management Guard) ASRock Internet Flash ASRock UEFI System Browser ASRock Dehumidifier Function ASRock Fast Boot ASRock Restart to UEFI Hybrid Booster: - ASRock U-COP - Boot Failure Guard (B.F.G.) Good Night LED Support CD: Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar Hardware Monitor: CPU temperature sensing Chassis temperature sensing CPU Fan Tachometer Chassis Fan Tachometer CPU Quiet Fan (Auto adjust chassis fan speed by CPU temperature) CPU/Chassis Fan multi-speed control Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore Certifications: FCC, CE, WHQL ErP/EuP ready (ErP/EuP ready power supply is required) |
|---|
| Form Factor | Mini ITX |
|---|

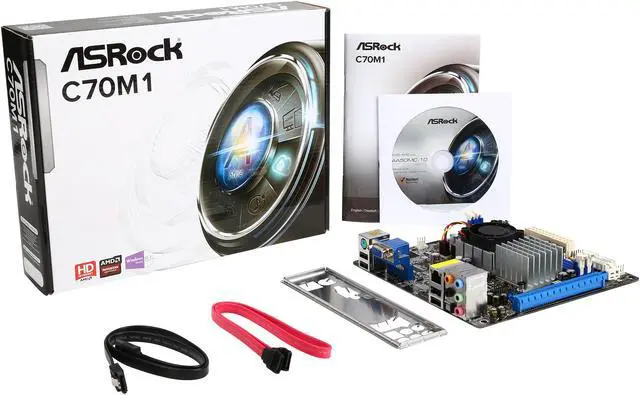

| Package Contents | Accessories: Quick Installation Guide, Support CD, I/O Shield 2 x SATA Data Cables |
|---|
| First Listed on Newegg | April 29, 2015 |
|---|
