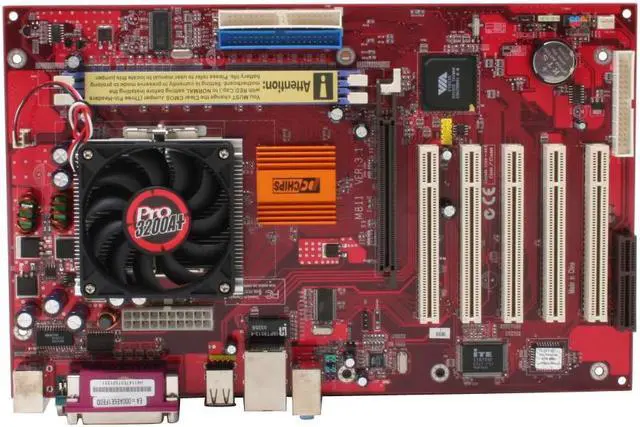

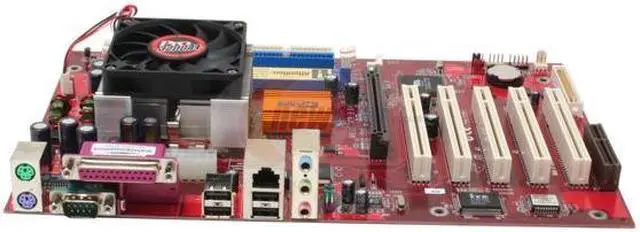

PC CHIPS M811LU (V3.1)(Pro3200A+) AMD Athlon 2200+ A (462) VIA P4M266A ATX
- Athlon XP/Athlon/Duron
- DDR 333
- None
Specs
Reviews (63)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the PCCHIPS M811LU (V3.1)(Pro3200A+)
| Brand | PC CHIPS |
|---|---|
| Model | M811LU (V3.1)(Pro3200A+) |
| CPU | AMD Athlon 2200+ |
|---|---|
| With Cooler | Yes |
| CPU Socket Type | A (462) |
|---|---|
| CPU Type | Athlon XP/Athlon/Duron |
| FSB | 266/200 MHz |
| North Bridge | VIA P4M266A |
|---|---|
| South Bridge | VIA VT8235 |
| Number of Memory Slots | 2x184pin |
|---|---|
| Memory Standard | DDR 333 |
| Maximum Memory Supported | 2GB |
| AGP Slots | 1 x AGP 4X |
|---|---|
| PCI Express x16 | None |
| PCI Slots | 5 x PCI Slots |
| Other Slots | 1 x CNR |
| PATA | 2 x ATA 100 4 Dev. Max |
|---|
| Onboard Video Chipset | None |
|---|
| Audio Chipset | VIA VT1612A |
|---|---|
| Audio Channels | 2 Channels |
| LAN Chipset | VIA VT6103 |
|---|---|
| LAN Speed | 10/100Mbps |
| Max LAN Speed | 100Mbps |
| PS/2 | 2 |
|---|---|
| COM | 1 |
| LPT | 1 |
| USB 1.1/2.0 | 4 x USB 2.0 |
| Audio Ports | 3 Ports |
| Onboard USB | 1 x USB 2.0 connector supports 2 ports |
|---|
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12.0" x 7.5" |

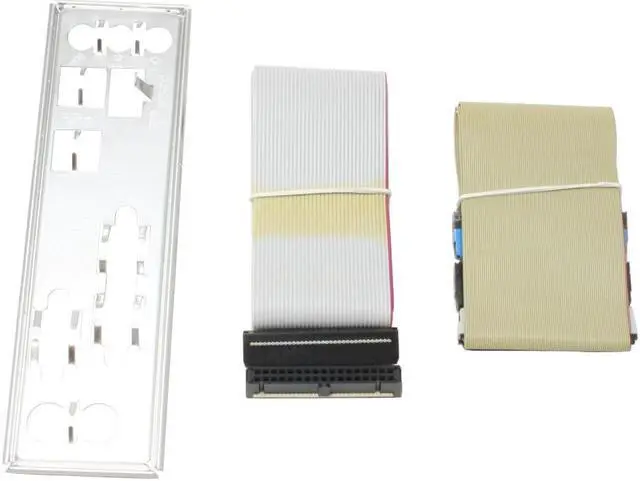

| Package Contents | M811LU (V3.1)(Pro3200A+) User Manual Driver Disk Rear I/O Panel Shield IDE/PATA Cable FDD Cable |
|---|
| First Listed on Newegg | October 13, 2006 |
|---|
