Item#: N82E16815150216

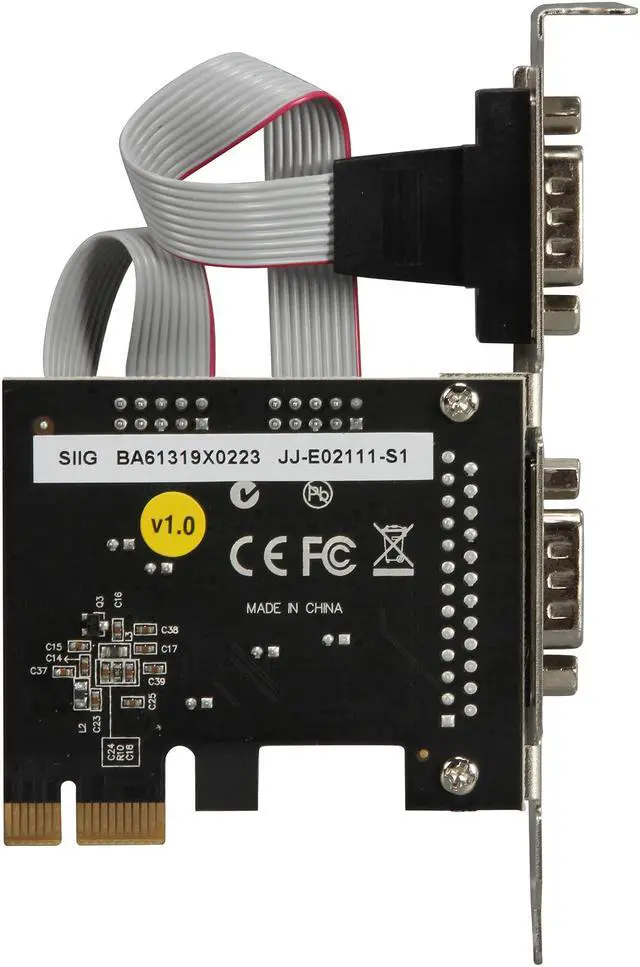

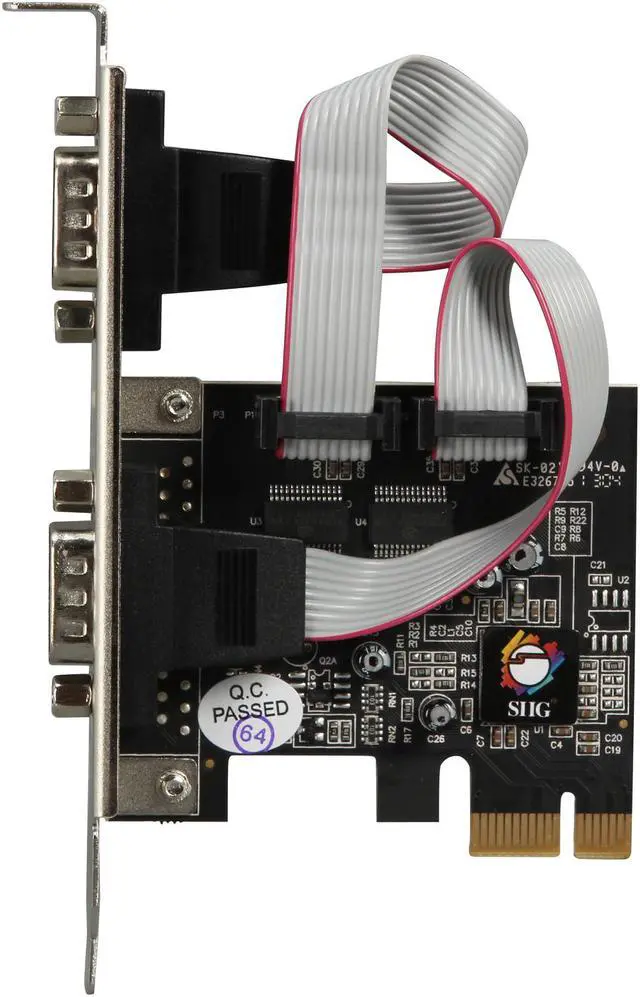

SIIG 2-Port RS232 Serial PCIe with 16950 UART Model JJ-E02111-S1

Sold and Shipped by Newegg

Purchases from these Sellers are generally covered under our Newegg Marketplace Guarantee.
Marketplace Seller
  • PCI Express to Serial Port Card
  • Up to 230Kb/s Data Transfer Rate

LOADING... LOADING...
  • Overview
  • Specifications
  • Warranty & Returns
  • Reviews

SIIG's 2-Port RS232 Serial PCIe with 16950 UART adapter card is designed to add two 9-pin RS232 serial PCI ports to your desktop computer. This PCI Express serial adapter features two high-speed 16950 UART serial ports with 128-byte FIFO buffer to support data transfer rates up to 230Kb/s. Additionally, this serial adapter works in any PCI Express slot of different lane widths. The 2-Port RS232 Serial PCIe with 16950 UART is the smart and cost effective solution to add two RS232 serial ports for additional serial port device connections.

The 2-Port RS232 Serial PCIe with 16950 UART is fully compliant with PCI Express Specification, Revision 1.1, is FCC and CE approved, and RoHS compliant. It is fully compatible with a wide variety of Windows operating systems and is backed by SIIG's limited 2-year warranty.


Learn more about the SIIG, Inc JJ-E02111-S1

Model

|
Brand
SIIG
Model
JJ-E02111-S1

Details

|
Type
PCI Express to Serial Port Card
External Ports
2 x Serial Ports
Data Transfer Rate
Up to 230Kb/s
Operating Systems Supported
Windows 7 (32-/64-bit) / Vista (32-/64-bit) / XP (32-/64-bit) / Server 2003 & 2008 (32-/64-bit) / Server 2008 R2 / 2000
Specifications
Compliant with PCI Express Base Specification, Revision 1.1

Chipset: Oxford OXPCIe952

Built-in 128-byte FIFO buffers dramatically increase data transmit/receive speed under windows multitasking environment

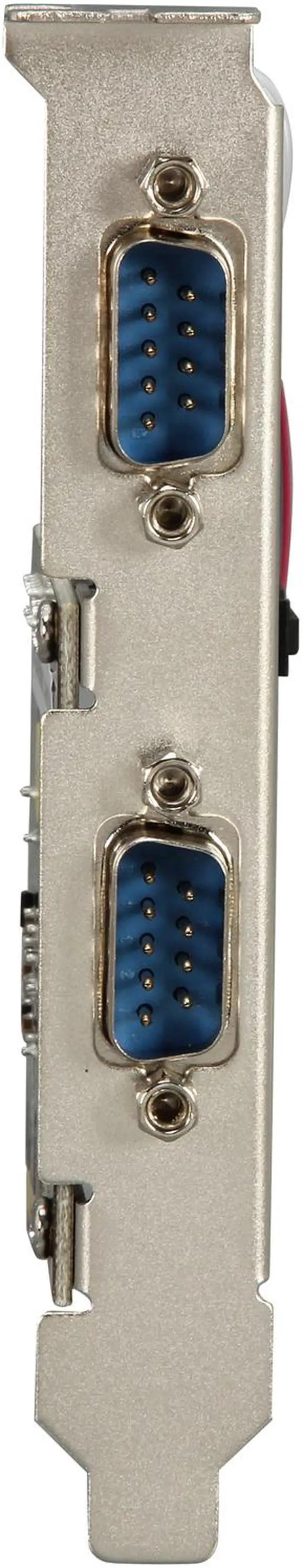

Ports: 2, 9-Pin, DB9, RS232, Serial, Male, External

Cerifications/Standards: FCC, CE, RoHS

Features

|
Features
Installs in any available PCI Express slot

Two high-speed 16950 UART serial ports with 128-byte FIFO buffers

Installs in standard height or low profile chassis with included brackets

Dimensions & Weight

|
Dimensions
4.72" x 2.9" x 0.71"
Weight
0.125 lbs.

Packaging

|

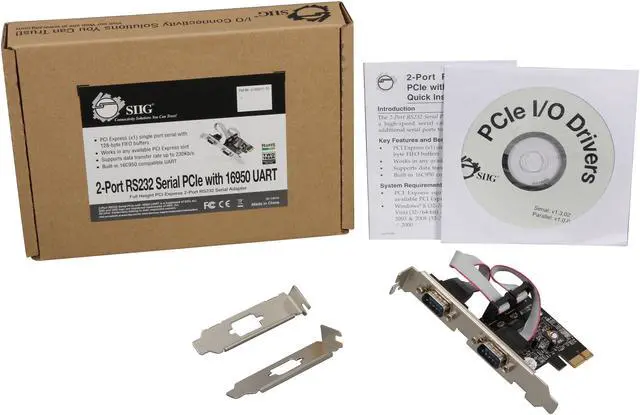

Package Contents
2-Port RS232 Serial PCIe with 16950 UART

2x Spare low profile bracket for low profile chassis

Driver CD

User's manual
