Item#: N82E16815166026

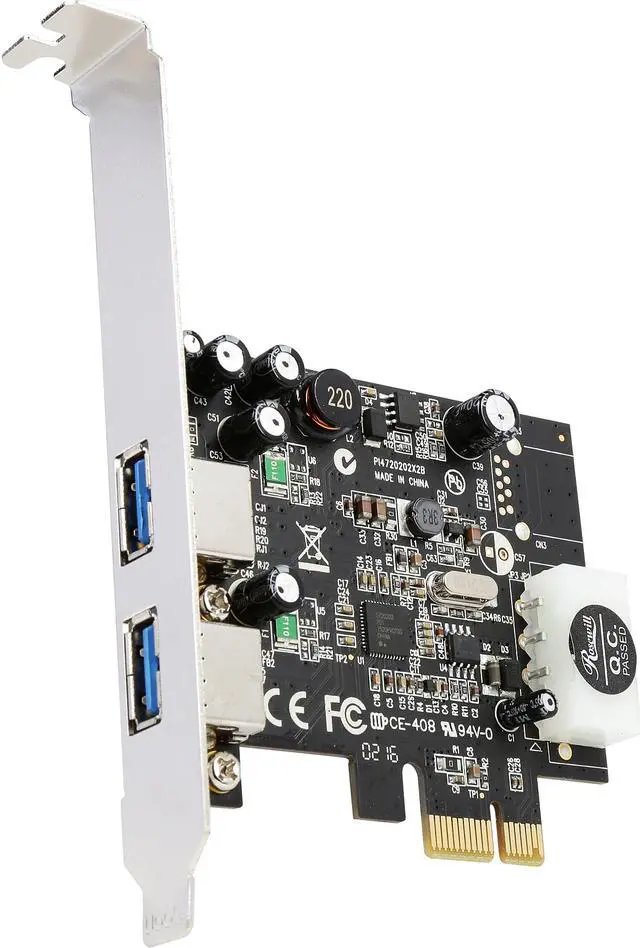

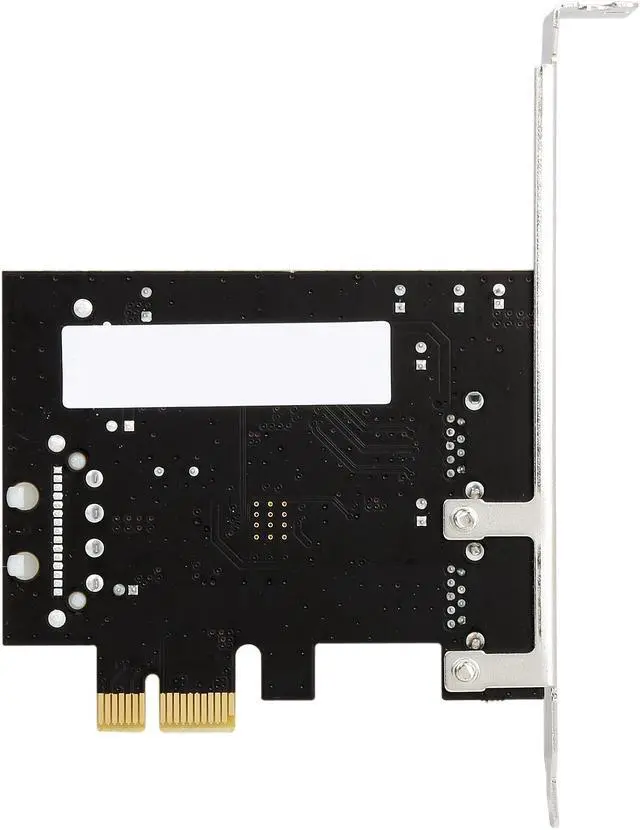

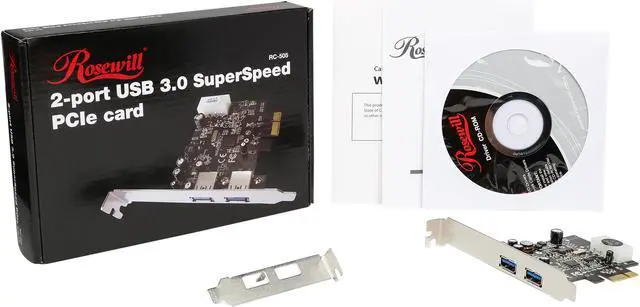

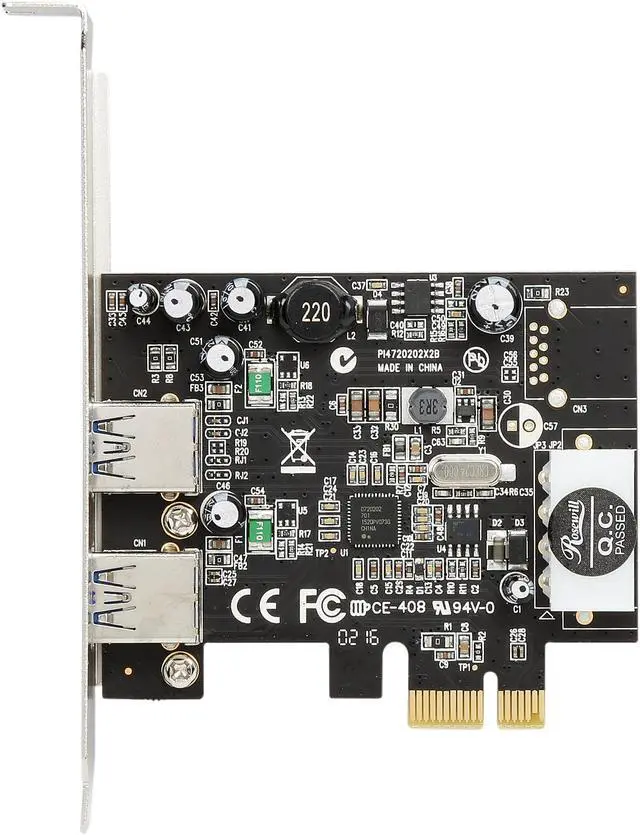

Rosewill RC-505 - 2-Port USB 3.0 PCI Express Card

  • Up to 5.0 Gbps Data Transfer Rate
  • PCI Express to USB Card
  • USB 3.0
IronEgg
BUY WITH CONFIDENCE
This product qualifies for the Iron Egg guarantee. We'll match any qualifying competitor's price.
  • Pin It
  • Email this page
ICON Loading...

Easily add two USB 3.0 ports to your computer. Rosewill’s PCI-e USB 3.0 solution, the RC-505, provides ultra-fast data transfers at up to 5 Gbps to address the needs of higher performance connections between the PC and increasingly sophisticated peripherals. USB 3.0 is backward compatible with USB 1.0, 1.1, & 2.0 devices and is fully plug-n-play and hot swap compatible. The RC-505 is a great way to take advantage of the latest USB 3.0 data transfer technology.

  • newegg PCI Express USB 3.0 Solution The Rosewill RC-505 uses one free PCI Express slot to provide two USB 3.0 ports. With up to transfer rates 5 Gbps maximum, the RC-505 offers an ideal connection for digital cameras, scanners, printers, external CD / DVD / Blu-ray writers, hard disk drives, flash memory drives, etc. It is also backward compatible with USB 2.0 and USB 1.1 devices. The Rosewill RC-505 supports simultaneous operation of multiple USB 3.0, USB 2.0 and USB 1.1 devices.
  • newegg External Power Connector The RC-505 has a 4-pin power connector built-in for added power source to better support power hungry bus-powered devices.

Learn more about the Rosewill RC-505

Model

Brand
Rosewill
Model
RC-505

Details

Type
PCI Express to USB Card
External USB Ports
2 x USB 3.0 Ports
Standard
USB 3.0
Data Transfer Rate
Up to 5.0 Gbps
Operating Systems Supported
Windows XP/Vista/7/8 (32/64 bit)
Specifications
Chipset: uPD720200A

Features

Features
Fully compliant with PCI Express Base Specification Revision 2.0
Single-lane (x1) PCI Express throughput rates up to 5 Gbps
Compliant with Universal Serial Bus 3.0 specification Revision 1.0
Supports simultaneous operation of multiple USB 3.0, USB 2.0 and USB 1.1 devices
Supports the following speed data rates as follows:
Low-speed (1.5Mbps) / Full-speed (12Mbps) / High-speed (480Mbps) / Super-speed (5Gbps)
Supports 2 downstream ports for all speeds
Built-in 4-pin power connector for receiving extra power supply from system
Hot-swapping feature allows you to connect/disconnect devices without powering down the system

Manufacturer Warranty

Parts
1 year limited
Labor
1 year limited

Quick Info

Warranty

  • Limited Warranty period (parts): 1 year
  • Limited Warranty period (labor): 1 year


Customer Reviews of the Rosewill RC-505

Do you own this product? Write a Review

ICON Loading...

Filter Results

Go
  • Justin J.
  • 5/17/2015 1:08:01 PM
  • Tech Level: High
  • Ownership: 1 week to 1 month
  • Verified Owner

5 out of 5 eggsCheap, works.

Pros: • Low, if not lowest, price for such an item
• Minuscule form factor
• Works @ USB 3.0 speed

Cons: • I doubt there will be software updates for future versions of windows

Other Thoughts: Cheap and works.

Will update if needed but generally items such as this are either DOA or work forever so I doubt that will happen.

Did you find this review helpful? Yes No

  • Matthew H.
  • 3/31/2015 7:09:38 PM
  • Tech Level: High
  • Ownership: 1 month to 1 year
  • Verified Owner

5 out of 5 eggsRosewill RC-505

Pros: Works like it should.

Cons: None so far.

Other Thoughts: Windows did not "plug and play" this device, but once the drivers were installed windows found it.

Did you find this review helpful? Yes No

  • RUDOLPH L.
  • 3/19/2015 12:43:01 PM
  • Tech Level: Somewhat High
  • Ownership: more than 1 year
  • Verified Owner

2 out of 5 eggsCheap $19.00

Pros: worked OK for 1yr

Cons: just stopped working after 1 yr

Other Thoughts: you get what you pay $4$

Manufacturer Response:

Dear Valued Customer,
Thank you very much for purchasing this unit.
We strive to provide the most reliable and highest quality products to our customers.

We are sorry to hear that, please contact our support team to assist you with troubleshoot and/or warranty options.

Phone: 1- 800-575-9885
Monday - Friday 8AM - 5PM PST

Email: rma@rosewill.com
Email2: techsupport@rosewill.com


We look forward to hearing from you.

Thanks,
Rosewill Customer Care

0 out of 1 people found this review helpful. Did you? Yes No

  • Michael N.
  • 3/17/2015 12:25:29 PM
  • Tech Level: High
  • Ownership: 1 month to 1 year
  • Verified Owner

5 out of 5 eggsWorks as expected

Pros: Benchmarks as you'd expect USB 3.0. Loaded with Windows default drivers and required no special software to get the correct speeds.

Cons: none

Other Thoughts: Requires additional Molex power connector. I do not use its USB charging feature so I cannot comment on its performance.

Did you find this review helpful? Yes No

  • Michael N.
  • 3/17/2015 12:18:30 PM
  • Tech Level: High
  • Ownership: 1 month to 1 year
  • Verified Owner

5 out of 5 eggsWorks as advertised

Pros: Benchmarked using ATTO benchmark in Raid 0 and 1. All performed exactly as one would expect. The "boost" feature with an SSD also works extremly well.

Cons: none

Other Thoughts: Requires additional power from molex.

Did you find this review helpful? Yes No

  • Demian L.
  • 2/18/2015 12:27:25 PM
  • Tech Level: High
  • Ownership: more than 1 year
  • Verified Owner

5 out of 5 eggsWorks

Pros: Bought this when I needed an USB3 connection for an external backup drive. It worked well. I then upgraded my mobo to one that had USB 3 and didn't install this device. After a bit I noticed that my external drive would be disconnected and I would have to manually reconnect it. After messing with power settings, drivers, etc. I reinstalled this PCI device and I haven't had any issues since. USB 3 tends to shut down devices when their not in use and that's not the case with this card.

Cons: Could be a problem if you don't want your USB 3 devices on all the time

1 out of 1 people found this review helpful. Did you? Yes No

  • Alberto P.
  • 2/10/2015 9:15:48 AM
  • Tech Level: High
  • Ownership: more than 1 year
  • Verified Owner

1 out of 5 eggsRosewill USB 3.0

Pros: works well with USB 2.0

Cons: Do not buy this card if you're going to use it on Widow 8.1. Was using it on USB 2.0 external drive but when I got a new USB 3.0 external drive no great speed improvements which was the reason why I bought this piece in the first place. Updated firmware and updated drivers from Rosewill website, no improvement. Emailed technical support and only got an automated reply. Save your money and buy something else.

Manufacturer Response:

Dear Valued Customer,
Thank you very much for purchasing this unit.
We strive to provide the most reliable and highest quality products to our customers.

http://www.rosewill.com/products/1551/ProductDetail_Download.htm

Sounds like your product may be defective; please contact our support team to assist you with warranty options.

Phone: 1- 800-575-9885
Email: rma@rosewill.com
Email2: techsupport@rosewill.com

We look forward to hearing from you.

Thanks,
Rosewill Customer Care

0 out of 2 people found this review helpful. Did you? Yes No

  • Samuel M.
  • 1/9/2015 5:07:01 PM
  • Tech Level: Average
  • Ownership: 1 week to 1 month
  • Verified Owner

5 out of 5 eggsRosewill USB 3.0 Adapter.

Pros: Work the first time. Installed on an AM2+ Motherboard, which only had PCI-Express X-16 slots available.

Cons: Wish it had an internal USB port. I would have liked to add USB 3.0 ports to the front of the case. However, finding a brand that actually worked was more important.

2 out of 3 people found this review helpful. Did you? Yes No

  • Justin T.
  • 12/13/2014 2:33:59 PM
  • Tech Level: Average
  • Ownership: 1 month to 1 year
  • Verified Owner

5 out of 5 eggsWorks Great for My Needs!

Pros: I bought this for one reason only. My X55 HOTAS needed a powered USB card since it would not work properly with my Sabertooth 990FX v1 mobo. Now the X55 works great.

Cons: I have no clue if this card is worth anything for transferring data. The other reviews seem to say no. However, I don't care. Just needed it for my X55.

Did you find this review helpful? Yes No

  • Ben C.
  • 11/27/2014 3:44:37 PM
  • Tech Level: High
  • Ownership: 1 day to 1 week
  • Verified Owner

1 out of 5 eggsPoor Performance

Pros: USB 3.0 when it works.

Cons: I was intending on using this add-on card for my USB 3.0 flash drives, but the card continues to drop offline at random. It is aggressively annoying when attempting to transfer data to the USB flash pen and half way through the transfer the card drops offline. Also, the card does not support booting from a USB device.

There are no Windows 8.1 specific device drivers, nor an updated firmware to resolve these issues.

Other Thoughts: I would not recommend this addon card to anyone. I suggest spending $10 - $20 more for SYBA or SIIG. Both of which are reliable add-on cards.

Did you find this review helpful? Yes No
