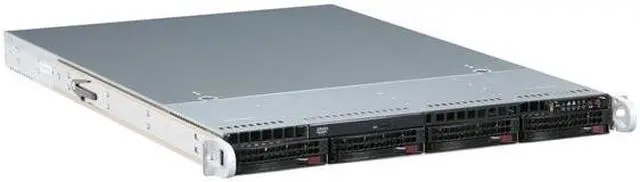

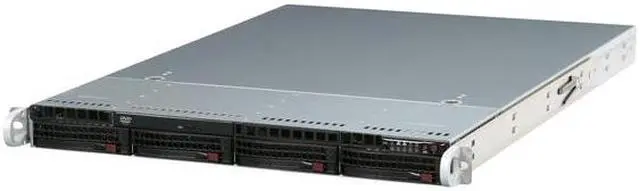

SUPERMICRO SYS-6016T-URF 1U Rackmount Server Barebone Intel 5520 Dual LGA 1366 Dual Intel Xeon 5600/5500 series

  • Dual LGA 1366
  • Support Dual Intel Xeon 5600/5500 series
  • 12 x 240Pin Memory Slots (Max192GB)
  • Support 6 x SATA 300 HDD
  • 650W (1 + 1) Redundant AC-DC power supply w/ PFC

ICON Loading...
  • Specifications
  • Warranty & Returns
  • Reviews

Learn more about the SuperMicro SYS-6016T-URF



CPU Supported

CPU Type
Dual Intel Xeon 5600/5500 series
CPU Socket
Dual LGA 1366
Installed CPU
No CPU Installed
Max Processors


North Bridge
Intel 5520
South Bridge
ICH10R + IOH-36D

Memory Supported

Memory Slots
12 x 240Pin
Installed Memory Size
No Memory Installed
Max Memory Supported
Supports up to 192 GB 1333 / 1066 / 800MHz DDR3 ECC Registered memory
Supports up to 48 GB 1333 / 1066 / 800MHz DDR3 ECC / Non ECC Unbuffered memory
Memory Mirroring supported
Memory Type Supported
DDR3 1333/1066/800
ECC Supported

Storage Supported

Installed HDD
No Storage Installed
Serial ATA
6 x SATA 300
RAID 0, 1, 5, 10 support (Windows)
RAID 0, 1, 10 support (Linux)


Matrox G200eW

Expansion Slots

PCI Express
1 (x16) PCI-E 2.0 slot


First LAN
Intel 82576
Max. LAN Speed
Dual 10/100/1000Mbps

Expansion Bays

Slim Bays
1 x Slim 8x DVD, 24x CD, DVD-ROM drive

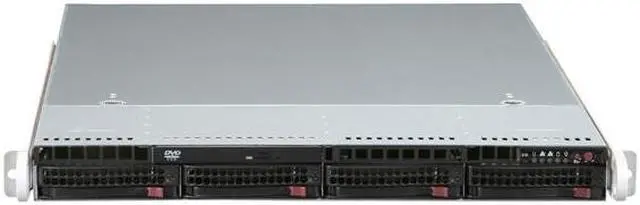

Hot-Swap Bays
4 x 3.5" SATA/SAS

Panel Ports

2x RJ45 LAN ports
1x RJ45 Dedicated IPMI LAN port

Power Supply

Max. Power
650W (1 + 1) Redundant AC-DC power supply w/ PFC


Color: Black

CPU: Supports up to two Intel 64-bit Xeon processor(s) of the same type below:
Intel Xeon Processor X5600/E5600/L5600 Series(Westmere) 40W - 130W
Intel Xeon Processor X5500/E5500/L5500 Series(Nehalem-EP) 38W - 95W

Memory Capacity:
Supports up to 192 GB 1333 / 1066 / 800MHz DDR3 ECC Registered memory
Supports up to 48 GB 1333 / 1066 / 800MHz DDR3 ECC / Non ECC Unbuffered memory

QPI: Up to 6.4 GT/s

1 Unversal I/O (UIO) Slot

Super I/O: Winbond 83827HF chip

IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

SAS/SATA HDD Backplane (SAS support requires optional SAS controller)

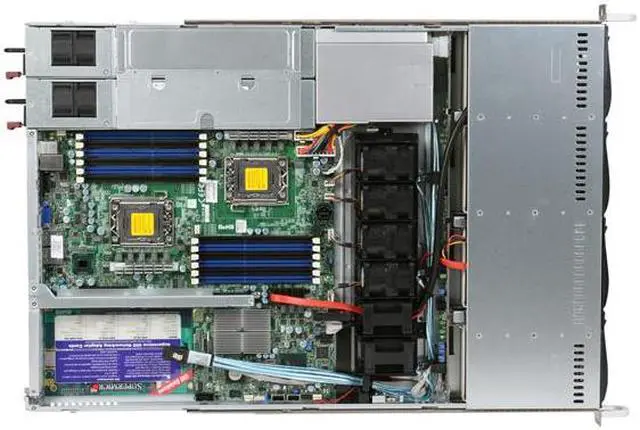

System Cooling:
Fans: 4x Cooling Fans
Shroud: 1x Air Shroud

RoHS Compliant


Form Factor
1U Rackmount

Dimensions & Weight

25.6" x 17.2" x 1.7"
46 lbs. (Gross)
Warranty, Returns, And Additional Information
  • Warranty
  • Limited Warranty period (parts): 1 year
  • Limited Warranty period (labor): 3 years
  • Read full details

Customer Reviews of the SuperMicro SYS-6016T-URF

Do you own this product? Write a Review

ICON Loading...

Filter Results

  • Anonymous
  • 10/16/2010 12:23:17 PM
  • Tech Level: High
  • Ownership: 1 week to 1 month
  • Verified Owner

2 out of 5 eggsDisappointing

Pros: Typical SuperMicro quality which is excellent, good airflow, no louder than a typical 1U. You can pack some power in this box with two 8 core CPU's and a ton of ram.

Cons: Does not include everything you need! You either must purchase a RAID controller board that Newegg does not sell, or run four SATA cables (not included) from the backplane to the SATA ports on the motherboard.

Other Thoughts: I posted a video review showing the fact that the hotswap bays are not connected to anything, but Newegg declined to post it.

I would give it a 1 egg because of the lack of RAID board or SATA cables - which makes the description misleading, but overall it is a very good server, just be warned that you'll need more out of it.

Also, I'm noticing a trend that if you try to load up four 2TB hard drives in the SuperMicro 1U boxes, you'll drain the power supply too much and corrupt your drives. Keep in mind 4 bays doesn't mean the power supply is large enough for 4 power hungry drives.

1 out of 1 people found this review helpful. Did you? Yes No

  • Anonymous
  • 11/28/2009 2:04:53 PM
  • Tech Level: Somewhat High
  • Ownership: 1 day to 1 week

5 out of 5 eggsexcellent

Pros: Excellent quality all around, case is solid, well put together, no misalignments or wobble anywhere. Drive trays align easily and feel solid. Includes IPMI management port even though isn't explicitly listed, a necessity.

Cons: newegg doesn't sell the (necessary) raid card such as: AOC-USASLP-H8iR why? I was forced to purchase them elsewhere. Rails are decent but not the premium ball bearing type.

Other Thoughts: Newegg needs to carry the supermicro ball-bearing rails as the ones provided are decent, but not as premium as the rest of the case is. I would buy the supermicro premium rails through newegg if I could. Newegg needs to also carry replacement parts for these, or make it easier to identify compatible spare power supplies and fans. This system is worthy of the additional $6-$8k in equipment being loaded into them. I will buy (many) more.

2 out of 2 people found this review helpful. Did you? Yes No
