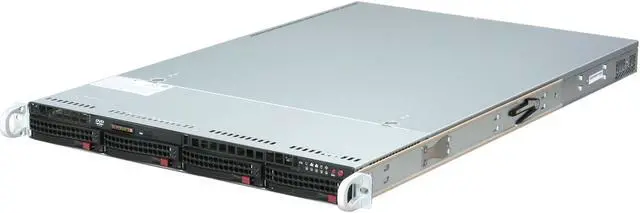

SUPERMICRO SYS-6016T-6RFT+ 1U Rackmount Server Barebone Dual LGA 1366 Intel 5520 DDR3 1333/1066/800
- Dual LGA 1366
- Dual Intel Xeon 5600/5500 Series
- 18 x 240Pin Memory Slots
- 700W Gold-Level Redundant Power Supply
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Supermicro SYS-6016T-6RFT+
| Brand | SUPERMICRO |
|---|---|
| Series | SuperServer |
| Model | SYS-6016T-6RFT+ |
| Form Factor | 1U Rackmount |
| CPU Type | Dual Intel Xeon 5600/5500 Series |
|---|---|
| CPU Socket | Dual LGA 1366 |
| North Bridge | Intel 5520 |
|---|---|
| South Bridge | ICH10R |
| Memory Slots | 18 x 240Pin |
|---|---|
| Max Memory Supported | 288GB |
| Memory Type Supported | DDR3 1333/1066/800 |
| ECC Supported | Yes |
| Registered | Yes |
| Serial ATA | 6 x SATA 300 |
|---|---|
| SATA RAID | RAID 0, 1, 5, 10 support (Windows) RAID 0, 1, 10 support (Linux) |
| SAS | LSI 6Gbps SAS 2108 w/ Hardware RAID support RAID 0, 1, 5, 6, 10 support |
| GPU/VPU | Matrox G200eW |
|---|
| PCI Express | Left Slot: 2 (x8) PCI-E 2.0 slots Right Slot: 1 (x4) PCI-E 2.0 (in x8 slot -Low-Profile - 5.5" depth) |
|---|
| First LAN | Intel 82599EB with 2 SFP+ |
|---|---|
| Second LAN | Intel 82576 Dual-Port |
| Max. LAN Speed | 10 Gigabit + 1 Gigabit |
| Slim Bays | 1 |
|---|---|
| Hot-Swap Bays | 4 x 3.5" SAS/SATA |
| COM | 1 |
|---|---|
| PS/2 | 2 |
| VGA | 1 |
| Rear USB | 2 |
| RJ45 | 2x RJ45 LAN ports 2x SFP+ LAN port 1x RJ45 Dedicated IPMI LAN port |
| Max. Power | 700W Gold-Level Redundant Power Supply |
|---|
| Features | Color: Black Processor: Supports up to two Intel 64-bit Xeon processor(s) of the same type below: Intel Xeon Processor X5600/E5600/L5600 Series(Westmere) 40W - 130W Intel Xeon Processor X5500/E5500/L5500 Series(Nehalem-EP) 38W - 95W Memory Capacity: Supports up to 288GB 1333 / 1066 / 800MHz DDR3 ECC Registered memory Supports up to 48GB 1333 / 1066 / 800MHz DDR3 ECC / Non ECC Unbuffered memory QPI: Up to 6.4 GT/s IPMI 2.0 with virtual media over LAN and KVM-over-LAN support. Super I/O: Winbond 83827HF chip Buttons: Power On/Off Button System Reset Button UID Button LEDs: Power LED Hard drive activity LED 2x Network activity LEDs System Overheat LED Universal Information (UID) LED 1U SAS/SATA Backplane w/ SES2 Enclosure Management System Cooling: 5 x Cooling Fans 1 x Air Shroud RoHS Compliant |
|---|
| Dimensions | 27.75" x 17.2" x 1.7" |
|---|---|
| Weight | 43.0 lbs. (Gross) |
| First Listed on Newegg | July 07, 2010 |
|---|
