SuperMicro SYS-6026T-6RFT+ Manual
Shop All Supermicro Products

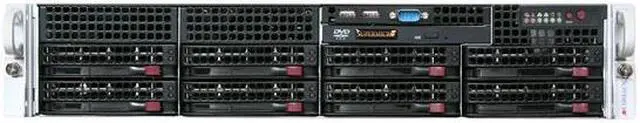

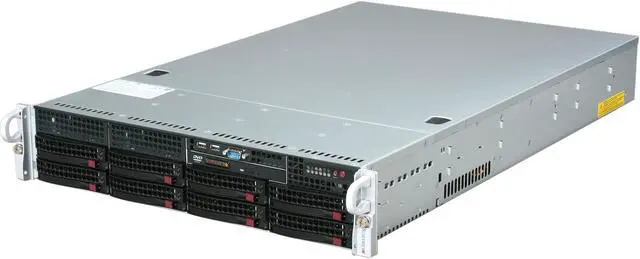

SUPERMICRO SYS-6026T-6RFT+ 2U Rackmount Server Barebone Dual LGA 1366 Intel 5520 DDR3 1333/1066/800

(1) Write a Review
  • Dual LGA 1366
  • Dual Intel Xeon 5600/5500 Series
  • 18 x 240Pin Memory Slots
  • 920W High-efficiency Platinum Level Redundant Power Supply
Specs
Reviews (1)
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the Supermicro SYS-6026T-6RFT+

General
Brand SUPERMICRO
Series SuperServer
Model SYS-6026T-6RFT+
Form Factor 2U Rackmount
CPU Supported
CPU Type Dual Intel Xeon 5600/5500 Series
CPU Socket Dual LGA 1366
Chipset
North Bridge Intel 5520
South Bridge ICH10R
Memory Supported
Memory Slots 18 x 240Pin
Max Memory Supported 288GB
Memory Type Supported DDR3 1333/1066/800
ECC Supported Yes
Registered Yes
Storage Supported
Serial ATA 6 x SATA 300
SATA RAID RAID 0/1/5/10
SAS LSI 6Gbps SAS 2108 w/ Hardware RAID support
RAID 0, 1, 5, 6, 10, 50, 60 support
Graphics
GPU/VPU Matrox G200eW
Expansion Slots
PCI Express Left Slot: 2 (x8) PCI-E 2.0 slots
Right Slot: 1 (x4) PCI-E 2.0 (in x8 slot -Low-Profile - 5.5" depth)
Communications
First LAN Intel 82599EB
Second LAN Intel 82576
Max. LAN Speed 10 Gigabit + 1 Gigabit
Expansion Bays
Slim Bays 1
Hot-Swap Bays 8 x 3.5" SAS/SATA

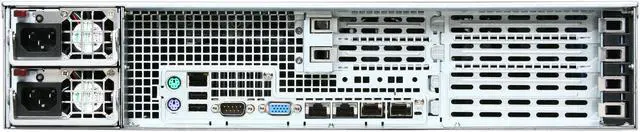

Panel Ports
COM 1
PS/2 2
VGA 1
Rear USB 2
RJ45 2x RJ45 LAN ports
2x SFP+ LAN port
1x RJ45 Dedicated IPMI LAN port
Power Supply
Max. Power 920W High-efficiency Platinum Level Redundant Power Supply
Features
Features Integrated IPMI 2.0 with Dedicated LAN

2U SAS/SATA Backplane

System Cooling:
Fans: 4x 80mm 6300 RPM fans
Shroud: 1x Air Shroud
Dimensions & Weight

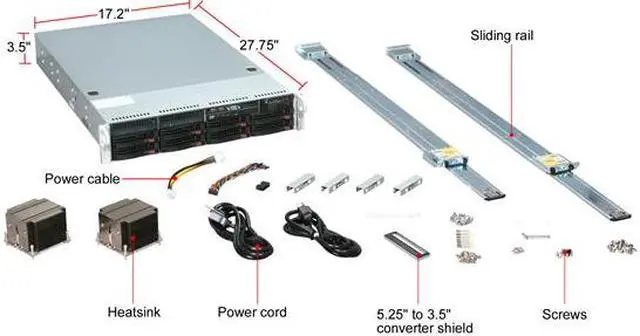

Dimensions 27.75" x 17.2" x 3.5"
Weight 55.0 lbs.
Additional Information
First Listed on Newegg July 13, 2010
