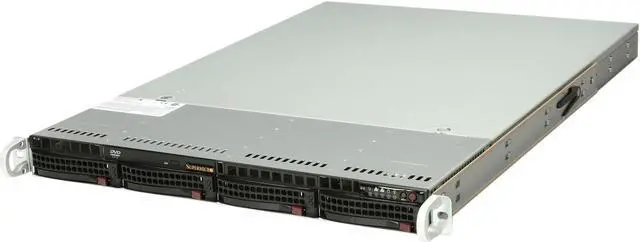

Main image of SUPERMICRO SYS-5016I-NTF 1U Rackmount Server Barebone LGA 1156 Intel 3420 DDR3 1333/1066/800

Alt view image 2 of 7 - SUPERMICRO SYS-5016I-NTF 1U Rackmount Server Barebone LGA 1156 Intel 3420 DDR3 1333/1066/800

Alt view image 3 of 7 - SUPERMICRO SYS-5016I-NTF 1U Rackmount Server Barebone LGA 1156 Intel 3420 DDR3 1333/1066/800

Alt view image 4 of 7 - SUPERMICRO SYS-5016I-NTF 1U Rackmount Server Barebone LGA 1156 Intel 3420 DDR3 1333/1066/800

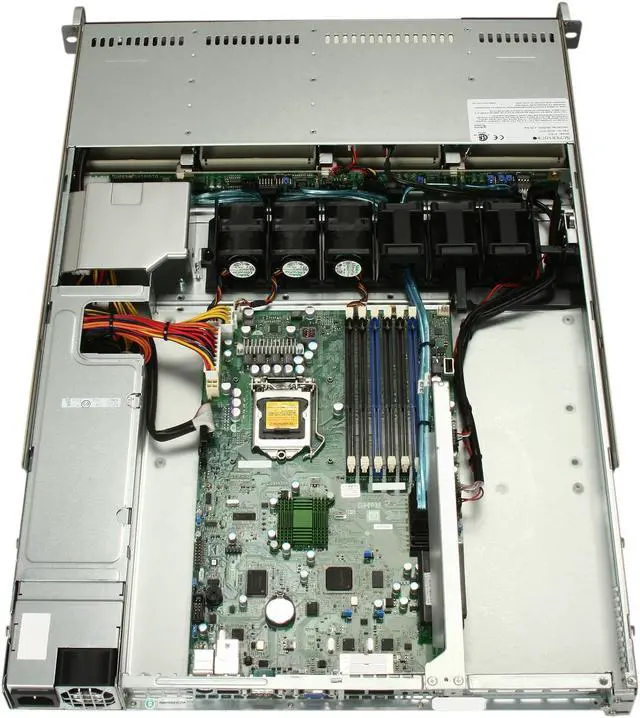

Alt view image 5 of 7 - SUPERMICRO SYS-5016I-NTF 1U Rackmount Server Barebone LGA 1156 Intel 3420 DDR3 1333/1066/800

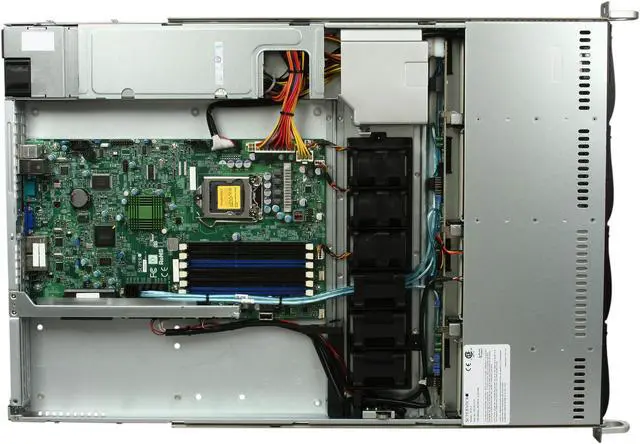

Alt view image 6 of 7 - SUPERMICRO SYS-5016I-NTF 1U Rackmount Server Barebone LGA 1156 Intel 3420 DDR3 1333/1066/800

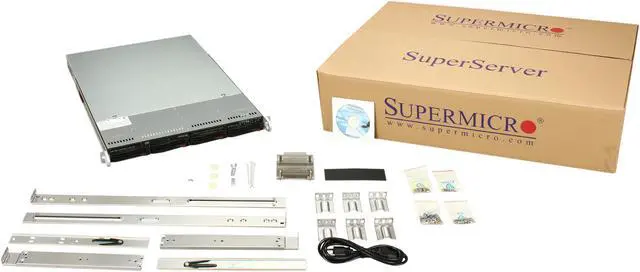

Alt view image 7 of 7 - SUPERMICRO SYS-5016I-NTF 1U Rackmount Server Barebone LGA 1156 Intel 3420 DDR3 1333/1066/800

Shop All Supermicro Products

SUPERMICRO SYS-5016I-NTF 1U Rackmount Server Barebone LGA 1156 Intel 3420 DDR3 1333/1066/800

Be the first to review this product...

LGA 1156
Intel Xeon X3400/L3400 series, Core i3, Pentium G6950, Celeron G1101
6 x 240Pin Memory Slots
330W AC power supply w/ PFC -80 PLUS Gold

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Designed for applications that require the highest performance at the best price/performance/watt, these Supermicro uni-processor 1U rack servers support the latest Xeon X3400/L3400 Series processors and deliver additional levels of performance, power-efficiency and reliability.

General
Brand	SUPERMICRO
Series	SuperServer
Model	SYS-5016I-NTF
Form Factor	1U Rackmount

CPU Supported
CPU Type	Intel Xeon X3400/L3400 series, Core i3, Pentium G6950, Celeron G1101
CPU Socket	LGA 1156

Chipset
North Bridge	Intel 3420

Memory Supported
Memory Slots	6 x 240Pin
Max Memory Supported	32GB
Memory Type Supported	DDR3 1333/1066/800
ECC Supported	Yes
Registered	Yes

Storage Supported
Serial ATA	6 x SATA 300
SATA RAID	RAID 0, 1, 5, 10 support (Windows) RAID 0, 1, 10 support (Linux)

Graphics
GPU/VPU	Matrox G200eW
Video Memory	16MB

Expansion Slots
PCI Express	Left Slot: 1 (x16) PCI-E 2.0 slot or 2 (x8) PCI-E 2.0 slots Right Slot: 1 (x8) PCI-E 2.0 (Low-Profile - 5.6" depth)

Communications
First LAN	Intel 82574L
Second LAN	Intel 82574L
Max. LAN Speed	Dual 1 Gigabit

Expansion Bays
Slim Bays	Slim 8x DVD, 24x CD, DVD-ROM drive
Hot-Swap Bays	4 x 3.5" SAS/SATA

Panel Ports
COM	1
PS/2	2
VGA	1
Rear USB	2
RJ45	3

Power Supply
Max. Power	330W AC power supply w/ PFC -80 PLUS Gold

Features
Features	IPMI 2.0 with virtual media over LAN and KVM-over-LAN support SAS/SATA HDD Backplane (SAS support requires optional SAS controller)

Dimensions & Weight
Dimensions	25.6" x 17.2" x 1.7"
Weight	38 lbs.
