Item#: N82E16816101669

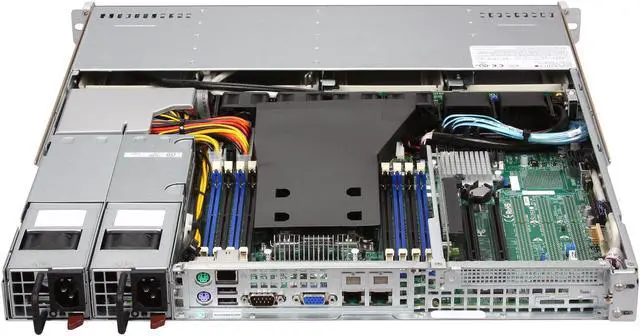

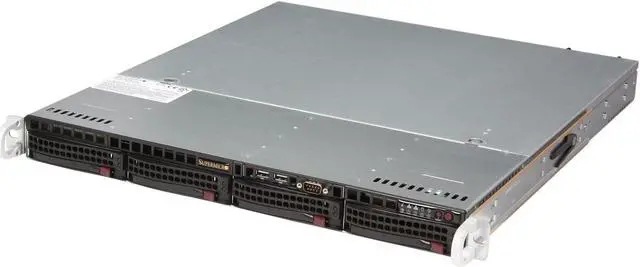

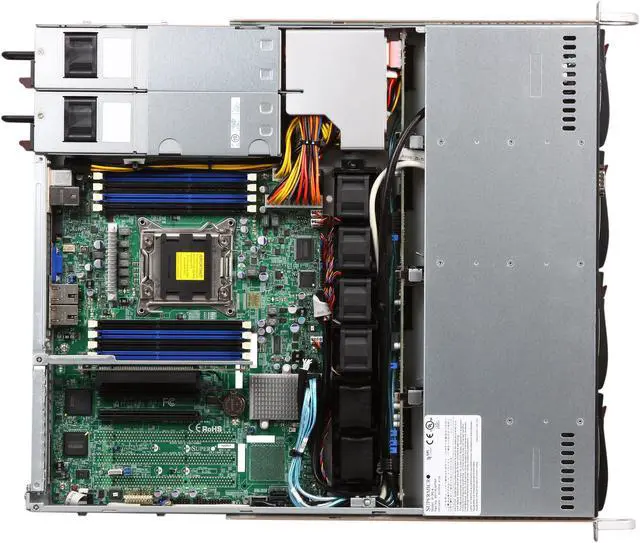

SUPERMICRO SYS-5017R-MTRF 1U Rackmount Server Barebone LGA 2011 Intel C602 DDR3 1600/1333/1066

  • 1 x LGA 2011 Support Intel Xeon E5-2600 Series
  • 8 x 240Pin Memory Slots (Max 512GB)
  • Support 2 x SATA 600 + 4 x SATA 300 HDD
  • 400W (1+1) Redundant high-efficiency power supply
IronEgg
BUY WITH CONFIDENCE
This product qualifies for the Iron Egg guarantee. We'll match any qualifying competitor's price.
  • Pin It
  • Email this page
ICON Loading...

Learn more about the SuperMicro SYS-5017R-MTRF

Model

Brand
SUPERMICRO
Series
SuperServer
Model
SYS-5017R-MTRF

CPU Supported

CPU Type
Intel Xeon E5-2600 Series
CPU Socket
LGA 2011

Audio

Installed CPU
No CPU Installed
Max Processors
1

Chipset

North Bridge
Intel C602

Memory Supported

Memory Slots
8 x 240Pin

Audio

Installed Memory Size
No Memory Installed

Memory Supported

Max Memory Supported
Up to 512GB DDR3 ECC LRDIMM
Up to 256GB DDR3 ECC Registered memory (RDIMM)
up to 64GB DDR3 ECC/non-ECC
Memory Type Supported
DDR3 1600/1333/1066
ECC Supported
Yes
Registered
Yes

Audio

Installed HDD
No Storage Installed

Storage Supported

Serial ATA
4 x SATA 300 + 2 SATA 600
SATA RAID
RAID 0, 1, 5, 10 support (Windows)
RAID 0, 1, 10 support (Linux)

Graphics

GPU/VPU
Matrox G200eW
Video Memory
16MB DDR2

Expansion Slots

PCI Express
1x PCI-E 3.0 x16 Full-height slot

Communications

First LAN
Intel I350
Max. LAN Speed
Dual 10/100/1000Mbps

Expansion Bays

Hot-Swap Bays

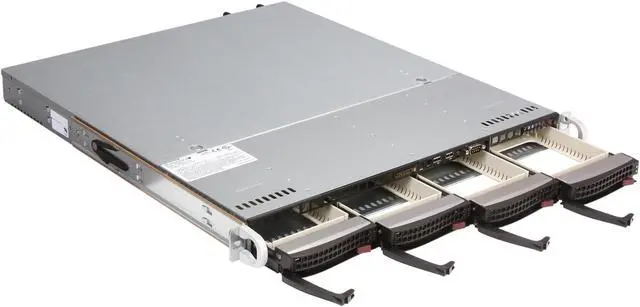

4 x 3.5"

Panel Ports

COM
1
PS/2
2
VGA
1
Rear USB
2
RJ45
2x RJ45 LAN ports
1x RJ45 Dedicated IPMI LAN port

Power Supply

Max. Power
400W (1+1) Redundant high-efficiency power supply

Physical SPEC

Form Factor
1U Rackmount
Dimensions
17.2" x 1.7" x 19.85"
Weight
38 lbs (16.5kg) Gross

Features

Features
QPI up to 8 GT/s

IPMI 2.0/ KVM over LAN/ media over LAN (dedicated)

SATA DOM power

Quick Info

Warranty

  • Limited Warranty period (parts): 1 year
  • Limited Warranty period (labor): 3 years


Customer Reviews of the SuperMicro SYS-5017R-MTRF

Do you own this product? Write a Review

ICON Loading...

Filter Results

Go
  • Anonymous
  • 12/4/2012 1:51:52 PM
  • Tech Level: High
  • Ownership: 1 day to 1 week
  • Verified Owner

5 out of 5 eggsLove it!

Pros: Dual hotswap power supplies, USB in front, lots of space for RAM, much quieter than similar servers. Ubuntu 12.04 server boots in less than 4 seconds on this box with an M4 SSD (after the POST is done.)

Cons: Installed DDR3 1600 RAM, but the motherboard only recognized it as 1066 on "auto." I had to modify the BIOS to force it to the 1600 speed RAM setting. Did a full memory test afterwards and passed with flying colors.

Other Thoughts: I own a ton of SuperMicro 1U servers and I love them, but this particular model has got to be my favorite, supporting fast CPU's, lots of memory and dual power supplies. Some recent SuperMicro I've purchased had issues with Ubuntu installs detecting the default ethernet port backwards from the BIOS PXE, making network installs difficult. This one installed and was up and running with no hitches. Also, if using SSD's I recommend the Icy Dock N82E16817994064 adapter, as it's the only one I found on Newegg that works properly with the hotswap bays.

1 out of 1 people found this review helpful. Did you? Yes No
