Item#: N82E16816101670

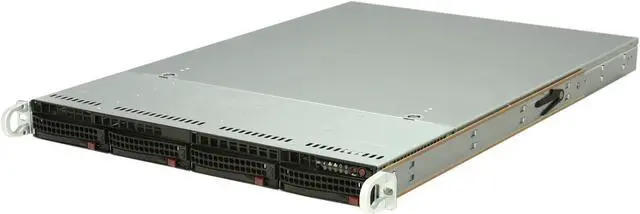

SUPERMICRO SYS-5017R-WRF 1U Rackmount Server Barebone LGA 2011 Intel C602 DDR3 1600/1333/1066

  • 1 x LGA 2011 Support Intel Xeon processor E5-2600 and E5-2600/1600 v2 family
  • 8 x 240Pin Memory Slots (Max 256GB)
  • 4 x 3.5" Hot-swap drive bays
  • 500W Redundant 94+% high-efficiency power supply, 80P

ICON Loading...
  • Overview
  • Specifications
  • Warranty & Returns
  • Reviews

Based on the Intel C602 chipset, the SUPERMICRO SYS-5017R-WRF server barebone is a high-end server that supports state-of-the-art Intel Socket R (LGA 2011) Xeon CPUs and up to 256 GB DDR3 ECC memory, delivering stunning computing power to blaze through your most demanding applications. Two full-height PCIe 3.0 x16 slots and one low-profile PCIe 3.0 x8 slot provide substantial I/O bandwidth for current and future needs. 2x Gigabit Ethernet LAN ports enable bottleneck-free data transfer.

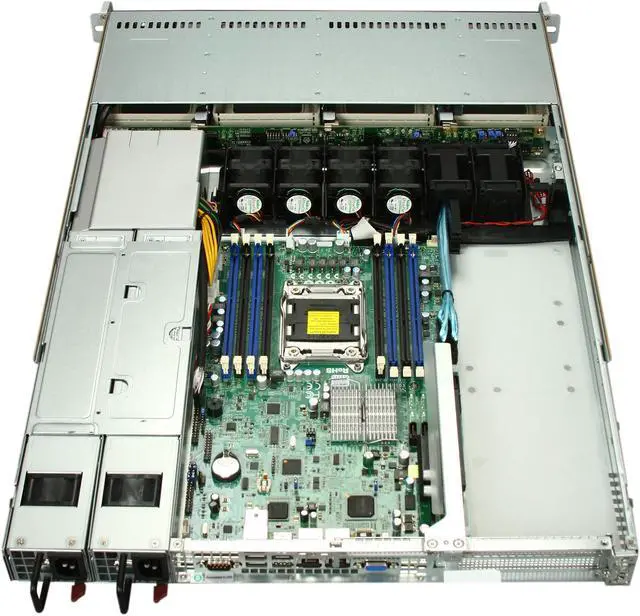

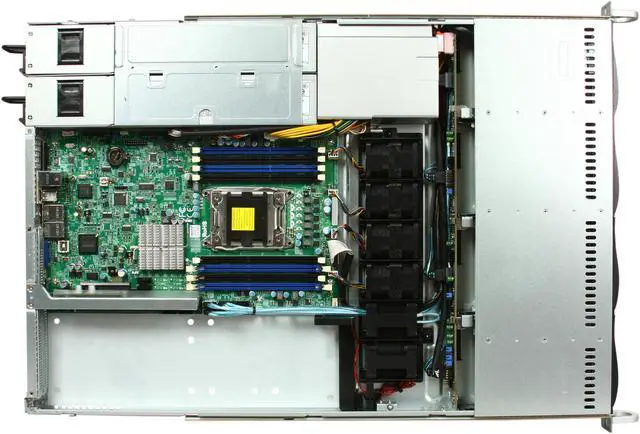

The chassis comes with 4x hot-swap 3.5" HDD bays for easy drive insertion and removal. Keeping everything cool is key to system reliability and stability. Three 4cm counter-rotating PWM fans are pre-installed to ensure efficient ventilation. A 500W PSU with 80 PLUS Platinum certification delivers abundant and robust power for the whole system with superior energy efficiency.

  • newegg Intel Xeon E5 CPU Support Adopting Super X9SRW-F motherboard equipped with LGA2011 socket and Intel C602 chipset, the SUPERMICRO SYS-5017R-WRF Barebone server supports the latest Intel Xeon E5-2600 processors to address the demanding needs for high performance and balanced architecture by modern business. The Intel Xeon E5 processor packs more cores, larger cache, greater memory, and new technologies like Intel Turbo Boost Technology 2.0, delivering up to 80% performance boost, reduced I/O network latency and increased energy efficiency.
  • newegg Memory The X9SRW-F has eight DIMM sockets that can support up to 256 GB of DDR3-1600/1333/1066 ECC R/LRDIMMs (LRDIMM = Reduced Load DIMMs) or up to 64GB of ECC UDIMMs, delivering ample capacity for demanding applications.
  • newegg Dual Gigabit LAN Ports Incorporating Intel i350 Dual port GbE controller in the motherboard, the SUPERMICRO SYS-5017R-WRF Barebone server is outfitted with two Gigabit Ethernet LAN ports to optimize network bandwidth, data throughput and communication efficiency.
  • newegg Easy Expandability Two full-height PCIe 3.0 x16 slots and one low-profile PCIe 3.0 x8 slot support a range of I/O expansion cards and discrete graphics cards for flexible expansion.
  • newegg Hot-swappable 3.5” Drive Bays 2 SATA3 (6Gbps) & 4 SATA2 (3Gbps) ports enable flexible storage solution. The SUPERMICRO SYS-5017R-WRF features four hot-swap 3.5" drive bays for easy installation and replacement of hard drives in a 24/7 computer system.
  • newegg 500W Power Supply Unit with 80 PLUS Platinum Certification The 500W 80 PLUS Platinum Certified power supplies provides robust power for all components installed with high power efficiency of 89-94% at any load between 20% and 100%, saving your money on your electrical bill, reducing heat in your computer's system and prolonging its life. The redundant configuration ensures maximum reliability and protection against PSU issue.

Learn more about the SuperMicro SYS-5017R-WRF



CPU Supported

CPU Type
Intel Xeon processor E5-2600 and E5-2600/1600 v2 family
CPU Socket
LGA 2011
Installed CPU
No CPU Installed
Max Processors


North Bridge
Intel C602

Memory Supported

Memory Slots
8 x 240Pin
Installed Memory Size
No Memory Installed
Max Memory Supported
Memory Type Supported
DDR3 1600/1333/1066
ECC Supported

Storage Supported

Installed HDD
No Storage Installed
Serial ATA
4 x SATA 300 + 2 SATA 600
RAID 0/1/5/10


Matrox G200eW
Video Memory

Expansion Slots

PCI Express
2x PCI-E 3.0 x16 Full-height slots
1x PCI-E 3.0 x8 Low-profile slot


First LAN
Intel I350
Max. LAN Speed
Dual 10/100/1000Mbps

Expansion Bays

Hot-Swap Bays
4 x 3.5"

Panel Ports


Power Supply

Max. Power
500W Redundant 94+% high-efficiency power supply, 80PLUS Platinum


IPMI 2.0/ KVM over LAN/ media over LAN (dedicated)

SATA DOM power


Form Factor
1U Rackmount

Dimensions & Weight

17.2" x 1.7" x 25.6"
Warranty, Returns, And Additional Information
  • Warranty
  • Limited Warranty period (parts): 1 year
  • Limited Warranty period (labor): 3 years
  • Read full details

Customer Reviews of the SuperMicro SYS-5017R-WRF

Do you own this product? Write a Review

ICON Loading...

Filter Results

  • Dennis B.
  • 11/13/2014 2:33:10 PM
  • Ownership: 1 month to 1 year

4 out of 5 eggsNice High End Box

Pros: 2 Slots
Both Slots work with just 1 CPU Installed
Good Overall Value
Good Hot-Swap Drive Bays

Cons: Heavy - It's a big Box
Uses More Power than Single CPU MB

Other Thoughts: Someone complained about the noise; two things. One, you don't have to install both supplies. You can pull one and use the 2nd module as a spare. Second, it's loud because there are 8 fans to cool dual cpus. If you're not using the 2nd CPU, you can disconnect some fans. If you're using lower power cpus or its in a temperature controlled room, you can disconnect a couple of fans to reduce power usage and noise

Did you find this review helpful? Yes No

  • Brian F.
  • 1/26/2014 6:06:18 PM
  • Ownership: 1 week to 1 month
  • Verified Owner

3 out of 5 eggsVery Loud

Pros: Very easy to configure. Had server up and running in less than an hour (pre-OS install).

Cons: Very, very, very loud. It appears the dual power supplies create this noise, but it is obnoxiously loud.

Other Thoughts: Basically, I like the server other than the noise. If I can find a substitute power supply which isn't so loud I will replace the stock one.

0 out of 2 people found this review helpful. Did you? Yes No
