Item#: N82E16816111173

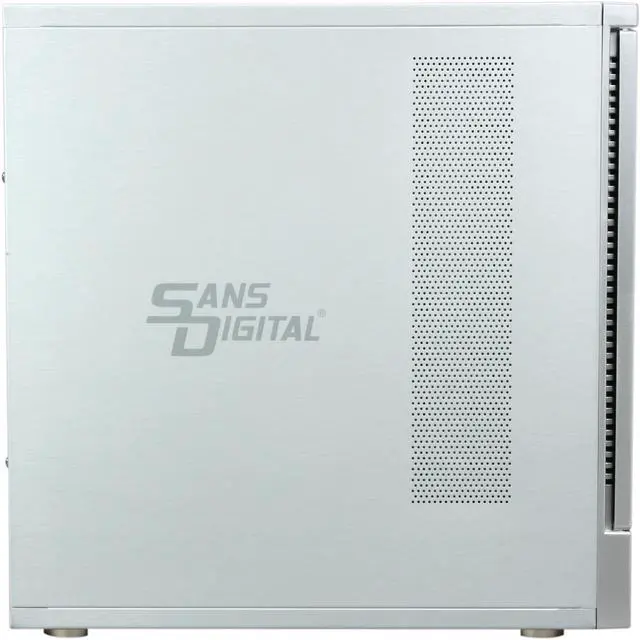

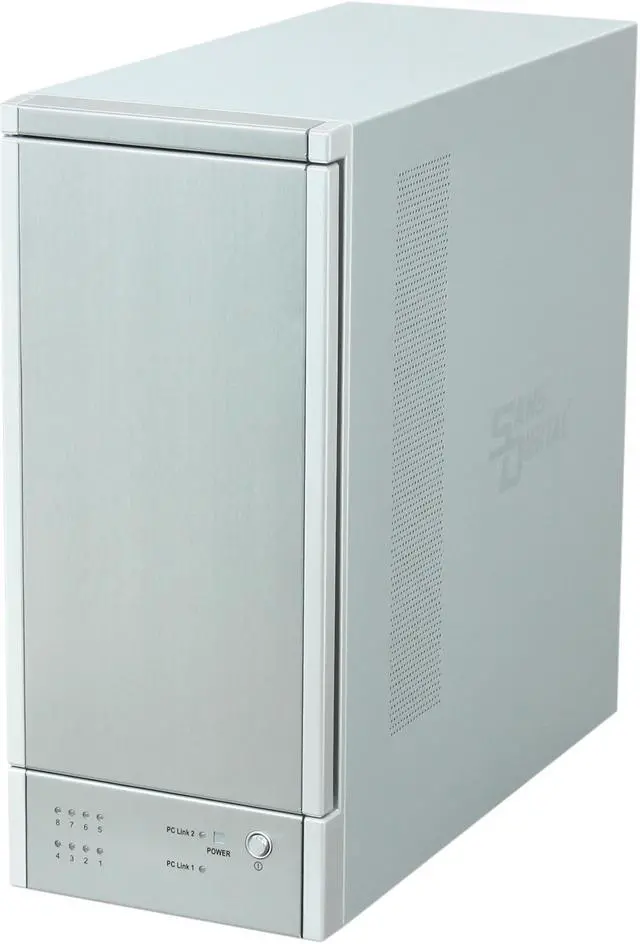

Sans Digital 8-Bay SAS/SATA JBOD Compact Tower Enclosure w/ Mini-SAS (SFF-8088) x 2 TR8X+ (Silver)

  • SAS & SATA

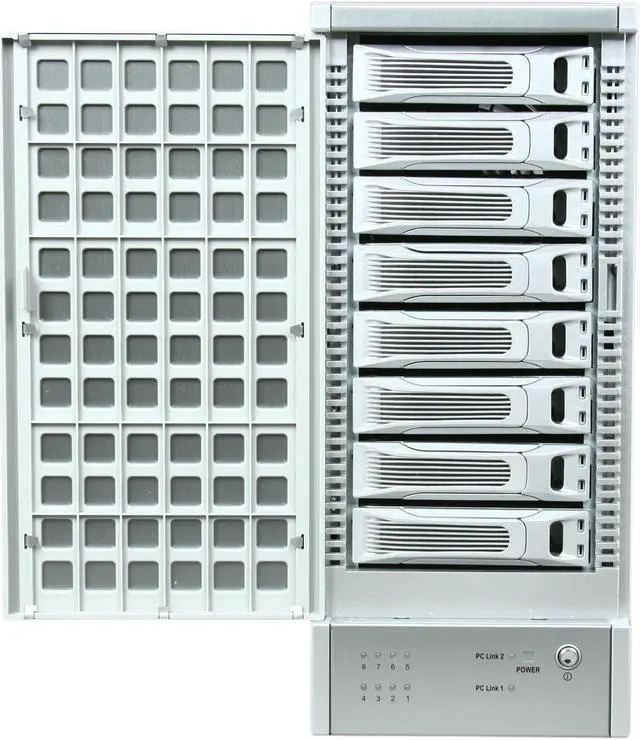

  • 8 x Hot-Swappable 3.5" Drive Bays
  • JBOD (RAID Supported via Controller Card)

ICON Loading...
  • Specifications
  • Warranty & Returns
  • Reviews

Learn more about the SANS DIGITAL TR8X+

Model

|
Brand
SANS DIGITAL
Series
TowerRAID
Model
TR8X+

Details

|
Drive
SAS & SATA
External I/O

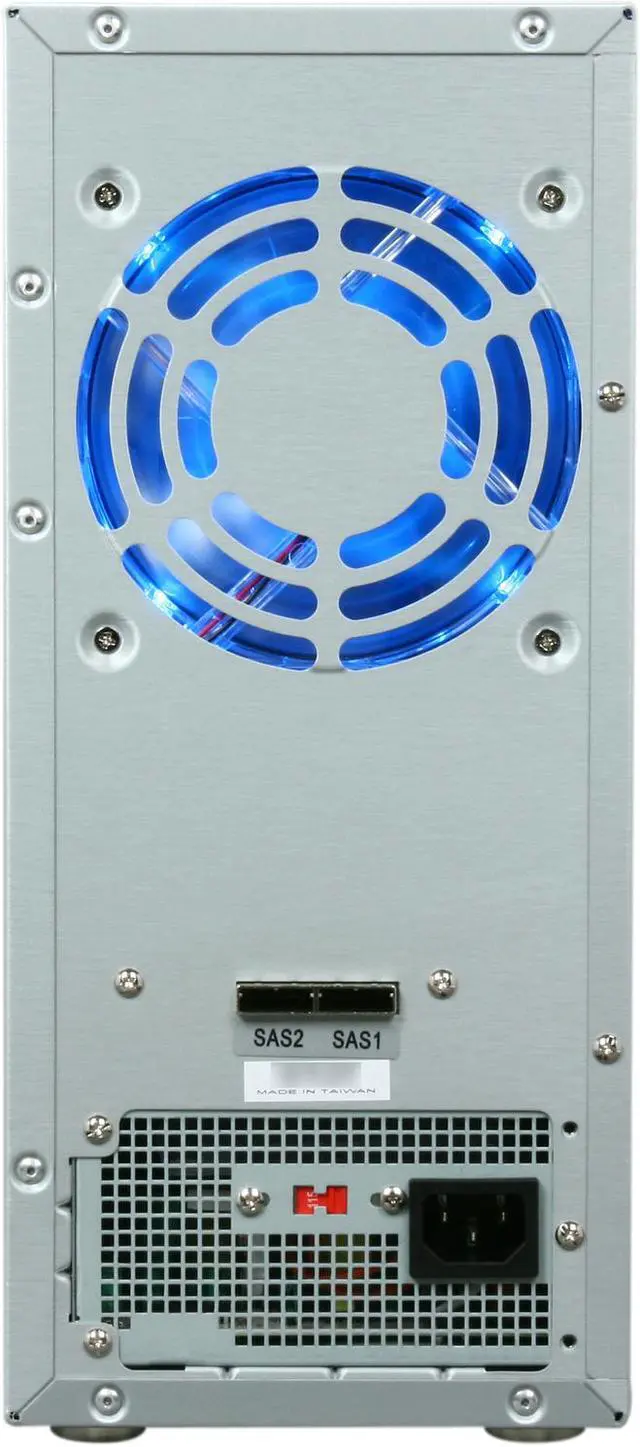

Mini-SAS (SFF-8088) x 2
RAID Levels
JBOD (RAID Supported via Controller Card)

Expansion

|
3.5" Drive Bays
8 x Hot-Swappable

System Management

|
OS Supported
Supports PC, MAC and Linux. (Please check HBA or RAID controller driver compatibility.)

Mechanical Spec

|
Power Supply
250W (90V-264V)

Features

|
Features
Form Factor: Compact Tower

Maximum Capacity: 32TB

Compatible RAID Card: Areca, Intel, LSI, Adaptec, Dell, 3ware

Cooling Fan: 4.7" Ball Bearing

Status Indicators: Status and Power LEDs

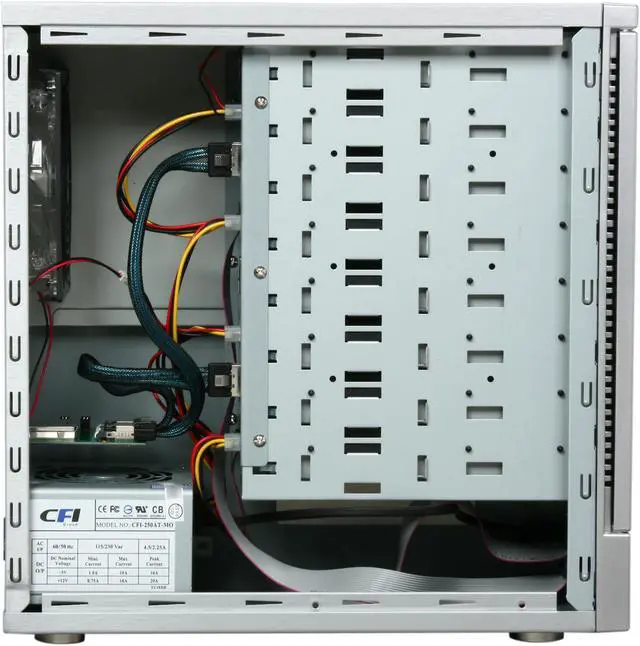

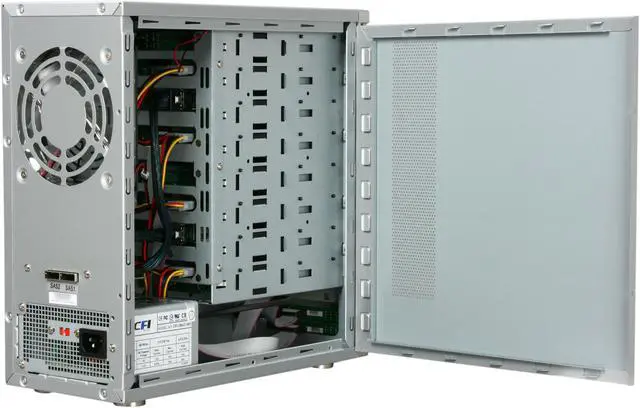

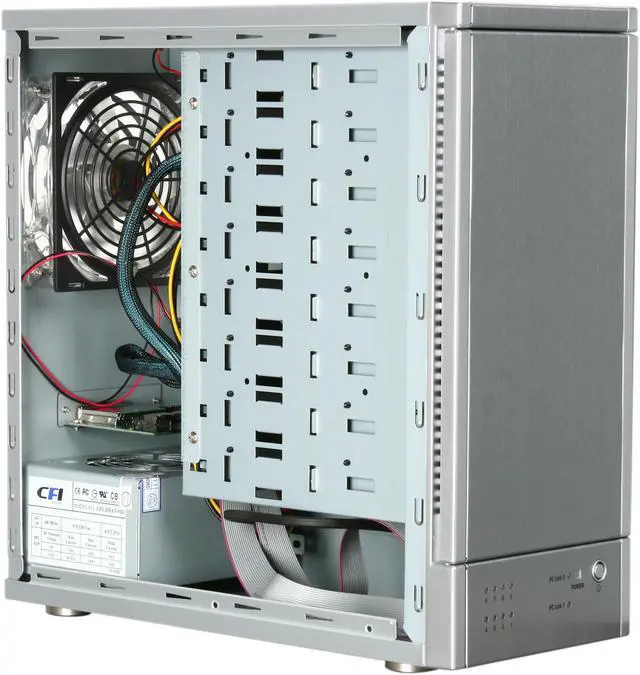

Cable-less backplane design supporting hot-swappable SATA and SAS hard drives.

Supports plug & play for easy installation.

Compact enclosure with dust-free cover.

Dimensions & Weight

|
Dimensions
5.9"W x 13.4"H x 13.4"D
Weight
13.0 lbs.

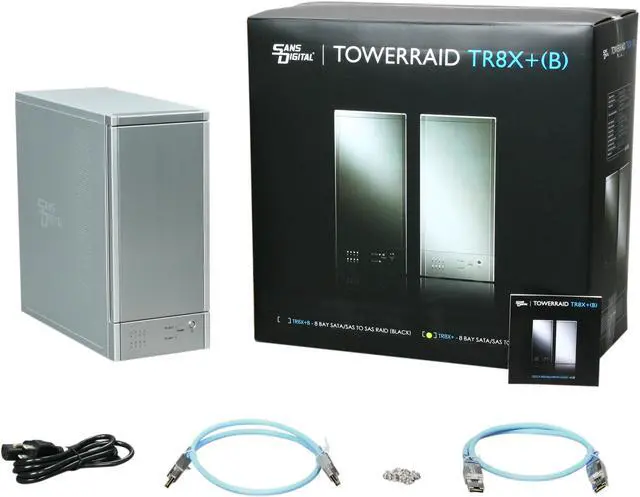

Package Contents

|
Package Contents
TR8X+
8 x Hard Drive Trays
Power Cord
2 x Mini-SAS to Mini-SAS Cable
Screws (1 set)
Quick Installation Manual & CD
Warranty, Returns, And Additional Information
  • Warranty
  • Limited Warranty period (parts): 1 year
  • Limited Warranty period (labor): 1 year
  • Read full details

Customer Reviews of the SANS DIGITAL TR8X+

Do you own this product? Write a Review

ICON Loading...

Filter Results

Go
  • Anonymous
  • 1/6/2016 8:45:14 PM
  • Ownership: 1 month to 1 year
  • Verified Owner

5 out of 5 eggsSolid HDD Array / Enclosure

Pros: Works with FreeNAS and LSI Raid Card in IT mode. Currently Filled with 6Tb WD Reds; no issues so far.

Cons: The Cooling fan is rather cheap.

Did you find this review helpful? Yes No

  • Elias M.
  • 8/26/2015 7:25:31 PM
  • Ownership: more than 1 year

4 out of 5 eggsGood product if you live in Alaska

Pros: Purchased a similar box years ago, still works and Sans Digital provides good customer service and phone support. The box looks really nice.

Cons: The problem with this box is the cooling. It has only one fan that cannot keep cool 8 hot hard drives!

Other Thoughts: As the title states it's a "Good product if you live in Alaska", it will warm up your room. Unfortunately I live in Houston and the drives get hot and eventually the room gets hot even if the average temperature inside the house is kept at 76-78 Deg. F in the summer . There is no way to add fans so when I need to use it extensively, i.e. restore redundancy that takes several hours (I use RAID-1 and 60 hours is typical), I remove the side panel put a couple fans blowing air inside the case to keep it cool (42 and 44 Deg. F). If I remove the fans the temperature rises but I did not let it go above 53 F. I have no problem during the very few cold days in the winter.

Did you find this review helpful? Yes No

ICON Loading...
Volume Discounts Available
  • 2-4 $389.99 ea.
  • 5-7 $384.99 ea.
  • 8+ $374.99 ea.
