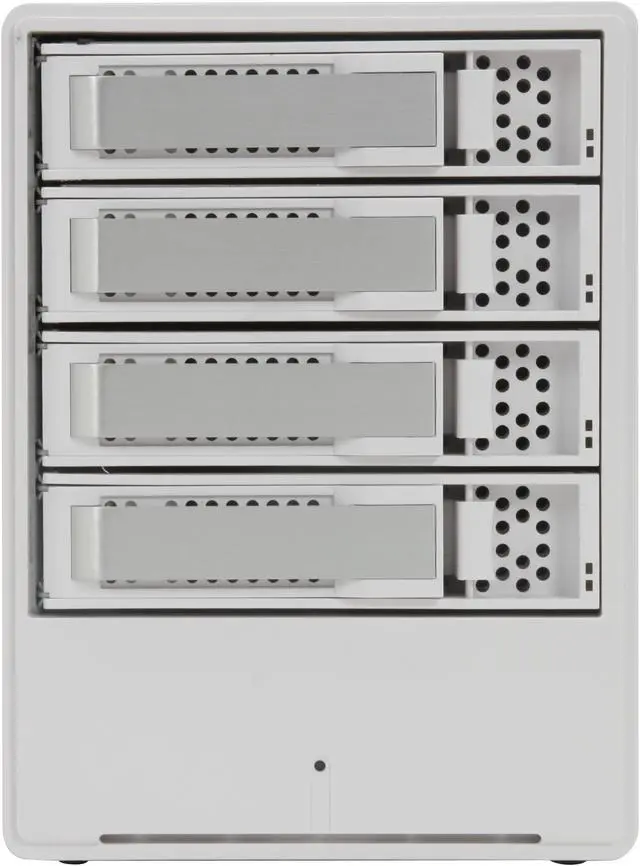

areca ARC-5020MAC RAID level 0, 1, 10(1E), 3, 5, Single Disk or JBOD 4 3.5" Drive Bays 1 x eSATA (SATA ll 3.0Gbps) 1 x Hi-Speed USB 2.0 RAID Box

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the Areca ARC-5020MAC

Model
Brand	areca
Model	ARC-5020MAC

Details
Drive	SATA 3Gb/s

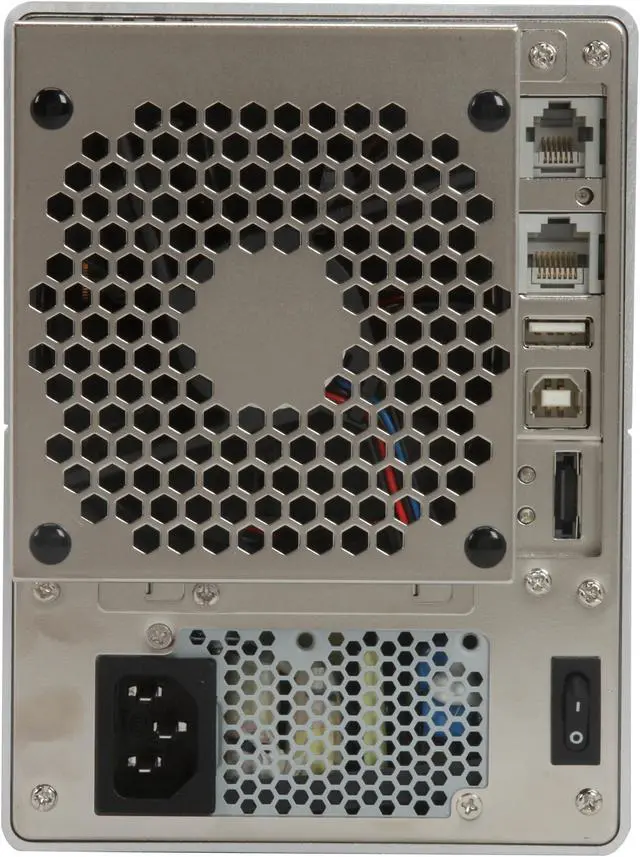

External I/O	1 x eSATA (SATA ll 3.0Gbps) 1 x Hi-Speed USB 2.0
RAID Levels	RAID level 0, 1, 10(1E), 3, 5, Single Disk or JBOD

Expansion

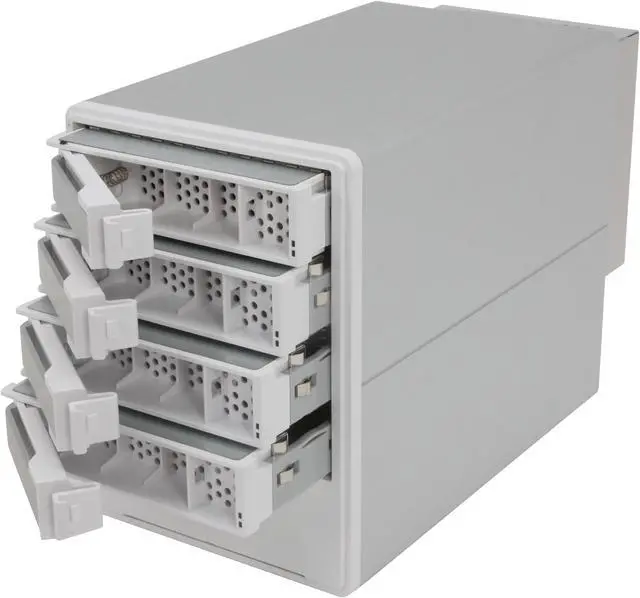

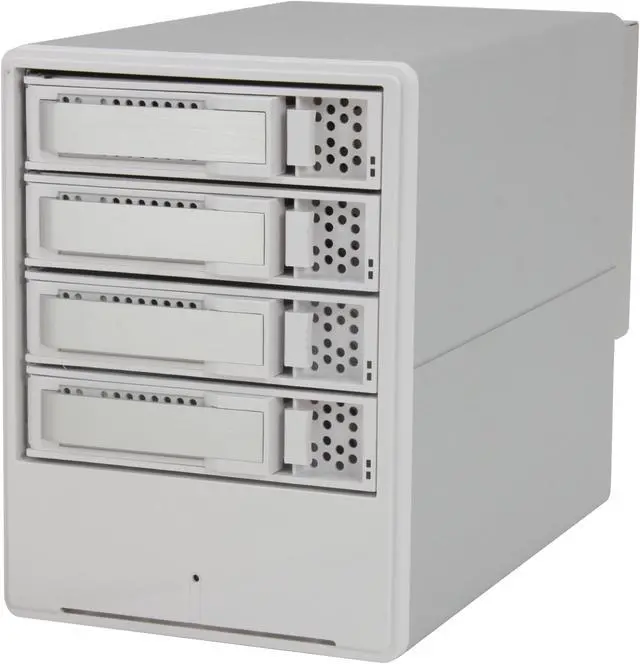

3.5" Drive Bays	4

Mechanical Spec
Power Supply	180W / 90 - 265V AC / +5V/9A, +12V/9A,+3.3V/4.5A

Features

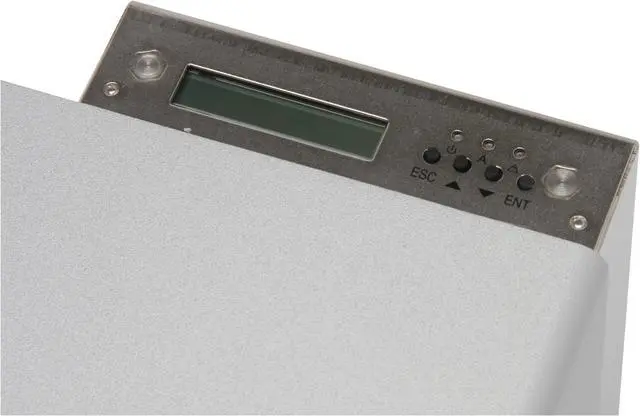

Features	- System Requirements: Computer with USB or eSATA connection RAID Features - 400MHz storage I/O processor - Unleash the power of 3.0Gbps and NCQ on the eSATA host port - NVRAM for RAID configuration & transaction log - Write-through or write-back cache support - Redundant flash image for controller availability - RAID level 0, 1, 10(1E), 3, 5, Single Disk or JBOD - Multiple RAID selection - Up to 4 volumes (Target mode multiplier emulation) - Online array roaming - Online RAID level/stripe size migration - Online capacity expansion and RAID level migration simultaneously - Online dynamic volume set capacity expansion - Instant availability and background initialization - Automatic insertion/removal detection and rebuild - Greater than Two TB per volume set - Support SMART, NCQ, and OOB staggered spin-up capable drives Monitors/Indicators - Push Buttons and LCD Display Panel for setup and status - Environment and drive failure indication through LCD, LED and alarm buzzer - Keep silent and adequate air flow and cooling by intelligent cooling fan speed controller RAID Management - Field-upgradeable firmware in flash ROM via RS-232 and LAN port - LCD Hot-Key supports one-step easy RAID configuration - Firmware-embedded manager via RS-232 port - Firmware-embedded Browser-based RAID manager, SMTP manager, SNMP agent and Telnet function via LAN port - Support RAID box’s API library for customer to write its own AP

Dimensions & Weight
Dimensions	4.84" x 6.52" x 9.13"
Weight	9.0 lbs.

Additional Information
First Listed on Newegg	December 24, 2008
