Item#: N82E16816151148

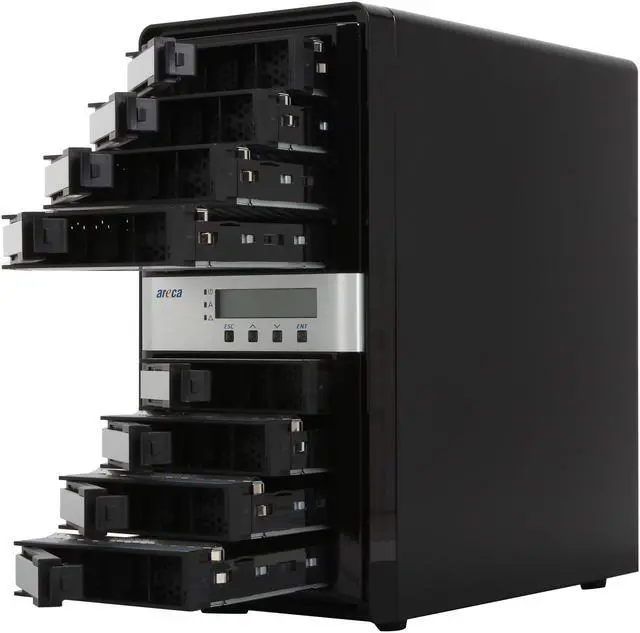

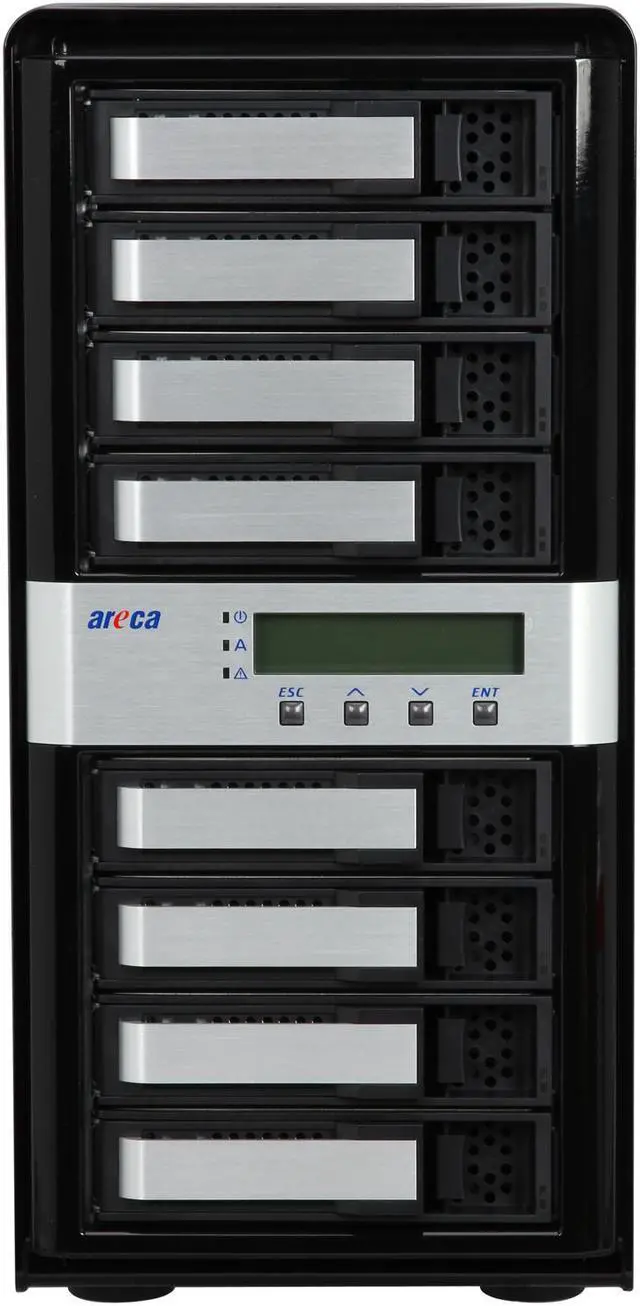

areca ARC-8050T2 RAID level 0, 1, 1E, 3, 5, 6, 10, 30, 50, 60, Single Disk or JBOD 8 3.5" Drive Bays 2 x Thunderbolt 2 Thunderbolt 2 to 6Gb/s SAS RAID Storage

  • 800 MHz Dual Core Processor
  • 20Gb/s Thunderbolt 2
  • Supports Simultaneous 4K workflows
  • Thunderbolt 2 Ports for Daisy-Chaining
  • Controller-Level Hardware Encryption
  • Pin It
  • Email this page
ICON Loading...



Eight-Bay Thunderbolt 2 - 6Gbps SAS RAID Storage

The Areca ARC-8050T2 Thunderbolt 2 hardware RAID storage delivers the best in class performance by incorporating the latest 800Mhz Dual-Core RAID-on-Chip processor combined with ultra-fast DDR3 ECC memory protection to deliver true proven performance and reliability.



Features

8 BAY Thunderbolt

The Power to do More

While others claim to be the world's fastest Thunderbolt 2 hardware RAID storage solution, the Areca ARC-8050T2 proves it and delivers. The ARC-8050T2 was designed for the most intensive media application requiring fast sustained data throughput for smooth, real-time playback and edit to meet professional users demands.


8 BAY Thunderbolt

4K Ready

Thunderbolt 2 offers fast connectivity speed at 20Gbps, offering the bandwidth to Supercharge your workflow ability and seamlessly ingest, edit, create, and stream SD, HD, 2K, 4K, and even higher resolutions.


8 BAY Thunderbolt

ARC-8050T2 for Mac

Arm the latest Thunderbolt 2 enabled Mac with the proven hardware performance of the ARC-8050T2 RAID Storage Solution.


8 BAY Thunderbolt

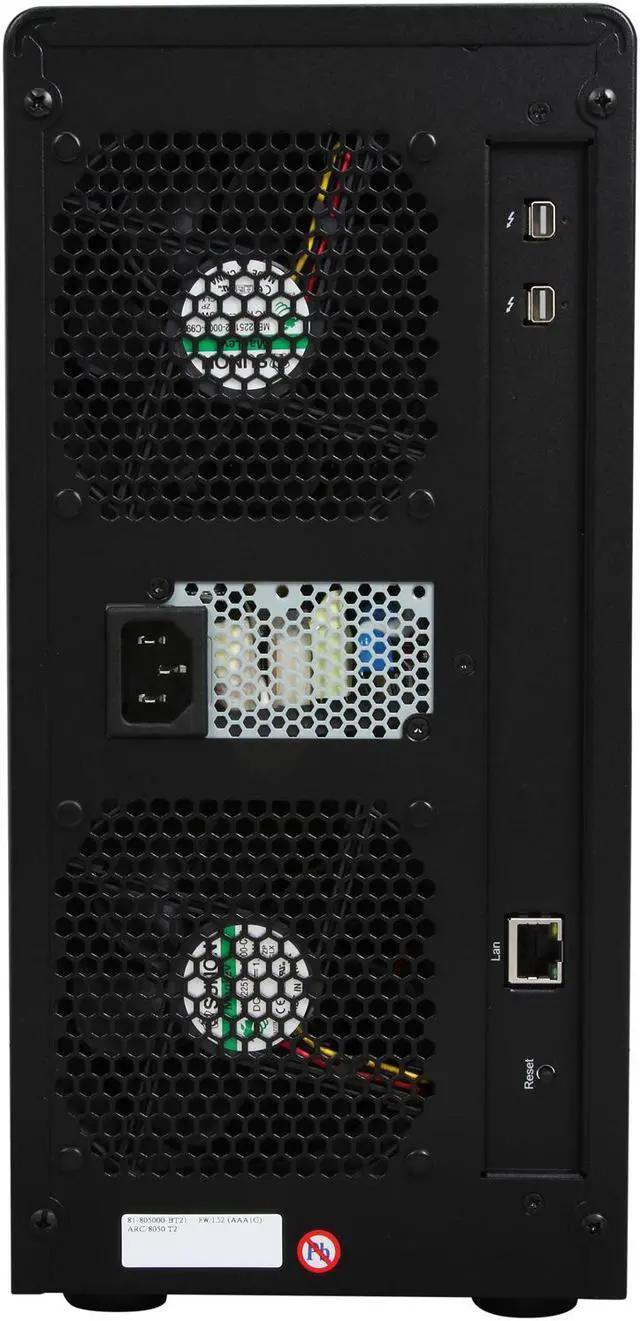

Dual Fans

Dual cooling fans with self regulating speed automatically maintain optimal air distribution, and targeted hot spot reduction keeps the drives running at peak performance, even during the most intensive use.


8 BAY Thunderbolt

Scalability

Instantaneous capacity expansion capabilities by simply daisy-chaining multiple ARC-8050T2 storage systems as you need - up to 6 units total.


Intelligent Power

Automatic on/off power of the ARC-8050T2 in unison with the Thunderbolt enabled host Mac or PC for data integrity.


RAID Features

8 BAY Thunderbolt
  • RAID level 0, 1, 1E, 3, 5, 6, 10, 30, 50, 60, Single Disk or JBOD
  • Multiple RAID selection
  • up to 1MB stripe size support
  • Online array roaming
  • Online RAID level/stripe size migration
  • Online capacity expansion and RAID level migration simultaneously
  • Global & Local Hot-Spare support
  • Instant availability and background initialization
  • Automatic drive insertion / removal detection and rebuilding
  • Disk scrubbing / array verify scheduling for automatic repair
  • Intelligent power management to save energy and extend service life
  • Multiple pairs SSD/HDD disk clone function
  • SSD automatic monitor clone (AMC) support

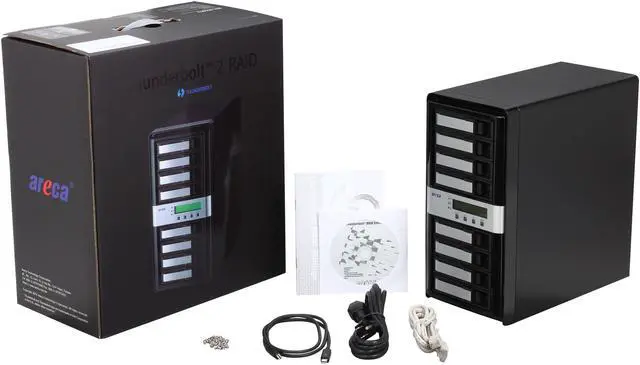

What's in the Box

8 BAY Thunderbolt

Learn more about the Areca ARC-8050T2

Model

Brand
areca
Model
ARC-8050T2

General Spec

Drive
SAS & SATA
External I/O
2 x Thunderbolt 2
RAID Levels
RAID level 0, 1, 1E, 3, 5, 6, 10, 30, 50, 60, Single Disk or JBOD

Expansion

3.5" Drive Bays
8

System Management

OS Supported
Mac OS X 10.8.5 or Higher & Windows 7/8

Mechanical Spec

Power Supply
270W / 90-256V AC / +12V/26A, +5V/18A, +3.3V/16A

General Spec

Temperature
0 ~ 40 degree C
Humidity
5% ~ 95 %, Non-condensing
Dimensions
11.8" x 11.4" x 5.7" (H x D x W)
Weight
14.9lbs
Features
800 MHz Dual core ROC for RAID core and SAS microcode

1GB on-board DDR3-1333 SDRAM with ECC protection

Support bootable from RAID storage volume

Controller level hardware encryption support

Redundant flash image for adapter availability

System status indication through LCD, LED and alarm buzzer

Intelligent power On/Off function

Multiple RAID selection
Support up to 1MB stripe size
Online array roaming
Online RAID level/stripe size migration
Support global hot spare and local hot spare
Instant availability and background initialization
Advanced configuration for smooth data streaming
Disk scrubbing/ array verify scheduling support
Multiple pairs SSD/HDD disk clone function
SSD automatic monitor clone (AMC) support

Complete configuration management suite
McRAID manager - browser-based management tool (LAN or Thunderbolt)
Push Buttons and LCD Display panel for setup and status
Command Line Interface (CLI) - scriptable configuration tool
API libraries support - combine GUI with user management utility
SNMP support for remote monitoring
SMTP support for email notification

Quick Info

Warranty

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years
