FSP Group FSP500-60GHN 24Pin 500W Single 80PLUS Certified Server Power Supply - OEM

Name: FSP Group FSP500-60GHN 80PLUS Certified Server Power Supply - OEM
Brand: FSP
SKU: N82E16817104078
Rating: 3 (2 reviews)

Specs

Reviews (2)

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the FSP FSP500-60GHN

Model
Brand	FSP Group
Model	FSP500-60GHN

Details
Type	ATX
Single/Redundant	Single
Maximum Power	500W
Main Connector	24Pin

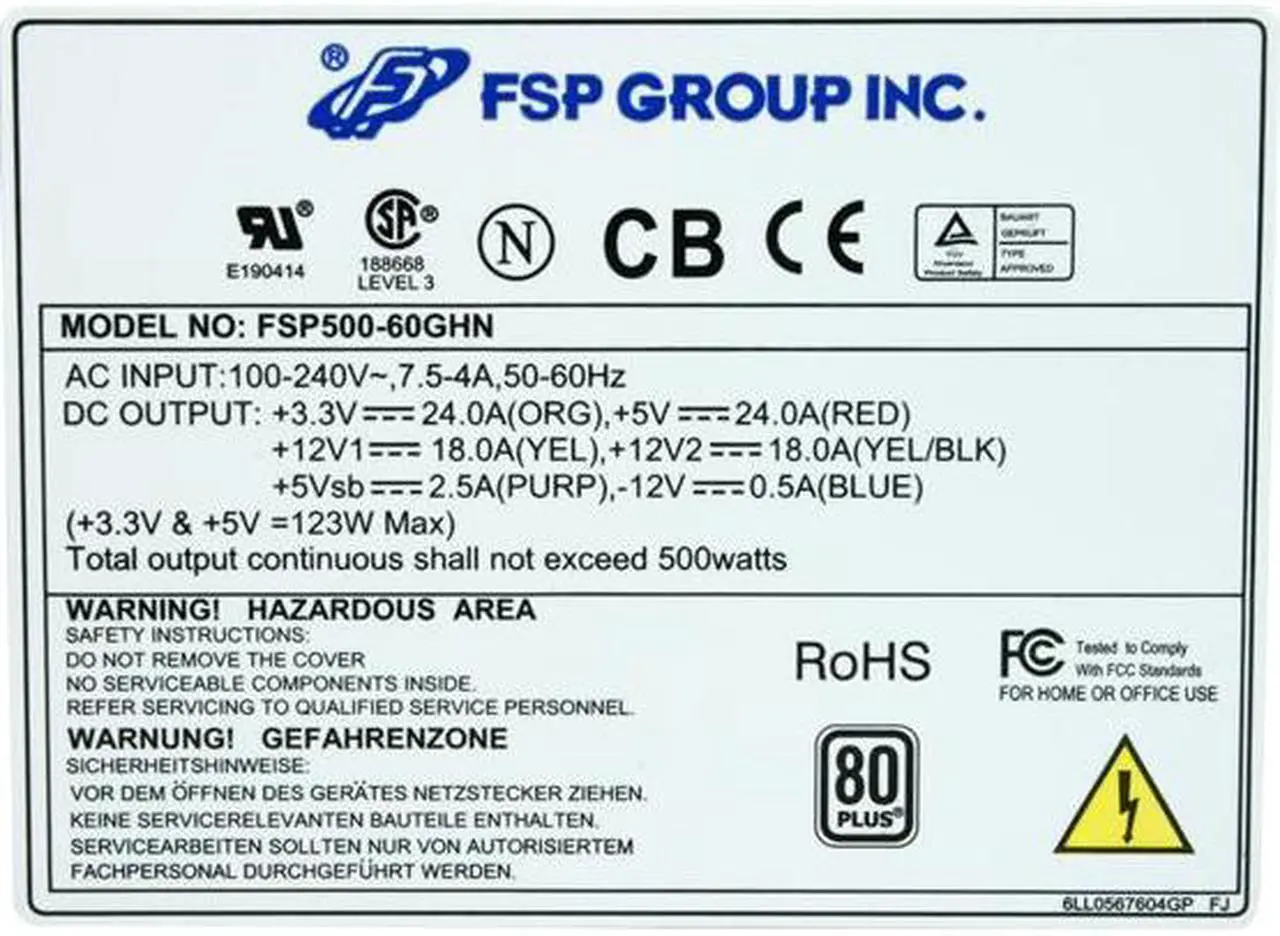

Output Current	+3.3V@24A, +5V@24A, +12V1@18A, +12V2@18A [email protected], [email protected]
Input Voltage	115 / 230 V
Input Frequency Range	47 - 63 Hz
Input Current	9.0A @ 115 Vrms, 60 Hz. \| 4.5A @ 230 Vrms, 50 Hz
Fans	1
MTBF	>100,000 Hours
Efficiency	80%+ TYPICAL
Protection	OVP: Over Voltage Output Protection OCP: Over Current Output Protection SCP: Short Circuit Output Protection

Features

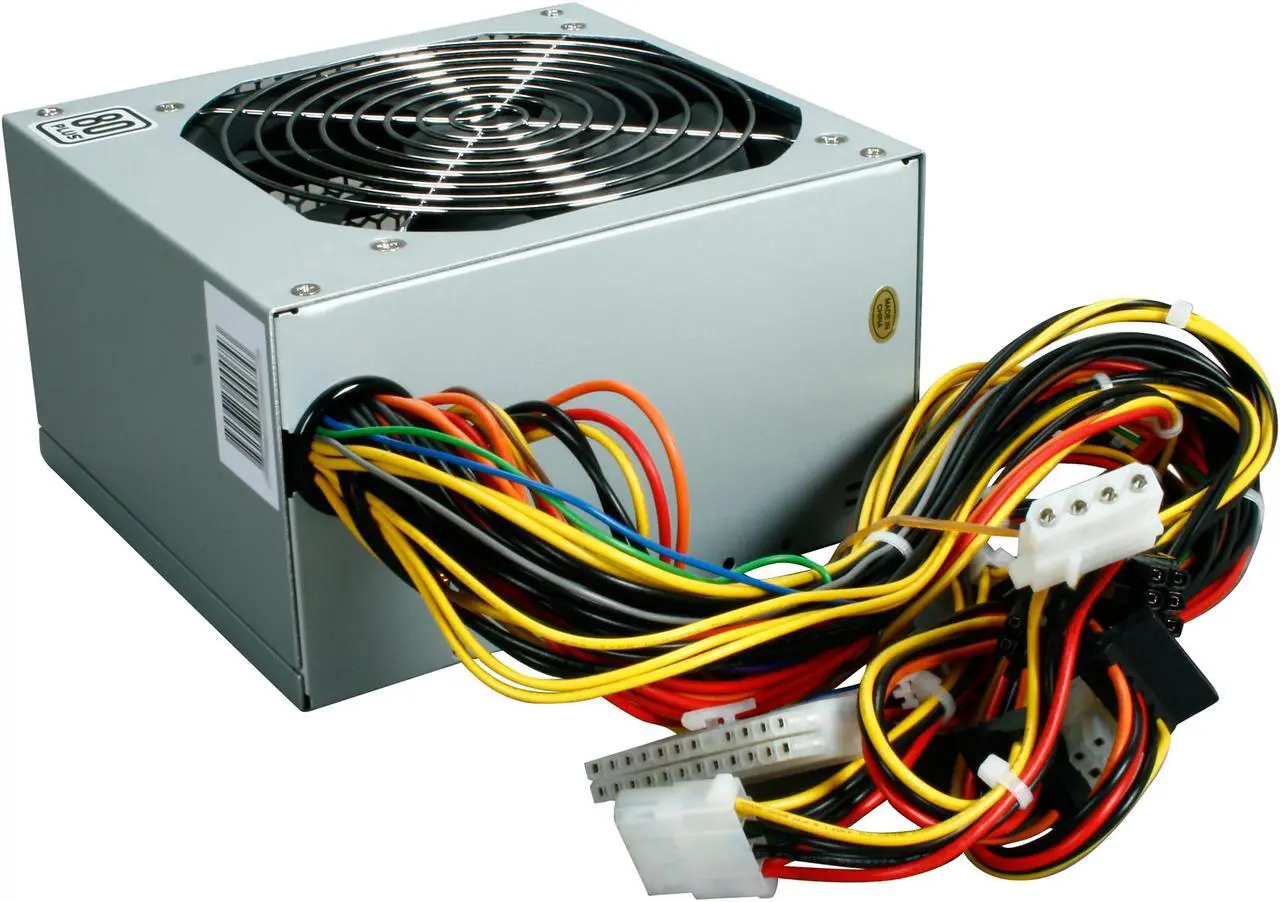

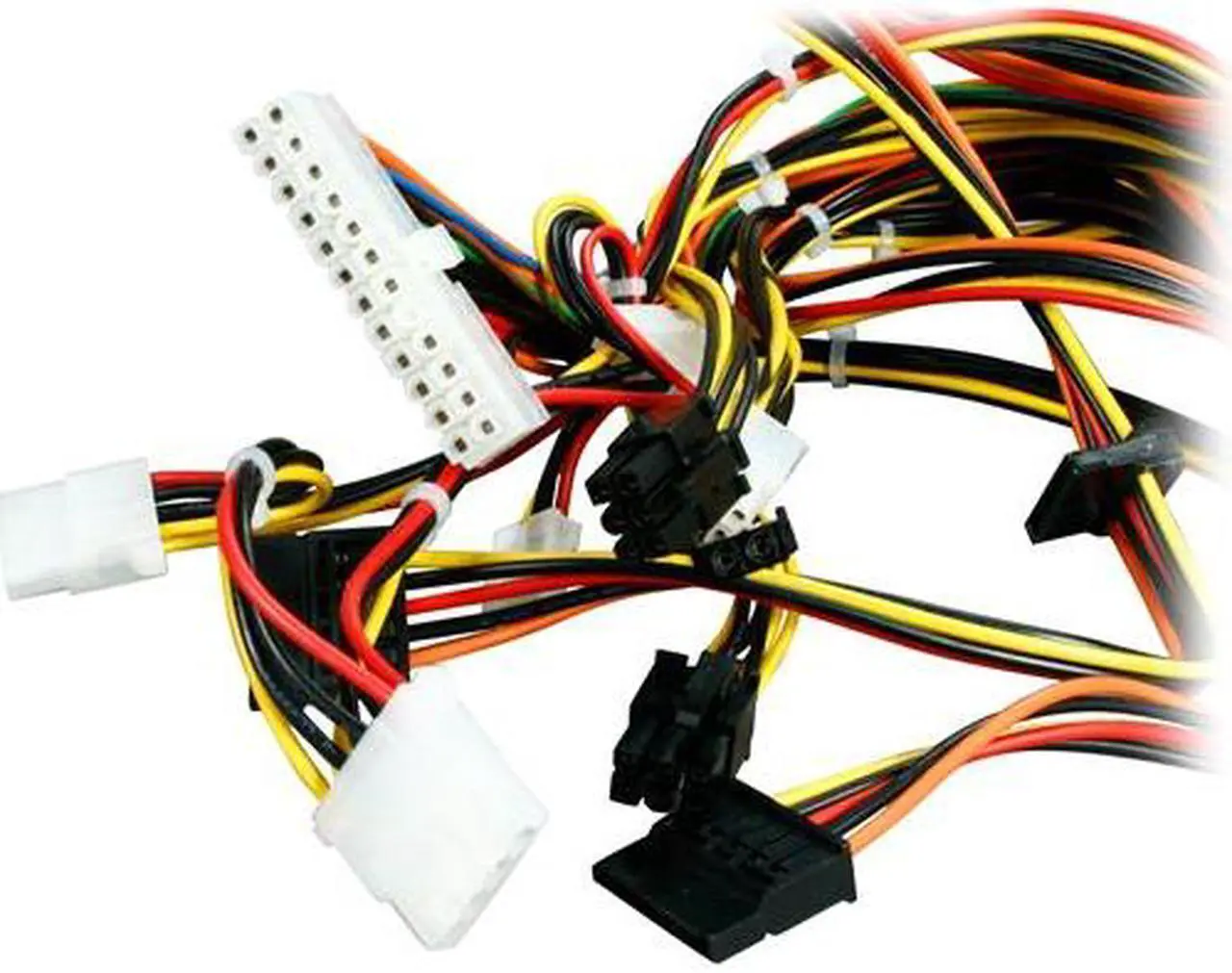

Features	80 PLUS certified Single 120mm Fan linked with thermal Sensor Active PFC, full range input Low Ripple Noise Design for ATX chassis Supports Multi.core CPU System Supports PCI-express Energy Saver \| 1.watt Standby Mode Connectors: Main connector 24Pin x1 EPS P4 (4PIN) x1 Mole 4PIN x3 SATA x 4 PCI-E (6+2PIN) x1 Floppy 4PIN x1

Dimensions & Weight
Dimensions	5.9" x 5.51" x 3.39"
Weight	4 lbs.

Environmental
Humidity	5-95% Non.condensing
Temperature	10° C - 50° C
