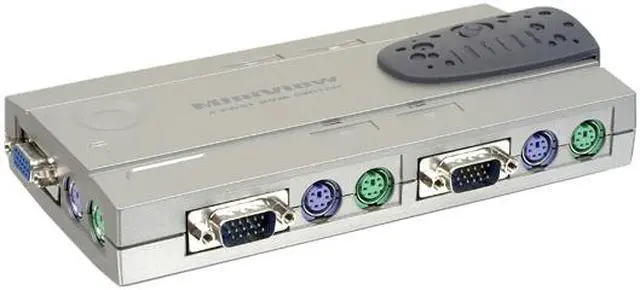

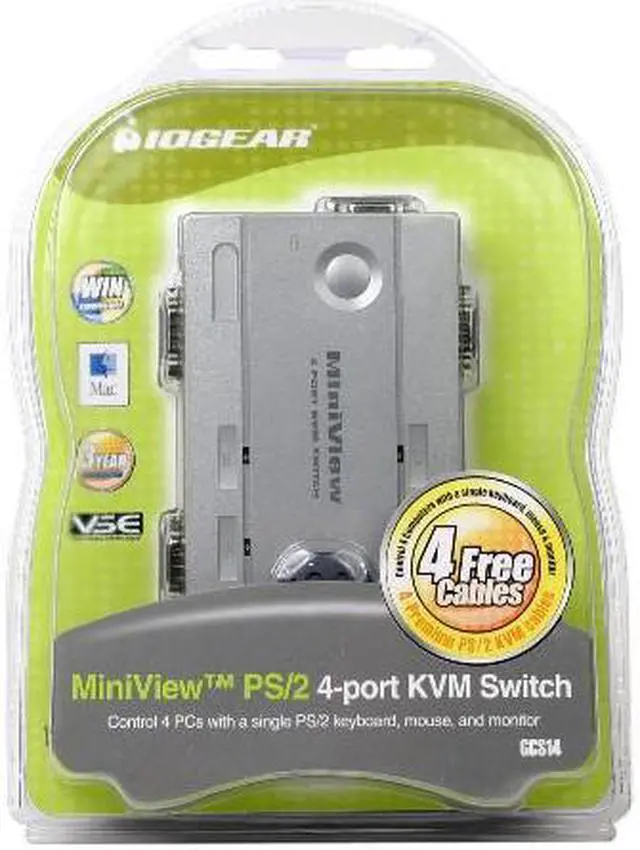

IOGEAR GCS14 4-Port MiniView Compact KVM Switch Kit w/Cables

(47) Write a Review
  • 4 Ports Computer Connections
  • 1 Port Monitor Connections
  • AutoScan Interval 5 seconds
  • Video Resolution 1920 x 1440
Specs
Reviews (47)
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the IOGEAR GCS14

Model
Brand IOGEAR
Model GCS14
Details
Type D-Sub
PC Connectors Mouse: 4x6 pin mini-DIN Female (PS/2)
Keyboard: 4x6 pin mini-DIN Female (PS/2)
Monitor: 4xHDB15 male (Std. VGA/SVGA)
Console Connectors Monitor: 1xHDB15 Female (Std. VGA/SVGA)
Mouse: 1x6 pin mini-DIN Female (PS/2)
Keyboard: 1x6 pin mini-DIN Female (PS/2)
Computer Connections 4 Ports
Monitor Connections 1 Port
Video Resolution 1920 x 1440
PC Selection Push Buttons/Hot Keys
AutoScan Interval 5 seconds
Monitors Supported VGA, SVGA and MultiSync with DDC, DDC2, DDC2B
Features
Power Features DC 5V 20mA
Features Use one keyboard, monitor and mouse to control 4 computers
Microsoft Intellimouse, Logitech FirstMouse+, MouseMan+ are supported
Port selection through push button and Hotkeys
PS/2 Mouse emulation for error-free boot-up
Connected PC’s can be added or removed from the setup without powering off the KVM switch
Plug-n-Play monitor support
No software required
Built in AutoScan mode
Keyboard lock states are stored for each computer
LEDs allow for easy status monitoring
Macintosh keys are remapped on the PS/2 keyboard
No external power supply needed
Dimensions & Weight
Dimensions 3.5" x 1.3" x 6.8"
Weight 0.55 Lbs
Package Contents
Package Contents 1 MiniView 4-port KVM switch

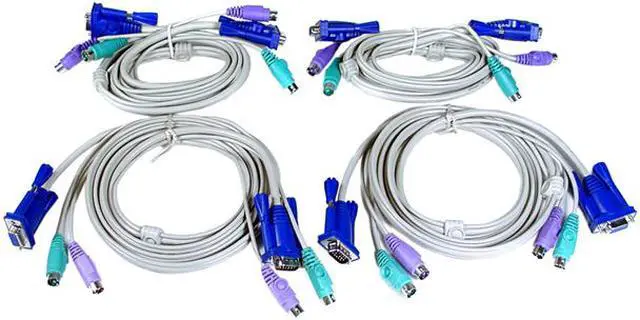

4 sets of premium bonded KVM cables

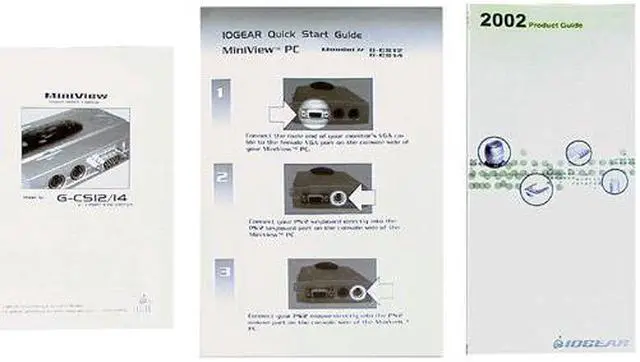

1 installation manual
1 quick start guide
1 product registration card
Additional Information
First Listed on Newegg July 17, 2007

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years
