Item#: N82E16817107455

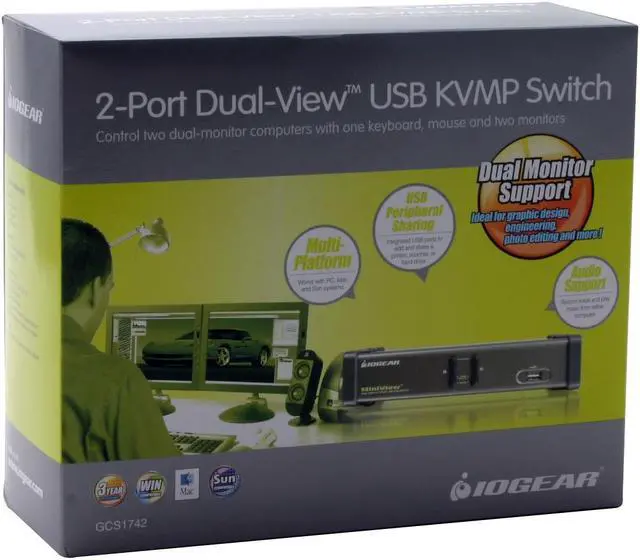

IOGEAR GCS1742 2-Port Dual View KVM Switch w/Audio and USB Peripheral Sharing

  • 2 Ports Computer Connections
  • 2 Ports Monitor Connections
  • AutoScan Interval 1-99 seconds
  • Video Resolution 2048 x 1536
  • Pin It
  • Email this page
ICON Loading...

As users grow in knowledge and experience with their computers, they frequently wind up with more than one system on or under the desk. Space limitations, however usually restrict the screens you can have on your desk. A KVM (Keyboard/Video/Monitor) switch allows you to control 2 or more systems from one keyboard and screen. The Dual View GCS1742 USB KVMP Switch brings dual head video functionality to IOGEAR's USB KVM switch technology.

Now two dual-display computers can be accessed and controlled via a single dual-monitor console. It also offers USB peripheral sharing capabilities such as printers, scanners and portable hard drives, as well as audio and microphone support. It can emulate a keyboard on each PC to allow your systems to boot normally without a keyboard error, and supports hot-swapping and can even be set to auto-scan to alternate superior-quality video between computers at preset intervals.

There's no need for device drivers or software interconnects – the switch plugs right in and handles things immediately. With an array of console ports and connectors to link to a wide array of systems and peripherals, the IOGEAR Dual View GCS1742 is ready to make sense of the forest of boxes under your desk!

  • newegg Support Dual-monitor Applications The IOGEAR GCS1742 KVM switch features two VGA ports for sharing two monitors between two dual-head computers. With the dual-monitor KVM switch, control two dual-head PCs via one USB keyboard, USB mouse and dual monitors.
  • newegg Audio Support With audio support, share speakers and microphone between two computers. Enjoy multimedia playback and voice chatting on either computer using a single set of speakers and microphones.
  • newegg USB Peripheral Sharing With two USB 2.0 peripheral ports, share your peripherals such as your printer, scanner, MP3 player and external hard drives between two computers.
  • newegg Two Way Switching Switch to a computer with keyboard hotkeys for convenience or by manually pressing the push button for simplicity.
  • newegg Flash Upgrade Add the latest firmware to your IOGEAR GCS1742 KVM switch for consistent compatibility with the latest devices.


Learn more about the IOGEAR GCS1742

Model

Brand
IOGEAR
Model
GCS1742

Spec

Type
D-Sub, USB

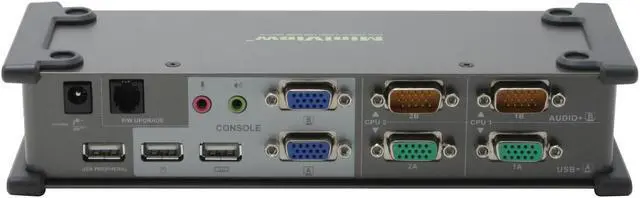

PC Connectors
Monitor: USB/Video1: 2 x SPHD-15 Female, Audio/Video2: 2 x SPHD-15 Male
Peripherals: 2 x USB Type A female
Console Connectors
Keyboard: 1 x USB Type A Female
Monitor: 2 X HDB15 Female
Mouse: 1 x USB Type A Female
Audio: 1 x Earphone Jack Female, 1 x Microphone Jack Female
Flash ROM Upgrade: 1 x RJ11 Socket
Computer Connections
2 Ports
Monitor Connections
2 Ports
Video Resolution
2048 x 1536
PC Selection
Push Buttons/Hot Keys
AutoScan Interval
1-99 seconds
Temperature
0ºC to 50ºC(32ºF to 122ºF)
Humidity
0% to 80%,Non-Condensing
Dimensions
7.9" x 2.9" x 1.7"
Weight
4.7 lbs. (include package)

Features

Power Features
DC5V, 1.25W
Features
One dual monitor console controls two dual monitor computers
Additional VGA display channel provided for dual display of each computer
Additional USB peripheral ports for the connected computers to share USB devices, such as printers, scanners, and portable hard drives, etc.
Audio jacks provided for speaker and microphone sharing
Independent switching of KVM, USB, and audio
Easy to install - no software required - connecting cables is all it takes
Easy to operate - computer selection via push button switches or hotkeys
Auto Scan function to monitor computer operation
Hotkey selection for OS and keyboard language
LED display for easy status monitoring
Caps Lock, Num Lock, and Scroll Lock, states are saved and restored when switching
Hot pluggable – add or remove computers for easy maintenance
Firmware upgradable
Keyboard and mouse emulation for error free booting
Supports multimedia USB keyboards
Supports Mac & Sun keyboards
Efficient, ergonomic design - logical connector layout

Packaging

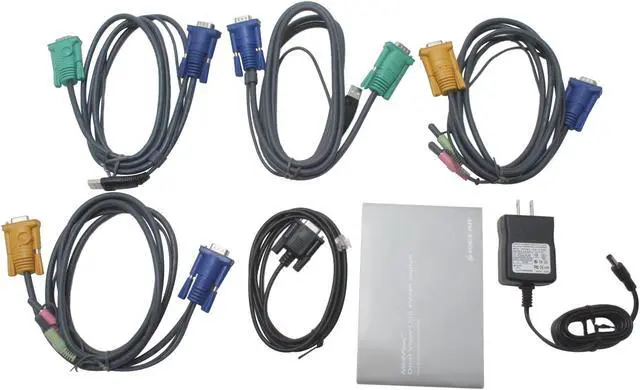

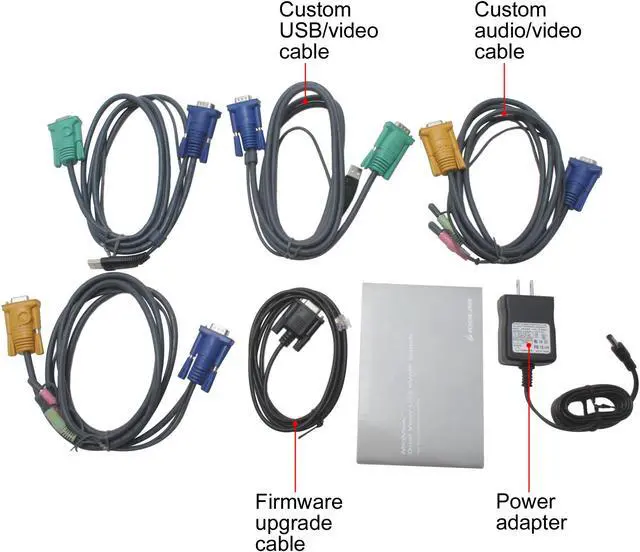

Package Contents
1 x GCS1742 USB KVM Switch
1 x Power adapter
2 x Custom audio/video cables (6 ft long)
2 x Custom USB/video cables (6 ft long)
1 x Firmware upgrade cable
1 x User Manual

Manufacturer Warranty

Parts
3 years limited
Labor
3 years limited

Quick Info

Warranty

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years


Customer Reviews of the IOGEAR GCS1742

Do you own this product? Write a Review

ICON Loading...

Filter Results

Go
  • William C.
  • 7/18/2011 11:56:40 AM
  • Tech Level: High
  • Ownership: 1 day to 1 week
  • Verified Owner

5 out of 5 eggsGreat Box

Pros: Bought 2 of these and they work as expected in an office environment doing RDP, etc. Couldn't be happier.

Cons: None so far.

Other Thoughts: Wish the DVI version of this box wasn't so pricey.

Did you find this review helpful? Yes No

  • gerald c.
  • 3/4/2011 7:45:59 AM
  • Tech Level: High
  • Ownership: 1 month to 1 year

1 out of 5 eggsP.O.S.!!

Pros: Supports dual screens for both computers

Cons: Under Windows 7 regardless of the computer being viewed, the device will reset itself anywhere from 1-90 minutes. Some times after a reset some or all of the devices lockup or shut down forcing a system reboot and lose of work. On average I lose 1 hour per day due to the device resets, not including any lost labor due to forced system reboots.

Other Thoughts: As of this post New Egg does not list the supported OS by the device. IOGear support sucks. After contacting IOGear support and explaining my problem and checking 2 things the support person asked what OS I was running on, after support learned the OS they responded and I quote "We do not support that device under Windows 7, good by (click)", yes they hung up on me before I got to say anything else. After my support call with IOGear I called New Egg about returning the device but I was unable to return the device, so New Egg said they would elevate my complaint about the manufacture and put pressure on them to help me try and solve my problems, as of this post I've not heard any further communications from ether party. -2 egg for New Eggs failure to post supported OS, -3 eggs for extremely poor support from the manufacture. Do not buy if your using Windows 7.

Manufacturer Response:

Thank you for choosing IOGEAR and we apologize for your experience.
Windows 7 new feature is that it requires the EDID information more frequently where as previous Windows OS's only requested it during boot up. This has created issues of resolution resets and blank screens amongst any KVM that does not contain any video emulation; which is almost all KVM's except for IOGEAR's KVM's with DynaSync. Regarding the KVM, it should not be resetting itself as you reference; please contact us directly at suupport@iogear.com with a ticket number or something we can reference regardig your call to us so we can better assist you. Once again, thank you for choosing IOGEAR and we hope to provide you with the proper quality service.

1 out of 1 people found this review helpful. Did you? Yes No

  • Tim O.
  • 5/21/2010 9:27:22 AM
  • Tech Level: Somewhat High
  • Ownership: more than 1 year

5 out of 5 eggsIOGear KVN GCS1742

Pros: 2 computers with dual monitors.

Supports a mix Mac/PC environment well.

No need for power supply as it pulls it from USB.

Solid case... professional feel and look.

I had this thing connected for over 2 years and love it.

Having a real box to switch to is better than using VMWare/Paralles.

Cons: Sometimes when switching the mouse is lost. However the fix is easy... toggle back and forth and it comes back. Might actually be the computer(s) fault?

Other Thoughts: No heat problems here... I have it fully loaded with USB and it is stone cold. I'm not using the external power supply and never have (still in box), so maybe that is why I'm not having that problem.

Did you find this review helpful? Yes No

  • Mike D.
  • 1/19/2009 3:06:07 AM
  • Tech Level: High
  • Ownership: 1 month to 1 year

2 out of 5 eggsNot coming back to this model

Pros: dvi

Cons: Runs extremley hot as soon as plugged in.. I could fry a new egg on this thing.
Overpriced..
Did'nt last a year before burnt out.. But little did I know its malfunction created major network problems in which cased made my DSL line to seem bad, 5000 calls to phone company and DSL provider went notwhere, eventually this device died and my problems re-aligned.. WIERD! Something to do with the USB ports and stuff it was sending thru to my machine I guess?

Other Thoughts: IOMEGA thinks that because it can save you from purchasing 3 extra monitors they can charge you a premium for this, not based on cost to make with modest profit. We all know we dont want 3 extra monitors just a switch lol...

1 out of 6 people found this review helpful. Did you? Yes No

  • Harold H.
  • 8/15/2008 10:56:58 PM
  • Tech Level: High
  • Ownership: 1 day to 1 week

5 out of 5 eggsWorks fine

Pros: 1. Fast switching between computers
2. Supports current bluetooth wireless keyboards and mice
3. Options to switch just the video or video/audio/peripheral usb devices.

Cons: 1. External hard drives may not work with peripheral USB slot. Tried WD Passport drive and it was not recognized or powered up.

Other Thoughts: 1. The previous reviews were a long time ago. I'm running an Asus motherboard with the nForce chipset and everything works fine. I think IOGEAR has fixed any of the previous problems that the reviewers had with their unit. The device also has a cable that lets you perform firmware updates should the company every release a new one. This is cheaper than the similar product CS1742 by Aten. Good deal if you're looking for a KVM switch for dual monitor support.

1 out of 1 people found this review helpful. Did you? Yes No

  • Anonymous
  • 5/2/2008 5:34:03 PM
  • Tech Level: Somewhat High
  • Ownership: 1 day to 1 week

3 out of 5 eggsDoesn't work with XBox 360

Pros: Small; tough metal case. Included cables are a good length. Power supply plug is well thought out and fits into a standard size slot on a multiple outlet or UPS. I didn't notice any video signal degradation, even at 1920x1200, unlike many cheaper KVM switches.

Cons: I took a chance; it doesn't work with the XBox 360 no matter what I tried. The keyboard based switching (using scroll lock key) was very flaky, often not working. To switch USB focus (and audio, incidently), you need to hold down buttons on the KVM for longer than I have patience. If you switch a lot, you'll quickly get frustrated. So, even if it did support the XBox 360, I'd still only be half-satisfied with it.

Other Thoughts: As it turns out, this KVM isn't the only one to have problems with the XBox 360. Hardly any seem to work with it. IOGEAR doesn't say they support it, so I certainly don't blame them. But, despite that, even when only using it with my Mac and PC, I still didn't care for it because of the problems noted above.

2 out of 3 people found this review helpful. Did you? Yes No

  • William B.
  • 6/26/2007 6:08:44 AM
  • Tech Level: High
  • Ownership: less than 1 day

4 out of 5 eggsLittle Quirky

Pros: Does what it says it does.

Cons: Audio ports are flipped. Audio port for computer 1 is really the audio port for computer 2. And vice versa.

Other Thoughts: Works with my Logitec 518 Mouse and keyboards. I have a 9800 XT in one computer and 8800 GTX in the other and both work fine.

No problems with my mother boards. Other then the audio ports being wired wrong, the thing works as I expect it too.

Did you find this review helpful? Yes No

  • Xiaoxin Y.
  • 1/26/2007 12:00:52 PM
  • Tech Level: High
  • Ownership: less than 1 day
  • Verified Owner

5 out of 5 eggsWorks like a charm

Pros: Works great. Extensive hotkey support, including user defined hotkeys. Firmware upgradable (you need to have a serial port on your PC, or get a USB to serial adapter cable). Comes with all the cables, including a serial cable for firmware upgrade, and a power adapter, which is generally useless unless you want to switch ports when all PCs connected are powered down (why will someone do this?)

Cons: None with the KVM, but when switching ports back and forth, the XP USB device plug/unplug sounds are really annoying.

Other Thoughts: I've used a lot of KVMs in 10 years. PS2 KVMs, USB KVMS, 2 port, 4 port, and 8 port stackable KVMs. This one is the best as far as KVM is concerned. I don't use the USB port and audio switching, so I can't comment on those aspects.

Did you find this review helpful? Yes No

  • Anonymous
  • 1/4/2007 4:48:38 PM
  • Tech Level: High
  • Ownership: 1 week to 1 month
  • Verified Owner

4 out of 5 eggsIOGEAR Dual View KVM Switch

Pros: The switch works great, does what it is designed to do and had all of the cables (since some are specalized to pull the USB and audio information)

Cons: Wish it would support the USB 2.0 so my thumb drive is slower when plugged into the USB port on the switch.
Reading the hot key switches will make your head hurt, I keep the audio from one computer and work the other so I need to remember to hit scroll scroll 1 K U.
It will switch just about anything.

Other Thoughts: USB 2.0 would be an improvement, some computers see this going back and forth will give you the "ding" new device found.

Did you find this review helpful? Yes No

  • Michael G.
  • 11/1/2006 6:15:04 PM
  • Tech Level: Somewhat High
  • Ownership: 1 day to 1 week
  • Verified Owner

4 out of 5 eggsWorks like a charm!

Pros: Works as expected, relatively small footprint, comes with all the necessary cables so you don't have to purchase anything extra (as with some KVMs)

Cons: Video degradation is noticable (but what KVM switch doesn't have this problem)? Experienced odd behavior when using it w/o the power supply (but worked flawlessly when using the included P/S).

Other Thoughts: A lot of users here (and elsewhere on the internet) have complained about problems galore when using IOGEAR KVMs with NVidia Nforce4-based motherboards. I have such a motherboard but bought this particular switch anyway based on a couple of workarounds I read about. To my surprise the swtich worked flawlessly on my Nforce4 MB without having to resort to the workarounds, so I guess IOGEAR (or NVidia) may have finally resolved the problems! My only complaint is the video degradation - both of my PCs have dual DVI connections so I have to use DVI-2-VGA adapters which may also be contributing to the problem, but overall the video is not that bad, just not as sharp as before. There are a couple of other KVMs out there that do dual-DVI, but they either do not have all the features of this one (or are too expensive) - so I'll use this until IOGEAR comes out with a DVI version of this model.

1 out of 1 people found this review helpful. Did you? Yes No
