Question 1

will this fit a regular desktop case? Like are the mounting screws the same?

Accepted Answer

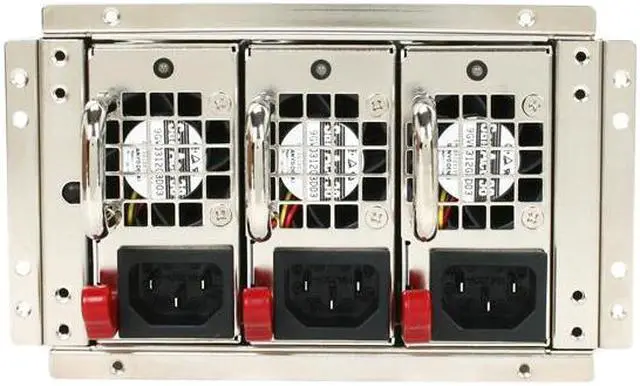

I doubt it would. I had to remove a bracket on my server case because it is a different size. If I had ti do do over again, I would NOT buy this power supply. It is actually 3 500w modules; it does NOT provide real 1000w triple redundancy. There are other units available that are actually 3 redundant 1000w modules; I'd suggest looking for one of those. If I didn't find that out after putting the server into production, I would have swapped it out for the correct configuration. This is just not the triple redundancy I wanted for my production business server.

Question 2

What are the extra PSU replacements called? If I am understanding it correctly, one fails, the failed unit can be replaced?

Accepted Answer

The IS-500R
500W Redundant Power Supply Module. Though I have not seen them for sale anywhere, you would likely need to contact the manufacturer in order to get one.

Brand	iStarUSA
Model	IS-1000R3NP

Single/Redundant	Redundant
Maximum Power	1000W

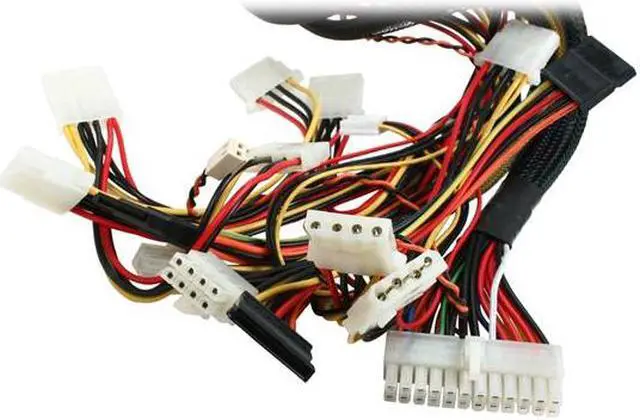

Main Connector	24Pin

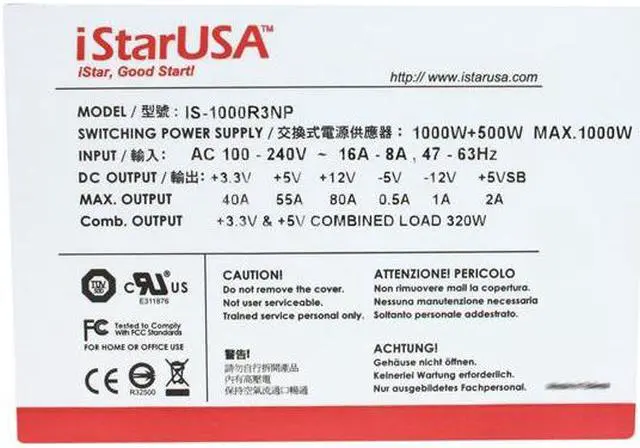

Output Current	+3.3V@40A, +5V@55A, +12V@80A, -12V@0.8A, -5V@0.5A, +5Vsb@2A
Fans	3
MTBF	>100,000 Hours
Efficiency	74% at Full Load
Protection	OPP (Over Power Protection) OVP (Over Voltage Protection) OCP (Over Current Protection) SCP (Short Circuit Protection)

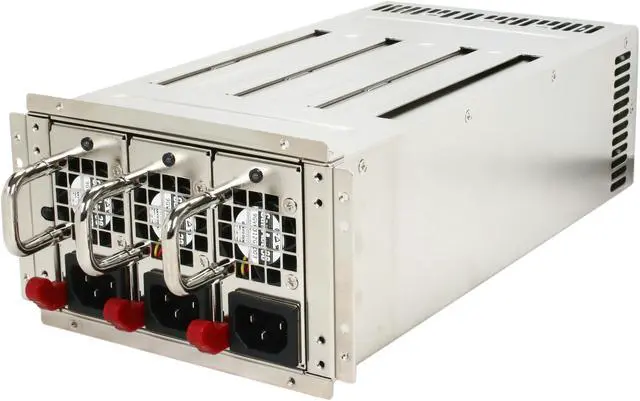

iStarUSA IS-1000R3NP 24Pin 1000W Redundant 4U Server Power Supply - OEM

Learn more about the iStarUSA Inc. IS-1000R3NP

Customer Reviews of the iStarUSA Inc. IS-1000R3NP

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Return Policies

Manufacturer Contact Info

Item#: N82E16817147105
