Tripp Lite B130-101A-WP-1 VGA+Audio over Cat5 (RJ45 Type) Extender Wallplate Kit (Transmitter + Receiver)

Connector A: (X2) HD15 (FEMALE)
Connector B: (X2) 3.5MM (FEMALE)
Connector C: (X2) RJ45 (FEMALE)
Extends a 1920 x 1440 (60Hz) Video and Stereo Audio signal up to 500 ft., or a 1024 x 768 (60Hz) Vi

Don't sacrifice quality for distance—extend a VGA and audio signal up to 1,000 ft.! The Tripp Lite B130-101A-WP-1 VGA with Stereo Audio over Cat5 Extender Kit delivers peak video and audio performance by digital video components, assuring that you enjoy the crystal-clear picture and full, rich sound that you paid for. With the B130-101A-WP-1, you can extend a 1920 x 1440 (60Hz) signal up to 500 ft. or a 1024 x 768 (60Hz) signal up to 1,000 ft., when using 24 Awg Solid-Wire Cat5e/6 cable. For maximum image quality between 500 and 1,000 ft., use Zero-Skew cable such as Tripp Lite P524-01K. This kit comes with both the local and remote connection units, allowing you to plug in and get started right away. The wallplate form factor mounts in a standard in-wall electrical box. With no software or drivers to install, the B130-101A-WP-1 provides total plug-and-play convenience.

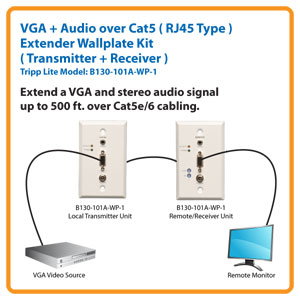

The Smart Solution for Digital Signage Applications The Tripp Lite VGA with Stereo Audio over Cat5 Extender Kit extends digital video and audio hundreds of feet away from the source, making it the ideal solution for digital signage applications in schools, churches, retail locations, tradeshow presentations and more. The B130-101A-WP-1 allows for the video and audio sources to be in a secure, remote location for controlled access while still delivering signal to TVs, projectors and other devices in another area. This kit includes units for both the source and display side of your application.
Greater Distance—Greater Flexibility The B130-101A-WP-1 can extend a 1920x1440 (60Hz) signal up to 500 ft. or a 1024x768 (60Hz) signal up to 1,000 ft. when using 24 Awg Solid-Wire Cat5e/6 cable like the Tripp Lite N202-series. For maximum image quality between 500 and 1,000 ft., use Zero-Skew cable such as Tripp Like P524-01K.
Premium Stereo Audio We haven't forgotten the sound! The B130-101A-WP-1 features built-in 3.5 mm Stereo Audio connectors allowing it to also carry high-quality stereo audio. This delivers premium sound quality to every point of your application and adds greater functionality to your displays.
Built-In Image Equalization The B130-101A-WP-1 features built-in image equalization, allowing you to control the way the image appears on your remote display. There are multiple equalization settings and the unit comes with a screwdriver for easy and convenient adjustment. Additionally, a VGA + Stereo Audio Y-cable is included for use with the local unit, allowing you to connect a local display and speakers for a greater ability to monitor and manage signal quality across your application.
Environmentally Responsible The B130-101A-WP-1 is manufactured in compliance with strict RoHS (Restriction of Hazardous Substances) guidelines to minimize the use of hazardous materials.
Peace of Mind 1-year limited warranty and TAA compliance for GSA-schedule purchases.

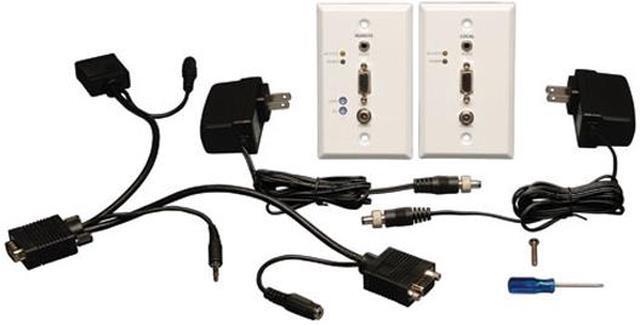

Package Contents: • Local (Transmitter) wallplate
• Remote (Receiver) wallplate
• VGA + Audio "Y" cable
• Mini-Screwdriver for EQ/Gain adjustment
• Wallplate Screws
• (x2) External Power Supply (Input: 100-240V, 50/60Hz, 0.5A Output: 5V, 2A)
• Owner's Manual

Learn more about the Tripp Lite B130-101A-WP-1

Model

Brand: Tripp Lite

Model: B130-101A-WP-1

Spec

Specifications: Connector A: (X2) HD15 (FEMALE)

Connector B: (X2) 3.5MM (FEMALE)

Connector C: (X2) RJ45 (FEMALE)

Features

Features: Extends a 1920 x 1440 (60Hz) Video and Stereo Audio signal up to 500 ft., or a 1024 x 768 (60Hz) Video and Stereo Audio signal up to 1,000 ft., when using 24Awg, Solid Wire Cat5e/6 cable

For optimal image quality between 500 and 1,000 ft., use Zero-Skew cable, such as Tripp Lite P524-01K

A VGA + Audio 'Y' cable is included for use with the local unit, allowing for the connection of a local monitor and speakers

RJ45 type wallplates allow you to use standard patch cable, eliminating the need for a 110 punchdown connection

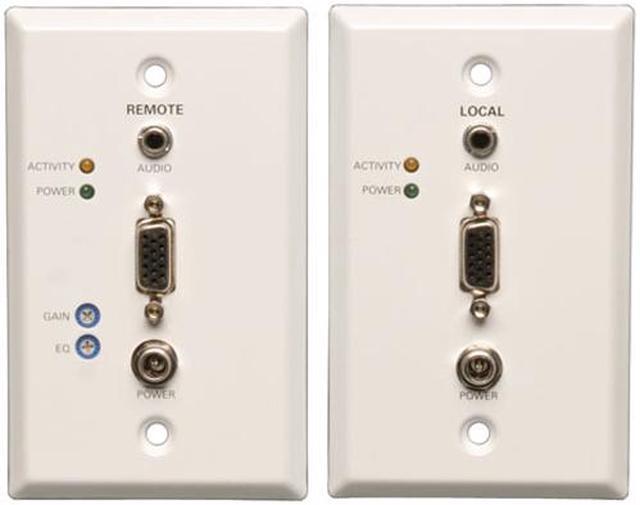

The remote (Receiver) unit features built-in Equalization and Gain controls to adjust the video image

Ideal for digital signage situations, such as retail, schools, churches, etc.

Packaging

Package Contents: Local (Transmitter) wallplate
Remote (Receiver) wallplate
VGA + Audio 'Y' cable
Mini-Screwdriver for EQ/Gain adjustment
Wallplate Screws
(x2) External Power Supply (Input: 100-240V, 50/60Hz, 0.5A Output: 5V, 2A)
Owner's Manual
