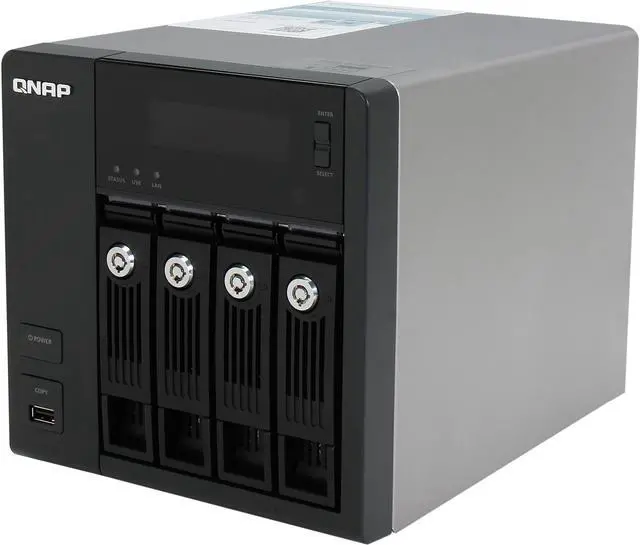

QNAP TS-470 Pro Diskless System 4-bay Home & SOHO NAS For Personal Cloud And Multimedia Experience

  • Intel Core i3-3220 3.3GHz Dual Core CPU
  • 2 x USB 3.0, 2 x eSATA
  • 5.1 channel surround sound support with HD Station via HDMI
  • 24/7 home and SOHO surveillance center
  • Pin It
  • Email this page
ICON Loading...

Learn more about the Qnap TS-470 Pro

General

Brand
QNAP
Model
TS-470 Pro

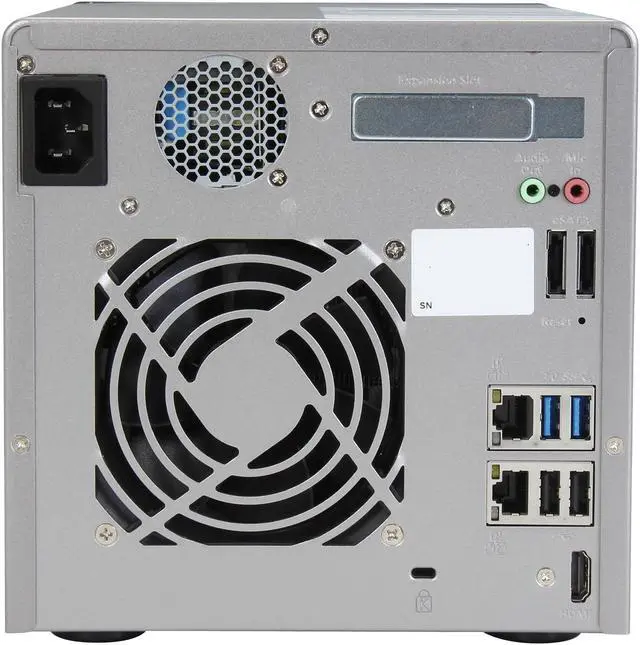

Interfaces

Port RJ-45
2 x 10/100/1000M
Port USB
2 x USB3.0 + 3 x USB2.0
Port eSATA
2 x eSATA
HDD Interface

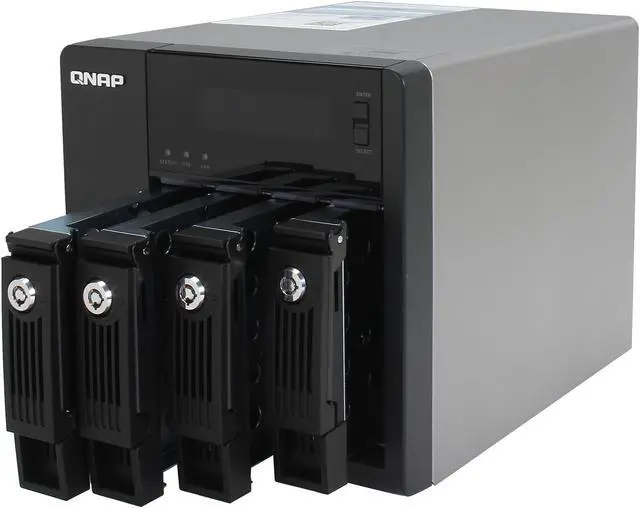

4 x 3.5" or 2.5" SATA 6Gb/s (4 x Bay)

Configuration

Form Factor
Tower
Operating System
Embedded Linux
Processor
Intel Core i3-3220 3.3 GHz Dual-core
Default/ Max. Memory
2GB

Hard Drive Performance

Included HDD Capacity
Diskless System

Conveniences

Supported Protocols
CIFS/SMB, AFP (v3.3), NFS(v3), FTP, FTPS, SFTP, TFTP, HTTP(S), Telnet, SSH, iSCSI, SNMP, SMTP, and SMSC

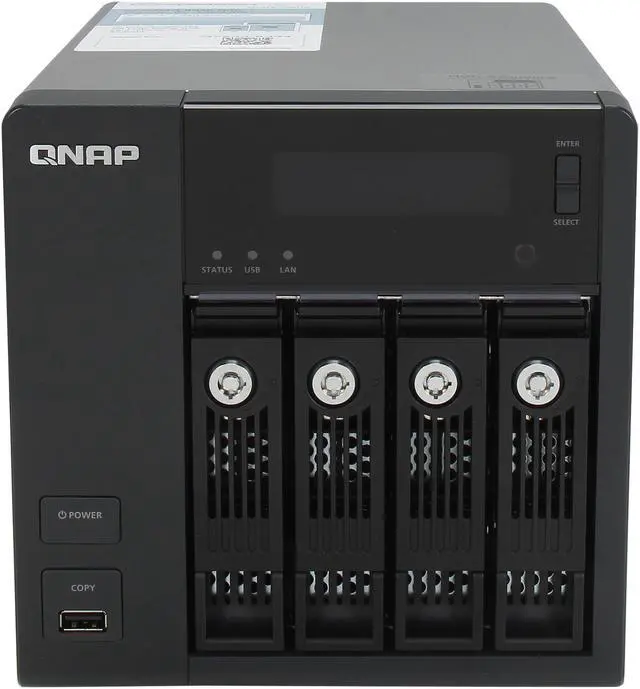

LEDs
Status, USB, LAN, HDD 1 - 4

Power

Power
Power Supply
Input: 100-240V AC, 50/60Hz
Output: 250W

Power Consumption
Sleep mode: 22.8W
In Operation: 40W
Power-off (in WOL mode): 1W (with 4 x 2TB HDD installed)

Features

Features
Centralized management for data and file backup

5.1 channel surround sound support with HD Station via HDMI

File synchronization across computers, tablets and smart phones

Archive, manage, enjoy and share photo, music and video collections

24/7 home and SOHO surveillance center

Dimensions / Weight

Dimensions
9.25" x 7.09" x 6.97"
Weight
10.05 lbs.

Environment

Temperature
0°C - 35 °C
Humidity
5-95% R.H

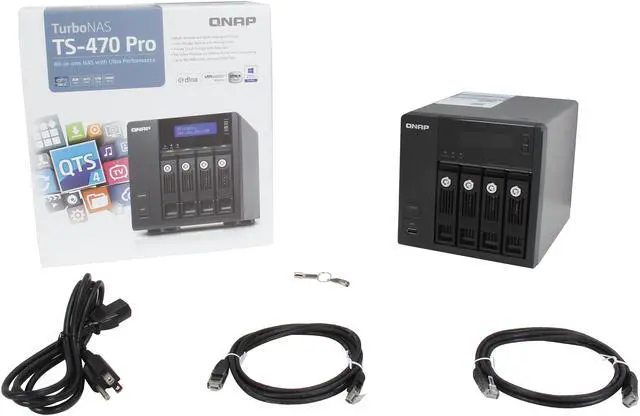

Package Contents

Package Contents
TS-470 Pro
CD-ROM
4 x Ethernet cable
Quick installation guide
12 x Flat head screw (for 2.5" HDD)
16 x Flat head screw (for 3.5" HDD)
1 x Hard disk lock
Power cord

Quick Info

Warranty

  • Limited Warranty period (parts): 2 years
  • Limited Warranty period (labor): 2 years


Customer Reviews of the Qnap TS-470 Pro

Do you own this product? Write a Review

ICON Loading...

Filter Results

Go
  • Jordon B.
  • 7/30/2014 11:22:51 AM
  • Tech Level: High
  • Ownership: 1 month to 1 year
  • Verified Owner

5 out of 5 eggsThe best although it costs

Pros: After reading Maximum PCs article on the 5 best NAS servers this clearly had the best performance and feature set, I was not let down. Beats Synology too. It feeds beautifully even in my fussy WD netflix DNLA etc TV inputs with MKVs avis mpgs mp4s and just about anything I want. Although many people use Twonky which QNAP has built in, the built in Multimedia Program does fine without any issues. Uses Qfile Androids and I-Macs (mac) both work great too. MXplayer is the goto along with Qfile to play movies stored in the QNAP. QNAP has a Intel 2 core chip and 2gigs ram. Much better then the Risc chips that all the others use with 256-512megs being the norm.

Cons: Expensive, no drives included

Other Thoughts: Recommend using WD Black ENTERPRISE. These have features designed to work in raid. The WD Reds are no good and if you look up the reveiws they have a very high failure rate. Why would you spend a lot of money for this type of unit to throw it away with bad HDs. RAID 5 recommended.

Did you find this review helpful? Yes No

  • Elliott C.
  • 5/28/2014 1:54:29 PM
  • Tech Level: High
  • Ownership: 1 week to 1 month
  • Verified Owner

4 out of 5 eggsGreat Media Server/Backup

Pros: Runs Intel i3 dual core instead of weaker alternatives. Proprietary Linux and CLAM antivirus integrated for extra security. Offers every known feature under the sun. USE WD ENTERPRISE BLACKS. . Excellent DNLA support. QNAP's own "Multimedia Station" for media streaming works flawlessly (With WD's notorious live streaming behaving itself). Unless you need cross referencing etc. Twonky has more overhead. I can stream MKVs, avis, mp4, mpg, Has a Plex app and Twonkey for those who want more.

Cons: Expensive. No manual. It is ridiculous that a $1200 unit comes with a PDFed manual. Thank goodness there are online print shops that will crank you out your own for about $35. Its the only way to learn all of the feature sets.The sync hardware is not backup hardware. Best solution is to image the backup to a directory in the qnap volume

Other Thoughts: After you load the hardware, start the unit and load the DVD on your PC. It all gets done from there.The WD Red line has been a disaster and if your going to spend this kind of money get the best drives you can. Seagates and all WDs except Blacks and enterprise fail at an alarming rate. Hitachi rates better but that is a non starter for many. WD Blacks are not optimized to work together. Enterprise rocks. 8 bought from new Egg 8 still working, some of which are 6 years old,

Did you find this review helpful? Yes No
