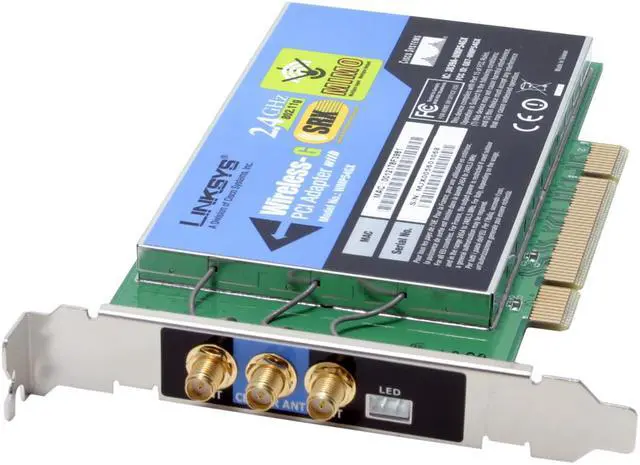

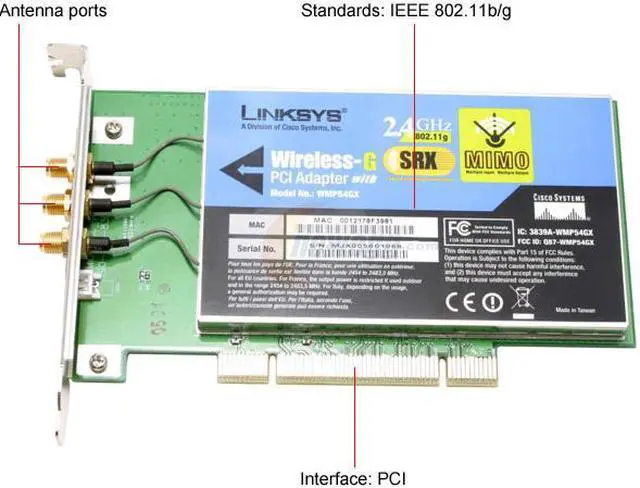

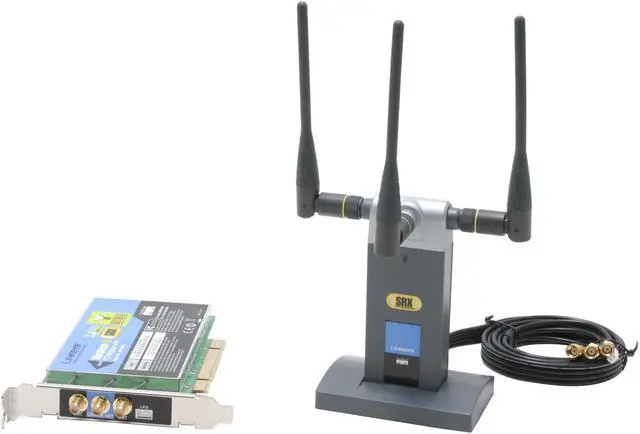

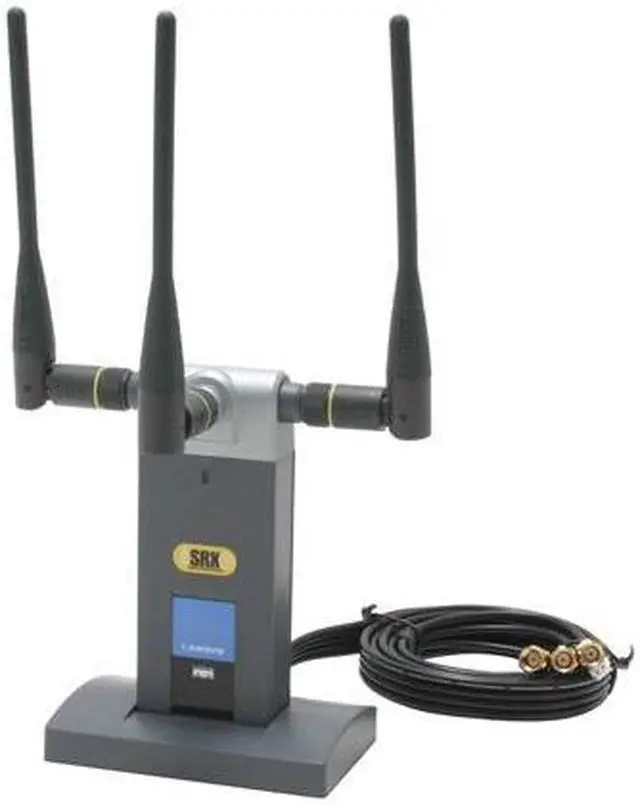

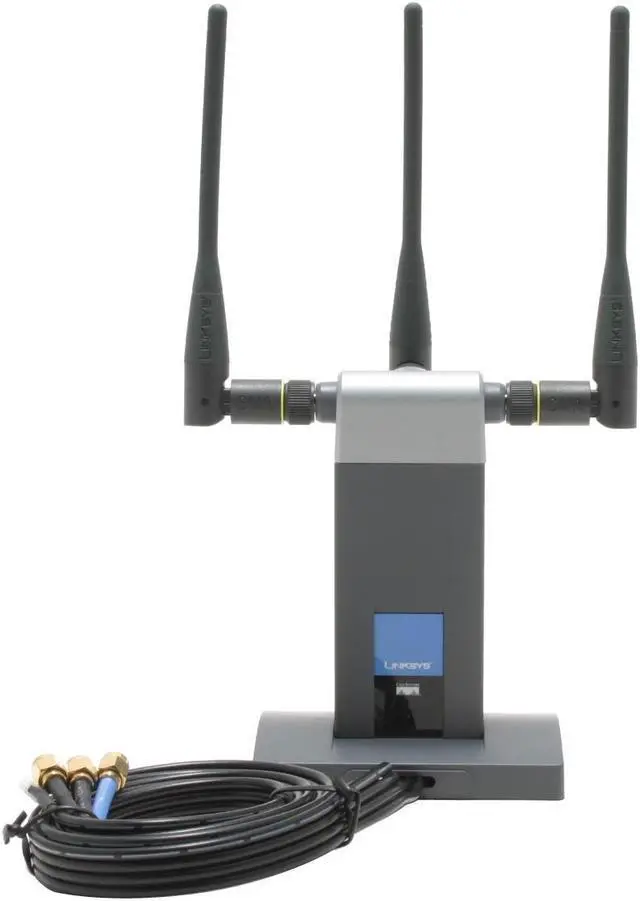

Alt view image 2 of 7 - Linksys WMP54GX Wireless-G Adapter with SRX IEEE 802.11b/g PCI Up to 108Mbps Wireless Data Rates

Alt view image 3 of 7 - Linksys WMP54GX Wireless-G Adapter with SRX IEEE 802.11b/g PCI Up to 108Mbps Wireless Data Rates

Alt view image 4 of 7 - Linksys WMP54GX Wireless-G Adapter with SRX IEEE 802.11b/g PCI Up to 108Mbps Wireless Data Rates

Alt view image 5 of 7 - Linksys WMP54GX Wireless-G Adapter with SRX IEEE 802.11b/g PCI Up to 108Mbps Wireless Data Rates

Alt view image 6 of 7 - Linksys WMP54GX Wireless-G Adapter with SRX IEEE 802.11b/g PCI Up to 108Mbps Wireless Data Rates

Alt view image 7 of 7 - Linksys WMP54GX Wireless-G Adapter with SRX IEEE 802.11b/g PCI Up to 108Mbps Wireless Data Rates

Shop All Linksys Products

Linksys WMP54GX Wireless-G Adapter with SRX IEEE 802.11b/g PCI Up to 108Mbps Wireless Data Rates

Name: Linksys WMP54GX PCI Wireless-G Adapter with SRX
Brand: Linksys
SKU: N82E16833124178
Rating: 5 (98 reviews)

(98) Write a Review

IEEE 802.11b/g
Up to 108Mbps Wireless Data Rates

Overview

Specs

Reviews (98)

Any questions? Our AI beta will help you find out quickly.

Try me now

The Wireless-G PCI Card with SRX combines smart antenna technology with standards-based Wireless-G (802.11g) networking. By overlaying the signals of two Wireless-G compatible radios, the "Multiple In, Multiple Out" (MIMO) technology effectively doubles the data rate. Unlike ordinary wireless networking technologies that are confused by signal reflections, MIMO actually uses these reflections to increase the range and reduce "dead spots" in the wireless coverage area. The robust signal travels farther, maintaining wireless connections up to 3 times farther than standard Wireless-G.

Warranty & Returns

Warranty, Returns, And Additional Information

Return Policies

Return for refund within: 30 days

Return for replacement within: 30 days

This item is covered by Newegg.com's 30-Day Return Policy. Read full return policy for details.

Standards	IEEE 802.11b/g
Wireless Data Rates	Up to 108Mbps
Security	WPA, WPA2, 64/128bit WEP, and 802.1x
Interface	PCI
LEDs	Link
Transmitted Power	18 dBm (b), 16 dBm (g)
Antenna	Number of Antennas: Three Connector type: SMA Antenna Gain in dBi: 2 dBi
System Requirements	Available PCI Slot Microsoft Windows 2000 or XP

Dimensions	Antenna Stand: 4.8" x 8.7" x 3.2" PCI Card: 6.7" x 4.7" x 0.8"
Weight	Antenna Stand: 0.88 lbs. PCI Card: 0.35 lbs.

Temperature	0°C - 60°C (32°F - 140°F)
Humidity	90% Maximum, Non-Condensing
