Item#: N82E16833162073

BUFFALO AirStation Pro 802.11n Plenum-Rated Gigabit Concurrent Dual Band PoE Wireless Access Point - WAPS-APG600H

  • IEEE 802.11a/b/g/n, IEEE 802.3/3u/3ab
  • 2 x USB 2.0
  • 2 x 10/100/1000M (1 port for PoE)
  • 2.4GHz/5GHz

ICON Loading...
  • Overview
  • Specifications
  • Warranty & Returns
  • Reviews
BUFFALO

AirStation™ Pro 802.11n Gigabit Dual Band PoE Wireless Access Point

AirStation Pro 802.11n Gigabit Dual Band PoE Wireless Access Point is a versatile wireless solution offering selectable dual band 802.11n operation and gigabit Ethernet for high performance networking. Multiple SSID support with VLAN tagging offers easy network segmentation and added security while PoE offers easy setup and placement. AirStation Pro 802.11n AP is ideal for business and professional deployments, offering a robust and secure wireless network with the convenience of PoE.

  • Wireless 802.11n
  • Selectable Dual Band Support – 5 GHz or 2.4 GHz
  • Integrated Power over Ethernet – IEEE 802.3af
  • Plenum-Rated Chassis
  • Multi SSID with VLAN Tagging
  • Removable Antennas and Bridging Support
BUFFALO
OVERVIEW

POWER OVER ETHERNET WIRELESS ACCESS POINT


Buffalo's AirStation Pro 802.11n Gigabit Dual Band PoE Wireless Access Point provides high performance 802.11n speeds and coverage, with selectable operation on one of two available bands for greater networking flexibility. Featuring integrated Power over Ethernet (PoE), AirStation Pro 802.11n AP offers easy installation and placement, even on high ceilings, drop ceilings, walls and other locations where power may not be available. It's plenum-rated chassis and multiple mounting options provide greater flexibility in installation locations, enabling users to safely install the unit above ceiling tiles. Additionally, multiple SSID support with VLAN tagging offers easy network segmentation and added security.

SELECTABLE DUAL BAND

Selectable dual band technology allows users to create a Wireless-N network on either the 2.4 GHz frequency or on the less congested 5 GHz frequency. Select operation on the uncongested 5 GHz band for high bandwidth clients or use the more common 2.4 GHz frequency for standard wireless networking needs.

POWER OVER ETHERNET

Integrated Power over Ethernet (PoE) allows the device to be powered without an AC power source for easy installation and placement, even on high ceilings, drop ceilings, walls and other locations where power may not be available. By using a PoE switch, users can install the AP anywhere they can run an Ethernet cable.

MULTI-SSID / VLAN TAGGING

AirStation Pro 802.11n AP allows administrators to create multiple SSIDs with different security passphrases for easy network segmentation and added security. Network administrators can assign each SSID a VLAN tag to specify what network access that SSID gets.

WDS BRIDGING

Wireless Distribution System (WDS) allows users to easily extend coverage of their wireless network by interconnecting multiple access points. Easily bridge a WLAN spanning multiple buildings or expand coverage in a home to hard to reach locations.

PLENUM RATED CHASSIS

AirStation Pro 802.11n AP offers easy installation and placement, even on high ceilings, drop ceilings, walls and other locations where power may not be available. Its plenum-rated chassis and multiple mounting options provide greater flexibility in installation locations, enabling users to safely install the unit above ceiling tiles.

REMOVABLE ANTENNAS

Easily add high gain antennas for longer range, wireless bridging or backhaul solutions. AirStation Pro 802.11n AP uses industry-standard RP-SMA connectors, compatible with readily available third party solutions.

802.1X RADIUS AUTHENTICATION

802.1X RADIUS authentication provides enterprise-grade access restrictions, helping to keep unauthorized users out. By moving authentication to a backend RADIUS server*, only specified and authorized wireless devices are permitted to connect to the wireless network.


*WAPS-AG300H does not have an internal RADIUS server, it supports passing authentication to external RADIUS authentication servers.


SPECIFICATIONS
LAN Interface
Standard Compliance IEEE802.3 10Base-T, IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T, IEEE802.3x Flow Control, IEEE802.1D Spanning Tree Protocol, IEEE802.1Q VLAN Tagging
Speed and Flow Control 10/100/1000 Mbps
Number of LAN Ports 2 x RJ-45 (1 port PoE, supports 802.3af)
Wireless LAN Interface
Standard Compliance IEEE802.11n, IEEE802.11a, IEEE802.11g, IEEE802.11b
Frequency Range Selectable dual band 2.4GHz or 5 GHz Support
Access Mode Infrastructure Mode
Antenna (Tx x Rx) 2 x 2
Wireless Security WPA - PSK (AES, TKIP), WPA2-PSK (AES, TKIP), 128/64-bit WEP
USB Interface
Standard Compliance USB 2.0
Connector Type A type
Number of Ports 2
Data Transfer Rates Max 480 Mbps
Other
Dimensions (W x H x D) 5.98 x 7.17 x 1.38 in
Weight 1.34 lbs
Power Consumption Max 7.2 W (AC), Max 6.72 W (PoE)
Power Supply External AC 100-240V input, 12V DC Output or IEEE 802.3af PoE
OS Compatibility Windows® 10, Windows® 8 (32/64-bit), Windows® 7 (32/64-bit), Windows Vista® (32/64-bit), Windows® XP, Mac OS® X

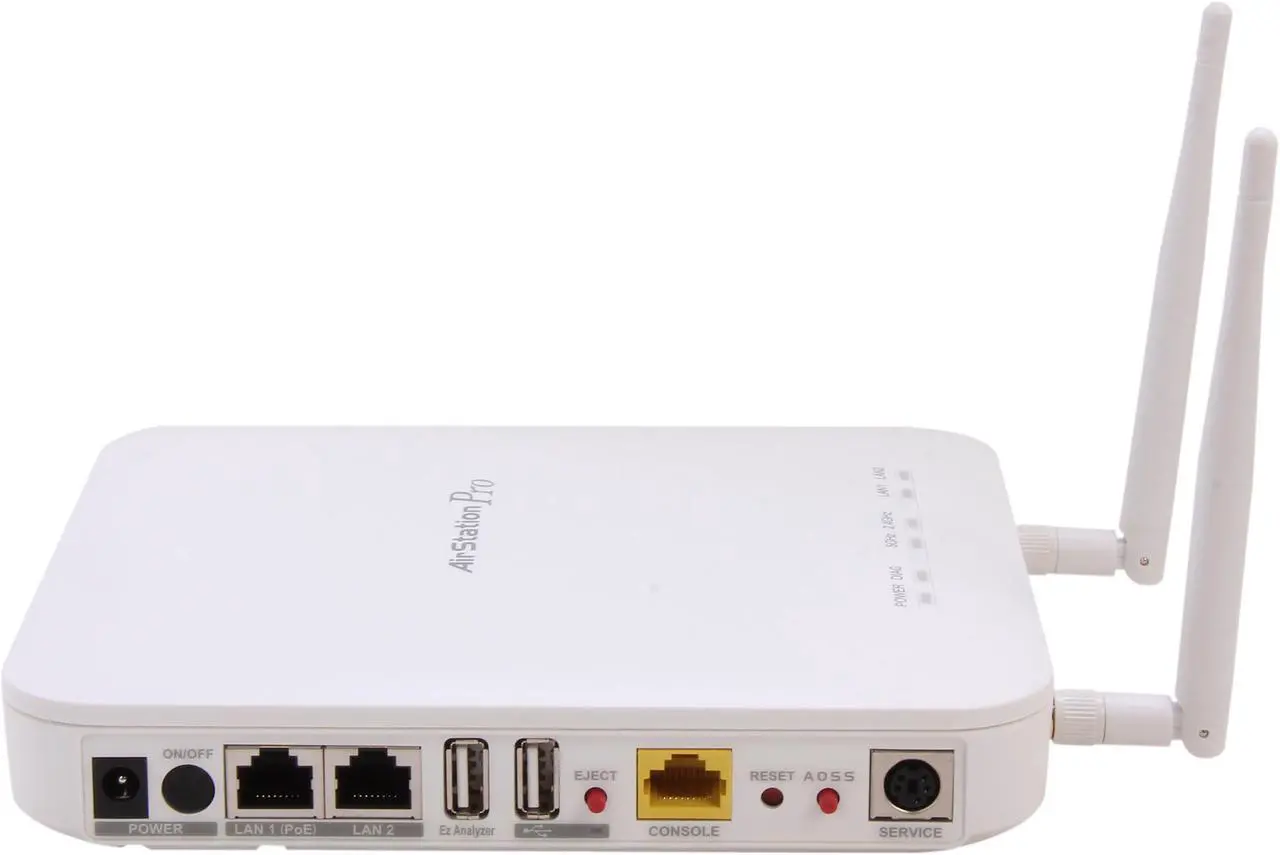

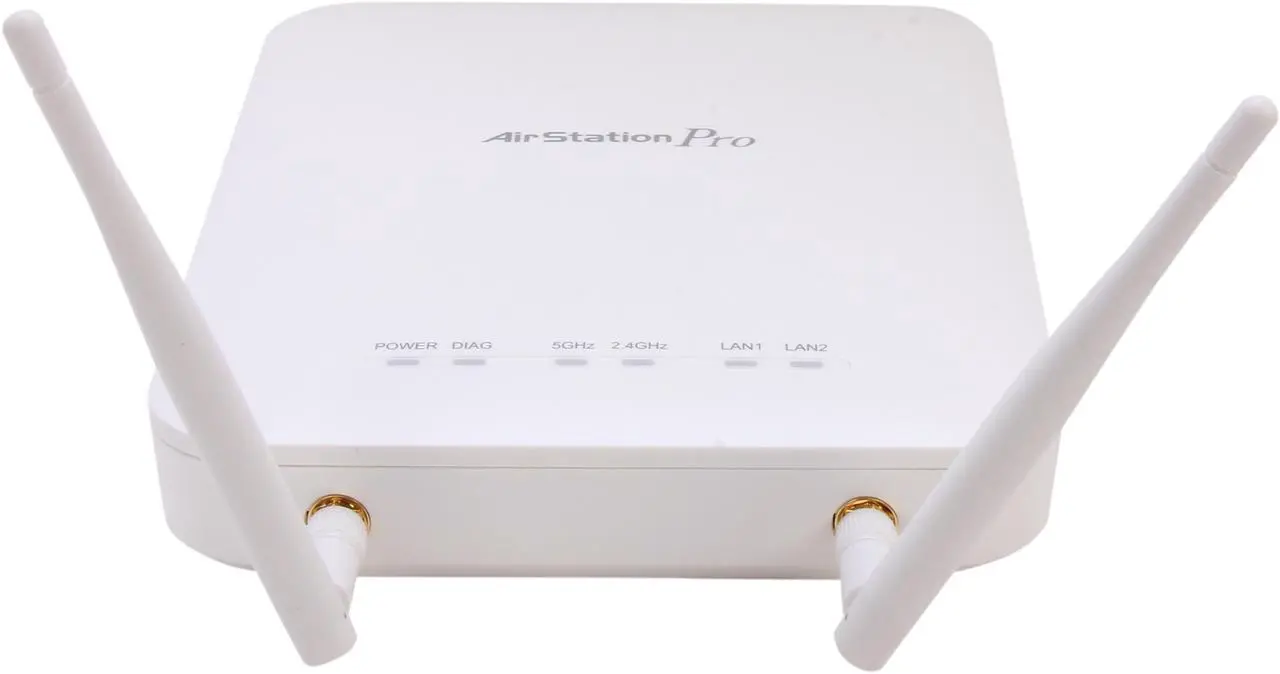

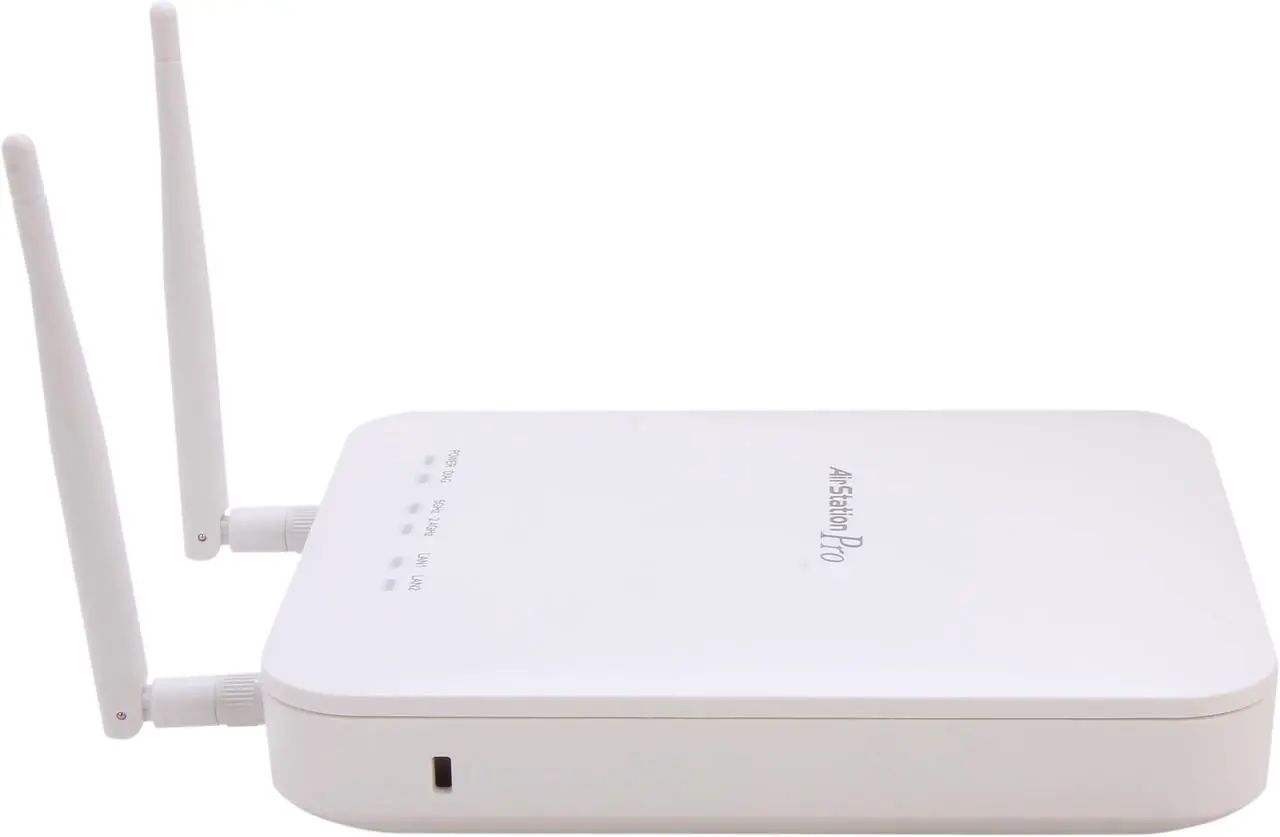

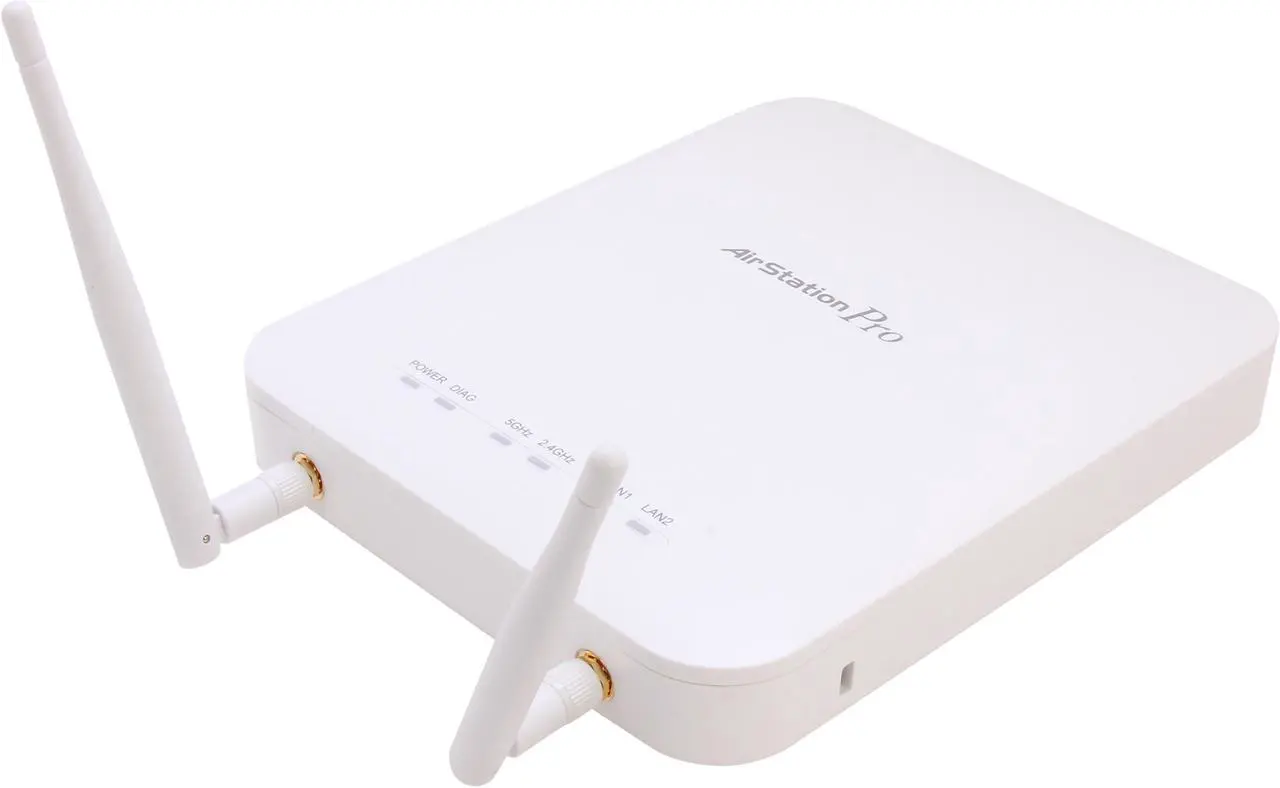

GALLERY

BUFFALO BUFFALO BUFFALO BUFFALO

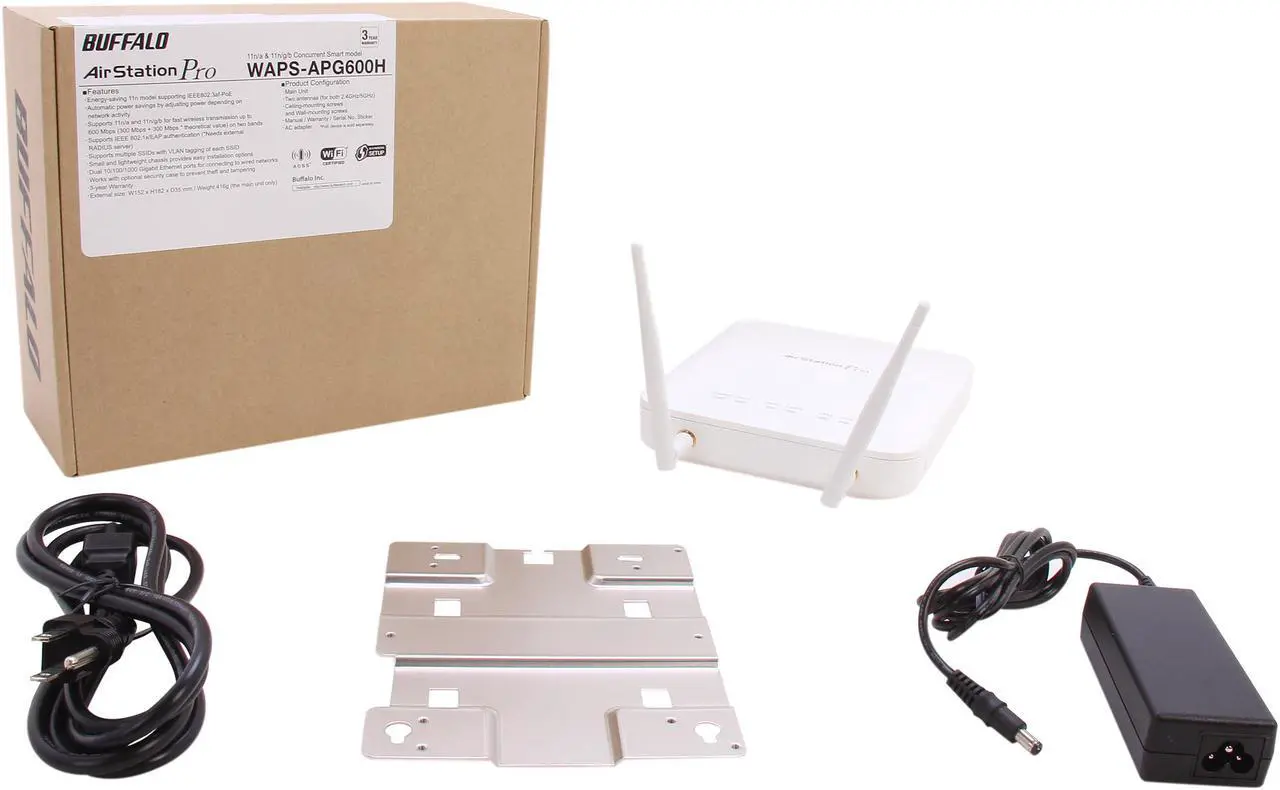

What's in the Box
BUFFALO

Learn more about the Buffalo Technology WAPS-APG600H

Warranty, Returns, And Additional Information
  • Warranty
  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years
  • Read full details

Customer Reviews of the Buffalo Technology WAPS-APG600H

Do you own this product? Write a Review

ICON Loading...

Filter Results

Go
  • Eric J.
  • 8/17/2014 7:41:50 PM
  • Ownership: 1 month to 1 year
  • Verified Owner

3 out of 5 eggs

Pros: * Concurrent Dual Band
* Multiple SSIDs
* VLANs

Cons: * Weak signal (weaker than the Linksys it was replacing)
* No RADIUS auth
* Clunky UI

Did you find this review helpful? Yes No

5 out of 5 eggsEasy to setup, excellent range, RADIUS capable

Pros: * Aesthetically pleasing design
* Easy to setup (see other thoughts, though.)
* Very fast wireless speeds
* Excellent range
* Seems very stable
* POE capable

Cons: * Setup can initially be confusing because no documentation is included.
* Admin password change is on the same page as SSID, but with a separate SAVE button. Saving the SSID will not save any admin password changes.

Other Thoughts: This is a really professional looking unit.

Apparently their target demographic is an experienced network admin, which might be safe to say. That being said, a little bit of documentation stating that you must use their configuration utility to set up the unit would have gone a long way. Once you download the AirStation Configuration Tool, setup is super easy.

Here's how you get their tool (and yes, it leaves a LOT to be desired:) Go to their buffalotech site, Support & Downloads, Downloads, search for WAPS-APG600H. You should see a "Quick Setup Guide" - click on that. In that PDF, you should see a section called Software Installation which has a couple of links under it. Choose the correct one. Click the "I accept the Software License Agreement" box, then download the AirStation Configuration Tool. I didn't need the "Client Manager V", so unless you need it to use AOSS, I don't believe it's used for anything else.

I have this setup in a small office to allow laptops and smart phones to connect. It's nice to automagically have the smart phones connect to help take some stress off cell phone data plans. Speed tests show that I'm saturating our 35mb/s internet feed with other users connected, so I'm confident this sill handle lots of simultaneous heavy-traffic users using WPA2. We never experienced any connectivity issues once setup.

Keep in mind that this is NOT A ROUTER. It does not do DHCP or firewalling. This is a wireless access point for use within your network, most likely a business environment. Their use of RADIUS is very good, so people can use their logins to access your business network.

If you're in the market for a quite affordable, stable and fast access point for your business or possibly remote part of your home, this is an excellent product. I would recommend it without hesitation.

1 out of 1 people found this review helpful. Did you? Yes No

3 out of 5 eggsThey don't understand their customer

Pros: It's got good specs.
300+300
Gigabit LAN
VLAN Tagging
Dual Band
antennas can be replaced
2 year Warranty

Cons: difficult configuration
no poe injector
average range
sub par antennas
cant boost signal
WPS on by default is a security risk (maybe not with dd-wrt)

Other Thoughts: I have tried to review this on 3 different days and just didn't have enough time to figure it out. This is my main problem with it:

It comes with no CD, just a little quick install guide.
Which is fine if it was all you need.
I want to type in 192.168.1.1 admin password and go from there.

Instead the guide says:
start the air station configuration tool
blah blah blah blah

I try a bunch of ip's from a browser with no luck

so, I go to the website shown here (buffalotech dot com) and get into wireless/business class/this thing/download

and find the only executable in there is client manager

I download that, install it, and it does nothing but install some startup program that pops up it's name by the clock and has no uninstall in the folder.

so, I download the quick setup guide thinking maybe they changed something, no luck.

I get the manual thinking maybe there is a manual way to login to this thing without software.

It basically say the same thing. Start the air station configuration tool.... but on page 10 of 100 it shows you where to go in japan to get the air station configuration tool.

so i get it, but i notice the drop down defaults to XP, so I get it again (need to checkbox agreement before download shows up)

I install it. It asks if you want to enter the web amin interface or give it an IP address. I try enter the web amin interface with no luck, go back give it an IP, then finally I get into this thing.

I just don't have time to mess with stuff like this in the field. I want to plug a laptop into this thing, give it a password and plug a POE injector in the wall near the ethernet wall jack and have 2 ethernet cables in the box (1 in off white that will reach the ceiling) and go.

Thats why its 200 bucks. I can buy a dd-wrt router for 100 and mess with it quicker and have it's power brick stapled to the wall too.

They just don't get their customer with this. I want fast, secure, better range, and pretty.

These are for Doctors Offices and such. They don't care that it's 100 or 150 more, but they want it to be easy and pretty. I want it to be easy and secure.

It's a decent piece of equipment. I just would rather use a dd-wrt router. What would make it worth the difference to me would be to be able to log straight into it with a laptop before it gets an ip (and have those directions in the box) and I want a POE injector. Then I don't care what it costs, because I'm not buying it anyway (and time is money)

Again, it's a decent piece of equipment.

I just want fast and pretty in this price range.

1 out of 5 people found this review helpful. Did you? Yes No

5 out of 5 eggsFantastic AP with great features

Pros: The Buffalo WAPS-APG600H is a pretty powerful access point. Designed for both enterprise and home use, it has a very large number of configuration options while providing great range and speed.

Speed is fantastic on this device, pushing approximately 75 Mbit/s over 2.4Ghz Wireless-N and about 115 Mbit/s over 5Ghz Wireless-N at 20 feet from the base station (0 walls). Moving out to around 75 feet (1 wall) proved that this station could maintain speeds around 22 Mbit/s.

The best parts of this Access point are all under the hood, in the management and access control features. Because this unit is designed for more professional setups, I was able to connect to my RADIUS server within minutes with full support for 802.1x with EAP authentication. If you require strict QoS controls, this unit also has WMM support, which allows for much more detailed bandwidth control on video, voice and background traffic.

The hardware Ethernet ports on this device are configurable to connect to separate VLAN IDs with both 11g and 11a routable to separate VLANs. The configuration was simple and painless, with changes taking effect immediately after clicking apply (no reboot required). The added Management port is also a huge benefit, as it gets its own IP address on the network and can be managed from a separate VLAN, allowing for separation from a client network. Logging on this device is also a little more in depth, allowing you to transfer all logs to a Syslog server or an attached USB device.

All of the above features combined create a very powerful enterprise level access point. The access controls and logging make me feel safe that even if I set this up in a public place, I could still have control over who can access different parts of my network.

Cons: This access point is powerful all around, and my only complaint is with the interface of the management console. The pages can occasionally appear unresponsive, but a refresh of the page makes dead links work again. Other than this, everything works great and I haven't experienced another hiccup yet.

4 out of 4 people found this review helpful. Did you? Yes No
