Item#: N82E16833998188

Rosewill RNWA-PoE-1000 PoE Injector

Sold and Shipped by Newegg

  • PoE, PoE Plus, Gigabit Ethernet compliant
  • Transform AC power to Max. 30W power via Cat5 Cable
  • Interface: 1 x 10/100/1000Base-T (Data), 1 x 10/100/1000Base-T (Power/Data)
  • Plug-and-Play

ICON Loading...
  • Specifications
  • Warranty & Returns
  • Reviews

Learn more about the Rosewill RNWA-PoE-1000




PoE Injector
IEEE802.3af Power over Ethernet compliant
IEEE802.3at Power over Ethernet Plus compliant
IEEE802.3ab Gigabit Ethernet compliant

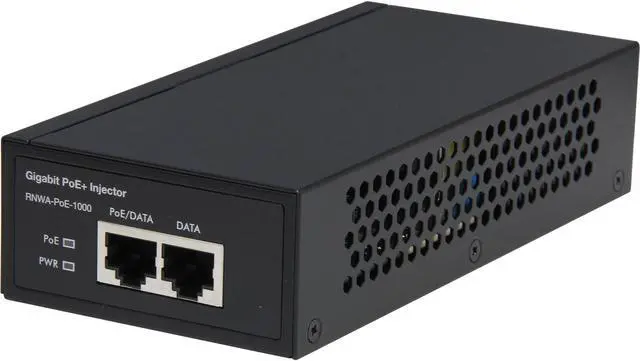

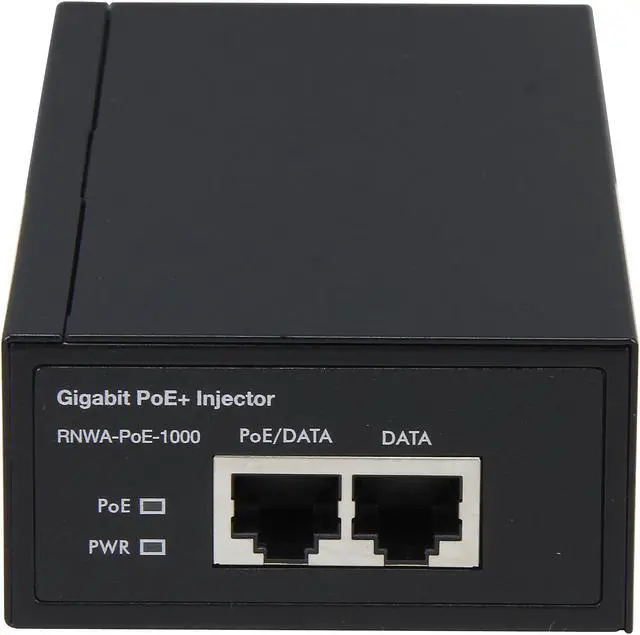

1x PoE/Data port: One 10/100/1000Mbps RJ-45 port (Power + DATA)
1x Data port: One 10/100/1000Mbps RJ-45 port (DATA)

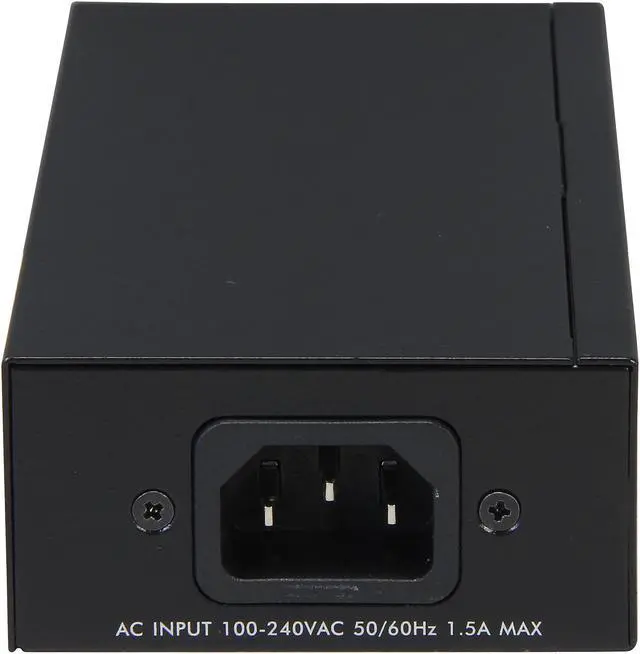

1x Power Socket (AC IN)

LED Indicator: PWR & PoE

Basic Function:
- Compatible With all IEEE 802.3af Compliant and IEEE 802.3at compliant PoE products
- Auto-Determine the Power Requirements
- Delivers Power Up To 100 Meters (328.1 ft)

Network Media (Cable type support):
1x PoE/Data port:
1000Mbps - 5 & 5e UTP/STP or above cable
1x Data port:
10/100Mbps - 3, 4 & 5 UTP/STP or above cable
1000Mbps - 5e & 6 UTP/STP or above cable

Plug-and-Play, no configuration requires

Power Consumption: 42.1W

Power Supply:
Input: 100 - 240VAC, 50/60Hz, 1.5A Max
Output: Auto-determine the necessary power requirements (max. 30W from PoE/Data port)

Dimension & Weight: 6.10 x 2.91 x 1.42in (155 x 74 x 36mm) / 0.87 lbs (396 g)
Warranty, Returns, And Additional Information
  • Warranty
  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 1 year
  • Read full details

Customer Reviews of the Rosewill RNWA-PoE-1000

Do you own this product? Write a Review

ICON Loading...

Filter Results

  • olivier c.
  • 5/1/2016 2:24:27 PM
  • Ownership: 1 month to 1 year
  • Verified Owner

5 out of 5 eggsSolid construction and stable

Pros: Solid construction and stable

Cons: none so far (installed 2 months ago)

Other Thoughts: I have bought this PoE injector to power a Zyxel NWA1123-AC AP up and so far everything is stable at the other end of the +/- 60 ft ethernet cable.

Did you find this review helpful? Yes No

  • Brandon V.
  • 4/6/2015 7:14:49 AM
  • Ownership: 1 month to 1 year
  • Verified Owner

4 out of 5 eggsIt Works

Pros: Cheap to buy. Solid Construction. Works as Designed.

Cons: Slightly Larger and Heavier than other PoE Injectors on the market.

Other Thoughts: I usually use Motorola PoE Injectors for WiFi Access Points, but I found Rosewill's to be cheaper to purchase. Though, for the price, this PoE injector is a slightly larger and heavier Injector than my Motorolas. All work the same though.

Did you find this review helpful? Yes No

  • Todd L.
  • 1/19/2015 12:29:23 PM
  • Ownership: more than 1 year
  • Verified Owner

4 out of 5 eggsBulky but reliable

Pros: Supports GbE networking as well as PoE+ (802.3at specs). Takes a standard PC power cable (IEC C14)

Cons: On the bulky side, though the build quality kind of makes up for it.

Other Thoughts: We have a handful of these for some outlying areas where we need only one or two PoE ports (usually for one or two wireless AP at each site) and a full PoE switch for that purpose just costs too much (we haven't moved to hosting our own VoIP phones, either where a PoE switch makes a lot more sense). These injectors were put in about 2 years ago and are still running without any problems. We simply mount them to the 2-post rack using 2-inch wide velcro strips. I just purchased one for personal use at my home for similar purpose - a single PoE port for a wireless AP.

Did you find this review helpful? Yes No

  • Jay R.
  • 11/2/2014 1:19:22 PM
  • Ownership: 1 week to 1 month
  • Verified Owner

3 out of 5 eggsRosewill RNWA-PoE-1000

Pros: Good price and very well built. The metal case is excellent.

Cons: I honestly thought these things were pretty much foolproof but not so much. I bought the RNWA to power a ZyXel access point. When I did, the AP's web server was very slow and upload speeds were horrible. I blamed the ZyXel until I tried a PoE Switch and it's own wall wart power supply. The ZyXel worked fine. It also worked fine with a Trendnet PoE injector. But then the Rosewill worked ok with another type of AP. I don't think there is anything wrong with the Rosewill but it seems like this equipment is not as plug and play as I had thought.

1 out of 1 people found this review helpful. Did you? Yes No

  • Cathaleen L.
  • 10/16/2014 12:47:02 PM
  • Ownership: 1 day to 1 week
  • Verified Owner

5 out of 5 eggsIncredible Value

Pros: Price

Cons: None

Other Thoughts: I have purchased many Zyxel POE12HP Injectors and actually came to Newegg to buy a couple more but after seeing they were not sold by Newegg directly (just 'marketplace' vendors that I avoid) I then came across this Rosewill POE. It looked identical to the Zyxel and at $25 shipped was $15 less than the Zyxel so gave it a chance. Once in my hand and side by side with the Zyxel product I am hard pressed to see any difference. Even the capacitors on the inside are the same colors. The performance is identical as well. I do not know but I suspect that Zyxel warranty and support are better than Rosewill as Zyxel is really second to none, but at just $25 I would sooner just buy another than waste time on the phone with getting a warranty replacement anyway.

Did you find this review helpful? Yes No

  • Ron B.
  • 11/17/2013 4:49:49 PM
  • Ownership: 1 week to 1 month
  • Verified Owner

5 out of 5 eggsGreat price for well built product

Pros: Great price with discount ( $19 ) and very well built ( metal contruction) and performed as expected ( flawless) and so far so good ( just under 4 weeks ) used with a buffalo pro access point using Power over Ethernet ver F .

Cons: None

Other Thoughts: Will buy again

1 out of 1 people found this review helpful. Did you? Yes No
