Item#: N82E16833998208

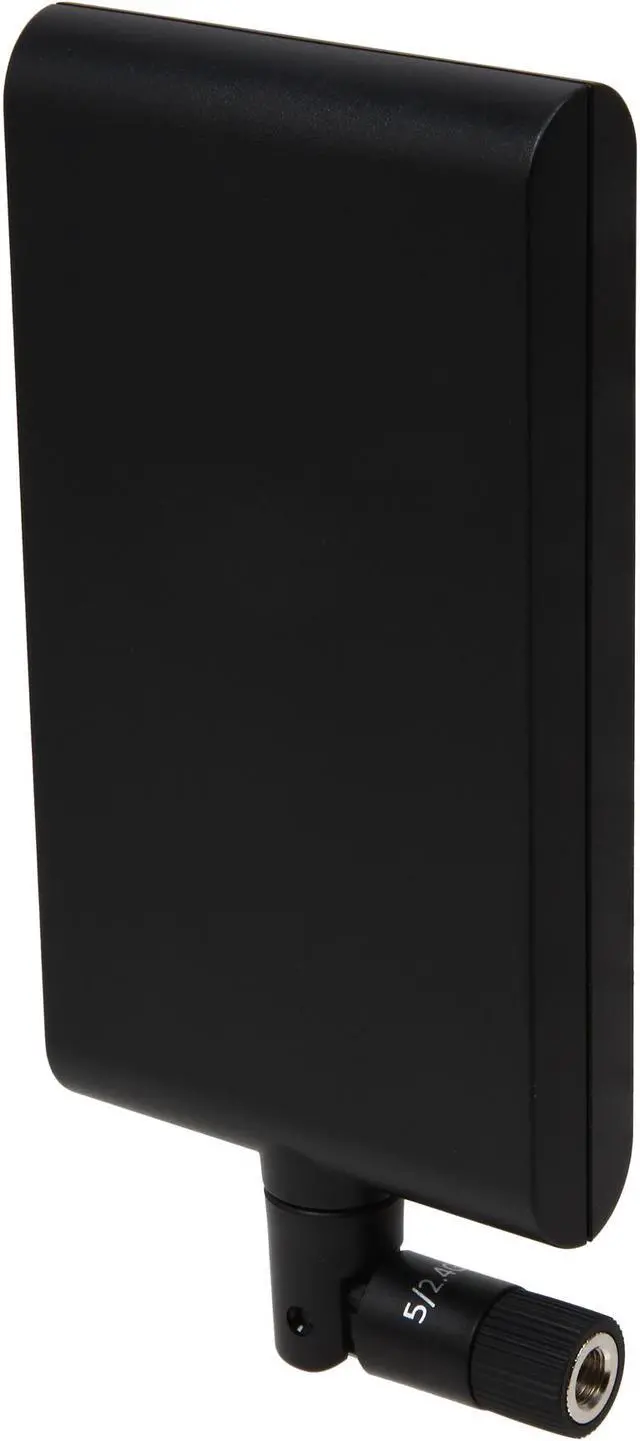

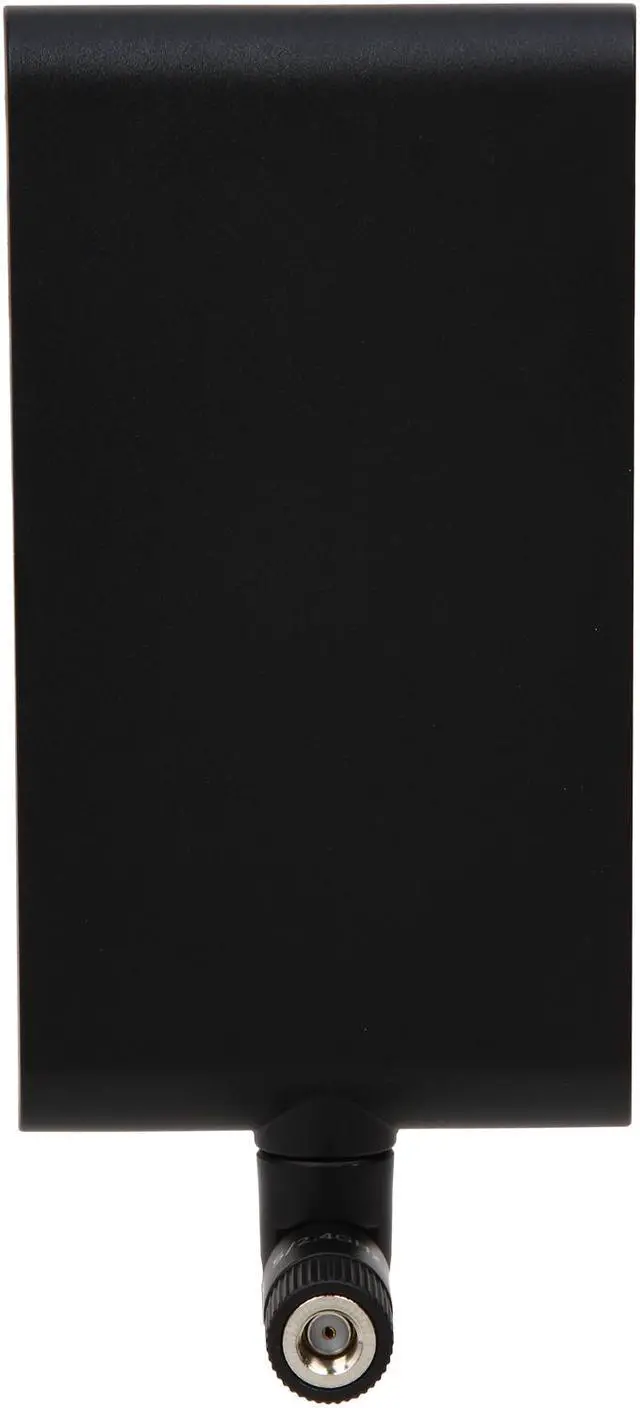

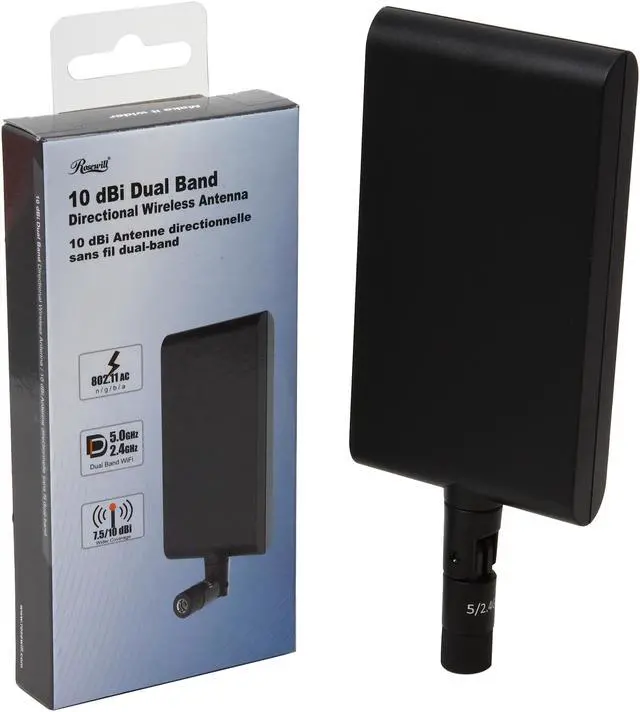

Rosewill RNX-AD10D, High Power/High Gain True 10dBi Dual Band Network Directional Antenna, The Most Powerful Dual Band Antenna on Earth

  • Frequency Range: 2.4 GHz, 5 GHz
  • Gain: 7.5 dBi & 10 dBi
  • VSWR: 2.0:1 Max.
  • Polarization: Linear, Vertical
  • Impedance: 50 Ohms
This product qualifies for the Iron Egg guarantee. We'll match any qualifying competitor's price.
  • Email this page
ICON Loading...

Rosewill RNX-AD10D 10dBi High Gain Dual Band Network Directional Antenna

Your Best Choice of Dual Band Antenna

Complaints about the poor signal of your Wi-Fi from a 802.11AC router? Why not try the Real High Gain Dual Band Network Antenna Stand of Rosewill. According to the research, the Wi-Fi range of 802.11AC is only half of 802.11n.

It means when you upgrade your wireless router to 802.11AC, the distance of your indoor Wi-Fi coverage is no longer the same as you were used to before. To help customers use the Wi-Fi conveniently, Rosewill launches a series of Real Dual Band Network Antenna products. Unlike the low cost and counterfeit dual band antennas, we test our network antennas rigorously to create ubiquitous indoor Wi-Fi environments for users.

Still feeling annoyed with your Wi-Fi range? Give the network antennas from Rosewill a try.

Applied Routers Included not Limited To:

  • ASUS: RT-AC68U, RT-N66U RT-AC66U
  • NETGEAR: R7000,
  • D-Link: DIR-655 DIR-665
  • TP-LINK: TL-WDR4300, TL-WDR3600, TL-WDR3500, TL-WR1043ND, TL-WR2543ND, TL-WDR4300
  • Buffalo: WZR-HP-G450H
  • Rosewill: RNX-AC750RT, RNX-AC1200RT, RNX-AC1750RT
  • And all wireless routers, wireless adapters and repeaters with detachable antennas



Real Dual Band 10dBi

Real dual band and 10dBi compared to existing antennas

Compatible with 802.11 ac/n/g/b/

Compatibility with 11ac routers to extend the short range of Wi-Fi.

Dual Band (2.4 / 5.0GHz)

Compatibility with 11ac routers to extend the short range of Wi-Fi

High Gain

Amplifying signal to provide longer coverage for your Wi-Fi network

Plug and Play

PNP makes your setup easily

Why You Should Choose the 11AC Standard?

rosewill rosewill

Wrong Method

Interference between closed antennas makes signal decay


Replaced with Real Dual Band Antenna

Should keep 3.1 - 4-inch (8 - 10cm) between your antennas


Equipped with Directional Antenna

Use directional antennas to signal where your are.


Equipped with ULA100 Cable Stands

Antenna stands are the best way for wireless signal coverage.

More Suggestions
Photo comparison comparison comparison comparison comparison
Features High Gain 7dBi Real 5dBi Wider 7dBi High Gain 10dBi 3dBi retained by ULA100
Wireless Standard 802.11 ac/n/g/b/a 802.11 ac/n/g/b/a 802.11 ac/n/g/b/a 802.11 ac/n/g/b/a 802.11 ac/n/g/b/a
dBi 5/7 3/5 5/7 7.5/10 ULA100 Cable
2 - 3dBi Reserved
Intervention Avoidance
Frequency (MHz) 240 - 2500
5100 - 5870
240 - 2500
5100 - 5870
240 - 2500
5100 - 5870
240 - 2500
5100 - 5870
Directional rosewill rosewill
High Gain rosewill rosewill
Plug and Play rosewill rosewill rosewill rosewill rosewill
Applied to Dual Band Devices rosewill rosewill rosewill rosewill rosewill
RP - SMA Male Connector rosewill rosewill rosewill rosewill rosewill

Frequency 2400 - 2500MHz 5150 - 5875MHz
Peak Gain 7.5dBi 10dBi
VSWR 2.0: 1 Max. 2.0: 1 Max.
Polarization Linear, vertical Linear, vertical
HPBW / Horizontal 70 Degrees 60 Degrees
HPBW / Vertical 60 Degrees 30 Degrees
Impedance 50Ω
Connector RP SMA PLUG

Environmental & Mechanical Characteristics
Temperature 14 - 131°F (-10 - 55°C)
Humidity 95% @ 77°F (25°C)

rosewill rosewill rosewill

Learn more about the Rosewill RNX-AD10D




Type: Network Antenna - Directional
Frequency(MHz) 2400~2500/5150~5875
Antenna Gain: 7.5/10dBi
VSWR 2.0 : 1 Max.
Connector of Cable: RP SMA PLUG
Impedance: 50 O
Temperature: -10? to 55?
Polarization: Linear, Vertical
Dimension(mm) 90 x 94 x 15
Weight(g): 40.5


Real Dual Band 10 dBi
Real dual band + 10 dBi compared to existing antennas

Compatible with 802.11 ac/n/g/b/a
Can be used with 11ac router extend the short range WiFi.

Dual Band (2.4/5.0GHz)
Dual Band makes this antenna compatible with all routers

Plug and Play
PNP makes your setup easily

Quick Info


  • Limited Warranty period (parts): 1 year
  • Limited Warranty period (labor): 1 year

Customer Reviews of the Rosewill RNX-AD10D

Do you own this product? Write a Review

ICON Loading...

Filter Results

  • Thomas R.
  • 11/28/2014 4:59:37 PM
  • Tech Level: Average
  • Ownership: less than 1 day
  • Verified Owner

5 out of 5 eggsDefinitely works.

Pros: Did increase signal strength. Signal strength went up from 2-6% depending on position of router/wifi adapter.

Cons: None.

Other Thoughts: Definitely install two or more depending on your router then rotate them till you get best signal.
