Item#: N82E16835118006

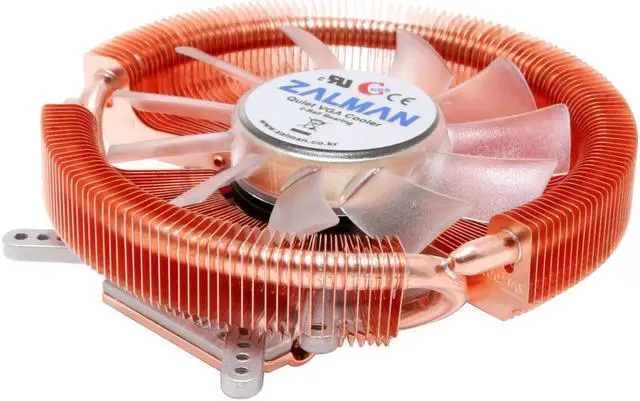

ZALMAN VF900 - CU LED 2 Ball VGA Cooling Fan/Heatsink

  • 1350-2400±10% RPM
  • 18.5-25.0±10% dBA
  • Copper
IronEgg
BUY WITH CONFIDENCE
This product qualifies for the Iron Egg guarantee. We'll match any qualifying competitor's price.
  • Email this page
ICON Loading...

Learn more about the Zalman Tech Co., Ltd VF900 - CU LED

Model

Brand
ZALMAN
Model
VF900 - CU LED

Spec

Compatibility
ATI X1900 Series
ATI X1800 Series
ATI X1600 Series
ATI X1300 Series
ATI Radeon 9 Series (except 9550/9600)
ATI Radeon X Series
NVIDIA GeForce4 MX Series
NVIDIA GeForce FX 5200
NVIDIA GeForce FX 5500
NVIDIA GeForce FX 5600(FX 5700)
NVIDIA GeForce 6600 Series (except 6600 AGP Series)
NVIDIA GeForce4 Ti 4 Series
NVIDIA GeForce FX 5700Ultra Series
NVIDIA GeForce FX 5800 Series
NVIDIA GeForce 7600 Series
NVIDIA GeForce FX 5900 Series
NVIDIA GeForce FX 5950 Series
NVIDIA GeForce 7900 Series
NVIDIA GeForce 7800 Series (except 7800GS)
NVIDIA GeForce 6800 Series
Bearing Type
2 Ball
RPM
1350-2400±10% RPM
Noise Level
18.5-25.0±10% dBA
Power Connector
3 Pin
Fan Color
Transparent
LED
Blue
Heatsink Material
Copper

Physical Spec

Fan Dimensions
80 x 80 x 15mm
Heatsink Dimensions
96 x 96 x 30mm

Features

Features
1. The high intensity blue LEDs on VF900 LED coolers stay bright even in Silent Mode.
2. Pure copper heatsink base and fins maximize cooling performance.
3. Use of two high performance heatpipes maximizes heat transfer.
4. Circular heatsink formed by radially aligned ultra-thin(0.2mm) fins minimizes airflow resistance
and maximizes heat dissipation surface area for excellent cooling performance.
5. Fan installed in the heatsink cools not only the VGA chipset and VGA RAM, but all other VGA
components.
6. Does not exert any excessive force on the VGA card due to the product’s light weight.
7. Improvement in the installation structure provides excellent compatibility and easy installation.
8. Adjustable fan speed controller(FAN MATE 2) enables control of noise and fan speed.
9. Does not generate noise or vibration in Silent Mode.

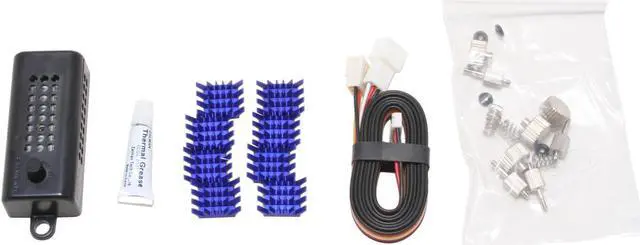

Package Contents

Package Contents
Heatsink Assembly (VF900-Cu LED)
RAM Heatsinks
Nipple
Fixing Nuts
Rubber Rings
Springs
Thermal Grease
FAN Controller(FAN MATE 2)
Cable for FAN MATE 2

Manufacturer Warranty

Parts
1 year limited
Labor
1 year limited

Quick Info

Warranty

  • Limited Warranty period (parts): 1 year
  • Limited Warranty period (labor): 1 year


Customer Reviews of the Zalman Tech Co., Ltd VF900 - CU LED

Do you own this product? Write a Review

ICON Loading...

Filter Results

Go
  • Anthony S.
  • 8/24/2014 8:24:27 PM
  • Tech Level: Somewhat High
  • Ownership: 1 day to 1 week
  • Verified Owner

5 out of 5 eggsUsed on HD4850

Pros: Fit an old Visiontek HD4850 PCI-E card

Cons: Fan doesn't connect to the card - instead to the motherboard (with a small internal fan controller).

Other Thoughts: I bought one of these to replace a dead fan on an Radeon X1950 Pro AGP... Worked perfectly... Tried the same model on an HD4850 and it works well. The only issue I had both times is with the "silver" memory heat sinks... The thermal tape does not always "stick" very well... Be sure to clean your memory chips first!!! They should be "gold" to match the main fan. It should go for half the listed price in my opinion...

Did you find this review helpful? Yes No

  • Christopher B.
  • 4/8/2014 3:41:08 AM
  • Tech Level: Somewhat High
  • Ownership: more than 1 year
  • Verified Owner

5 out of 5 eggsWORKED GREAT ON 5670 2GB

Pros: kept it cool! kept the noise down, blue color light was a plus.

Cons: cleaning after 6 months was a nightmare, recommend a super soft long bristle paint brush, compressed air, a vacuum, and plenty of patience.

Other Thoughts: recommend using with filtered case.

Did you find this review helpful? Yes No

  • Anonymous
  • 6/2/2013 10:33:37 AM
  • Tech Level: Somewhat High
  • Ownership: 1 month to 1 year
  • Verified Owner

2 out of 5 eggsFrustrating.

Pros: Functions okay.

Cons: *Mounting hardware too big for my application.
*Wires became unattached.

Other Thoughts: It's extremely frustrating when you NEED to use a product, but nothing goes right. I had to fit this in a computer, with very tight space. This was the perfect VGA cooler for the job, low-profile, quiet, high performance. Unfortunately, there was no way the plastic thumbscrews were going to work.

After a filing disaster, I decided to source my own hardware. I emailed Zalman asking for the thread size, zero response. So I got out the metric ruler. Trips to hardware stores, electronic stores proved fruitless, too large. Ordered some specialty parts online, they ended up being too small. I eventually figured out what size was good, through this trial-and-error process. It's M2-0.4 nuts in case you're wondering.

So, more waiting (had to order them online). They get here and I'm ecstatic. It's over, I can finally use my heatsink. Just as I'm sitting down to mount the thing, I notice two of the wires (white,red) are now unattached. The final black is hanging by a single metal strand in the braid.

No problem right? Just open it up and resolder. Well, the leads are covered in a silicone paste, and I can't seem to completely open the assembly to get to them anyway.

I yanked the final wire.

Manufacturer Response:

Dear valued customer,

We sincerely apologize for the issue. Please contact our customer service e-mail support.usa@zalmanusa.com or via toll free number 1-888-925-6266 for further assistance.

Thank you.

Best regards,

Zalman USA Customer Service

2 out of 3 people found this review helpful. Did you? Yes No

  • Jason S.
  • 1/8/2013 7:21:39 PM
  • Tech Level: Average
  • Ownership: 1 month to 1 year
  • Verified Owner

5 out of 5 eggsAwesome fan

Pros: I installed this baby on my old Geforce 8800gt. This video card used to get to ~60 degrees when idle, but now it idles at 42 degrees! Super quiet too, have owned this for a couple of months and no problems so far.

Cons: A little bit pricey and the controller is somewhat unnecessary.

Other Thoughts: None.

Did you find this review helpful? Yes No

  • Kristopher O.
  • 10/23/2012 6:24:19 PM
  • Tech Level: Somewhat High
  • Ownership: 1 month to 1 year

5 out of 5 eggsGreat replacement fan for old cards!

Pros: I have this cooler installed on an reference-design HD 4770 whose fan died unexpectedly. It has brought my temperatures down by 20C under load!

Even at the highest fan setting (via the included fan controller) the unit is infinitely quieter than the stock cooler and inaudible over the sound of the push/pull setup of my CPU. Its allowed me to keep my old 4k-series workhorse around a bit longer!

Cons: The official compatibility chart needs to be updated with more modern mid-range cards--this thing will definitely fit cards from the HD 5k/6k/7k series, as their 4-post cooling setups are identical to the one used on my 4k series card.

Other Thoughts: All that said, I'd be skeptical about using this cooler with anything more than a 4850/5830/6850/7850, as their TDP and wattage requirements under load are much higher than the 80W of the 4770. I tend to run around 45C under load. I guess it depends on how toasty one likes their hardware to run.

Sum: I'd buy it again!

1 out of 2 people found this review helpful. Did you? Yes No

  • Robert B.
  • 10/3/2012 6:44:09 AM
  • Tech Level: Somewhat High
  • Ownership: 1 week to 1 month
  • Verified Owner

5 out of 5 eggsGreat quite fan

Pros: This fan is great, pure solid copper feel, but still light weight. I changed my fan out because the original one was so loud. I used arctic 5 for paste and seamed to work great. After an hour of came play copper fan was still at room temp.

Cons: Make sure you check the clearance of the fins to adjacent PCI slots. Otherwise it was hitting the PCI slot and not fitting into the slot needed.

2 out of 3 people found this review helpful. Did you? Yes No

  • Andrew H.
  • 9/19/2012 2:43:51 PM
  • Tech Level: High
  • Ownership: more than 1 year

3 out of 5 eggsNot perfect

Pros: Affordable, makes extra space since it's smaller than stock coolers. Brings idle temps down to ~32c.

Cons: Zalman FanMate stuff is garbage. 3 coolers, none of them seem to work with the controller. I end up plugging them into the mobo aux fan ports and control them via the motherboard utility. Worse, however, is that it didn't bring load temps down much at all; I'm still burning at ~65-75c depending on the game (Tribes, LoL, TF2, BF3, SC2, etc).

Other Thoughts: Have this on an old GTS 250 1gb. Solid cards. Saving up for a GTX 6 series or Radeon wahtever.

1 out of 2 people found this review helpful. Did you? Yes No

  • Chandler m.
  • 9/1/2012 9:35:17 PM
  • Tech Level: Average
  • Ownership: 1 week to 1 month
  • Verified Owner

1 out of 5 eggsTerrible heavy load performance

Pros: Looks cool, dropped to 37c idle from 43c.

Cons: Terrible, with the fan turned all the way to max my 7970 reaches over 100c+ on "good" settings(SC2,WoW,BF3) even though i dropped my O.C. setting to default. The original thermal paste is a throw away (arctic paste dropped it 5c idle from stock paste), never the less that it only comes with enough vram heat sinks for 2gigs. I've had zalmans in the past that i was more than pleased with but this product let me down.

Other Thoughts: Stay away, not worth the void warranty

1 out of 7 people found this review helpful. Did you? Yes No

  • Anonymous
  • 4/24/2012 8:05:12 PM
  • Tech Level: High
  • Ownership: 1 day to 1 week
  • Verified Owner

5 out of 5 eggs8800 GT new life

Pros: Installed easily onto an old 8800 GT. Idle temp dropped from 60c to 42c. Very quiet.

Cons: Wish it was cheaper but there is a $15 rebate (hopefully).

Other Thoughts: Worth the price to give new life into my old card and pass to my son's first PC.

Did you find this review helpful? Yes No

  • Justin V.
  • 3/18/2012 10:01:44 PM
  • Tech Level: Average
  • Ownership: 1 day to 1 week
  • Verified Owner

5 out of 5 eggsAMAZING!!

Pros: This fan is absolutely amazing! The install was very easy and very quick, took me about 10mins. I installed this on to my GeForce 9600GT

Stock Fan
idle - ~65C
heavy gaming - ~98C

Zalman VF900
idle - ~32C
heavy gaming - ~46C

Unbelievable! Plus it was at the lowest RPM ( Silent Mode)I would most definitely recommend this fan! I wouldve gotten the Zalman VF1000 but its not compatible with my 9600GT

Also the led light was pretty cool and it took about 3 days to deliver

Cons: So far nothing.

Other Thoughts: Awesome AWESOME. My other fan mightve been dirty but i dont know that differences is pretty amazing.

Plus it came with a fan control (Fanmate2).

0 out of 1 people found this review helpful. Did you? Yes No
