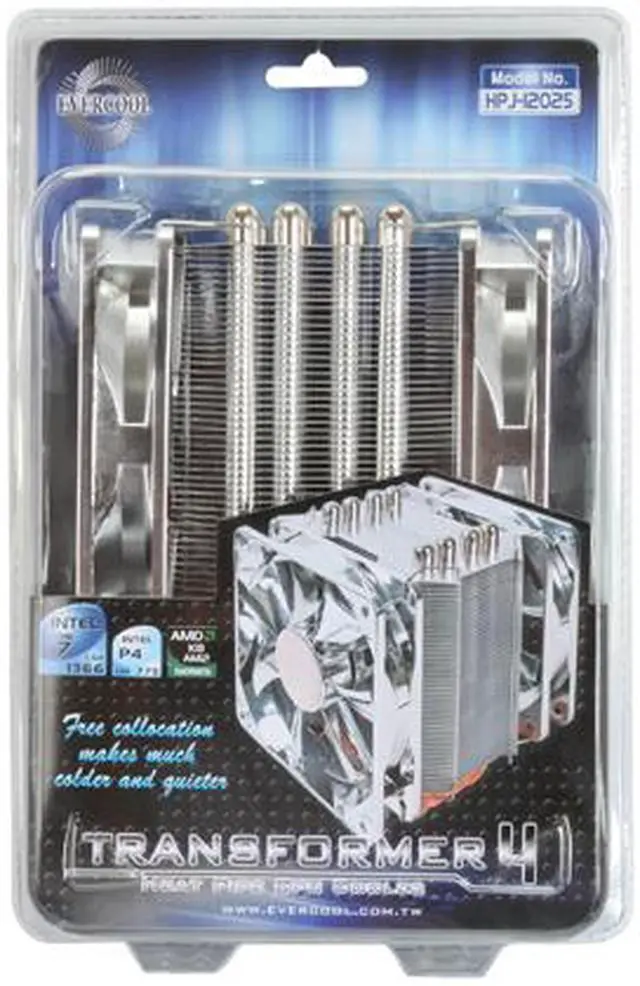

EVERCOOL HPJ-12025 120mm Ever Lubricate Bearing (Long Life bearing) Transformer 4 Heat Pipe CPU Cooler

  • 1000 ±10% RPM
  • 38.14 CFM
  • Aluminum Fin+Heat Pipe
ICON Loading...

Learn more about the EVERCOOL THERMAL CORP. LTD HPJ-12025

Model

Brand
EVERCOOL
Model
HPJ-12025

Spec

Type
Fan & Heatsinks
Fan Size
120mm
Compatibility
Intel :
Pentium 4 Socket T 505~571/620~672
Pentium D Socket T 805~840/915~960
Pentium 4 Processor Extreme Edition Socket T 3.73G
Core 2 Duo Processor Socket T E4300~E8600
Core 2 Extreme Processor Socket T QX6700~QX9650
Core 2 Quad Processor Socket Q6600~Q9550
Core i7 Processor I7-920~940
Core i7 Processor Extreme Edition I7-965

AMD:
Athlon Phenom~9600/Phenom X3~8750/Phenom X4~9950
Athlon 64 X2~3600+ /~6400+(AM2)
Athlon 64 FX-51/53/55/57/60/62
Opteron ~154 / ~256 / ~890
Dual-Core Opteron ~180 / ~290 / ~890
Second-Generation Opteron™ ~1222 SE/1222
Third-Generation Opteron™ ~1356
Sempron ~3800+
Bearing Type
Ever Lubricate Bearing
(Long Life bearing)
RPM
1000 ±10% RPM
Air Flow
38.14 CFM
Noise Level
<21 dBA
Heatsink Material
Aluminum Fin+Heat Pipe

Physical Spec

Fan Dimensions
120 x 120 x 25 mm
Heatsink Dimensions
121.6 x 80 x 160 mm
Weight
843.5g

Features

Features
4 heatpipes in 8F collocate with large aluminum fins to make effective cooling.

All in one design for application to Intel LGA 1366 & LGA 775 and AMD K8 & AM2 series motherboard.

According to the needs, users can assemble one or two 12CM fans by themselves to achieve quiet and cooling function.

Brightly silver and solid appearance.

Users do not need to use tools for easy installation.

Manufacturer Warranty

Parts
30 days limited

Quick Info

Warranty

  • Limited Warranty period (parts): 30 days
  • Limited Warranty period (labor): 0 day


Customer Reviews of the EVERCOOL THERMAL CORP. LTD HPJ-12025

Do you own this product? Write a Review

ICON Loading...

Filter Results

Go
  • Matt H.
  • 8/13/2013 4:01:33 PM
  • Tech Level: Somewhat High
  • Ownership: 1 day to 1 week
  • Verified Owner

2 out of 5 eggsa pain for very poor results

Pros: none

Cons: so big you can't even plug a 8 pin connector to your motherboard without it being in the way
doesn't cool any better than coolermaster hyper TX3 which is more managable and doesn't take up near the space and half the price

Other Thoughts: if you want to cool a phenom II x6 1090T don't buy this one i know frosty.com gave it great reviews but it does not cool all that great , id rather try a hyper212 evo over this , next time i buy a cpu cooler i'll stick to cooler master

Did you find this review helpful? Yes No

  • John C.
  • 8/6/2012 4:33:59 PM
  • Tech Level: High
  • Ownership: 1 month to 1 year
  • Verified Owner

5 out of 5 eggsAwesome!

Pros: -Huge?
-Cpu Temp never goes above 35 Deg C no matter what
-Quiet

Cons: -Huge
-Supplied fans aren't PWM controlled
-Supplied fans a little cheesy
-Depending on motherboard can't use memory with larger than normal cooling fins

Other Thoughts: Great cooler for the price! Fits everything under the sun. Only concerns are if you have a narrow case or a large side case fan. Exceptionally large cooling fins on your RAM won't fit depending on your Mobo. Fans are a little cheap and not PWM controlled, but an easy upgrade in you concerned. I am overclocked and the stock fans are fine. Nice lapping on the face, sturdy mounting plate

Did you find this review helpful? Yes No

  • Kirk J.
  • 3/14/2012 10:50:03 PM
  • Tech Level: High
  • Ownership: 1 day to 1 week
  • Verified Owner

4 out of 5 eggsOrientation is Important

Pros: Very quiet and moves a lot of air. Fans (yes, two) are static at 1000rpm (can be undervolted to slow them down), so they're very quiet and don't "rev up" under load. Easily cools stock CPUs and has great potential for Overclocked CPUs if you get different fans (PWM preferrably). Put this on a hothead Athlon X2 6000+ Windsor and it idles near 80*F. Put a stress load on it with AIDA64's "Stability Test" and it peaked at 118*F. Gave enough clearance for normal heatspreader RAM (without risers). The height of the cooler is just a shade too tall for the case I put it in (touches the side panel), but I expected such when I bought it. Just check your internal dimensions to make sure you don't have issues.

Cons: THIS ONLY MOUNTS VERTICALLY BLOWING ON AMD BOARDS. Airflow can either be up (preferable) or down, NOT out the back of the case as would be ideal. A fair amount of Silverstone cases have vertical airflow where air exhausts out the TOP of the case, and this would be an awesome cooler in such arrangements. Right now, it exhausts up into the PSU (mostly), which then vents out the back. There's a back-mounted exhaust fan helping out as well, but some of the air will still circulate behind the 5 1/2" bays. If you have a bottom mounted PSU, you'll likely have vents at the top of your case anyway.

Other Thoughts: Fans feel like cheap plastic. Decorative though.

Did you find this review helpful? Yes No

  • Anonymous
  • 10/19/2011 11:07:51 PM
  • Tech Level: Somewhat High
  • Ownership: more than 1 year
  • Verified Owner

5 out of 5 eggsBought this back in January 2010

Pros: Along with my Q9550 and applied with Artic Silver. OC'd to 3.6 GHz with a small voltage bump and this beast keeps the temps at around 50 C. I love this cooler. The best I have ever owned.

Cons: I think the 2 fans it came with were under powered. I replaced them with 2 Antec case fans which ran at 1600 RPM and lit up blue. LOVE IT!!

Other Thoughts: If you can find this awesome monster, buy it! You will not be sorry.

Did you find this review helpful? Yes No

  • omar P.
  • 12/10/2010 3:02:33 PM
  • Tech Level: High
  • Ownership: 1 week to 1 month

5 out of 5 eggsLoots of room for that CPU cabin fever to run wild!

Pros: Installed this product on a AMD Phenom II X4 3.2Ghz CPU over clocked to 3.6Ghz. I'm using an NZXT Phantom Full Tower case. Installation is fairly simple if you don't have to remove the mother board. In my personal experience, thanks to the NZXT Phantom case ,which has an opening in the back panel that gives you access to the back CPU bracket screws, i did not have to remove the mother board to install the heat sink :) !! . After installation, I ran a couple well know CPU stress tests on this bad boy for a few hours and the temperature never reached over 55C. The tests were performed for 1 hour with CPU running at 3.6 GHz. When in idle (still running at 3.6Ghz) temperature fluctuates from 31c - 32c.When doing non intensive CPU work such as, surfing the web, watching videos, typing etc. the CPU maintained temperatures from 33c – 37c.

Cons: The only one i can think of is that the two 1000 rpm fans are a bit underpowered but still provide very good cooling.

Other Thoughts: Instructions provided are very vague, so if you are a novice system builder you might have some trouble with installation. If you need better installation instructions you can find videos in YouTube which guide you step by step. This thing is very tall and wide, so check if you have the right space in your case. One thing that I’m sure some people will have trouble with is if they are running memory with the tall heat sinks. On AM3 motherboards your first intake fan will be facing your video card instead of your memory, this could be a con if you don't have good case cooling due to the fan will be sucking a little bit of the hot air that leaks from the video cards. Over all i believe this is a great product, it provides very decent cooling for a low price compared to other more expensive heat sinks.

Did you find this review helpful? Yes No

  • Sean E.
  • 10/27/2010 12:00:58 PM
  • Tech Level: Somewhat High
  • Ownership: 1 week to 1 month
  • Verified Owner

5 out of 5 eggsFits in a 790i ultra

Pros: 2 fans, large size, copper pipes, universal should work with nearly every cpu.

Cons: Huge, may not fit in certain motherboards or cases

Other Thoughts: Purchased this for my QX9650 and I'll be overclocking it soon. I will rate this again with my findings.

I can tell you that it fits on a evga 790i ultra motherboard in this massive Xclio case: http://www.newegg.com/Product/Product.aspx?Item=N82E16811103019

It does not cover any ram ports but its a tight squeeze.

Did you find this review helpful? Yes No

  • Andrew L.
  • 5/30/2010 12:30:44 PM
  • Tech Level: High
  • Ownership: 1 week to 1 month
  • Verified Owner

4 out of 5 eggsread carefully

Pros: very very good at what it does, its glues and transfers heat at an excellent ratio

Cons: will not allow you to separate your cpu and heat sink

Other Thoughts: read the instructions, i didnt and now i broke my mobo trying to separate the cpu and HS

1 out of 4 people found this review helpful. Did you? Yes No

  • salvador s.
  • 3/23/2010 10:40:49 PM
  • Tech Level: High
  • Ownership: 1 month to 1 year

5 out of 5 eggsKeeping my i3 cool

Pros: This is a nice cooler very quite and keeps my overclocked i3 nice and cool I have my i3 540 overclocked to 4.4 with load temps around 67c with intel burn test.

Cons: The fans could be a little faster

Did you find this review helpful? Yes No

  • Colt B.
  • 10/16/2009 10:12:38 PM
  • Tech Level: High
  • Ownership: 1 day to 1 week
  • Verified Owner

3 out of 5 eggsNot for overclocking past 3 ghz with shipped fans atleast

Pros: Looks nice will be good for mild overclock

Cons: to costly for its capabilities on a core I7

Other Thoughts: not here to bash but just to be honest

3 out of 5 people found this review helpful. Did you? Yes No

  • Charley C.
  • 9/30/2009 7:54:47 PM
  • Tech Level: Average
  • Ownership: 1 day to 1 week
  • Verified Owner

4 out of 5 eggsLow power efficient cooling

Pros: This thing is a monster compared to stock. brought my temp down by an average of 6 degrees celsius Although it didn't compare well with CPU coolers in the same price range
(See cons) Mostly due to the dual 1000rpm fans that come with it witch all in all contribute to the quiet and efficient cooling solution that is the Transformer 4

Cons: The stock fans although quiet are under powered. But good news, the wire brackets provide a completely modular mounting solution, almost any 120mm fan can be used instead of stock
2 Fins are flimsy, bend easily

Other Thoughts: AMD phenom X4 9950 @3.01ghz
Ausus m3a79-t delux
4gb kingston hyperX @1066mhz

0 out of 2 people found this review helpful. Did you? Yes No
