Question 1

what is the screw hole spacing?

Accepted Answer

not sure about the screw spacing when i looked up my model psu found that it was 135mm fan little odd ball if you ask me but everything lined up perfectly as long as the fan is 135mm if will work.

Question 2

What are the volts and amps on this fan?

Accepted Answer

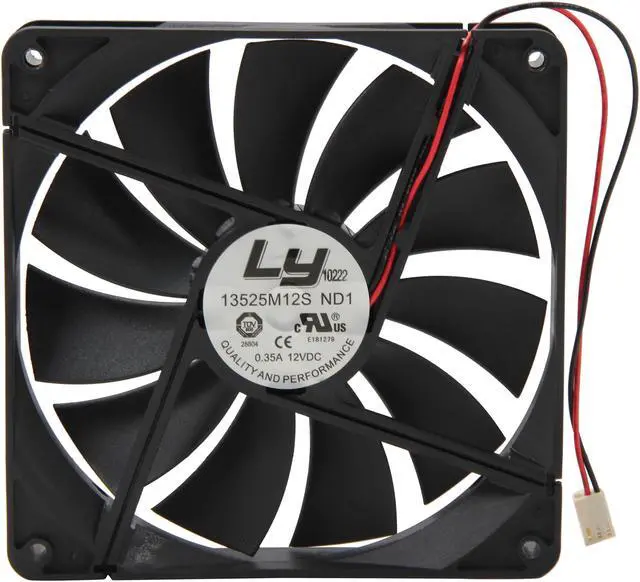

12V 0.35A as per the sticker on the back. They should really have the sticker side as one of the pictures.

Question 3

What are the mount (hole) spacing of this fan?

Accepted Answer

The fan is a standard 135 mm power supply fan. According to my tape measure, the mounting screw holes are 4.25 inches apart.

Question 4

I need to replace the 135mm fan in my Raidmax PSU.  Will  this work, but the dead fan has only red , balck and blue wires ?  Red and Black are to power the fan, the blue must be foe the Led, which I really don't need.

Accepted Answer

Yes you just need to put red to the hot wire and black to the ground wire. I believe my original had three as well.

Brand	EVERCOOL
Model	13525M12S ND1

Type	Case Fan
Fan Size	135mm
Bearing Type	Sleeve
RPM	2500 RPM
Air Flow	108.629 CFM
Noise Level	42.5 dBA
Power Connector	3 Pin
Color	Black

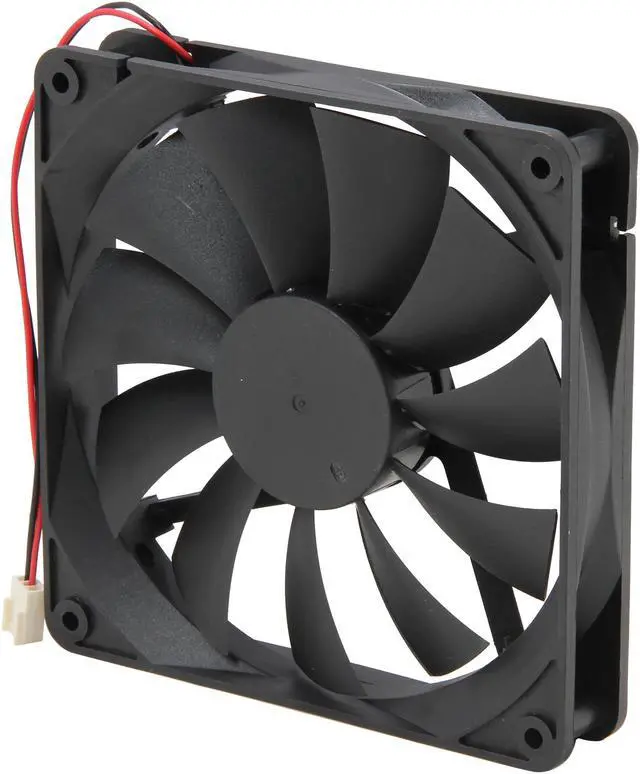

EVERCOOL 13525M12S ND1 135mm Power Supply Replacement Fan
