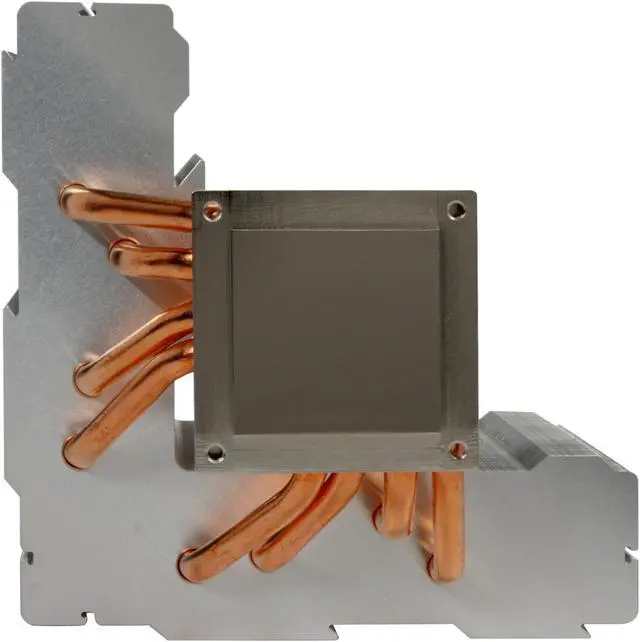

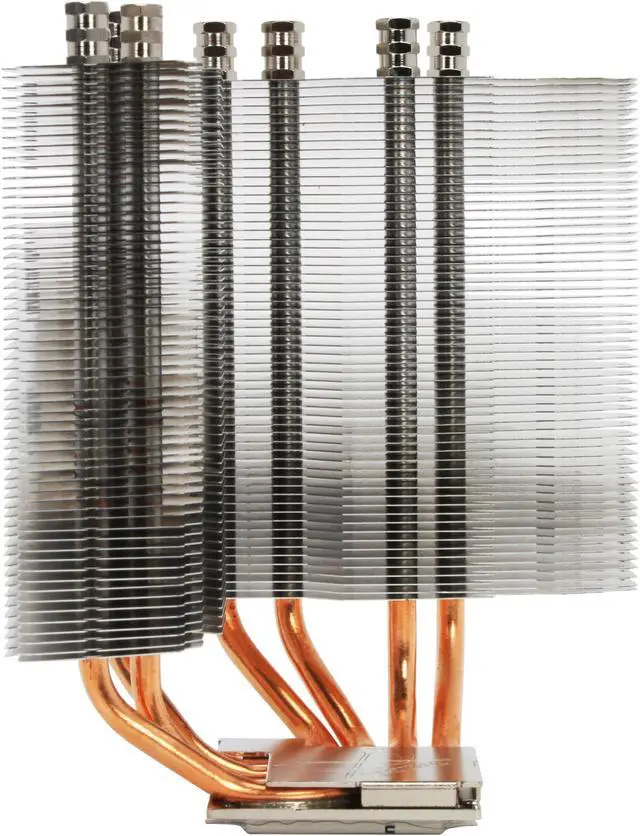

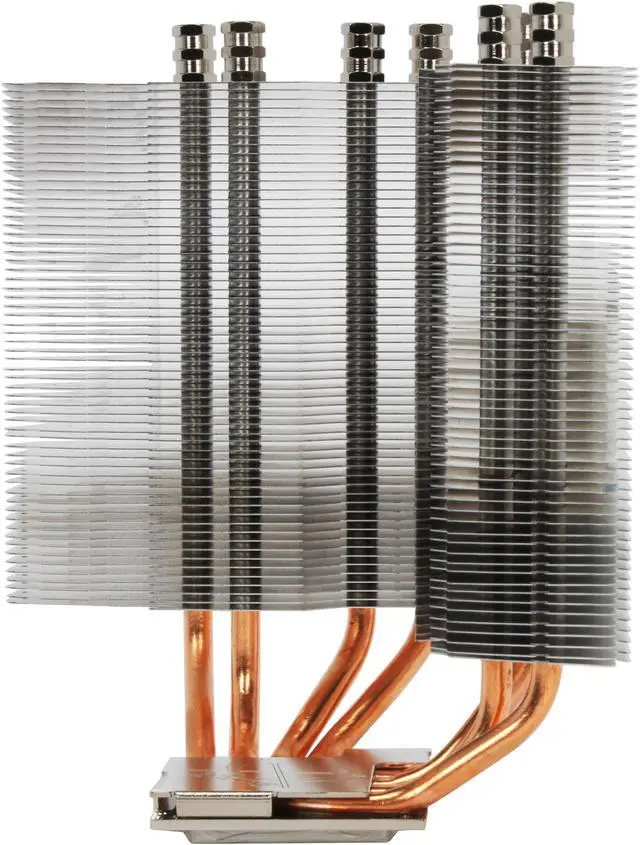

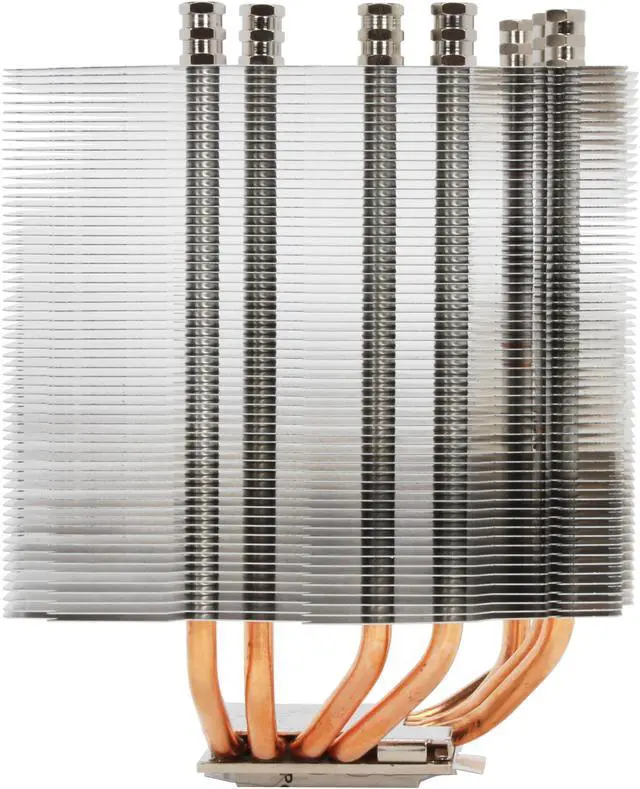

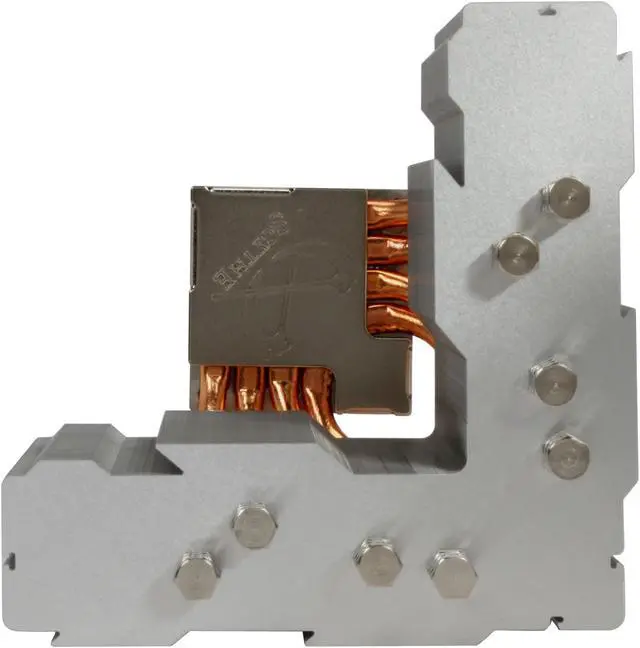

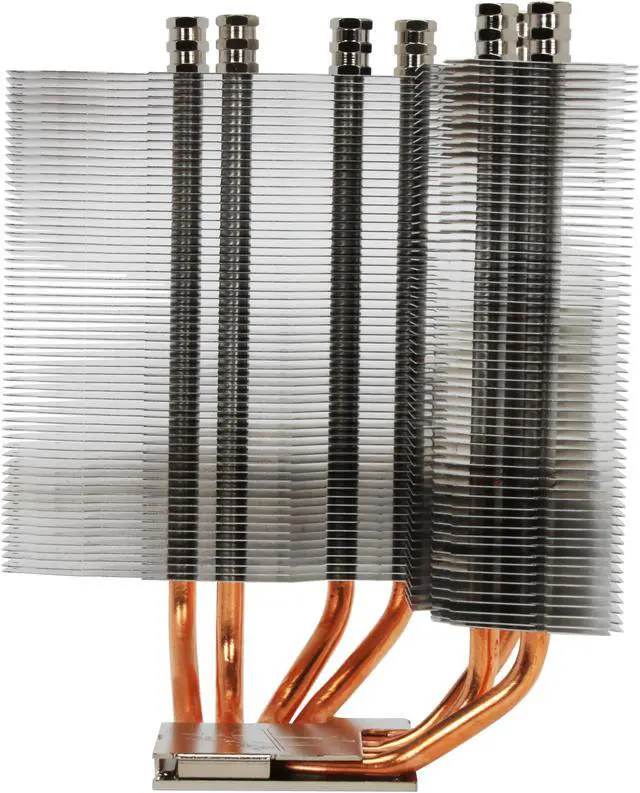

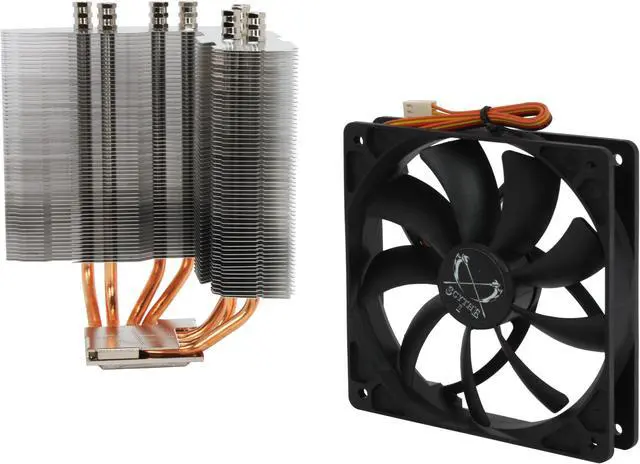

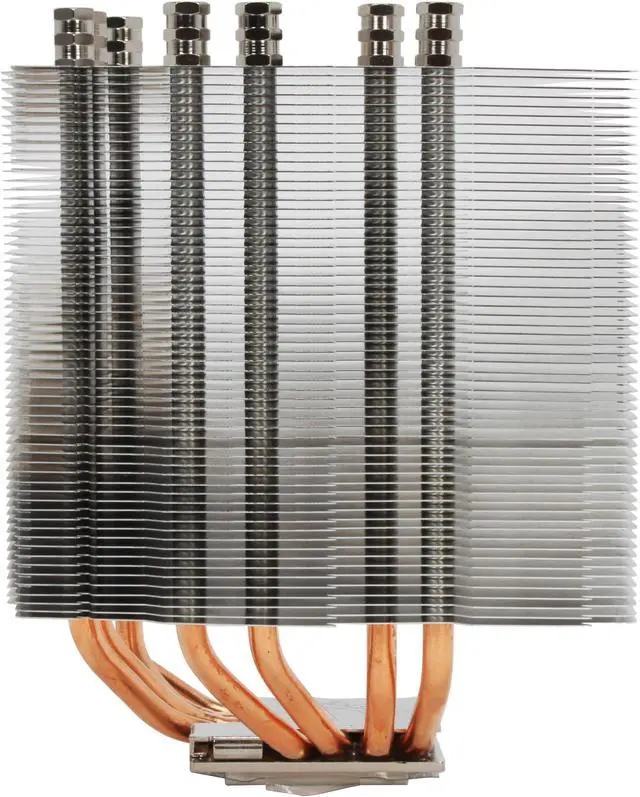

Scythe SCANG-1000 120mm Sleeve CPU Cooler

  • 324 ~ 1200 RPM (±10%)
  • 14.43 ~ 68.54 CFM
  • Nickle-plated copper
ICON Loading...

Learn more about the Scythe USA SCANG-1000

Model

Brand
Scythe
Model
SCANG-1000

Spec

Type
Fan & Heatsinks
Fan Size
120mm
Compatibility
Intel LGA775 (SocketT) Proessor
Quad-Core Intel Xeon Processor 3200 Series
Dual-Core Intel Xeon Processor 3000 Sequence
Intel Core2 Extreme processor
Intel Core2 Quad processor
Intel Core2 Duo processor
Intel Core Duo Processor
Intel Pentium Processor Extreme Edition
Intel Pentium D Processor
Intel Pentium 4 Processor Extreme Edition supporting Hyper-Threading Technology
Intel Pentium 4 Processor supporting Hyper-threading Technology
Intel Celeron D Processor

Intel Socket478 Proessor
Intel Pentium 4 Processor Extreme Edition supporting Hyper-Threading Technology
Intel Pentium 4 Processor supporting Hyper-threading Technology
Intel Pentium 4 Processor
Intel Celeron D Processor
Intel Celeron Processor

AMD SocketAM2 Proessor
AMD Athlon 64 Processor
AMD Athlon 64 FX Processor
AMD Athlon 64 X2 Dual-Core Processor

AMD Socket940 Proessor
Dual-Core AMD Opteron Processor
AMD Opteron Processor

AMD Socket939 Proessor
AMD Athlon 64 Processor
AMD Athlon 64 FX Processor
AMD Athlon 64 X2 Dual-Core Processor

AMD Socket754 Proessor
AMD Athlon 64 Proessor
AMD Sempron Processor
Bearing Type
Sleeve
RPM
324 ~ 1200 RPM (±10%)
Air Flow
14.43 ~ 68.54 CFM
Noise Level
6.4 ~ 24 dBA
Heatsink Material
Nickle-plated copper

Physical Spec

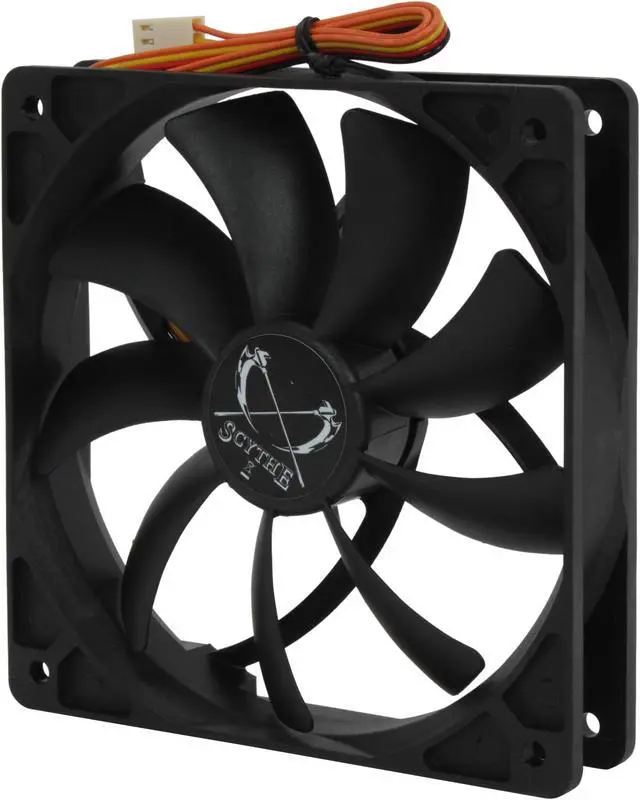

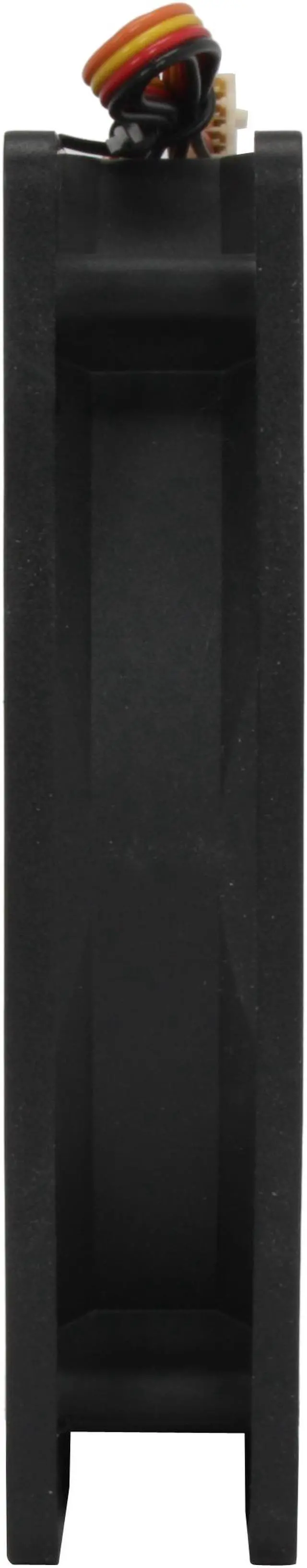

Fan Dimensions
120 x 120 x 25mm
Weight
755g

Manufacturer Warranty

Parts
1 year limited
Labor
1 year limited

Quick Info

Warranty

  • Limited Warranty period (parts): 1 year
  • Limited Warranty period (labor): 1 year


Customer Reviews of the Scythe USA SCANG-1000

Do you own this product? Write a Review

ICON Loading...

Filter Results

Go
  • Raymond B.
  • 3/16/2010 6:00:08 AM
  • Tech Level: High
  • Ownership: 1 month to 1 year
  • Verified Owner

4 out of 5 eggsSurprisingly good for the price

Pros: Cools better than my H50.

Cons: Needs loud/fast fan to keep my OC'd Q9550 really cool. Pushpin design doesn't keep enough pressure on CPU.

Other Thoughts: Over the last year, I've used maybe 4 different heastinks. The most recent being the Corsair H50. I recently bought a Scythe UltraKaze3000 fan for my H50 and I got no difference than using 2 much slower and much more quiet fans. I then thought maybe I should try out the UltraKaze3000 on the Scang cooler I had laying around and wow.. it cools much better than my H50 it's just really loud with this fan. When I bought this cooler it was only $29 and with the addition of the $15 fan, it does better than the $60 H50. I just wish there were screws/bolts instead of the pushpins.

Did you find this review helpful? Yes No

  • Anonymous
  • 11/29/2009 8:56:24 PM
  • Tech Level: Low
  • Ownership: 1 month to 1 year
  • Verified Owner

5 out of 5 eggs

Pros: Easy to install, quiet enough, cheap

Cons: Too big for my case, had to drill holes for the huge bolts at the end of the heatsink.

Other Thoughts: Crazy looking heatsink! Wish they had a copper one?

0 out of 1 people found this review helpful. Did you? Yes No

  • Edward K.
  • 11/10/2009 6:29:03 AM
  • Tech Level: High
  • Ownership: 1 day to 1 week
  • Verified Owner

5 out of 5 eggsQuiet. Cant hear a thing

Pros: My previous fan was using the stock heatsink on a prescott pentium 4. The stock fan was inadequate as it was blazing hot and blazing loud. this huge beast from scythe shut that up instantly and brought the temps down at peak load.

Cons: its huge. tight fit pushing down on the cpu w/ a smaller atx case. but it shouldnt hold you back on replacing a stock heatsinkfan

Other Thoughts: did i mention its huge...

1 out of 1 people found this review helpful. Did you? Yes No

  • Sam J.
  • 10/25/2009 1:16:19 AM
  • Tech Level: Somewhat High
  • Ownership: 1 week to 1 month
  • Verified Owner

5 out of 5 eggsAfter correctly reinstalling: CPU Temps AMAZING!

Pros: See other thoughts and review below:

Cons: See other thoughts and review below:

Other Thoughts: **Correction for post below**
I gently set the pc down after moving it a few rooms and the heatsink made a dull 'thunk' and realized that i needed to reseat it.

After taking the whole thing apart and reapplying AS-5 and reclipping it correctly (much easier the second time)
I was shocked at temps overall.

CPU: Intel i7 860 @ 2.80 GHz
Actual temps via speedfan reads:
Idle: 14-18C fan@ below 650rpm
Load: 31-36C fan@ 1000-1200rpm

(Load temp tested wth Hyper Pi (a SuperPi mod) running on 8 threads for 2 million digits three times.)

1 out of 1 people found this review helpful. Did you? Yes No

  • Sam J.
  • 10/9/2009 5:24:00 PM
  • Tech Level: Somewhat High
  • Ownership: 1 day to 1 week
  • Verified Owner

5 out of 5 eggsNice, large, quiet.

Pros: Pretty quiet and only one and a half pounds.
Cools my i7-860 to 30~34C idle. Five eggs!

(Mounted to socket 1156 via adapter here http://www.newegg.com/Product/Product.aspx?Item=35-185-094)

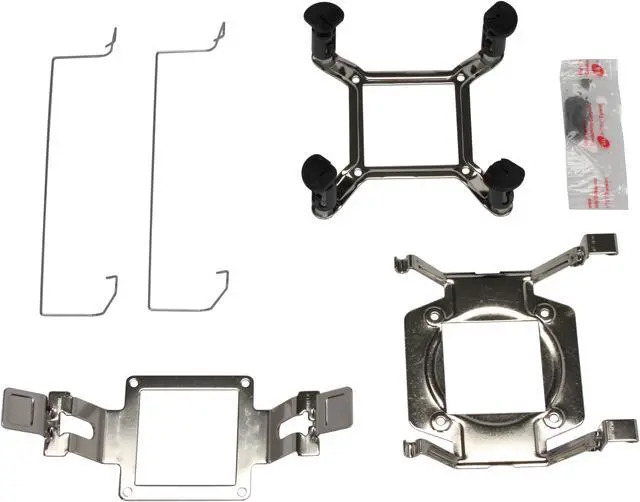

Fan clips are thin but work well.

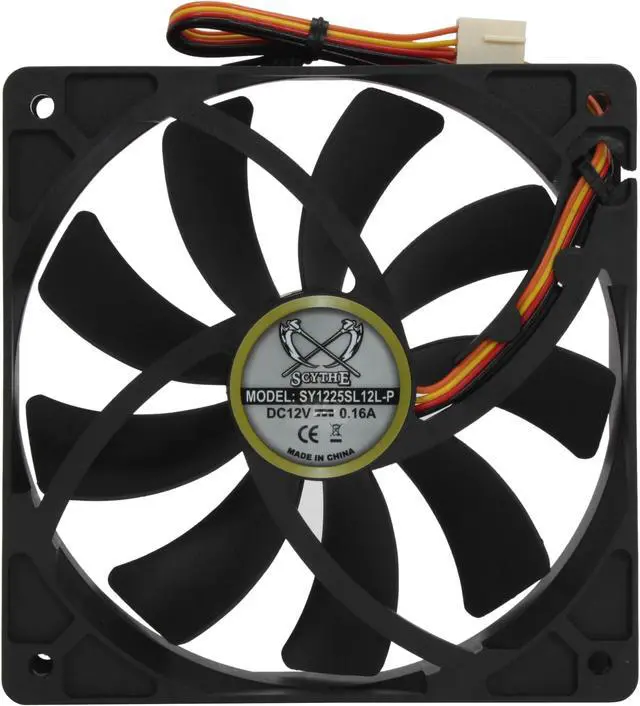

PWM fan is nice.

Makes a neat 'L' shape when mounted, and if you dont like it in one angle configuration, you have three more to choose from! (meaning the clip for intel sockets let you rotate 90 degrees in any direction given that you remount the thing).

Very useful if your PSU/top fan and rear fan are nearby so that CPU heat is vented outta the case immediately.

Cons: They could have made it bigger...

Aluminium fins are very thin/bendy but that might be a PRO in terms of thermal resistance/airflow etc..
Exercise care when installing a fan whilst using the fan clips.

Still needed to under-volt a tiny bit.

Overhang interferes with clipping-to-board procedure but it is still do-able.

Other Thoughts: I overestimated the size of this beast, thinking that i could use the 200mm and 120mm top/rear and keep the CPU passively cooled.

So you know, I wasn't sure it was going to fit at all since i was buying this for a mATX setup.
However, in an Antec Mini P180, it didn't really come close to the top fan. It's plenty close to the rear fan though.

I'm unsure here whether I need to apply some more ArcticSilver5 or if it's since my cpu is a hot quad core...
Temps get up to 60~65C sometimes so i'm going to check the heatspreader again to see if there's enough goop on it =D


Happy shopping.!

1 out of 1 people found this review helpful. Did you? Yes No

  • LeRoy R.
  • 8/22/2009 8:02:52 AM
  • Tech Level: Average
  • Ownership: 1 day to 1 week
  • Verified Owner

4 out of 5 eggsnot bad

Pros: Installation onto LGA 775 wasn't too hard. I bought it to use without the fan attachment because the fin blocks line up exactly with my top and back exhaust fans. Probably overkill for an E6300. Idling at 21C.

Cons: Using the fan as a sys_fan, and it's rather loud. I wish it were 900rpm instead of 1200rpm by default.

1 out of 1 people found this review helpful. Did you? Yes No

  • Steven B.
  • 7/5/2009 10:21:38 AM
  • Tech Level: Somewhat High
  • Ownership: 1 week to 1 month
  • Verified Owner

1 out of 5 eggsCheap

Pros: Looks good on my shelf

Cons: Horrible instructions and extremely cheap parts; the fan is mounted by what appears to be two modified paper clips. The top-heavy cooling block is too much for the cheap fasteners to handle, and the entire unit came loose after moving the computer. I went back to the stock fan for a while, until I find a better one.

Other Thoughts: I installed in a rather large case (Antec P182) and even then the large cooling block makes one of the fasteners near impossible to install correctly. Maybe it works better with a different setup.

0 out of 3 people found this review helpful. Did you? Yes No

  • Matthew F.
  • 7/4/2009 3:42:46 AM
  • Tech Level: High
  • Ownership: 1 day to 1 week
  • Verified Owner

5 out of 5 eggsCool!

Pros: This thing cools my Phenom II 955 BE just fine. And the most important thing is that it's silent! You can't hear it. Whether I have the fan on high or low, it sounds the same to me, totally quiet. I love it! It's large for sure, but it's worth it.

Some said it was hard to install. I found it to be very easy to put on a ASUS M4A79T Deluxe. No problems here.

Cons: None.

Other Thoughts: Just an FYI, for compatibility, this fits in a GIGABYTE GZ-X7BMDX-400 case, with an ASUS M4A79T Deluxe mobo.

Did you find this review helpful? Yes No

  • Richard B.
  • 6/7/2009 10:44:29 AM
  • Tech Level: High
  • Ownership: 1 day to 1 week
  • Verified Owner

2 out of 5 eggsMore trouble than it's worth...

Pros: It's quiet.

Cons: As others have mentioned, extremely difficult to install.

Other Thoughts: No difference in CPU temperature from the stock cooler it replaced. It's possible that all the repositioning while trying to get it mounted messed up the distribution of the Arctic Silver. I may take it off and clean off the AS and reapply. Not looking forward to that.

0 out of 4 people found this review helpful. Did you? Yes No

  • David W.
  • 6/4/2009 7:46:27 PM
  • Tech Level: Somewhat High
  • Ownership: 1 day to 1 week
  • Verified Owner

5 out of 5 eggsvery nice effective solution

Pros: very effective and very quiet. My 125W athlon X2 6000 idles at 27C (in a 74F room) and I can't get it over 50C even with both cores fully loaded with a linux kernel compile.

Cons: very, very, large. the solid engineering falls apart when it comes to attaching the fan to the heat-sink. You could do better yourself given a couple hours and a modest shop... The fan is held on by two very thin metal wire 'brackets' that fit into the enormous holes in the fan housing. The thing will not hold together until it's all clipped in. During the clip-in process you can expect things to fall apart as you try to wedge it together. I wound up taping the 'brackets' into place and then using all 10 fingers to hold things together until I could clip the brackets into place on the heat-sink. Once it's in place, it's not going anywhere, but man, it's cheesy as hell.

Other Thoughts: If i had to do it all over, I'd buy this cooler again.

2 out of 2 people found this review helpful. Did you? Yes No
