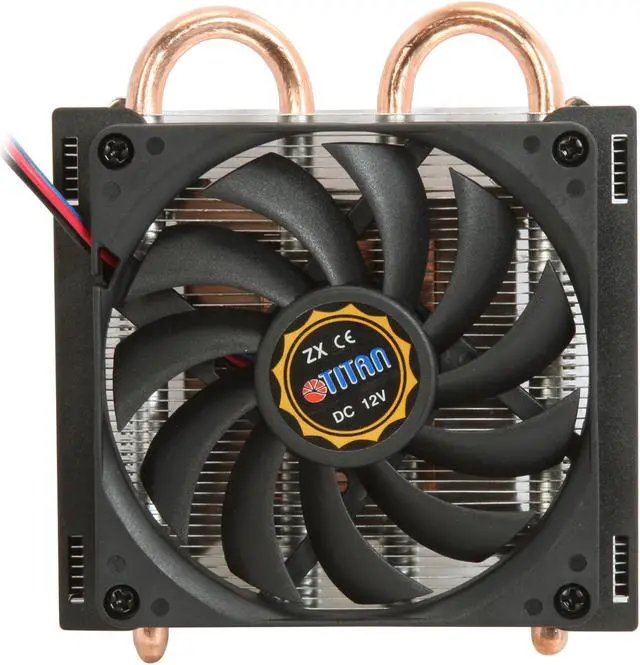

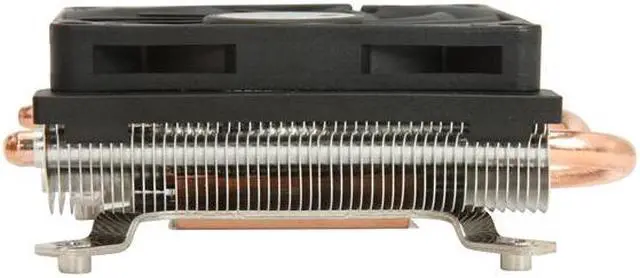

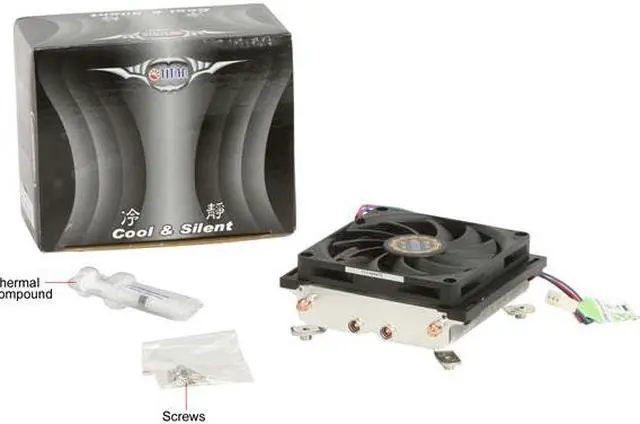

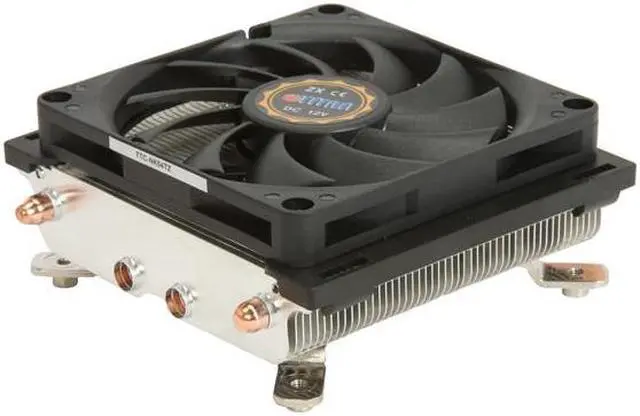

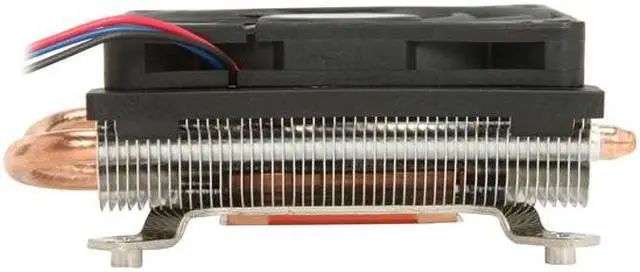

Titan TTC-NK54TZ 80mm Z-axis Bearing fan CPU Cooler

  • 3500 ± 10%RPM
  • 24.71 CFM
  • Pin It
  • Email this page
ICON Loading...

Learn more about the TITAN Technology Limited TTC-NK54TZ

Model

Brand
Titan
Model
TTC-NK54TZ

Spec

Type
Fan & Heatsinks
Fan Size
80mm
Compatibility
For Intel P4 Socket 775 Series
Bearing Type
Z-axis Bearing fan
RPM
3500 ± 10%RPM
Air Flow
24.71 CFM
Noise Level
<30.6 dBA

Physical Spec

Fan Dimensions
80 x 80 x 10mm

Manufacturer Warranty

Parts
1 year limited
Labor
1 year limited

Quick Info

Warranty

  • Limited Warranty period (parts): 1 year
  • Limited Warranty period (labor): 1 year


Customer Reviews of the TITAN Technology Limited TTC-NK54TZ

Do you own this product? Write a Review

ICON Loading...

Filter Results

Go
  • Keith K.
  • 7/25/2014 12:23:01 PM
  • Tech Level: Somewhat High
  • Ownership: 1 day to 1 week
  • Verified Owner

5 out of 5 eggsNice but a pain

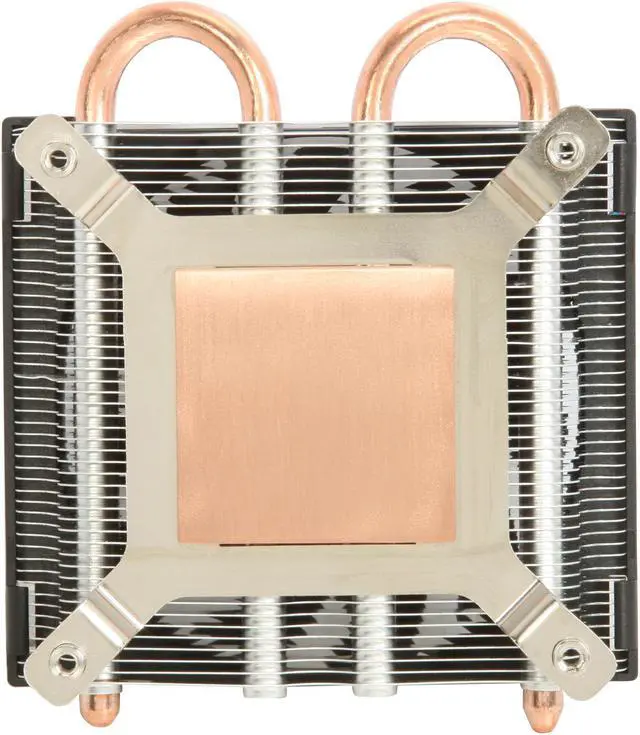

Pros: -Copper pipes and base
-Very low profile
-Dissipates heat nicely
-Temps:( Core 2 Duo 4400 2.0Ghz) 33c at idle & 55c under a stress test

Cons: -Having to mount it from the back side of the MoBo was hard but that is because a low profile heat sinks has to be wider

Other Thoughts: I didn't use the fan that came with it because i had room for a regular 80mm fan.

Did you find this review helpful? Yes No

  • Victor H.
  • 2/28/2014 10:20:50 AM
  • Tech Level: High
  • Ownership: 1 month to 1 year
  • Verified Owner

5 out of 5 eggsGreat Product!!

Pros: It's low profile, provides really good cooling and was very well priced.

Cons: NO CONS

Other Thoughts: I built a small Mini ITX home PC for my parents. The case was a Rosewill RS-MI-01 Case locally for $30 with military discount (sorry Newegg, it was cheaper). There was still enough space between the CPU cooler and the above PSU. It kept the Intel Core 2 Duo E8400 very cool.

Did you find this review helpful? Yes No

  • Anonymous
  • 7/14/2013 12:20:55 PM
  • Tech Level: High
  • Ownership: 1 week to 1 month
  • Verified Owner

5 out of 5 eggsLow Profile and Great Cooling!

Pros: Very low profile! Offers better cooling that the stock Intel cooler and very quiet, compared. The 3-pin wire is a nice long length!

Cons: Absolutely none at all.

Other Thoughts: I used this for a Mini-ITX build for my mom. The case was a APEX MI-008 and it still had space in between the fan and the power supply. Great little cooler, definitely recommend for small spaces requiring good cooling results!

Did you find this review helpful? Yes No

  • Brian P.
  • 9/25/2012 7:27:01 AM
  • Tech Level: High
  • Ownership: 1 week to 1 month
  • Verified Owner

5 out of 5 eggsamazing, went for a second one

Pros: cools a core 2 quad better than i expected(q8200s)

Cons: never used the fan, but im sure its a con. get a quiet coolermaster or similar if youve the extra headroom

Other Thoughts: too bad it is deactivated, or that they dont carry the newer one with more pipes. looks like I got the last one

0 out of 2 people found this review helpful. Did you? Yes No

  • Brian P.
  • 4/7/2010 9:02:32 AM
  • Tech Level: High
  • Ownership: 1 day to 1 week
  • Verified Owner

5 out of 5 eggsawesome

Pros: great heatpipe cooler for size contrained builds
cools no better nor worse than stock hsf, but with a quiet(coolermaster for instance) fourpin fan, should run quieter

Cons: heatpipes do protrude a bit, fan just looks like crepe, but i never used it so i dont know how it performs. based on being half the height, and three pin, it is probably fairly loud

Other Thoughts: the heatpipes will likely collide the ram, northbridge, and cpu power connection on a 775 itx board. on mine, i sent them off the top of the board and they touch the dvd drive, but luckily everything fits - i mocked this out in cinema4d before hand to know what i was up against and determined it was between the aforementioned or sacrificing a stick of ram - so be sure to measure twice

Did you find this review helpful? Yes No

  • Jeffrey W.
  • 8/31/2009 10:41:38 PM
  • Tech Level: High
  • Ownership: 1 day to 1 week
  • Verified Owner

4 out of 5 eggsThin but loud

Pros: This cooler is super skinny. In my mini-ITX case, I had plenty of room to spare with this cooler, where the stock cooler put me within a couple of millimeters of the top of the case. It is very efficient for the price, and keeps my E7400 under 40C regardless of load.

Cons: This puppy is loud at full speed, and since it is a three-pin fan, that's where it stays. I will have my Zalman speed control (N82E16835118217) tomorrow, which should address that little surprise.

1 out of 1 people found this review helpful. Did you? Yes No

  • VANESSA T.
  • 7/26/2009 8:46:34 PM
  • Tech Level: Somewhat Low
  • Ownership: 1 day to 1 week
  • Verified Owner

5 out of 5 eggsgreat little heatsink

Pros: This heatsink replaced a generic aluminum heatsink which type and specs are similar to the XIGMATEK EP-CD901 sold on newegg. I applied artic silver 5 and replaced the aerocool xblaster case fan. I replaced the stock fan on this heatsink and the case fan with a fanner FD08025B1M3 top cfm is 37 with dba 25. On E5200 overclocked to 2.8ghz, any higher became unstable due to memory limits gskill 4gb ddr 800 won't overclock past 1000, the temperture after initial install read 37C idle and 55C under full load in a rosewill slim matx case. Due to replacing the xblaster case fan and the heatsink the noise was reduced a great deal and temperatures dropped around 7 degrees at full load.

Cons: This heatsink requires you to remove the motherboard in order to replace the existing one, not really a con if you're about to build your system. Might be a tight fit on certain motherboards. On mine it only fit in one direction in order to avoid the heatsink coming into contact with the fan connectors, and i had to break the dust cover on the power supply fan since the heatsink pushed against it, but once removed it wasn't even close to the fan.

Other Thoughts: The stock fan can be replaced with any 80mm case fan, if in case you end up buying a exhaust fan instead, one that be secured from both sides, but has a long canal for the screws, a lighter, wire cutters and pliers can help break the channel to adjust the size for the screws that this heatsink comes with

Did you find this review helpful? Yes No

  • Roy H.
  • 7/10/2009 12:47:55 PM
  • Tech Level: High
  • Ownership: 1 week to 1 month
  • Verified Owner

5 out of 5 eggsgood CPU heatsink

Pros: Bought for an ITX case build. Short, compact, inexpensive. Actual dimensions: 110m x 92mm x ~40mm (4.25" x 3.625" x ~1.6"). Idles with a stock E5200 @ 42c, load 55c. Can't complain though I'd hope it would have gotten a little cooler.

Cons: the 80x80x10 fan is quite loud (I wish I could measure it to give quantitative info), and because it is does not use a PWM CPU fan connecter (ie 4 pin fan connector) the system cannot control how fast it goes. Might buy a fan controller for it.

Other Thoughts: The heat pipes that come out of the two sides (the ends of the pipe and the loops) take up considerable space, I could only mount this heatsink in one direction, and it required me to take out my only case fan. (I moved the case fan to my side panel). Keep in mind this is not a square heatsink, but a slight rectangle.

Its also slightly too tall (by 2-3mm) and will collide with anything in my 5.25" bay longer than 6.75".

I can't blame the product for these two though.

System:
Case: #N82E16811153099
Intel E5200
G.Skill 4GB RAM
WD 640GB HDD

1 out of 1 people found this review helpful. Did you? Yes No

  • Anonymous
  • 6/16/2009 12:12:34 AM
  • Tech Level: High
  • Ownership: 1 day to 1 week
  • Verified Owner

5 out of 5 eggsAwesome

Pros: Let me tell you, this little cooler is the bomb. It is heavy so you know it's not junk. I couldn't believe how heavy it was. It's also stock size so no problems in fitting into tight spaces.

Another thing I love about this cooler is it has COPPER heatsink base, yes real copper and it runs up into aluminum to disipate the heat. The airflow isn't a jet engine, only 23cfm I think, but on my E5200 oc'd to 3.3 with stock voltage, this little baby keeps it running at 35c at normal load and 55c at full load.

Don't waste your money on expensive heatsinks when this thing does the job. Has copper and aluminum just like the big boys and it uses screws.

The stock intel heatsink/fan combos are very poorly made, the clips break easily and after pulling to reapply thermal paste, they won't even go back on.

Cons: None whatsoever. Well would be nice if it had a little more CFM.

Other Thoughts: You can't go wrong with one of these $20 coolers to replace your stock/fan combo. I could tell just by looking at it that it looked nice for the money. Once I got it, man it was heavy and fits right back in the stock space. I have laid my hand on it under full load and it's barely warm. I hear reports of other people saying they can fry eggs on theirs, not on this one.

Did you find this review helpful? Yes No
