Item#: N82E16835233100

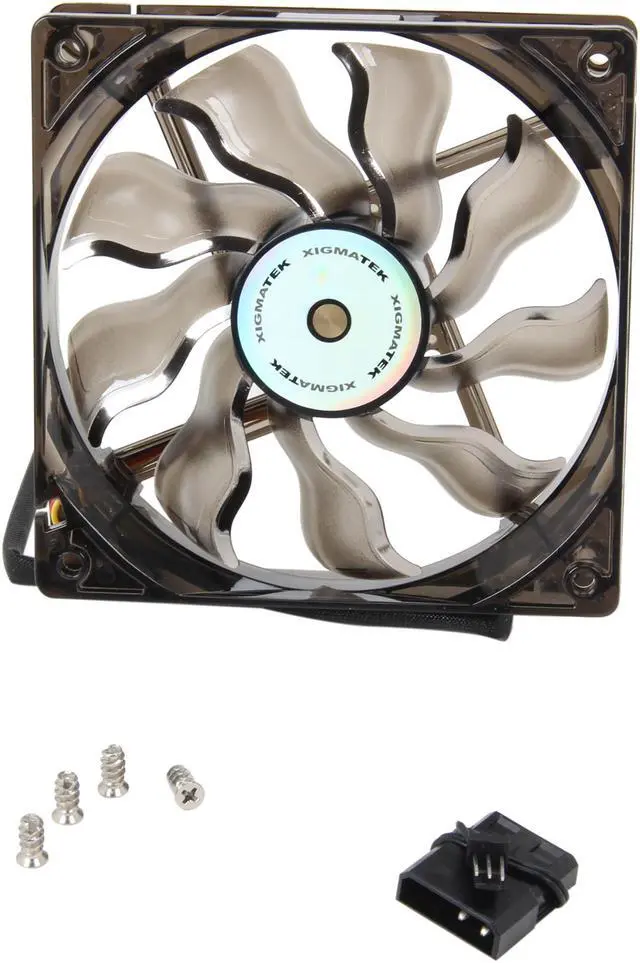

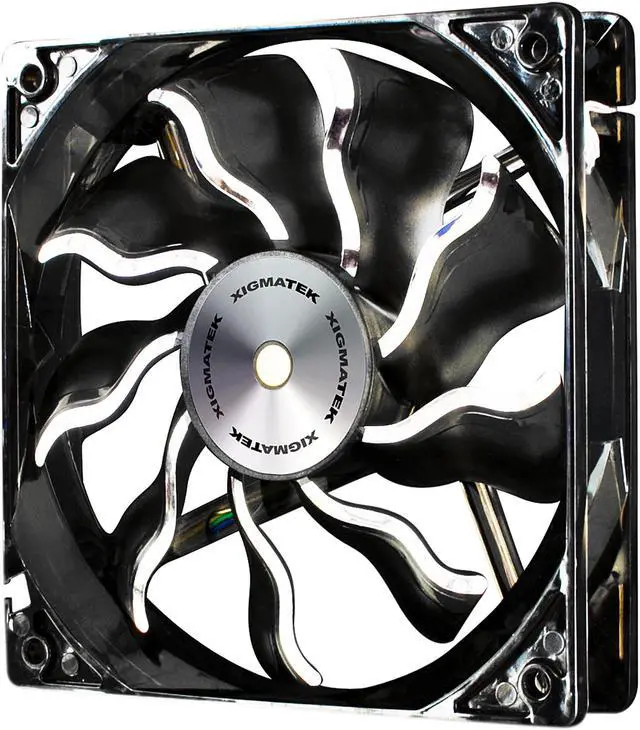

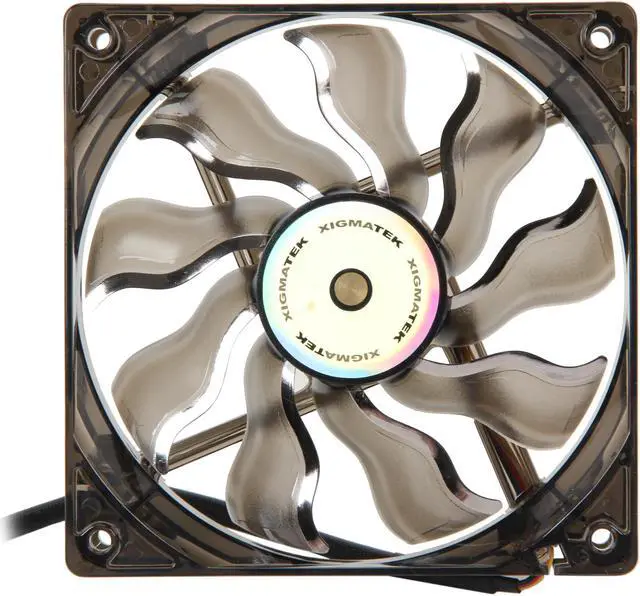

Xigmatek AOS (Aeronautical Oil System Bearing) XAF-F1254 120MM Fan with Copper Bushing Axis Black Blade White LED

  • 120mm
  • 1500 RPM 75.3 CFM
  • Aeronautical Oil System Bearing
This product qualifies for the Iron Egg guarantee. We'll match any qualifying competitor's price.
  • Email this page
ICON Loading...


The new Xigmatek XAF Series of 120mm system fans continues the company’s innovative design focus to provide advanced features and performance while maintaining excellent value to the end user. The innovative “waveform” shape of the fan blades on the XAF series aren’t just for show and provide real performance benefits. The XAF series also features a very high quality copper bearing system which extends the service life of the fan 50% over that of fans using regular ball or sleeve bearings.

Xigmatek XAF-F1254

A New Wave in Fan Design

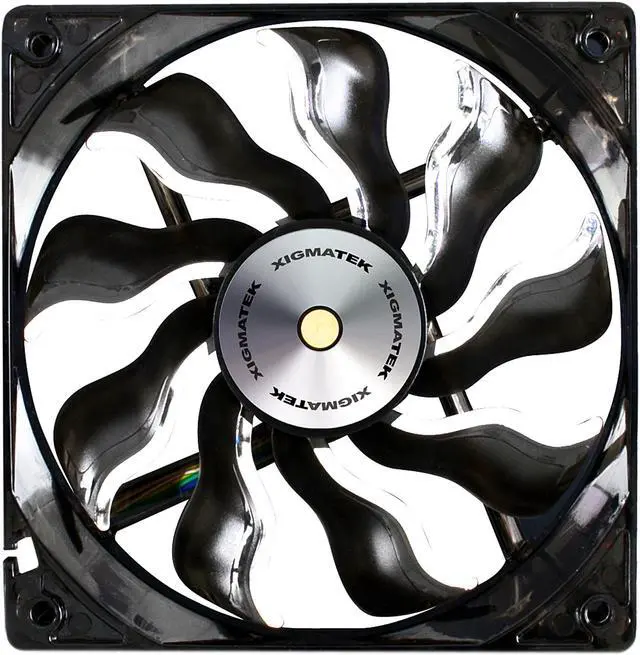

The unique “waveform” fan blade shape of the XAF series fans were specifically designed to maximize airflow per revolution. The “waveform” shape, along with the minimized central hub, increases the surface area of each fan blade over traditional designs and delivers up to 15%-20% more CFM at comparable RPMs over normal fan designs. Furthermore, unlike traditional fans which act like an air scoop, the irregularly shaped wave of air that forms in front of the “waveform” blade helps to reduce the collection of dust on the fan blade itself.

• Innovative “waveform” fan blade designed for performance – The unique shape of the XAF series fan blades and the minimally sized central hub dramatically increases blade surface area and generates 15%-20% more CFM at comparable RPMs to traditional fans. More airflow equals better cooling performance.

• Dramatically reduces dust collection – Traditional curved fan designs act like air scoops and over time they collect dust over the entire blade which increases air resistance and decreases performance. The unique “waveform” fan blade of the XAF series generates an irregularly shaped pressure wave in front of the fan blade which helps to reduce dust collection.

• High quality copper bearing for long life – The bearing is the heart of a fan system. Xigmatek’s use of superior grade copper materials for the bearing system ensures up to 50% longer service life than regular ball or sleeve bearing designs. Greater reliability gives you peace of mind for your PC system.


• Innovative “waveform” fan blade design to dramatically increase airflow up to 20% over standard blade designs

• “Waveform” blade produces irregular air pressure wave at the front of the blade helping to reduce dust collection

• High quality, long life copper bearings designed to extend service life up to 50% over standard ball or sleeve bearing designs – MTBF rated at 150,000 hours

• Available in 3-pin (non-PWM) or 4-pin (PWM) versions

• Comes in a variety of colors and with or without white LED

• 120mm versions available for most standard PC system applications


Product Name XAF-F1254
Product Number CFP-DXGWL-KU4
Material P.B.T.
Dimension 120(L)x120(W)x25(H) mm
Voltage Rating 12 V
Start Voltage 9V
Speed 1500 R.P.M.
Bearing Type Copper Axis with Long Life Sleeve Bearing
Air Flow 75.3 CFM
Air Pressure 1.6 mmH²O
Life Expectance 150,000 hrs
Noise Level 24 dBA
Weight 125 g

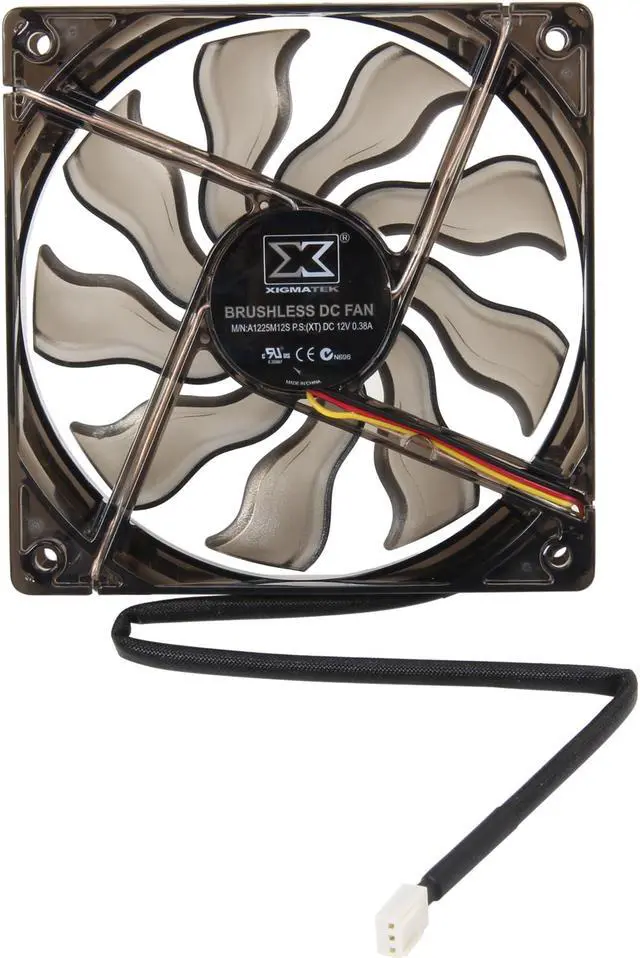

Connector 3 pin
LED Color White

Xigmatek Leading the Way

Xigmatek continues to lead the market in innovative ideas that are translated into truly unique products. Xigmatek’s commitment to innovation, design, quality, performance and value means that the customer gets the best featured and price/performance value in the market.

Xigmatek: We Innovate

  • newegg Best airflow-noise ration Wave Shaped and small hub dimension increase 25% of air flow while dropping 10% noise. And waveform and enhanced lubricant circuits provide outstanding aerodynamic efficiency. As a result, the XIGMATEK XAF-F1254 delivers airflow up to 75.3 CFM (MAX) at 24 dBA noise level.
  • newegg Long life cycle Copper axis with long life sleeve bearing provides long-term life and stability.

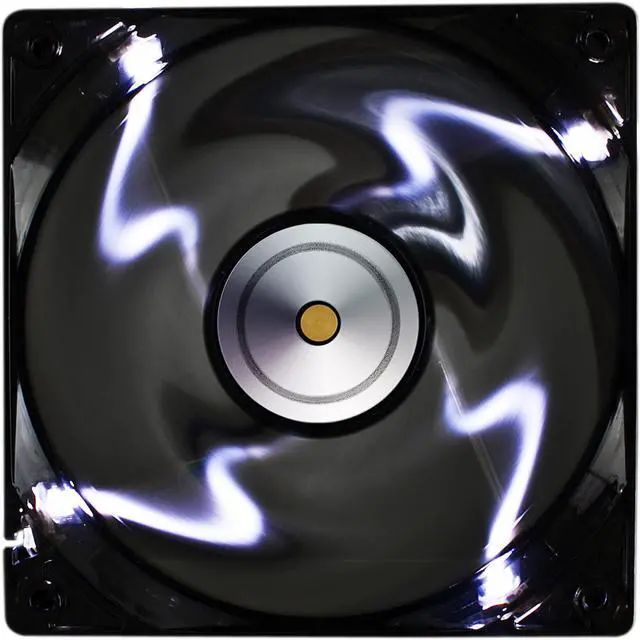

  • newegg Cooling aesthetics The 4 pieces white LEDs add cooling aesthetics.

Learn more about the XIGMATEK XAF-F1254




Case Fan
Fan Size
Bearing Type
Aeronautical Oil System Bearing
1500 RPM
Air Flow
75.3 CFM
Noise Level
24 dBA
Power Connector
3 Pin

Physical Spec

120 x 120 x 25 mm


Material: P.B.T.

Voltage Rating: 12 V

Start Voltage: 9V

Weight: 122 g

4pcs. white LED.

Copper axis with long life sleeve bearing to provide long-term life and stability.

Waveform and enhanced lubricant circuits to provide outstanding aerodynamic efficiency.

Wave Shaped and small hub dimension generate extra high airflow.

Wave Blade technology increases 25% of air flow and drops 10% noise.

Quick Info


  • Limited Warranty period (parts): 1 year
  • Limited Warranty period (labor): 1 year

Customer Reviews of the XIGMATEK XAF-F1254

Do you own this product? Write a Review

ICON Loading...

Filter Results

  • Anonymous
  • 3/26/2014 4:29:33 PM
  • Tech Level: Somewhat High
  • Ownership: 1 day to 1 week
  • Verified Owner

5 out of 5 eggsExcellent fans

Pros: Great airflow for 120 mm. Even on full speed they are still quiet compared to other fans that move as much air. LED is a nice touch.

Cons: None

Did you find this review helpful? Yes No

  • Steven J.
  • 4/16/2013 11:58:58 AM
  • Tech Level: Somewhat High
  • Ownership: 1 day to 1 week
  • Verified Owner

3 out of 5 eggsVery good...if you are lucky

Pros: These fans move and a lot of air and are very quiet.
They look good and are well built....

Cons: These fans are great but seem to be hit or miss. And when you miss they are loud and sound like the motor is rubbing something when it spins, especially at lower rpm's

Other Thoughts: For the most part these fans are excellent but they can be hit or miss and when you miss they are very loud and sound like something in the motor is rubbing. I bought two of these and one is amazing, high air flow and super, and the other is real loud when spinning and required me throwing it against a wall quite hard to fix it (in frustration). For the price I expect a solid product everytime, and not a grab bag of results.

Did you find this review helpful? Yes No

  • Edwin S.
  • 12/14/2012 12:26:07 PM
  • Tech Level: Somewhat High
  • Ownership: 1 day to 1 week
  • Verified Owner

4 out of 5 eggsPretty, Cheap, Get the Job Done

Pros: Nice white LEDs, good price (i got them for $8.99 a piece), they move air and aren't too loud.

Cons: Not silent, but they aren't advertised as silent either, so can't really hold it against them.

Other Thoughts: Bought 4 of these fans and installed them in my case. It brought my max CPU temperature down by 5C.

Did you find this review helpful? Yes No

  • Pearce R.
  • 12/7/2012 4:48:51 PM
  • Tech Level: High
  • Ownership: less than 1 day
  • Verified Owner

5 out of 5 eggsExcellent fans

Pros: - Move a good amount of air
- Relatively quiet, I have 10 of them running in my Cosmos II and they don't bother me a bit
- LEDs are the perfect amount of brightness, and they look wicked when reflecting off of the wavy fan blades
- Black sleeved cables are sleeved decently well. I'll probably re-sleeve them at some point but for now it works fine.

Cons: - Silver mounting screws?! Really?
- Cables could be a tad longer, maybe 2 inches or so
- Heat shrink on the plug end of the sleeve is a little loose on some of them, not a big deal since they're hidden away but a bit of a quality oversight
- White 3 pin connector should be black. I'll be changing these out

Other Thoughts: Newegg never ceases to amaze me with their incredible shipping speeds, especially during the holidays. For non-PWM white LED 120mm fans, these work very well for the price. The cons I listed are all minor and purely aesthetic; the fans themselves perform very well and I would highly recommend them.

Did you find this review helpful? Yes No

  • Trent I.
  • 9/21/2012 1:38:07 AM
  • Tech Level: High
  • Ownership: 1 week to 1 month
  • Verified Owner

5 out of 5 eggsGreat Fan

Pros: Moves a lot of air, and is not too loud, very cool looking and easy to install.

Cons: None that i can think of, maybe a longer cable?...if i had to think of something.

Did you find this review helpful? Yes No
