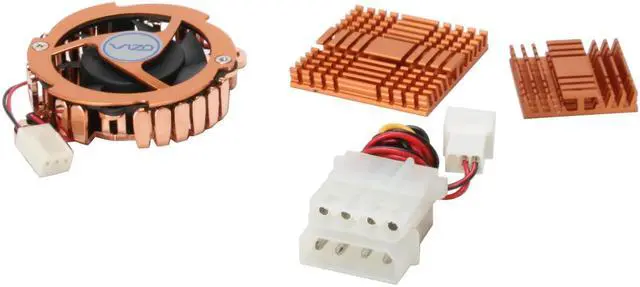

VIZO VIZO-NBC-101-CPR Copper Sleet Chipset Cooler

  • North Bridge Chipset
  • 5600 RPM
  • Copper
ICON Loading...

Learn more about the VIZO Technology VIZO-NBC-101-CPR

Model

Brand
VIZO
Model
VIZO-NBC-101-CPR

Spec

Type
Fan & Heatsinks
Compatibility
North Bridge Chipset
Bearing Type
Ball
RPM
5600 RPM
Heatsink Material
Copper

Physical Spec

Fan Dimensions
40.0 x 40.0 x 10.0mm
Heatsink Dimensions
51.2 x 59.0 x 14.2mm

Features

Features
VIZO NBC-101 can reduce the temperature of working chipset on motherboard or VGA effectively and make your system run much more stably. It is a valuable chipset cooling kit for your PC.
Built-in extreme silent fan
Powerful heat dissipation
Dual mounting holes for wide application
Easy to install
SYSTEM REQUIREMENT
This is for North Bridge Chipset which is with 3.0 mm diameter mounting holes.
The pitch of two sets mounting holes is 54.6 mm / 59.0 mm.
* Please confirm the mounting hole’s size and position of North Bridge Chipset before your purchasing

Customer Reviews of the VIZO Technology VIZO-NBC-101-CPR

Do you own this product? Write a Review

ICON Loading...

Filter Results

Go
  • Christopher C.
  • 4/12/2013 12:09:19 AM
  • Tech Level: High
  • Ownership: 1 day to 1 week
  • Verified Owner

4 out of 5 eggsGood copper cooler, aluminium extras

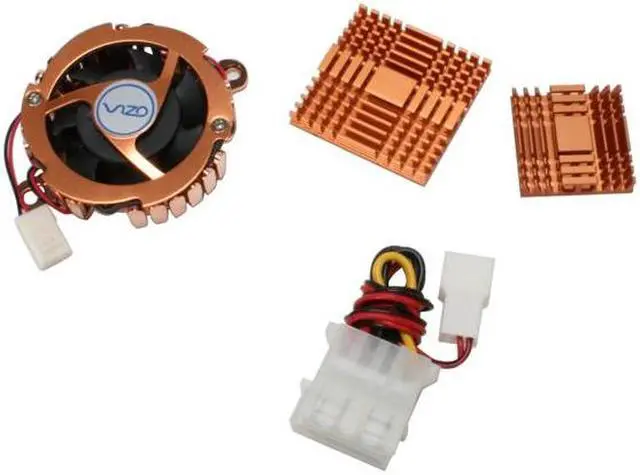

Pros: The kit contains a copper cooler, made of copper measuring 1.63mm thick with an overall diameter of 55mm (by my measurements), that includes an integral 12V/0.12A fan which connects with adapters to standard Molex 12V drive power connectors. This part of the kit feels rather sturdy and the fan is reasonably quiet.

The included "extra" heatsinks are well-made and are in convenient sizes (27.5mm and 37.5mm square, both 6mm in height).

The included heatsink compound looks like it's workable -- I ordered Arctic Silver thermal adhesive from Newegg to use in its place since I require permanent mounting, but at least it's included as an option.

Cons: The "extra" heatsinks aren't also copper -- they might be nice sizes, but they only look like copper. They're actually aluminium that's copper anodised. Although they're 27.5mm and 37.5mm square, they're only 6mm in height, which means they have rather short cooling fins. They're mostly an "extra" for this kit since the main attraction is the cooler with integral fan, but it would have been better to have copper all around for its better thermal conductivity.

Other Thoughts: Despite the "extra" heatsinks being made of aluminium, they're well made. The main cooler is stocky, durable, and made of reasonably thick copper.

The fan itself can be removed from the cooler assembly by removing the fan blade cover which is secured by two miniature screws. This allows you to service the fan or to replace it with a fan from another identical kit. This means the main cooler assembly isn't a problem to service, even if you mount it to system components permanently with thermal adhesive instead of the included non-permanent thermal compound, which is definitely a plus.

Did you find this review helpful? Yes No

  • Tony B.
  • 11/25/2012 6:35:47 AM
  • Tech Level: Somewhat High
  • Ownership: more than 1 year

2 out of 5 eggsLoud, but maybe not the same set?

Pros: Stopped occasional crashes I was getting with my stock NB cooler. Has lasted a long time.

Cons: This is the second-loudest fan I have between three budget builds, second only to the stock cpu-cooler on my gf's pc. I found this listing because I want to replace it when I replace her cpu cooler. Without them, my living room will be almost silent.

Other Thoughts: It is possible this is not the same set I have. It looks identical in every way, down to the description text, but my set is branded Vantec, and I picked it up at a box store over four years ago.

Had to bend two fins and remove a third to get it to fit around a capacitor on my board.

0 out of 3 people found this review helpful. Did you? Yes No

  • Shawn B.
  • 2/4/2012 11:41:59 AM
  • Tech Level: Somewhat High
  • Ownership: 1 day to 1 week
  • Verified Owner

4 out of 5 eggs

Pros: It works on my 7 year Old DFI Board. The old one was getting ready fry the Chipset. It keeps it cool.
These will be obsolete with the newer boards such as the ASUS Sabertooth.

Cons: Nome except I would Recommend getting some Artic Silver instead of the included Paste.

Other Thoughts: Can't wait to get my ASUS Sabertooth.

Did you find this review helpful? Yes No

  • William H.
  • 6/7/2010 11:23:01 AM
  • Tech Level: Somewhat High
  • Ownership: 1 week to 1 month
  • Verified Owner

5 out of 5 eggsAftermarket cooling

Pros: 3 heatsinks in useful sizes, all quality copper and one with a fan. Excellent for after-market cooling of otherwise neglected motherboard chips.

Cons: Doesn't include filled-epoxy type adhesive? Includes thermal pads, which while not permanent, are not what I would use.

Other Thoughts: I bought this for a friend's server, which was running hotter than we were comfortable with. Immediate difference seems minor, but that would be an airflow issue not related to the quality of these heatsinks.

Did you find this review helpful? Yes No

  • Ryan P.
  • 5/19/2010 6:46:01 PM
  • Tech Level: High
  • Ownership: 1 month to 1 year

4 out of 5 eggsWireless router cooler

Pros: These kits work great on wireless routers. I've already used two (they were branded vantec, but it was the same kit). Ironically, didn't use the copper heat sink. removed the fan, cut a hole in the plastic case of a D-Link DIR-655 that was overheating under heavy usage. tapped the fan power right off of the input power connector, and used the smaller aluminum sinks on the processor, wired, and wireless controller chips. Wireless connections don't lock up anymore. I will definitely buy more.

Cons: I probably wouldn't use the copper heatsink even if it fit, because of the low fin count. when the fan dies, anything it is attached to would definately overheat.

1 out of 1 people found this review helpful. Did you? Yes No

  • Chandana A.
  • 2/5/2010 7:15:24 PM
  • Tech Level: High
  • Ownership: less than 1 day
  • Verified Owner

5 out of 5 eggsnot what mentioned on the newegg specification

Pros: It served my purpose.

Cons: None

Other Thoughts: I never checked the fan and didn't use at all, because I am using other two heat sinks for cooling a processor and switch chip of a router. Initially I thought all the materials are copper. That is what mentioned in the specification in newegg site, but actually two heat sinks are anodized aluminium. Only the fan bracket is the copper. So it something that I didn't expect, but I don't put the blame on the manufacturer(it is on the back side of the package). But people would much appreciate if newegg people can put a better specification rather than putting, just copper.

13 out of 13 people found this review helpful. Did you? Yes No

  • Lucretia V.
  • 2/3/2010 7:34:45 PM
  • Tech Level: High
  • Ownership: less than 1 day
  • Verified Owner

2 out of 5 eggsJunk

Pros: Seems like it would work, except for the push pins don't fit and the holes are drilled about a 16th of an inch off center. So I don't know how well it would work, but these things are enough for me to knock off some eggs.

Cons: Push pins don't fit, holes are off center

0 out of 2 people found this review helpful. Did you? Yes No

  • Anthony B.
  • 12/1/2009 6:14:56 AM
  • Tech Level: High
  • Ownership: 1 month to 1 year
  • Verified Owner

4 out of 5 eggsItem worked as promised

Pros: Easy to install

Cons: A little noisy

Did you find this review helpful? Yes No

  • Kelly O.
  • 10/28/2009 3:43:05 PM
  • Tech Level: High
  • Ownership: 1 day to 1 week
  • Verified Owner

1 out of 5 eggsLOUD

Pros: AT LEAST IT WASN'T OVER 100 BUCKS

Cons: WAY OVERPRICED, STOCK NORTH & SOUTHBRIDGE FAR BETTER QUALITY, DIDN'T FIT, CHEESY INSTAL, FAN IS SUPER LOUD

Other Thoughts: I WOULD THINK THIS CHIPSET COOLER COULD BE ALRIGHT IN SOME MOTHERBOARD I JUST KNOW IT IS TOTALLY INCOMPATIBLE WITH MSI G45 DIGITAL (UNLESS YOU WANT TO GLUE THE JUNKY SOUTHBRIDGE ON)

1 out of 28 people found this review helpful. Did you? Yes No

  • ROBERT L.
  • 10/6/2009 5:22:41 AM
  • Tech Level: Somewhat High
  • Ownership: 1 day to 1 week
  • Verified Owner

5 out of 5 eggsNIce and quiet again

Pros: Replace original fan on my Abit AN-7.. old fan sounded like a plane taking off.. easy install.. now I can't even hear my computer running... super quiet. nice copper construction ..EGGCELLENT product

Cons: None so far..

Other Thoughts: Had to take the "sleeves" off the installation push pins, but that was easy.

6 out of 6 people found this review helpful. Did you? Yes No
