Item#: N82E16835705020

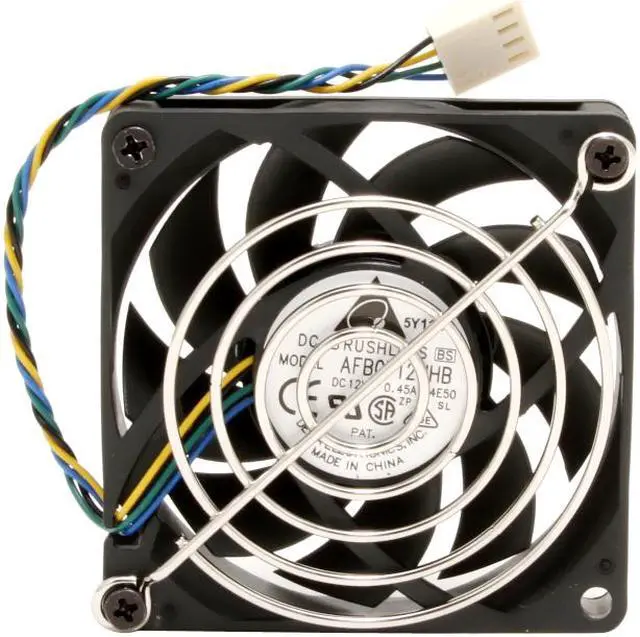

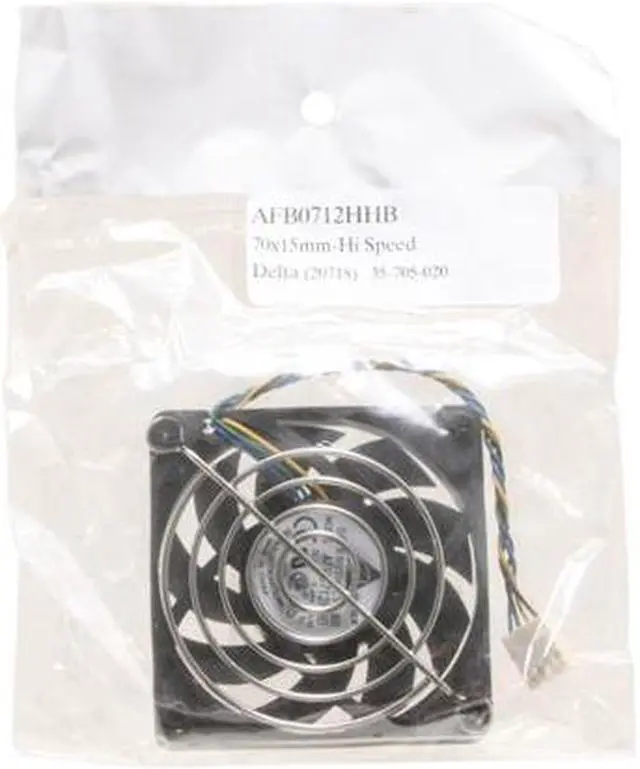

Delta AFB0712HHB 70mm Case cooler

  • 70mm
  • 4300 RPM (Hi speed with RPM sensor) 37.54 CFM
  • 2 Ball
  • 38.5 dBA
ICON Loading...

Learn more about the Rexus AFB0712HHB

Model

Brand
Delta
Model
AFB0712HHB

Spec

Type
Case Fan
Compatibility
Case
Fan Size
70mm
Bearing Type
2 Ball
RPM
4300 RPM (Hi speed with RPM sensor)
Air Flow
37.54 CFM
Noise Level
38.5 dBA
Power Connector
4 Pin
Color
Black

Physical Spec

Dimensions
70 x 70 x 15mm

Quick Info


Customer Reviews of the Rexus AFB0712HHB

Do you own this product? Write a Review

ICON Loading...

Filter Results

Go
  • Anonymous
  • 7/1/2008 6:22:50 PM
  • Tech Level: Somewhat High
  • Ownership: 1 day to 1 week
  • Verified Owner

5 out of 5 eggsThe only 70mm stand-alone fan with PWM that I could find

Pros: PWM goodness, Delta quality

Cons: Short cable, a bit pricy

Other Thoughts: I purchased this for the sidewall for a custom SFF build where I have had a 70mm fan with a fan controller for the last 4-5 years. Because of the airflow issues during load, I have always had to adjust the fan speed up when the fragging started. So, I went with this one to let the motherboard do the work ;) I know that Delta has made the OEM fan on AMD heatsinks for many years and I think they are one of the better brands out there. Of course, this particular size is mostly for replacement of CPU fans, hence the 5-6" cable. I had to buy a 4-pin extension cable (Newegg failed me by not stocking these) to reach from the cpu header to the side wall, even in this small case, but it will be worth it. With the cramped cables in this case, which always find the fans to rub up against (even when cabled/bundled), the included fan guard will also come in handy.

Did you find this review helpful? Yes No

  • Anonymous
  • 6/26/2008 11:09:09 PM
  • Tech Level: High
  • Ownership: 1 week to 1 month
  • Verified Owner

3 out of 5 eggsNoisy, but effective.

Pros: This thing moves air like an aurora bomber. Unfortunately it also breaks the sound barrier.

Cons: If you don't have decent cooling for your case as a whole, this thing will spin up and down between 2k and 4k RPMs like crazy. It's highly annoying when it can't decide between the two. If you're using it for an HTPC or have an Opteron that runs cool it'll suit the task at hand quite silently. If you don't have any throttle control... forget it. You'll be causing level 5 tornadoes when this thing is at max speed.

Other Thoughts: Make sure you have clearance around your 3 pin fan CPU connector. If not, you will have to cut a pin off. It works fine, but it's inconvenient. I suggest using a small pair of wire cutters to chop the channel off, then sand it down. Works fine, but just FYI.

Did you find this review helpful? Yes No

  • john c.
  • 12/26/2007 10:08:54 AM
  • Tech Level: High
  • Ownership: 1 month to 1 year
  • Verified Owner

4 out of 5 eggsworked good as a replacement fan on socket 939 hs ,,

Pros: low profile is nice,, moves air good,,

Cons: a tad bit noisy, but hey who cares if it moves the air good, the metal cover piece is not my favorite thing , so i just took it off

Other Thoughts: didnt get to do much more than test it , my cpu was dead when i got it, so it just sitting in a bin on my workbench,,, hope to use it soon, has 4 pin connector , which is good unless your plug for the cpu fan on the board is too close to a capacitor, or a fixed item on the board,

Did you find this review helpful? Yes No

  • Nathan M.
  • 12/15/2007 5:06:55 PM
  • Tech Level: High
  • Ownership: 1 day to 1 week
  • Verified Owner

5 out of 5 eggswow!

Pros: this is a 70mm by 10mm thick, so i didn't expect it to move tonns of air, but great googlymoogly! this thing is a jet engine! it moves wayyyyyyyyyyyy more air than i thought possible for such a small fan. bought this to bolt on to a passive heat sink for a vid card.

Cons: there is a catch to what i am about to say- please read it all. this thing is loud. LOUD! REALLY INSANELY LOUD.----but that's at full speed. i bought this because i just want a very gentle breeze on my vid card- just a little added insurance. i use this paird up with a zalman in-line fan controller, set to the lowesr speed. like that it still blows more than enough for my vid card and it's QUIET! i mean whisper quiet, but so is just bout any fan at lowest speed.

Other Thoughts: this has a 4-pin connecter, so i had to cut the side off of my speed controller conecter and let one pin female connecter just "hang around"- doesn't cause any problems. make sure you can accomodate the 4-pin connecter.

1 out of 1 people found this review helpful. Did you? Yes No

  • Timothy P.
  • 11/8/2007 10:38:23 AM
  • Tech Level: High
  • Ownership: 1 day to 1 week
  • Verified Owner

5 out of 5 eggs

Pros: Exact match for the fan on a stock AMD (Athlon64 4000+) CPU cooler. Moves A LOT of air. Just as loud as the one it replaced minus a cracked fan blade.

Cons: None

Other Thoughts: None

1 out of 1 people found this review helpful. Did you? Yes No

  • Nicholas B.
  • 10/21/2007 9:20:01 PM
  • Tech Level: Somewhat High
  • Ownership: 1 day to 1 week
  • Verified Owner

5 out of 5 eggsPerfect fit!

Pros: This is an perfect replacement for the stock fan on my AMD Athlon64 CPU. The old fan was dying - wouldn't always spin up.

Cons: None.

Other Thoughts: Popped off the old fan snapped on the new one. I'm happy.

Did you find this review helpful? Yes No

  • Michael s.
  • 8/27/2007 2:58:57 PM
  • Tech Level: Somewhat High
  • Ownership: 1 day to 1 week
  • Verified Owner

3 out of 5 eggsSame old Sh%$

Pros: Fits amd's x2 heatsink

Cons: It is the same fan that I wanted to replace.

Other Thoughts: I bought this to replace my amd 6000+ heatsink fan. Well I took off my old one & guess what....SAME MODEL!!

Waste of my money...

2 out of 4 people found this review helpful. Did you? Yes No

  • Jeffery L.
  • 7/26/2007 8:59:29 PM
  • Tech Level: High
  • Ownership: 1 day to 1 week
  • Verified Owner

5 out of 5 eggsQuality fan

Pros: This is a quality fan from a quality manufacturer. It came with four screws and a 70mm fan grill.

Cons: As seen in the picture, the cable is pretty short. It would have been nice if the grill was secured at four points instead of two.

Other Thoughts: This fan has a 4-pin plug(supports PWM control) but also works fine if you plug it into a 3-pin connector.

1 out of 1 people found this review helpful. Did you? Yes No

  • Pathik P.
  • 6/19/2007 12:40:16 PM
  • Tech Level: Somewhat High
  • Ownership: 1 day to 1 week
  • Verified Owner

5 out of 5 eggssuperb

Pros: This fan is amazing. I installed it right on the CPU and cooled it by 5°C

Cons: somewhat loud on high

Did you find this review helpful? Yes No

  • Daniel K.
  • 6/5/2007 6:03:48 PM
  • Tech Level: High
  • Ownership: 1 day to 1 week
  • Verified Owner

5 out of 5 eggsEXCELLENT

Pros: I installed it on my processor and wow... it keeps my CPU idle at 35 and full at 40 C..

Cons: none

Did you find this review helpful? Yes No
