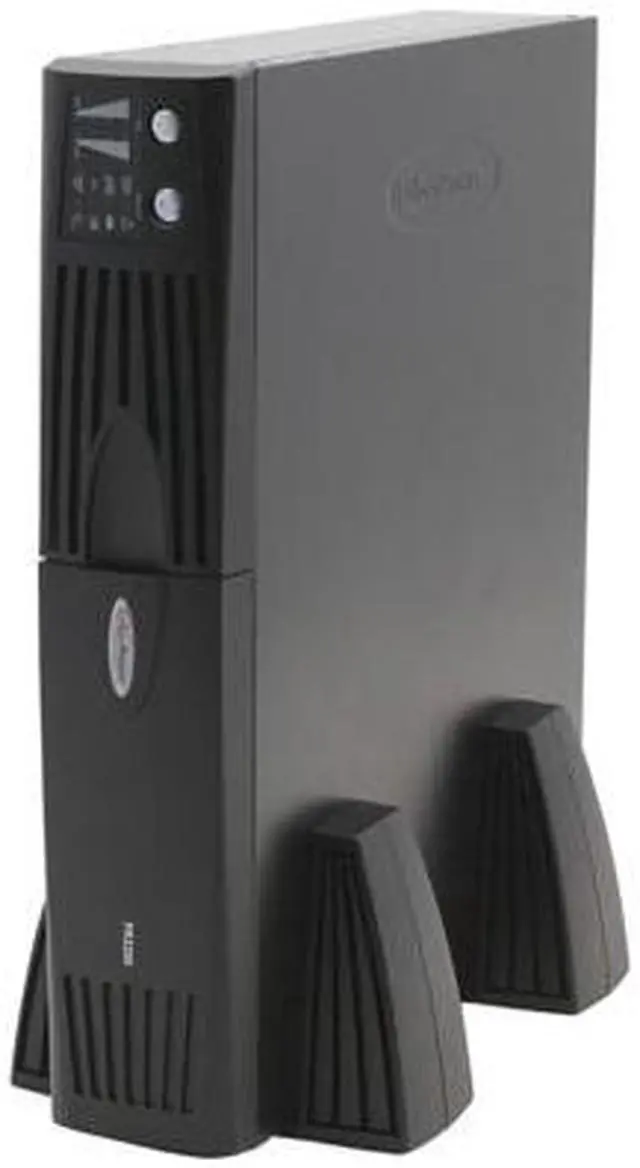

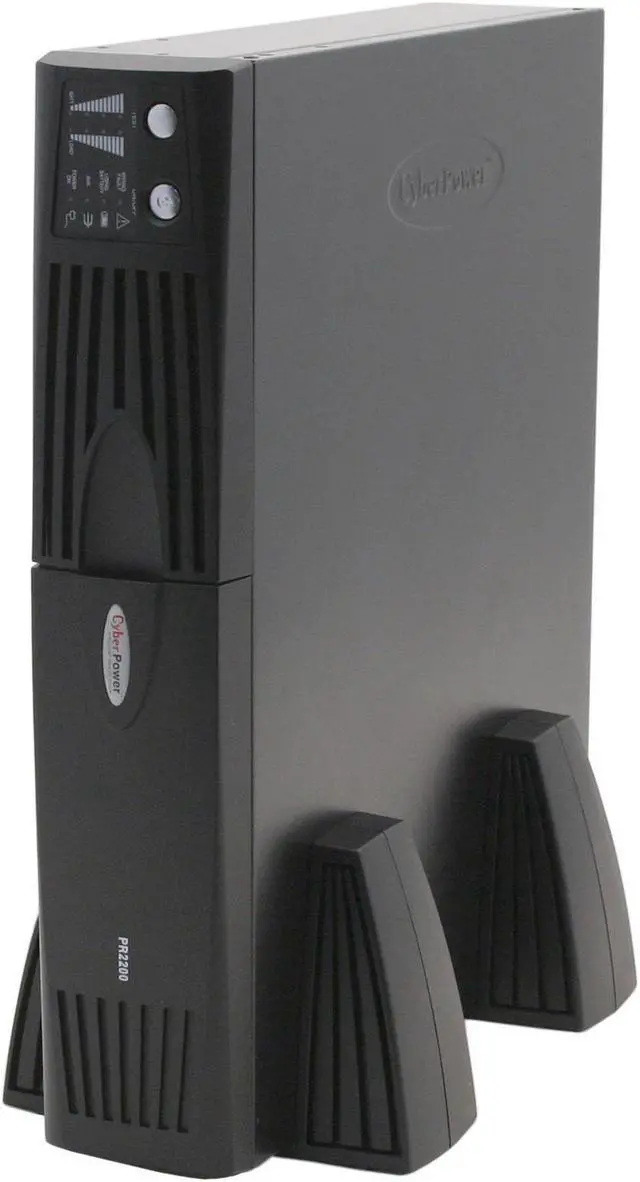

CyberPower Professional PR2200SWRM2U 2200VA 1500W 4 x NEMA 5-15R, 2 x NEMA 5-20R Outlets Pure Sine Wave UPS
- 2200VA 1500W
- 4 x NEMA 5-15R, 2 x NEMA 5-20R Outlets
- 2 x Serial/USB (Combo) DB9
Specs
Reviews (18)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the CyberPower PR2200SWRM2U
| Brand | CyberPower |
|---|---|
| Series | Professional |
| Model | PR2200SWRM2U |
| Input Voltage Range | 85Vac - 150Vac |
|---|---|
| Input Frequency | 47 - 63 Hz |
| VA Rating | 2200VA |
|---|---|
| Watts | 1500W |
| Output Voltage | Pure Sine Wave at 120Vac +/- 5% |

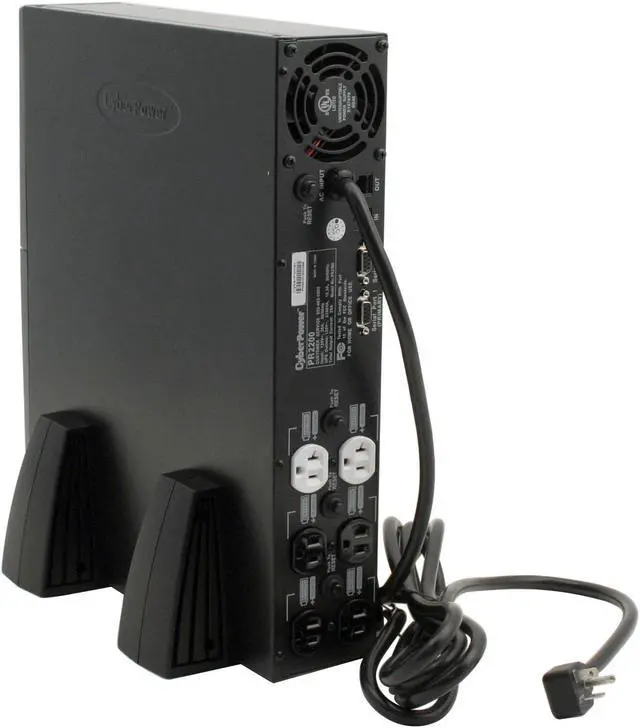

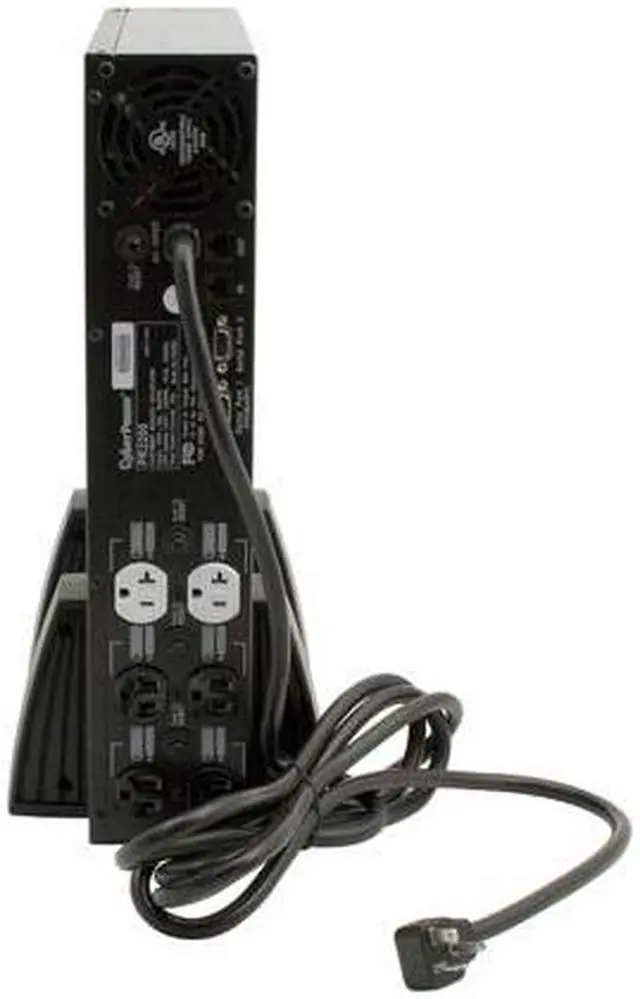

| Outlets | 4 x NEMA 5-15R, 2 x NEMA 5-20R |
| Battery Run Time | 4 Minutes at Full-load 12 Minutes at Half-load Server & Router (1000W) - 8 min. |
|---|---|
| Battery Recharge Time | 8 Hours |

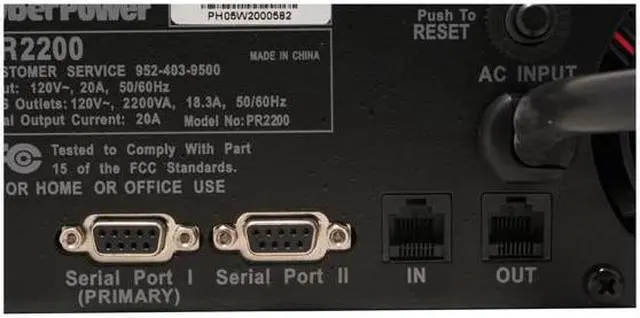

| Interface Port | 2 x Serial/USB (Combo) DB9 |
|---|---|
| Management Software | PowerPanel Power Management |
| Approvals | UL 1778, cUL, FCC DOC Class B |

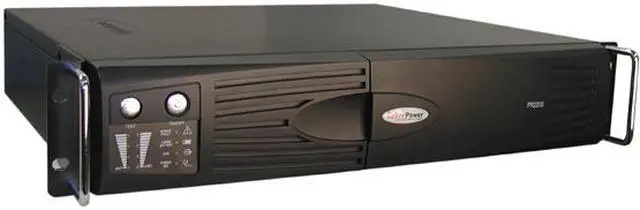

| Rackmountable | 2U |
| Data Line Protection | 1 in 1 out combo RJ11/RJ45 |
|---|---|
| Surge Energy Rating | 1780 Joules |
| Features | Pure Sinewave – The UPS generates energy that is identical to or cleaner than the utility company’s power grid. Benefits include: low total harmonic distortion, minimal electrical noise, optimal line clarity. Microprocessor-based Digital Control – Digital routing is maintained through a network of integrated circuitry and discrete values are used for internal system processing, which significantly increases efficiency and response of CyberPower UPS’s. RM/T Configuration – The PR series can be mounted either in Tower or Rackmount (2U) form. Full AVR – Boost/Buck – Boost/Buck topology will both increase low voltages and decrease high voltages, without switching to battery-mode. This not only conserves battery life, but also delivers a more stable signal to your connected equipment. Dual PC Support – The unit has 2 (two) communication ports that allow the user full control of dual PCs or servers. EMI/RFI - Provides shielding against electromagnetic interference & radio frequency signals. Most commonly, this is used to prevent line noise or “humming” that occurs over telephone lines or stereo electronics. PowerPanel Plus ™ Smart Power Management Software – In the event of a power outage, PowerPanel Plus will safely save and close your open files and shut your computer down in an orderly, intelligent manner. The software allows users to view detailed information about their electrical power and the vitals of the UPS. It includes configurable system notifications, automatic self tests, adjustable high/low voltage warnings, event/data logging, and scheduled shutdowns. Metal Housing – Rigid metal construction allows for placement in areas with a demanding environment. LED Indicators - LED status lights indicate Power-On, Wiring faults, AVR, and Battery level. Audible Alarms - Audible tones identify when the unit is running off battery power, unit overloads and low battery. Resettable Circuit Breaker - Convenient unit reset switch in case of an overload. |
|---|
| Dimensions | 17.1" x 15.3" x 3.5" |
|---|---|
| Weight | 64 lbs. |

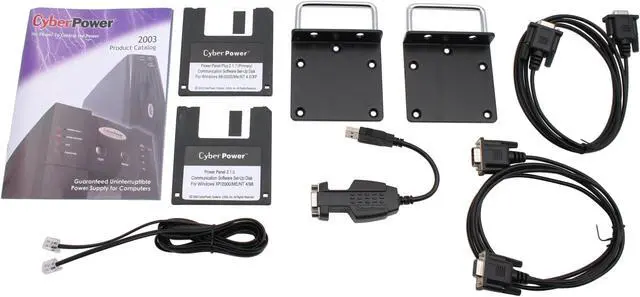

| Package Contents | PR2200SWRM2U UPS Rackmount handles RJ11 Cable Power Management Software Serial To USB Adapter RS-232 Cable User Manual |
|---|
| Date First Available | March 11, 2005 |
|---|
