What is the ouput wave form???????

The output is a pseudo-sine wave and appears to be clean and does not generate any noise from 300 KHz-148 MHz.

$340^.99

$429.99

Limit 99999 per customer.

Add to PC build list

Price alert

Add to wish list(Found on 1 wish list)

Sold by Newegg

Shipped by Newegg

Best Sellers

NothingButSavings

Top Rated

4.5 (8,971 total ratings)

$351^.63

BeachAudio

Top Rated

4.4 (8,553 total ratings)

$387^.42

Main image of Tripp Lite OMNIVS1500XL OMNI VS 1500 VA 940 Watts 8 Outlets Line Interactive Tower UPS Extended Runtime

Alt view image 2 of 7 - Tripp Lite OMNIVS1500XL OMNI VS 1500 VA 940 Watts 8 Outlets Line Interactive Tower UPS Extended Runtime

Alt view image 3 of 7 - Tripp Lite OMNIVS1500XL OMNI VS 1500 VA 940 Watts 8 Outlets Line Interactive Tower UPS Extended Runtime

Alt view image 4 of 7 - Tripp Lite OMNIVS1500XL OMNI VS 1500 VA 940 Watts 8 Outlets Line Interactive Tower UPS Extended Runtime

Alt view image 5 of 7 - Tripp Lite OMNIVS1500XL OMNI VS 1500 VA 940 Watts 8 Outlets Line Interactive Tower UPS Extended Runtime

Alt view image 6 of 7 - Tripp Lite OMNIVS1500XL OMNI VS 1500 VA 940 Watts 8 Outlets Line Interactive Tower UPS Extended Runtime

Alt view image 7 of 7 - Tripp Lite OMNIVS1500XL OMNI VS 1500 VA 940 Watts 8 Outlets Line Interactive Tower UPS Extended Runtime

Shop All Tripp Lite Products

Tripp Lite OMNIVS1500XL OMNI VS 1500 VA 940 Watts 8 Outlets Line Interactive Tower UPS Extended Runtime

(70) Write a Review

VA: 1500 VA / Expandable

800 VA
1000 VA
2200 VA
800 VA / 230V
1500 VA / Expandable / 230V
1500 VA / Expandable

1500 VA / 1.5 kVA tower 120V line interactive extended-run UPS
Corrects brownouts and overvoltages from 75 to 147V
USB port, TEL / DSL / Ethernet protection
NEMA 5-15P input plug and 8 NEMA 5-15R outlets

This item is covered under the Manufacturer Only Return Policy.

Overview

Specs

Reviews (70)

See all Q & A

Any questions? Our AI beta will help you find out quickly.

Try me now

Tripp Lite's OMNIVS1500XL line interactive UPS system offers voltage regulation, surge suppression and long lasting, expandable battery support for personal computers, internetworking equipment and other sensitive electronics.

Model
Brand	TRIPP LITE
Series	OMNIVS
Model	OMNIVS1500XL

Input
Input Voltage Range	120V
Input Connection	NEMA 5-15P

Output
VA Rating	1500 VA
Watts	940 Watts
Output Voltage	115V; 120V
Output Frequency	60 Hz
Outlets	6 UPS outlets, 2 surge-only outlets
Outlet Type	5-15R

Battery
Battery Type	Valve Regulated Lead Acid (VRLA)

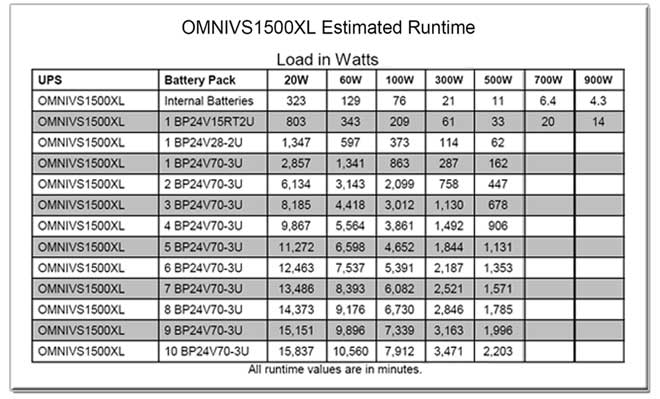

Battery Run Time	Full Load Runtime: 4.5 minutes (940 Watts) Half Load Runtime: 13 minutes (470 Watts)
Battery Recharge Time	Less than 4.5 hour(s) from 10% to 90%
Battery Replaceable	RBC24-SLT

Details
Alarms	Audible alarm indicates power-failure and low-battery conditions
Interface Port	USB
Management Software	YES
Approvals	Tested to UL1778 (USA); Tested to CSA (Canada); Tested to NOM (Mexico); Meets FCC Part 15 Category B (EMI)

Surge Protection
Data Line Protection	1 line TEL/DSL (1 in / 1 out); 10/100Base T Ethernet
Surge Energy Rating	690 Joules

Features

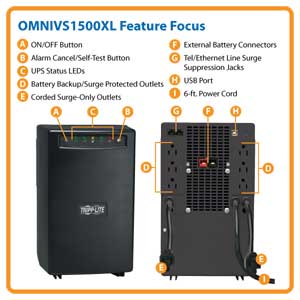

Features	1500 VA / 1.5 kVA tower 120V line interactive extended-run UPS Corrects brownouts and overvoltages from 75 to 147V 6 UPS battery supported outlets, 2 surge-only outlets USB port, TEL/DSL/ethernet protection, External battery pack options NEMA 5-15P input plug and 8 NEMA 5-15R outlets

Dimensions & Weight
Dimensions	11.80" x 7.50" x 7.20"
Weight	28.00 lbs.

Package Contents
Package Contents	OMNIVS1500XL Line Interactive UPS USB and telephone cable Owner's manual with warranty information

Additional Information
First Listed on Newegg	July 27, 2006
