Item#: N82E16856101126

Shuttle SZ68R5 Intel Core i7 / i5 / i3 / Pentium (LGA1155) Intel Socket H2(LGA1155) Intel Z68 Intel HD Graphics 2000/3000 integrated in the processor 1 x HDMI Barebone

Sold and Shipped by Newegg

Purchases from these Sellers are generally covered under our Newegg Marketplace Guarantee.
Marketplace Seller
  • Intel Core i7 / i5 / i3 / Pentium (LGA1155) Intel Socket H2(LGA1155)
  • Intel Z68
  • 4 x 240Pin DIMM DDR3 1333/1066
  • Intel HD Graphics 2000/3000 integrated in the processor

  • Overview
  • Specifications
  • Warranty & Returns
  • Reviews

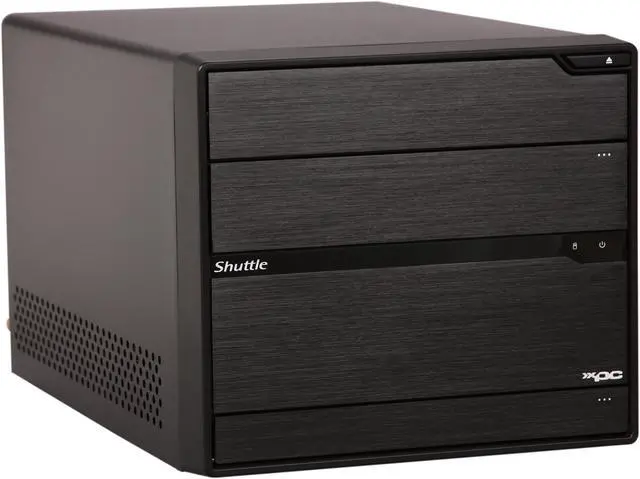

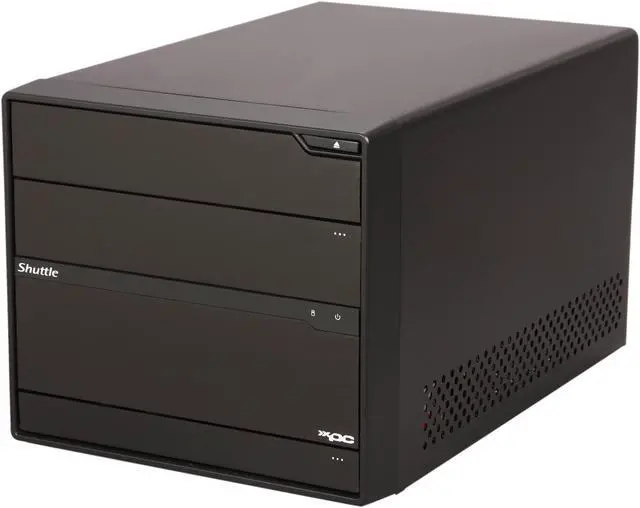

If what you want is maximum performance and lots of extras, the Shuttle XPC Barebone SZ68R5 is the natural choice. You'll be astounded by its comprehensive equipment list and new R5 design. With the SZ68R5 you get a barebone that's bursting with features and functions. As a first for Shuttle, this machine supports "Smart Response Technology" (SSD caching), which enables an SSD drive to be used for increased speed (e.g. an mSATA-SSD in the Mini-PCIe slot). The SZ68R5 also uses intelligent Intel Core processors with LGA1155 socket. Up to 32 GB DDR3 RAM can be spread across four memory sockets. A 500 W power supply with 80-PLUS certification comes pre-installed.

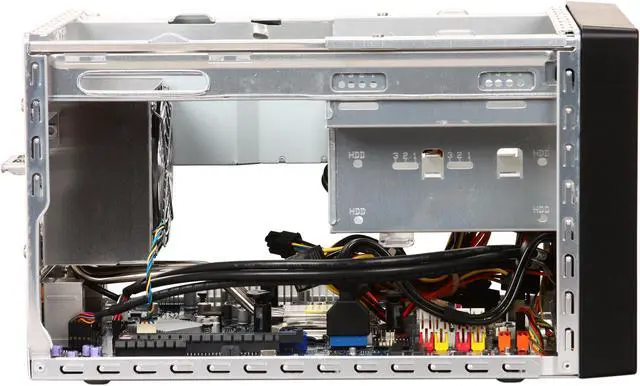

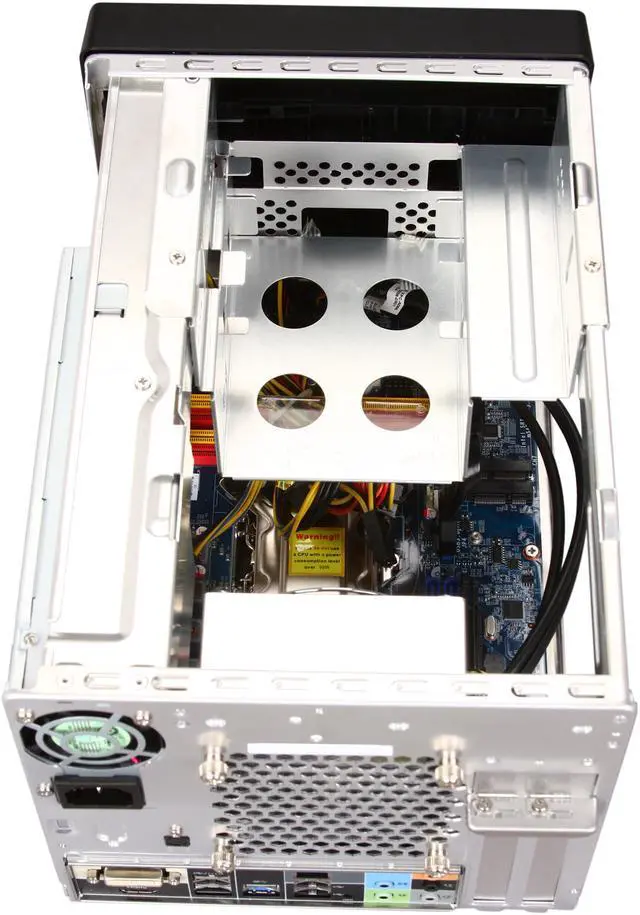

  • newegg Small, but easy to install The Shuttle XPC Barebone SZ68R5 consists of a stylish case with preinstalled mainboard, power supply unit (PSU) and cables. Despite its small form factor (a third of the size of a standard PC) it offers outstanding connectivity, functionality and performance. Shuttle XPC Barebones are completely customizable meaning users can pick certain components on their own to ideally match their individual needs. The meticulously designed internal layout features pre-routed cables to reduce clutter, increase airflow and make the installation of components easy.
  • newegg Intel Z68 Express Chipset with Intel Smart Response Technology The Shuttle XPC Barebone SZ68R5 supports the 2nd generation Intel Core i7 / i5 / i3 / Pentium processors in the LGA1155 package, with memory and PCI Express controllers integrated. The Intel Z68 Express Chipset also supports iGPU function, letting users enjoy the latest Intel integrated graphic performance. Z68 chipset’s Intel Smart Response Technology boosts overall system performance by using a fast SSD (min 18.6GB available) as a cache for frequently accessed operations. Key benefits are expedited hard drive speeds, reduced load and wait times and maximized storage utilization.
  • newegg Dual-slot graphic cards? No problem! A fast X16-PCI-E slot enables the use of modern 3D graphics cards and other expansion cards that have to transfer huge amounts of data at ultra-rapid speeds.
  • newegg 8-channel HD audio The superior high-definition sound with digital SPDIF output not only gives that perfect cinema feeling at home, it also offers optimal sound quality for your Skype VOIP telephone conferencing. Conveniently located ports ensure ultimate user friendliness.
  • newegg Intelligent cooling Shuttle's exclusive Heatpipe Cooling technology with variable speed control automatically ensures maximum system stability and quiet operation in this aluminium Shuttle Mini-PC. Cleverly arranged components enable themselves to be cooled simultaneously in the air flow. Instead of swirling around the chassis, as is the case with conventional solutions, the warm air is specifically transferred out of the chassis.
  • newegg Communication in the fast lane The integrated gigabit LAN chipset opens up completely new possibilities for communication with no restriction on the speed of data transfer. Say goodbye to information bottlenecks, whether in the company network or for home Internet access.

Learn more about the Shuttle Computer SZ68R5



CPU Supported

CPU Type
Intel Core i7 / i5 / i3 / Pentium (LGA1155)
CPU Socket
Intel Socket H2(LGA1155)


North Bridge
Intel Z68

Memory Supported

Memory slot
4 x 240Pin DIMM
Memory Type Supported
DDR3 1333/1066
Max Memory Supported
Dual Channel Memory Supported

Expansion Slots

PCI Express 2.0 x16
PCI Express
1 x PCI Express x4
1 x mSATA slot for SSD mini cards
1 x Mini-PCI-Express x1v2.0 slot, half-length


Serial ATA
2 x SATA 3.0Gb/s + 2 x SATA 6.0Gb/s


Onboard Video
Intel HD Graphics 2000/3000 integrated in the processor


Onboard Audio
Realtek ALC888S


First LAN
Realtek 8111E(10/100/1000Mbps)

Extension Bays

3.5" Internal bays
3.5" External bays
5.25" External bays

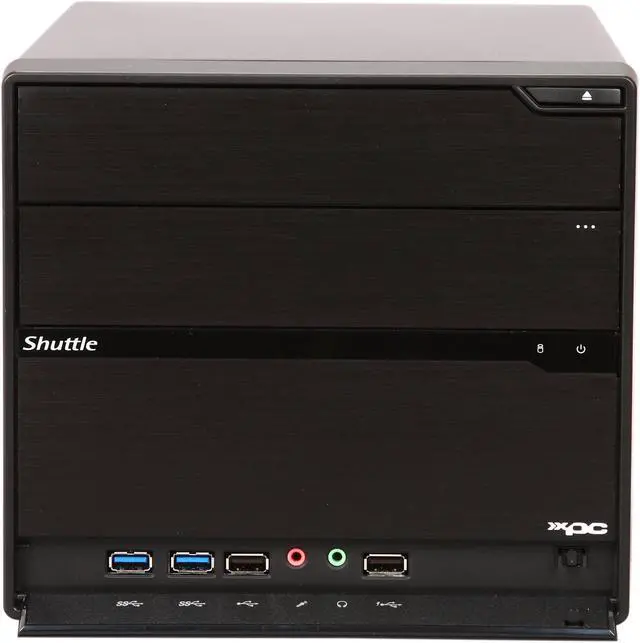

Front Panel Ports

Front USB
2 x USB 3.0
2 x USB 2.0
Front Audio Ports
2 jacks

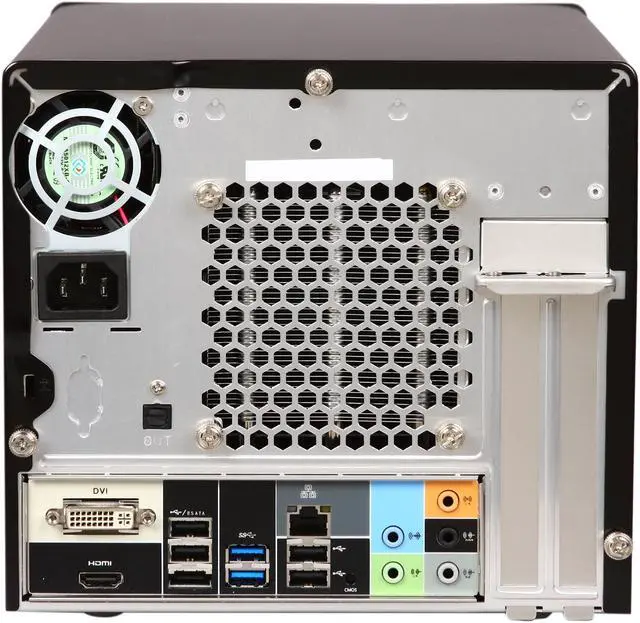

Back Panel Ports

1 x HDMI
1 x DVI
Rear USB
4 x USB 2.0 and 2 x USB 3.0
Rear e-SATA Ports
Rear S/PDIF Out
Rear Audio Ports
5 jacks

Power Supply

AC input voltage: 100~240V
Power Supply
500 Watt mini PSU

Physical SPEC

12.99" x 8.46" x 7.48"
7.72 lbs.


8-channel HD audio

HDMI interface

Dual-slot graphic cards? No problem!

Cleverly hidden

Intelligent cooling

Optimal air flow

Communication in the fast lane

PCI Express technology

For a longer life and more system stability

Crystal-clear audio transmission

Generous supply of USB ports

Pre-assembled cabling saves time

Compatible with Microsoft Windows 7

Shuttle opts for lightweight aluminium

The interface for the fastest of memory media

The fastest connection to external peripheral devices available to date
Warranty, Returns, And Additional Information
  • Warranty
  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years
  • Read full details
  • Return Policies
    • Return for refund within: 30 days
    • Return for replacement within: 30 days
  • This item is covered by's Standard Return Policy.
