Item#: N82E16856101145

Shuttle DS47 Intel NM70 2 x 204Pin SO-DIMM Slim PC

Sold and Shipped by Newegg

  • Intel Celeron 847
  • 2 x 204Pin SO-DIMM DDR3 1333

ICON Loading...
  • Specifications
  • Warranty & Returns
  • Reviews

Learn more about the Shuttle Computer DS47



CPU Supported

CPU Type
Intel Celeron 847


North Bridge
Intel NM70

Memory Supported

Memory slot
2 x 204Pin SO-DIMM
Memory Type Supported
DDR3 1333
Max Memory Supported
Dual Channel Memory Supported

Expansion Slots

1 x Full size Mini-PCIE socket (m-SATA support)
1 x Half size Mini-PCIE socket for WLAN module


Serial ATA
2 x SATA 6.0Gb/s


Onboard Audio
Realtek ALC662


2 x Realtek 8111G
Max LAN Speed
Wireless LAN
802.11 b/g/n

Extension Bays

2.5" Internal Bays

Front Panel Ports

Front USB
4 x USB 2.0
Card Reader
1 x SD Card reader
Other Front Ports
1 x RS232/RS422/RS485
1 x RS232

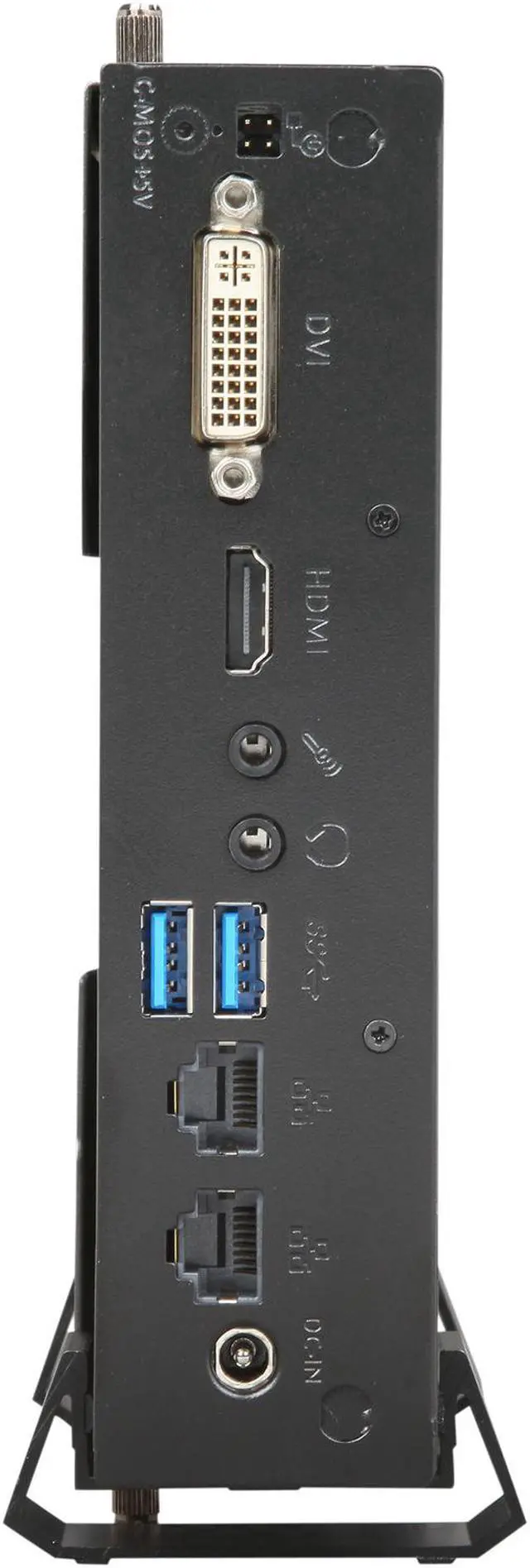

Back Panel Ports

1 x DVI-I
Rear USB
2 x USB 3.0
Rear Audio Ports
2 jacks
Other Rear Ports
1 x External power on header
1 x Clear CMOS
1 x DC in
1 x Kensinton lock
2 x Wireless Antenna fixture

Power Supply

100-240V AC
Power Supply
65W Power Adapter
Output:19V 4.47A DC

Physical SPEC

7.5" x 6.5" x 1.7"
5 lbs.


Full-Feature Fanless Media Player in an ultra-compact package

Support Full HD video format

Fanless Design

Multiple I/O interfaces

Dual display support

VESA Mount Capability

Dual Gigabit LAN high connectivity

24/7 nonstop operation

Warranty, Returns, And Additional Information
  • Warranty
  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years
  • Read full details

Customer Reviews of the Shuttle Computer DS47

Do you own this product? Write a Review

ICON Loading...

Filter Results

  • Anonymous
  • 1/12/2014 11:07:21 AM
  • Tech Level: Average
  • Ownership: 1 week to 1 month

4 out of 5 eggsGreat router/UTM box.

Pros: 1) Great build quality, the chasis is almost entirely metal giving a very solid build feel. Taking case several times and putting it back together was easy and didn't feel like I would be breaking the case (as with other other flimsy cases).
2) Serial ports are great, I am using one of the ports for managing a head-less computer behind this box. The other serial port is used to manage a webswitch.
3) I put 8G (4x2) RAM from Team and didn't have any issues. I updated the bios using a sysresccd + USB stick without issues in a freedos env.
4) I boot from the SD card for a completely silent performance.
5) Sophos UTM works very well on this unit.
6) GiG NICs are a bonus. I haven't done a speed test though but I suspect a thoughput of 500mbps at least.
7) The celeron performance is much better than of a similarly priced atom.

Cons: 1) Wish it had more usb 3.0 ports on it than usb 2.0 to allow faster connectivity.
2) As others have mentioned, the metal stands have a center rubber inlay which makes the unit wobbly, this is something that was over looked at design. While its not a major issue when the unit is mounted using the supplied brackets, its weird when putting the unit on a desk.

Other Thoughts: Firstly, I didn't buy this unit from newegg, cause I found it cheaper elsewhere, I did buy the memory from newegg. If newegg publishes this feedback then, thanks!
1) The box does get warm on the top as expected.
2) Great router/UTM box.

1 out of 1 people found this review helpful. Did you? Yes No

  • Walker A.
  • 11/14/2013 8:37:48 PM
  • Tech Level: Somewhat High
  • Ownership: 1 day to 1 week
  • Verified Owner

1 out of 5 eggsQuality Control issues

Pros: Great package and price.

Cons: The unit I ordered wouldn't beep or produce any video output. After RMA, the replacement also didn't beep or produce video, and shut itself off after a couple minutes. Shuttle's tech support was very polite and tried to be helpful, but this involved me ordering new RAM from a supported vendor because the known working RAM I had might have had compatibility issues.

0 out of 1 people found this review helpful. Did you? Yes No

  • Patrick B.
  • 9/30/2013 1:51:19 PM
  • Tech Level: Average
  • Ownership: 1 week to 1 month
  • Verified Owner

5 out of 5 eggsSolid

Pros: Completely silent, no moving parts. Solidly built, it is obviously intended for commercial-industrial use. It has two com ports I will never use. It is very snappy as a websurfing desktop computer especially with the SSD. For 99% of what I do this would be plenty fast. A lot more powerful than an Atom for similar money.

Cons: It has internal heatsinks that are cooled by convection action, so the computer must be oriented vertically. and cannot be positioned flat on it's side. The included feet for vertical orientation don't fit the case snugly and it is a little tippy but it works if you won't be moving things around it.

Drivers are included on a DVD instead of a USB stick, so you have to transfer them from another computer if you want to load them or hook up an external drive.

Other Thoughts: Associated components

Samsung 840 250GB SSD
KingstonHyperX black 1600 DDR3 2x 4GB
Windows 7 64

3 out of 3 people found this review helpful. Did you? Yes No
