Item#: N82E16856119037

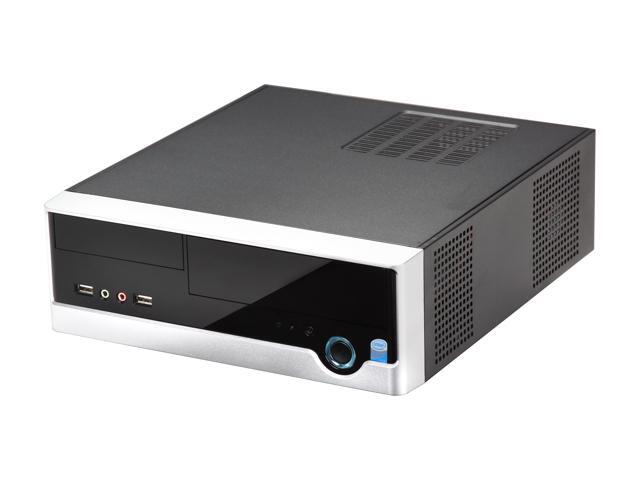

Foxconn SFF R10-D4 Intel Atom D525 (1.8GHz, Dual-core) Intel NM10 Intel GMA 3150 Barebone

  • Intel Atom D525 (1.8GHz, Dual-core)
  • Intel NM10
  • 2 x 240Pin DIMM DDR2 800/667
  • Intel GMA 3150
ICON Loading...



Exquisite chassis and high- performance is the best choice of being placed in small place like rooms. Designed for a range of new market segments which focus on low-cost Internet-focused machines. Integrated Dual-core Intel Atom D525 processor on board delivers superior performance to deal with your daily tasks such as web surfing, emailing and document editing.



  • newegg Integrated Intel Atom Processor D525 Based on the 45nm process technology, the integrated dual-core Intel Atom Processor D525 with Intel Hyper-Threading Technology delivers improved digital media performance, energy efficiency (13W TDP) and the benefit of dual-core processing for basic computing needs.
  • newegg DDR2 Memory 2 x 240Pin DDR2 DIMM slots with 4GB DDR2 800 maximum memory support provide bottleneck-free speed and memory space for smooth computing.
  • newegg Gigabit LAN The Gigabit network connection provides up to 1000Mbps bandwidth for optimized, smooth network communication.
  • newegg Small Form Factor The small form factor can fit into the tight space while its exquisite construction makes the barebone system a seamless integration to your house decoration.
  • newegg 150W PSU A 150W power supply is pre-installed to deliver stable power to all the components.

Learn more about the Foxconn R10-D4

General

Brand
Foxconn
Series
SFF
Model
R10-D4
Color
Black

CPU Supported

CPU Type
Intel Atom D525 (1.8GHz, Dual-core)

Chipset

North Bridge
Intel NM10

Memory Supported

Memory slot
2 x 240Pin DIMM
Memory Type Supported
DDR2 800/667
Max Memory Supported
4GB

Expansion Slots

PCI
1

Storage

Serial ATA
2 x SATA 3.0Gb/s

Graphics

Onboard Video
Intel GMA 3150

Audio

Channel
5.1-CH

Communications

Max LAN Speed
10/100/1000Mbps

Extension Bays

3.5" Internal bays
1
3.5" External bays
1 (Fit for CR)
5.25" External bays
1

Front Panel Ports

Front USB
2
Front Audio Ports
2 jacks

Back Panel Ports

PS/2
2
COM
1
LPT
1
VGA
1 x D-Sub
Rear USB
4
RJ45
1
Rear Audio Ports
3 jacks

Power Supply

Power Supply
150W

Physical SPEC

Dimensions
11.1" x 11" x 3.74"
Weight
10 lbs.

Quick Info

Warranty

  • Limited Warranty period (parts): 1 year
  • Limited Warranty period (labor): 1 year


Customer Reviews of the Foxconn R10-D4

Do you own this product? Write a Review

ICON Loading...

Filter Results

Go
  • Conrad C.
  • 6/20/2012 6:38:48 PM
  • Tech Level: Somewhat High
  • Ownership: 1 day to 1 week
  • Verified Owner

5 out of 5 eggs

Pros: Great price for a barebone system. The Atom is a time proven CPU designed to face all elements.

Cons: Nothing that I have experienced. However, the power supply seems to be running slightly hot, but nothing to be concerned about.

Other Thoughts: Case/PSU/Motherboard/Processor (This barebones, N82E16856119037)
Memory (N82E16820159010)
System drive (, N82E16820227510)
Data drive (N82E16822136769)

Did you find this review helpful? Yes No

  • Paulo D.
  • 6/5/2012 9:39:52 PM
  • Tech Level: High
  • Ownership: less than 1 day
  • Verified Owner

5 out of 5 eggsNice little box

Pros: Compact size, easy to set up. Just add memory, hard drive, and you're good to go.
Inexpensive box for a test platform or light duty desktop

All in all a pretty good value.

Cons: No hardware RAID support, and no way to mount a second hard drive instead of a DVD/CDROM drive without a drive bracket kit.

Not a big deal, but it'd be nice to have.

Did you find this review helpful? Yes No

  • david p.
  • 5/4/2012 4:44:10 PM
  • Tech Level: Somewhat High
  • Ownership: 1 month to 1 year

4 out of 5 eggsGood! But not for gaming, old style PCI slot, NOT PCI-E

Pros: Like the other reviews say, just add a stick of ram (2gb), a SATA optical drive, a (SATA only! no IDE) hard drive, kb(ps2 OR USB)/mouse/monitor/wiredinternet (not wireless internet) and you are good to go. NOT a gaming machine, but great for full screen video streaming, internet, and other regular office type stuff. Some games like WOW (about 5-9 fps) and WoT (1-9 fps) do work but it's really not good enough. Note, it has an "old skool" PCI slot, which is different from PCI Express! So good luck finding a compatible card that's faster that the onboard Intel 3150 chip. I haven't!

Cons: Has old style PCI slot... Not PCI express! Case faceplate wont open when my SATA Optical Drive opens up, annoying but not a big deal.

Other Thoughts: Still looking for a video upgrade!

Did you find this review helpful? Yes No

  • Priyesh P.
  • 4/14/2012 5:16:17 PM
  • Tech Level: High
  • Ownership: 1 day to 1 week
  • Verified Owner

4 out of 5 eggsGreat Kit but wrong power cable

Pros: Great barebone for a Atom cpu. I have purchased 6 of these before and worked great but recent purchase I had a small problem.

Cons: I received the case and installed the ram and hard drive, no problem. Then I got the power cable and found out its a European cable, luckily I had a few extra power cables laying around. Only reason I have it a 4 egg rating.

Did you find this review helpful? Yes No

  • Douglas L.
  • 2/1/2012 1:48:02 PM
  • Tech Level: High
  • Ownership: less than 1 day
  • Verified Owner

1 out of 5 eggsDead On Arrival

Pros: I have other Foxconn products and have been happy enough with them, this is my fourth barebones, HOWEVER...

Cons: Just got a R10-D4 and it was dead on arrival. All other components installed were from one of my other Foxconn barebones and are known good and compatible (I was upgrading... faster CPU). The components still work in the original unit. The new R10-D4 has no video output.

Manufacturer Response:

Dear Valued Customer,
We apologize for the experience you had with your Foxconn product.What cpu did you use ? if possible ,we recommend you use the validated memory to have a test .
http://www.foxconnsupport.com/complist.aspx?models=D52S&type=MEMORY
If it is barebone's problem, Please contact FOXCONN Americas Technical Support center:
Tel: 1.909.978.6556 (8:30am - 5:30pm PST; excludes national holidays) We will be glad to assist you with your Foxconn product in any possible way. Thank you.
Foxconn Support Team

Did you find this review helpful? Yes No

  • Anonymous
  • 10/10/2011 12:53:21 PM
  • Tech Level: High
  • Ownership: 1 month to 1 year
  • Verified Owner

2 out of 5 eggsGood case Dangerous PSU

Pros: Good looking case, and the whole system with 2 gigs of ram performed Exceptionally well with Windows 7 on it!

Cons: I wrote a while back that the psu had gotton so hot that it partially melted a SATA cable within and hour after i installed it to my clients house, well now, the PSU Spewed out smoke and fried! Thankfully, my client was home or it would have started a fire!

Other Thoughts: Promising case but sadly comes with a Terrible PSU!

Manufacturer Response:

Dear Valued Customer,
We apologize for the experience you had with your Foxconn product. Please contact FOXCONN Americas Technical Support center: Tel: 1.909.978.6556 (8:30am - 5:30pm PST; excludes national holidays) We will be glad to assist you with your Foxconn product in any possible way. Thank you.
Foxconn Support Team

1 out of 3 people found this review helpful. Did you? Yes No

  • Anonymous
  • 10/9/2011 9:14:31 PM
  • Tech Level: High
  • Ownership: 1 month to 1 year
  • Verified Owner

2 out of 5 eggsPSU Is total garbage and nearly started a fire!

Pros: Nice case screams as far as speed.

Cons: Bought on 8/8/2011 installed on 8/11/2011 to client. i wrote a review when i got it because the psu got so hot that it melted a sata cable within an hour of installing it, now it got hot and the comp stopped workand and began spewing out smoke! thankfully it didnt happen at night or it may have started a fire!

Other Thoughts: I bought because it was innexpensive and seemed like a good deal, it seems that everything else is great, but foxconn PLEASE Put in a better PSU! :(

Manufacturer Response:

Dear Valued Customer,
We apologize for the experience you had with your Foxconn product. Please contact officiate warranty via RMA center in US,Please dail below tel number and ask for RMA.
Tel: 1.909.978.6556 (8:30am - 5:30pm PST; excludes national holidays)
Best Regards
Foxconn Technical Support

0 out of 3 people found this review helpful. Did you? Yes No

  • Kris A.
  • 9/16/2011 1:08:12 PM
  • Tech Level: High
  • Ownership: less than 1 day
  • Verified Owner

3 out of 5 eggsCase dimensions

Pros: Haven't even turned it on yet, but I'm sure it runs great

Cons: The case dimensions are actually 11.1 x 12.5 x 3.74 inches, which is an inch an a half bigger than the specs state. There is also a metal tab sticking out the back an additional .5 inches, making the case 13 inches long.

Manufacturer Response:

Dear Valued Customer,Please refer to the dimension of R10-D4:280*282*95mm = 7.5L -->11.02*11.10*3.74 inches.For more information of it,please refer to our official website.http://www.foxconnchannel.com/product/Barebones/detail_spec.aspx?ID=en-us0000082 Thank you! Best regards! Foxconn Technical Support

0 out of 3 people found this review helpful. Did you? Yes No

  • Anonymous
  • 8/12/2011 8:39:15 AM
  • Tech Level: High
  • Ownership: 1 day to 1 week
  • Verified Owner

4 out of 5 eggsPretty nice

Pros: Small And Convenient. It performed exceptionally well OS wise. I normally install linux to machines i build, but i installed windows 7 per my clients request, and the machine just screams. Its fast it doesnt lag even a little when i tested it running resource heavy software. And with only 2 gigs of ram, im thoroughly impressed.

Cons: PSU is terrible. I installed it yesterday, and had to go back an hour later because they smelled something burning. when i opened the case up, the psu had gotten so hot it had partially melted one of the sata cables that was up against it.

Other Thoughts: Performed great, but has that psu issue, which is a major downside. :(

0 out of 3 people found this review helpful. Did you? Yes No

  • Matthew H.
  • 7/7/2011 7:06:42 AM
  • Tech Level: High
  • Ownership: 1 week to 1 month
  • Verified Owner

5 out of 5 eggsWell Suited For My Project

Pros: Very well suited machine for a firewall/gateway or low volume server.

There is a bay for a 3.5" device below the 5.25" ODD bay. I used a 2x2.5" to 3.5" bay converter to seat 2x2.5" HDD's in the internal 3.5" bay.

Atom CPU reports average usage with average loads running a Windows Server 2008 R2 as a domain controller, DNS server, DHCP server, Web server, File server and WMWare worstation running one VM as the firewall & gateway with only 4GB of RAM and supporting about ten workstations.

With the dual core and hyperthreaded CPU, the OS reports four logical cores.

The chassis is near silent. There are three fans one in the PSU, on the CPU and a chassis fan and I hear none of them. Thermals look good, residing in Utah where the temperature is about 95 degrees right now and in a room with no climate conditioning at all.

Cons: Very well suited machine for a firewall/gateway or low volume server.

There is a bay for a 3.5" device below the 5.25" ODD bay. I used a 2x2.5" to 3.5" bay converter to seat 2x2.5" HDD's in the internal 3.5" bay.

Atom CPU reports average usage with average loads running a Windows Server 2008 R2 as a domain controller, DNS server, DHCP server, Web server, File server and WMWare workstation running one VM as the firewall & gateway with only 4GB of RAM and supporting about ten workstations. Three NIC’s were required, so a PCI NIC and USB NIC were necessary for my purpose. Otherwise the PCI slot could be used for a discrete video card and this could very well easily be used as an HTPC and DLNA device that would yield above average performance.

With the dual core and hyper threaded CPU, the OS reports four logical cores.

The chassis is near silent. There are three fans one in the PSU, on the CPU and a chassis fan and I hear none of them. Thermals look good

Other Thoughts: The chassis dismantles very easily (a screw driver is necessary to remove the upper bay cage to get to the lower) and it quite solid.

I am overall very satisfied and if needed for another project, would purchase again.

1 out of 1 people found this review helpful. Did you? Yes No
