Item#: N82E16856158033

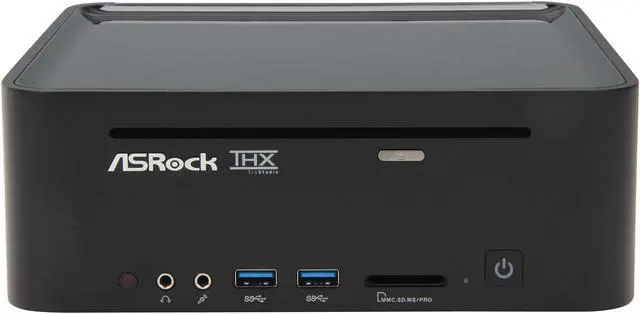

ASRock VisionX 321B Intel Core i5-3210M Mobile Ivy Bridge Processor Intel HM77 AMD Mobility Radeon HD7850M GPU 1 x HDMI Remote Control Barebone

  • Intel Core i5-3210M Mobile Ivy Bridge Processor
  • Intel HM77
  • 2 x 204Pin DDR3 1600/1333
  • AMD Mobility Radeon HD7850M GPU
ICON Loading...

Learn more about the ASRock VisionX 321B

General

Brand
ASRock
Model
VisionX 321B

CPU Supported

CPU Type
Intel Core i5-3210M Mobile Ivy Bridge Processor

Chipset

North Bridge
Intel HM77

Memory Supported

Memory slot
2 x 204Pin
Memory Type Supported
DDR3 1600/1333
Max Memory Supported
16GB

Graphics

Onboard Video
AMD Mobility Radeon HD7850M GPU

Audio

Channel
8-CH

Communications

First LAN
10/100/1000 LAN
Wireless LAN
802.11a/b/g/n
Bluetooth
Bluetooth 4.0/3.0 HS class II

Front Panel Ports

Front USB
2 x USB 3.0
Front Audio Ports
2 jacks
Card Reader
4-in-1 Card reader (SD3.0/MMC/MS/MS PRO)

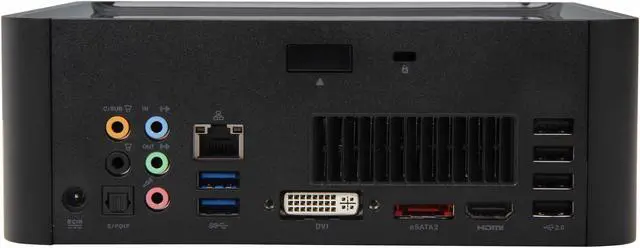

Back Panel Ports

HDMI
1 x HDMI
VGA
1 x DVI
Rear USB
4 x USB 2.0
2 x USB 3.0
Rear e-SATA Ports
1
RJ45
1
Rear S/PDIF Out
Yes
Rear Audio Ports
5 jacks

Power Supply

Power Supply
120W/19V Adapter

Physical SPEC

Dimensions
7.87" x 7.87" x 2.76"

Features

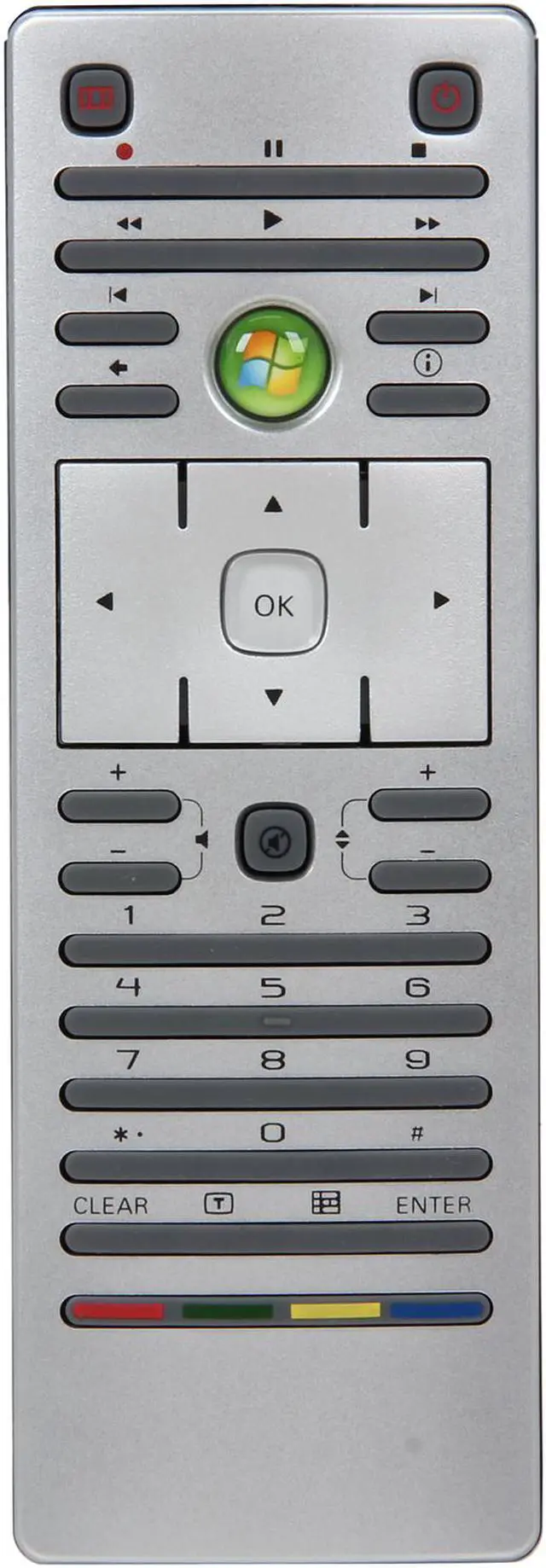

Remote Control
Yes
Features
8GB DDR3-1600MHz (2x4GB)
750GB, Supports second 2.5" SATA HDD
Supports mSATA SSD
BD Combo

Intel Mobile Ivy Bridge Processor

Mobile Intel HM77 Express chipset

AMD Radeon HD7850M Graphics (with 1GB GDDR5 VRAM), Supports Blu-ray 3D playback, AMD HD3D technology

Multi VGA Output options : HDMI, DVI-I(Dual-Link) and D-Sub by the bundled DVI to D-Sub adapter

HDMI audio pass through (Dolby TrueHD & DTS-HD Master Audio)

7.1 CH HD Audio with THX TruStudio

4 x USB3.0, 4-in-1 Card reader (SD3.0/MMC/MS/MS PRO)

2T2R 802.11 a/b/g/n (5GHz/2.4GHz Dual-Band access)

Bluetooth 4.0/3.0 HS class II

Supports ASRock XFast RAM, XFast LAN, XFast USB, Dehumidifier, UEFI System Browser, OMG, Internet Flash

Supports Intel Smart Connect, Intel Rapid Start

Free Bundle : CyberLink MediaEspresso 6.5 Trial, ASRock MAGIX Multimedia Suite

Quick Info

Warranty

  • Limited Warranty period (parts): 1 year
  • Limited Warranty period (labor): 1 year


Customer Reviews of the ASRock VisionX 321B

Do you own this product? Write a Review

ICON Loading...

Filter Results

Go
  • David M.
  • 12/14/2012 6:47:34 PM
  • Tech Level: Average
  • Ownership: 1 month to 1 year
  • Verified Owner

1 out of 5 eggsDisappointed

Pros: Small form-factor
Very fast (when it works)

Cons: Random freezes requiring a hard-reset to recover. The screen goes to a solid color, sometimes with vertical stripes, and the sound usually stops.

Noisy blu-ray drive (data disks seem really bad, but movie disks were OK).

ASRock warranty support is slow. They received the machine on 11/13 and it is a month later and I have no ETA for a repaired machine.

Other Thoughts: I really want to like this machine. The freezes happened every 2 to 5 days at first, and then seemed to increase in frequency. I tried updating audio/video drivers, and many other things, but could not isolate the problem. Just after the Newegg return period ran out (doh!), I gave up and RMA'd the machine. Still waiting to hear when it will be returned.

Manufacturer Response:

Dear AsRock Customer

We sincerely apologize for any inconvenience this may have caused you. Please contact our Customer Service at 909-590-8308. We can assist you shortly.

Thank you

AsRock SUPPORT
Tech Support Email: user@asrockamerica.com

1 out of 2 people found this review helpful. Did you? Yes No

  • Eric C.
  • 11/12/2012 9:50:28 PM
  • Tech Level: Somewhat High
  • Ownership: 1 week to 1 month
  • Verified Owner

5 out of 5 eggsSolid little machine-- no defects

Pros: Small form factor, fitting in a reasonably beefy CPU, GPU, RAM.

Cons: Notebook internals, not desktop hardware (but you already knew that from reading the spec sheet). Blu-Ray drive is kind of noisy when running at full speed.

Also, the support/driver CD install will load up a little bit of crapware if you allow it to automatically install everything (Zynga Mobile Games portal, upgrade-prompting Norton Antivirus, etc. Nothing too egregious, but annoying nonetheless).

If you select what you want to install yourself (which I did on another clean OS install), you can avoid the crapware completely.

Other Thoughts: 1 week or so into owning this computer. After reading the reviews for the Vision HT, I was pretty terrified that I would plug in the computer and get a faceful of fried powersupply smoke. Thankfully, nothing of the sort has happened!

Pretty impressed with the performance. I was looking for a (preferably upper) mid-range gaming machine that would also fit in as my primary, day-to-day computer.This fits the bill perfectly.

NOTE: I just today installed a Samsung 2.5'' SSD as my primary boot drive (the stock HDD is now relegated for file storage).

2 out of 2 people found this review helpful. Did you? Yes No
