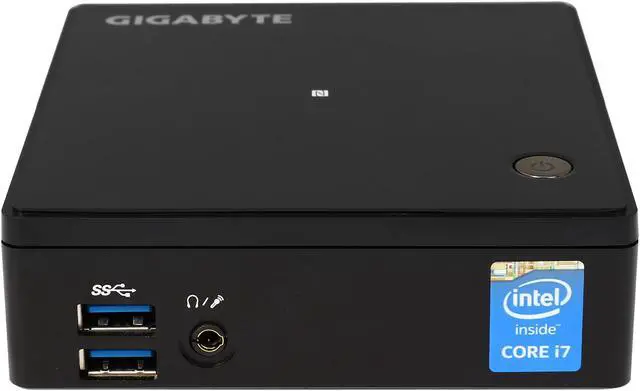

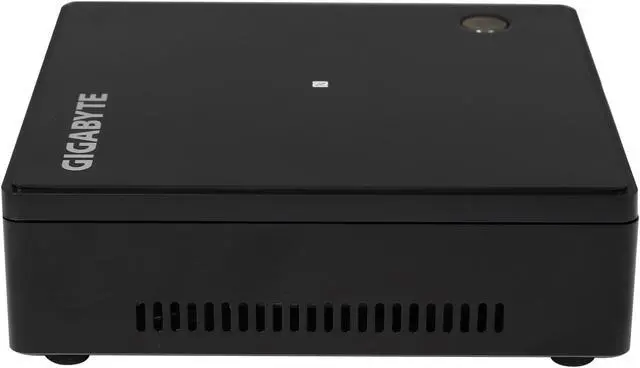

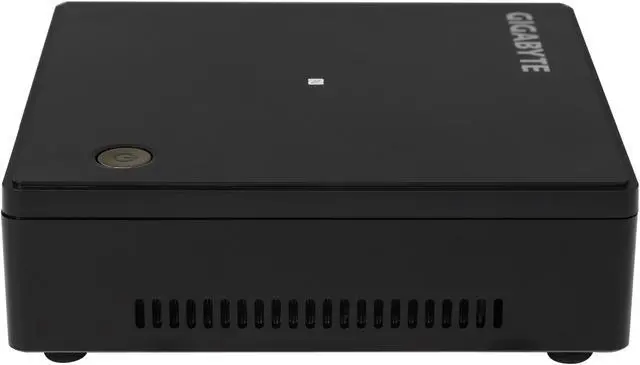

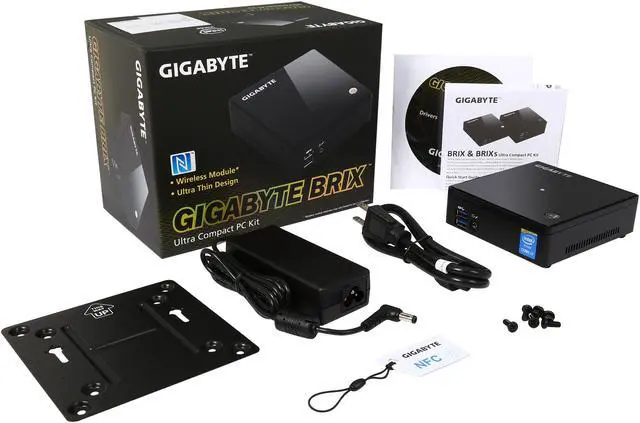

GIGABYTE GB-BXi7-5500 (rev. 1.0) Black Mini-PC Barebone

Be the first to review this product...
  • 5th generation Intel Core i7-5500U 2.4GHz / 3.0GHz
  • 2 x 204Pin SO-DIMM DDR3L 1600/1333, 1.35V
Specs
Reviews
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the GIGABYTE GB-BXi7-5500 (rev. 1.0)

General
Brand GIGABYTE
Model GB-BXi7-5500 (rev. 1.0)
Color Black
CPU Supported
CPU Type 5th generation Intel Core i7-5500U 2.4GHz / 3.0GHz
Memory Supported
Memory installed No Memory
Memory slot 2 x 204Pin SO-DIMM
Memory Type Supported DDR3L 1600/1333, 1.35V
Max Memory Supported 16GB
Expansion Slots
Other 1 x mSATA slot
1 x PCIe M.2 NGFF 2230 A-E key slot occupied by the WiFi+BT card
Storage
Hard Drive Installed No Hard Drive
Graphics
Intergrated Graphics Intel HD Graphics 5500
Audio
Onboard Audio Realtek ALC283
Communications
LAN Realtek RTL8111G
Max LAN Speed 10/100/1000Mbps
Wireless LAN IEEE802.11ac, Dual Band
Bluetooth BT 4.0
Front Panel Ports
Front USB 2 x USB 3.0
Front Audio Ports 1 x head phone jack with MIC

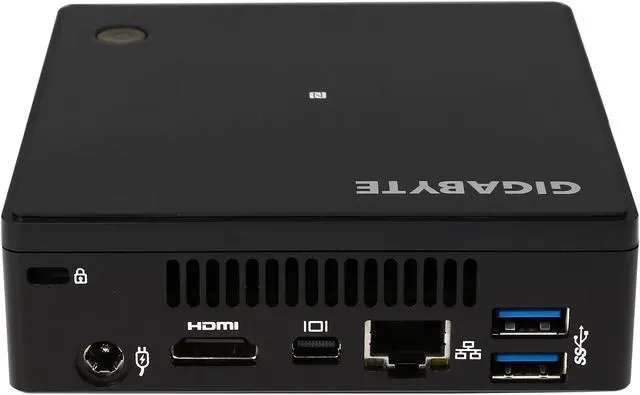

Back Panel Ports
HDMI 1
DisplayPort 1 x Mini DisplayPort
Rear USB 2 x USB 3.0
RJ45 1
Other Rear Ports 1 x DC-In
1 x Kensington lock slot
Power Supply
Power Supply Input: AC 100-240V
Output: DC 19V
3.42A
Physical SPEC
Dimensions 1.33" x 4.24" x 4.50"
Features
Features Features Latest Intel 5th generation Core Processors

Ultra compact PC design at only 0.42L (33.9 x 107.6 x 114.4mm)

1 x mSATA SSD slot

2 x SO-DIMM DDR3L slot (1333/1600 MHz)

Intel IEEE 802.11 ac ,Dual Band Wi-Fi & Bluetooth 4.0 NGFF M.2 card

HDMI plus Mini DisplayPort Outputs (Supports dual displays)

Intel HD Graphics 5500

4 x USB 3.0

Gigabit Lan

Headphone Jack with Microphone

VESA mounting Bracket (75 x 75mm + 100 x 100mm)

Support Near Field Communication technology (NFC)
Additional Information
First Listed on Newegg March 02, 2015
