Item#: 9SIA4CP1EP1145

Zotac ZBOX-ID90-U Intel Socket LGA1155 Intel H61 2 x 204Pin SO-DIMM Intel HD Graphics 4000 Integrated by CPU Mini / Booksize Barebone System

  • Intel Core i7 3770T
  • Intel HD Graphics 4000 Integrated by CPU
  • 2 x 204Pin SO-DIMM DDR3 1600
  • Pin It
  • Email this page
ICON Loading...

Learn more about the ZOTAC ZBOX-ID90-U

General

Brand
Zotac
Model
ZBOX-ID90-U

CPU Supported

CPU Type
Intel Core i7 3770T
CPU Socket
Intel Socket LGA1155

Chipset

North Bridge
Intel H61

Memory Supported

Memory installed
No Memory
Memory slot
2 x 204Pin SO-DIMM
Memory Type Supported
DDR3 1600
Max Memory Supported
16GB

Storage

Hard Drive Installed
No Hard Drive
Serial ATA
1 x SATA 3.0Gb/s

Graphics

Onboard Video
Intel HD Graphics 4000 Integrated by CPU

Audio

Channel
8 Channel

Communications

Max LAN Speed
Dual 10/100/1000Mbps
Wireless LAN
2 x 802.11 b/g/n
Bluetooth
Bluetooth 4.0

Extension Bays

2.5" Internal Bays
1

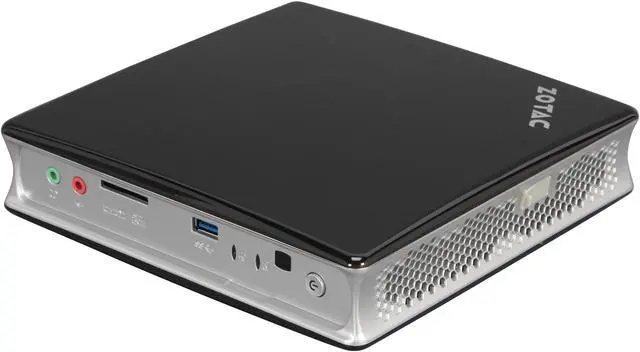

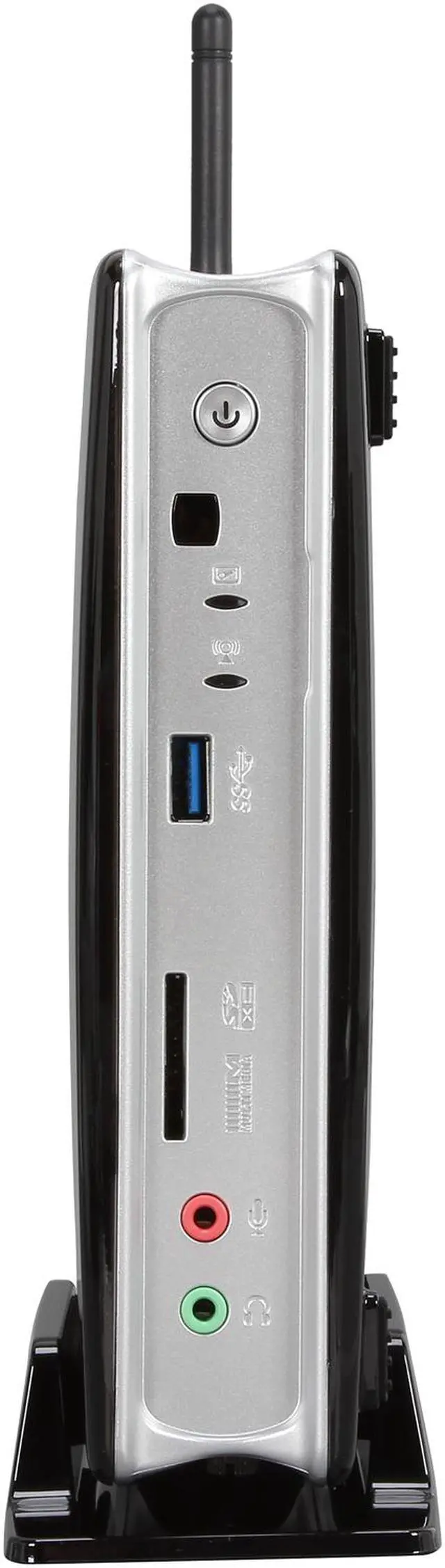

Front Panel Ports

Front USB
1 x USB 3.0
Front Audio Ports
2 jacks
Card Reader
4 in 1
Other Front Ports
WiFi LED
Hard drive LED
Power button
Integrated IR receiver

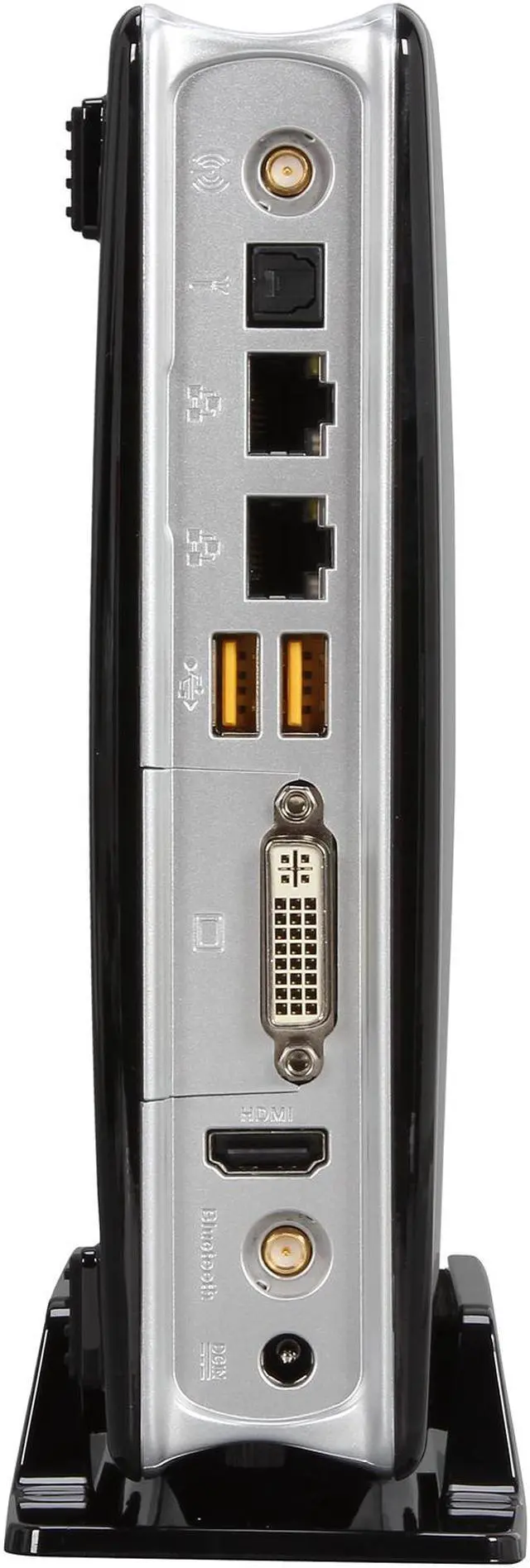

Back Panel Ports

HDMI
1
VGA
1 x DVI
Rear USB
2 x USB 2.0
RJ45
2
Rear S/PDIF Out
1 x Optical output
Other Rear Ports
2 x WiFi antenna connector
Power connector

Power Supply

Power Supply
DC19V

Physical SPEC

Dimensions
13.19" x 10.43" x 3.74"

Features

Remote Control
Yes
Features
Intel Clear Video HD technology
Intel InTru 3D technology
Intel Quick Sync Video technology
Microsoft DirectX 11 compatible
802.11n WiFi & Bluetooth 4.0 technology
Bundled Media Remote control

Memory and Solid State Drive sold separately. No Operating System

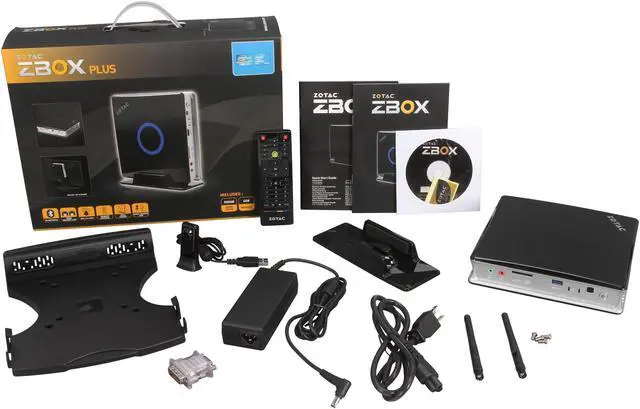

Packaging

Packaging
1 x ZOTAC ZBOX ID90 Plus

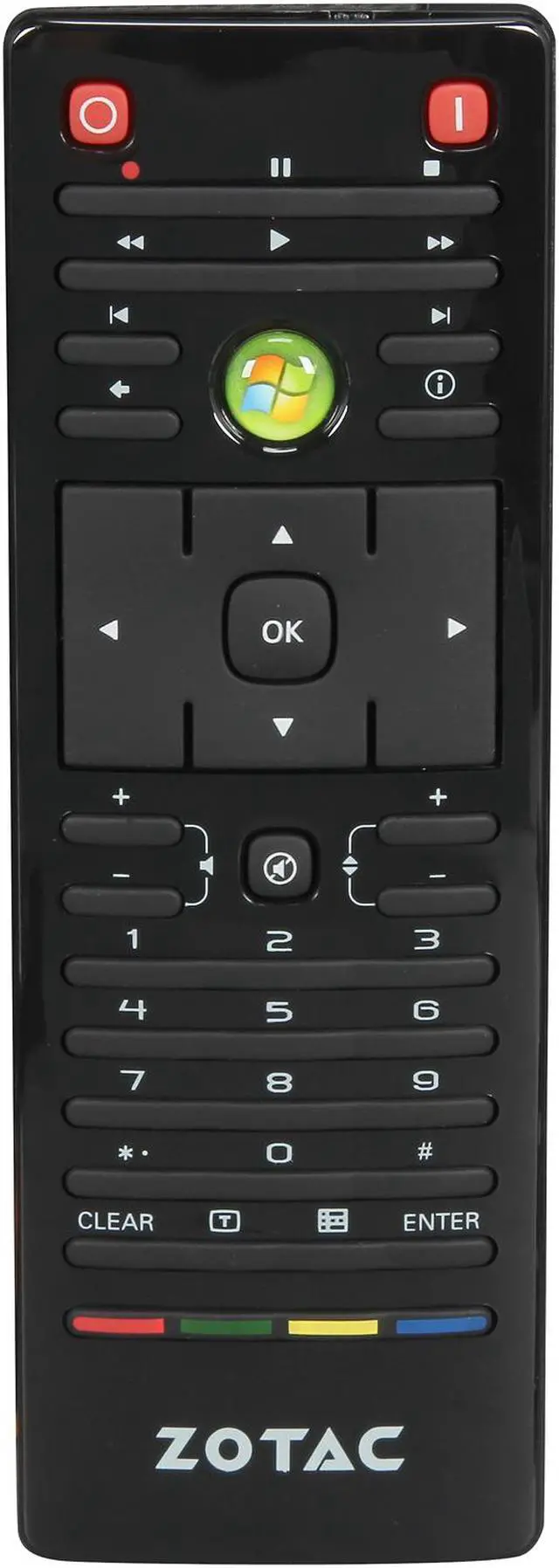

1 x MCE compatible remote with 2 CR2032 batteries
1 x USB IR receiver
2 x WiFi antenna
1 x VESA mount with 4 mounting screws
1 x Stand
1 x DVI-to-VGA adapter
1 x AC adapter
1 x Power cord
1 x Warranty card
1 x User manual
1 x Quick Install Guide
1 x Driver disc

General

Group
No Memory / No Hard Drive

Quick Info


Customer Reviews of the ZOTAC ZBOX-ID90-U

Do you own this product?

ICON Loading...

Filter Results

Go
  • Michael J.
  • 10/12/2013 5:28:18 PM
  • Tech Level: High
  • Ownership: 1 week to 1 month
  • Verified Owner

5 out of 5 eggsGreat so far!

Pros: Easy to setup and customize, fast enough for my purposes, and rock-solid so far running Ubuntu Linux 13.04.

Cons: None so far!

Other Thoughts: I purchased this PC to use a Linux desktop, and so far I've been delighted with the purchase. Setup was a snap. It came configured with one SO-DIMM 4 GB DDR3/1600Mhz Kingston memory module, and a 500 GB SSD disk drive. I created an Ubuntu 13.04 desktop bootable USB thumb drive using the Pendrive Linux installer, and configured the BIOS to boot from USB, and installation of Ubuntu was a snap. It's been running for a week and I've had zero problems with it.

I did, however, upgrade the memory today from 4 GB to 16 GB, just so I'd have extra memory. That was very simple and easy to do. You can remove the cover with two thumb screws on the bottom of the case, and then remove the hard drive by removing another thumb drive, and then it only took seconds to remove the existing 4 GB SO-DIMM and replace it with two 8 GB SO-DIMMs.

I ordered this even though it had no reviews, based on the other good reviews that I had read about other Zotac products. Overall I give this product an enthusiastic thumbs-up, especially if you're looking for a mid-powered PC for general use. I've had zero "crashes" or kernel panics or "lock-ups" so far.

I will also add that I have NOT tried using the infrared remote, since I leave it on all the time. I also have not really pushed the graphics card very hard. I don't really use this PC for gaming, but the graphics seem awesome to me, and the Ubuntu Unity desktop seems pretty snappy in 1680x1050 resolution.

0 out of 1 people found this review helpful. Did you? Yes No
