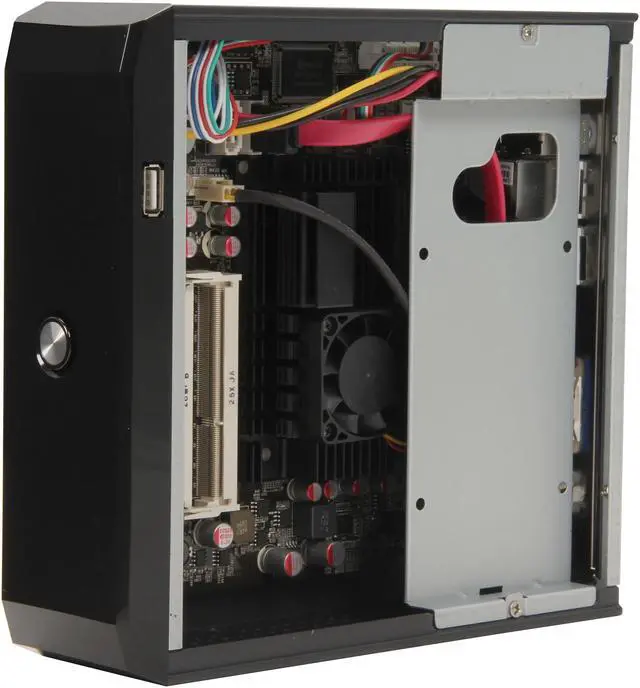

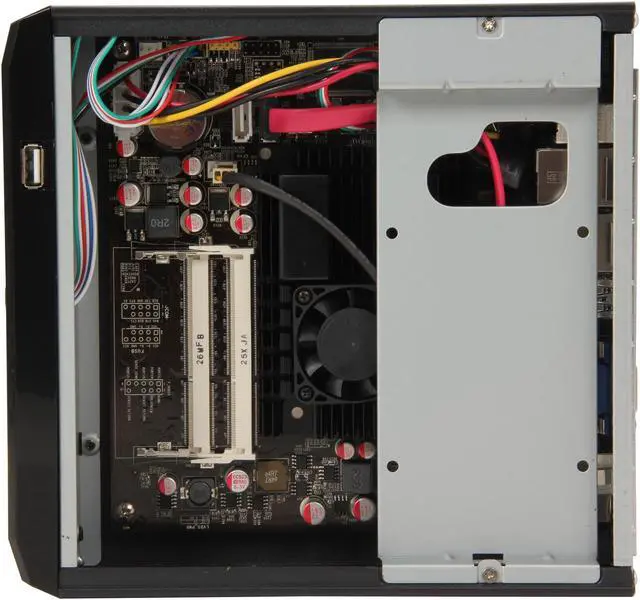

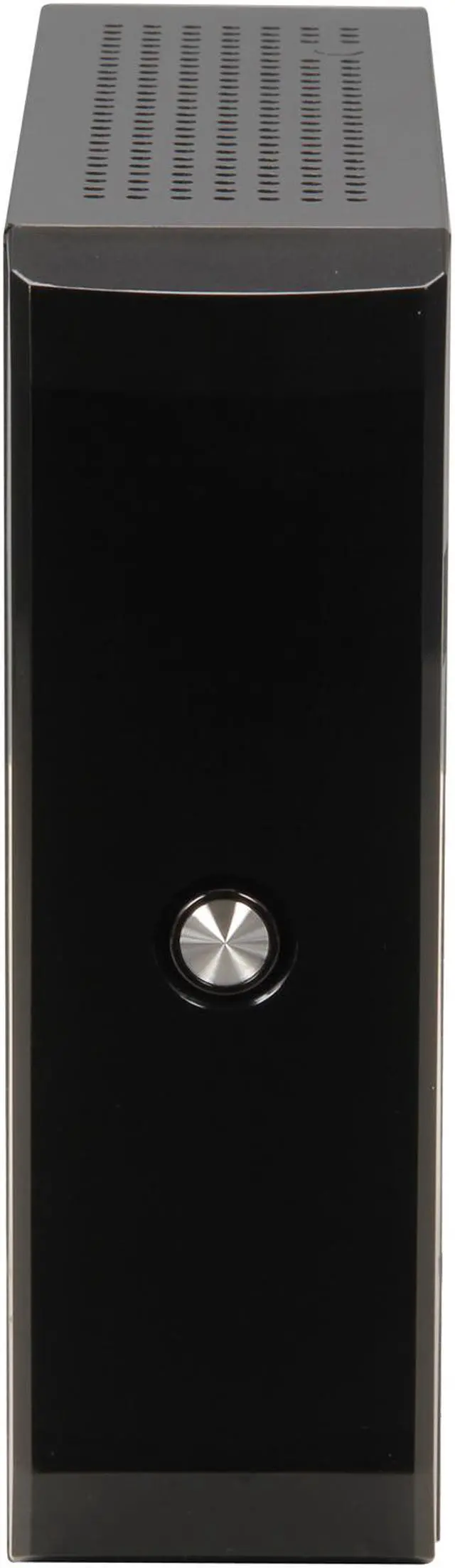

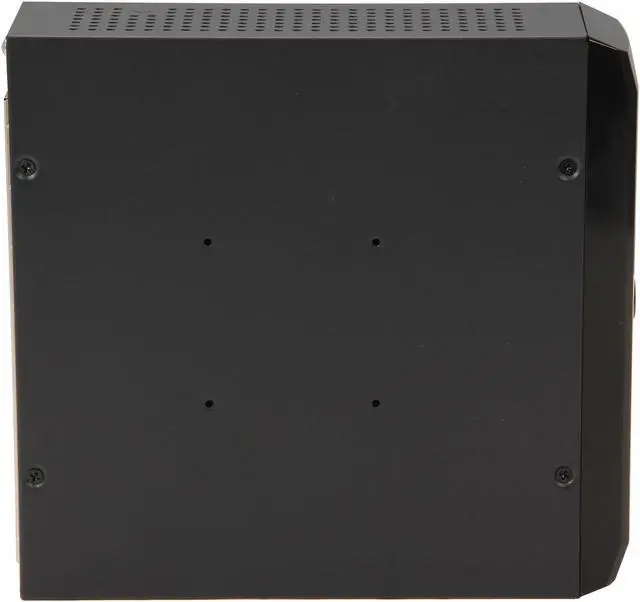

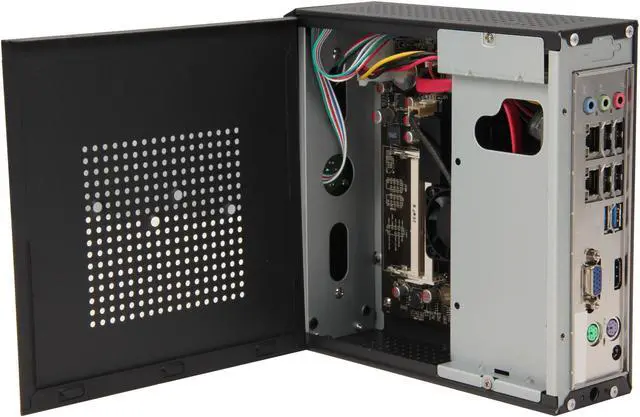

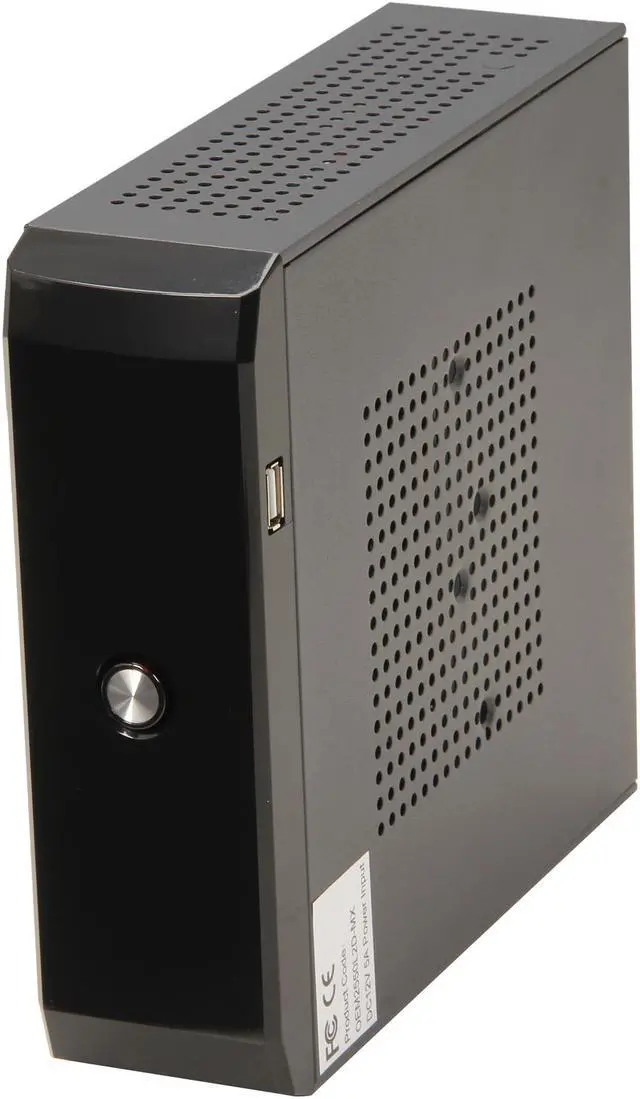

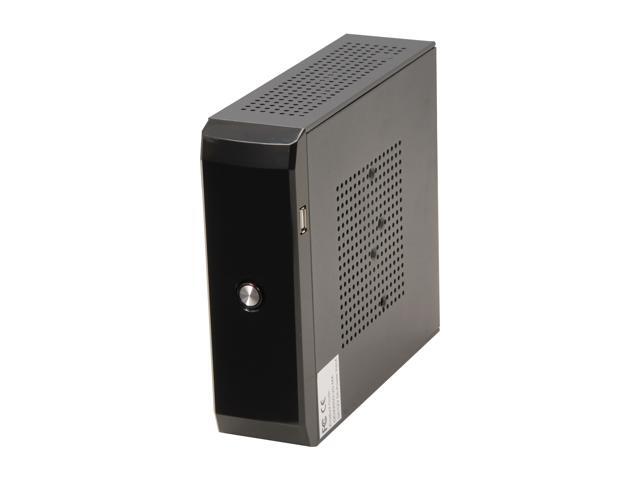

OEM Production 2550L2D-MxPC Intel NM10 2 x 204Pin SO-DIMM Intel GMA 3650 Black Mini / Booksize Barebone System - OEM

  • Intel Atom D2550 (1.86GHz, dual core)
  • Intel GMA 3650
  • 2 x 204Pin SO-DIMM DDR3 1066/800
IronEgg
BUY WITH CONFIDENCE
This product qualifies for the Iron Egg guarantee. We'll match any qualifying competitor's price.
  • Pin It
  • Email this page
ICON Loading...

Learn more about the OEM Production 2550L2D-MxPC

General

Brand
OEM Production
Model
2550L2D-MxPC
Color
Black

CPU Supported

CPU Type
Intel Atom D2550 (1.86GHz, dual core)

Chipset

North Bridge
Intel NM10

Memory Supported

Memory slot
2 x 204Pin SO-DIMM
Memory Type Supported
DDR3 1066/800
Max Memory Supported
8GB

Expansion Slots

PCI Express x1
1

Storage

Serial ATA
2 x SATA 3.0Gb/s

Graphics

Onboard Video
Intel GMA 3650

Audio

Onboard Audio
Realtek ALC662/661
Channel
6 Channel

Communications

LAN
Dual Broadcom 57788
Max LAN Speed
Dual 10/100/1000Mbps

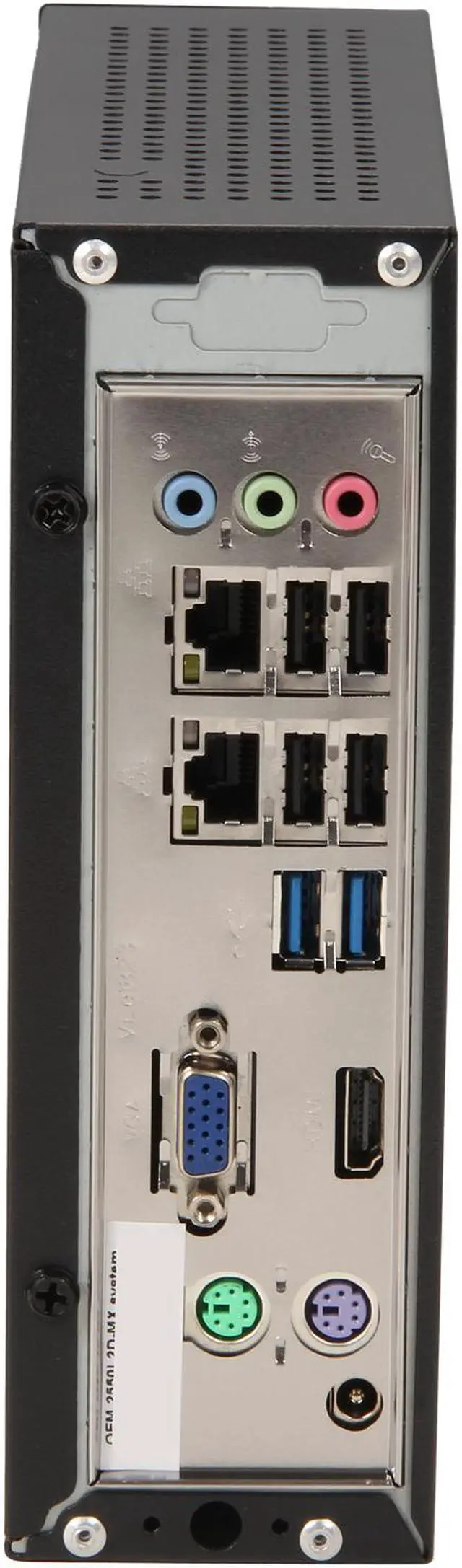

Back Panel Ports

PS/2
2
HDMI
1
VGA
1 x D-sub
Rear USB
2 x USB 3.0 ports
4 x USB 2.0 ports
RJ45
2
Rear Audio Ports
3 jacks

Power Supply

Power Supply
DC12V 5A 60W Power Adapter

Physical SPEC

Dimensions
8.46" x 7.48" x 2.36"

Features

Features
Integrated Dual-core Intel Atom processor D2550

2 x SO-DIMM, Max. 8 GB, DDR3 800/1066MHz

Integrated IntelGMA 3650 HD graphics

HDMI port/VGA Dual Display

2 x SATA 3.0 Gb/s ports, PCI-E x1 slot

Dual Broadcom Gigabit LAN, USB 3.0 x 2

Color: Black (custom color is available for special order)

OS support: Windows 7, XP, Linux, FreeBSD

Applications: Vehicle/Boat PC, Set Top Box, Digital Signage, Network Appliance, Traffic Control, Kiosk, POS, Surveillance

Quick Info

Warranty

  • Limited Warranty period (parts): 2 years
  • Limited Warranty period (labor): 2 years


Customer Reviews of the OEM Production 2550L2D-MxPC

Do you own this product? Write a Review

ICON Loading...

Filter Results

Go
  • Mr. B.
  • 9/23/2014 3:50:36 PM
  • Tech Level: Somewhat High
  • Ownership: more than 1 year
  • Verified Owner

5 out of 5 eggsStill chugging along

Pros: Small, pretty quiet. Has been dependable, running Win7 with 4GB ram and a 320GB laptop HD. Kids use it for school and some light web-based games. Wanted to run Linux but Intel screws the Linux community with respect to video drivers.

Cons: None really, I am always worried that connecting cables will break the internal connection as the headers are not anchored at the top and there is some flex there.

Other Thoughts: Overall satisfied. Was a media server for 8 months, on 24/7 and no hiccups even after multiple random power outages.

Did you find this review helpful? Yes No

  • Eduardo S.
  • 9/14/2014 8:29:55 AM
  • Tech Level: Somewhat High
  • Ownership: more than 1 year
  • Verified Owner

5 out of 5 eggsAmazing Value

Pros: amazing price
2 gigabit ethernet ports (Broadcom [bge])
2 SATA ports
small

Cons: loud CPU fan - I easily replaced it with a quiet 40mm fan
video resolution - it took some fiddling with 'xrandr' in Linux to get it to display at my monitor's native 1600 x 1200 resolution
flimsy backpanel - there is a ton of flex when connecting cables - the rest of the enclosure is rock-solid

Other Thoughts: Operating Systems Tested (all worked): Linux (Ubuntu & Trisquel), OpenBSD, FreeBSD

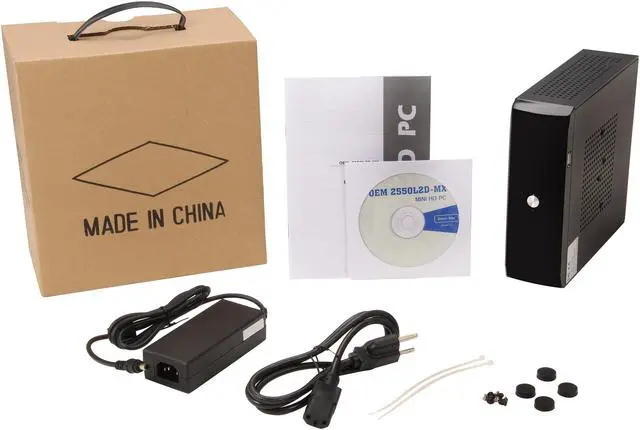

Included items:
- enclosure
- motherboard
- CPU + fan
- cables

Stuff you need to buy:
- hdd (2.5" only)
- memory

Not tested:
- HDMI output
- dual monitor configuration
- audio
- USB3 ports

Closing thoughts:
This computer is not meant to replace your workstation. Instead, it is a valuable machine that can be used for OS testing, router, firewall, server, SpinRite, etc.

1 out of 1 people found this review helpful. Did you? Yes No

  • Kirk B.
  • 9/7/2014 8:27:39 PM
  • Tech Level: High
  • Ownership: 1 day to 1 week
  • Verified Owner

1 out of 5 eggsSATA Controller bad

Pros: Small, compact, dual NICs.

Cons: SATA controller was bad. Would not format a drive during the OS install, would just halt the system and reboot. Installed to USB adaptor and tried to just boot with SATA and same thing happened.

Other Thoughts: Returned to Newegg, suddenly they are out of stock.

Thanks Newegg.

Did you find this review helpful? Yes No

  • Darren G.
  • 7/30/2014 2:01:57 PM
  • Tech Level: High
  • Ownership: more than 1 year
  • Verified Owner

1 out of 5 eggsHigh Mortality Rate

Pros: These are the cheapest, small dual-nic boxes available - seemingly great for router projects.

Cons: I have 5 of these and they have all failed in some crippling manner (really loud fans, bad NICs, bad video, completely dead, etc).

Other Thoughts: I've moved onto Jetway systems but have yet to find an AES-NI fanless system with dual NICs for routers that doesn't cost upwards of $700.

Did you find this review helpful? Yes No

  • Dmitri P.
  • 7/16/2014 5:42:16 PM
  • Tech Level: Somewhat High
  • Ownership: 1 week to 1 month
  • Verified Owner

5 out of 5 eggsMakes a great pfsense router

Pros: Small form factor
Can be used without fan (Intel Atom rated to 100C)
Works well with pfsense (AMD64)
No issues with video drivers on the latest build
Plenty of horsepower for the SOHO job
Low power consumption

Cons: HDD power cable could be longer - it reaches, but just barely
Flimsy connection ports, but all I really need are the Network ports, which are fine
Front power-light is very bright (but nothing that electrical tape can't handle)

Other Thoughts: Used for the pfsense build. Latest version as of this review (AMD64).

Combined this with:
* G.SKILL 4GB 204-Pin DDR3 SO-DIMM DDR3 1066 F3-8500CL7S-4GBSQ
* SanDisk ReadyCache SDSSDRC-032G-G26 2.5" 32GB SATA III

HDD power cable is very short, as others have mentioned -- but I was able to use it. CPU fan is louder than I'd like. I haven't measured what difference it makes, honestly, probably not a whole lot (cheap fan). Disconnected the fan - system runs at about 62-65C at nominal load, I haven't tried to load up the system at this time for further testing. This is well within the Intel Atom specs (100C) -- and also at ambient temperature of about 80-83F in the room.

Performance is very good. Actually, for a SOHO application this is probably an overkill. I'm running all the basic services (DHCP, DNS, etc.), plus Squid proxy, SquidGuard, VPN, and snort with almost all rules turned on. CPU doesn't average above 5% utilization during normal browsing from 4-6 separate devices in the house simultaneously (YouTube, Netflix, work VPN connection, etc.). I have a 50/10 line (runs more like 57/12 mbps) - during full speed tests the CPU doesn't go above 15% utilization - most of that due to snort with all rules turned on (almost).

Solid box so far. Happy.

3 out of 3 people found this review helpful. Did you? Yes No

  • Anonymous
  • 7/10/2014 8:15:09 AM
  • Tech Level: High
  • Ownership: 1 month to 1 year

3 out of 5 eggsGreat computer, but Linux support is lacking

Pros: Nice little computer, good for routers and so forth

Cons: SATA power cable is NOT long enough to reach from the power plug on the motherboard to the drive itself. Apparently they never checked before they supplied the cable. You will probably need an additional fan for the case, which is not provided. The EverCool EC5010M12CA fits perfectly. ALSO, if you want to install Linux, there are NO GRAPHICS DRIVERS that support hardware acceleration whatsoever. This is the GMA 3650 integrated graphics, aka "CedarView," which is NOT actually made by Intel, but rather made my PowerVR and included in the Intel chipset. PowerVR does not release any Linux drivers nor provide any open source support. Also, if you check Intel's site, it seems that they also have not/will not provide Windows 8 graphics drivers either. So, buyer beware!!

Other Thoughts: Good for basic routers and so forth, but driver support is lacking or non-existent. Check this before you buy!

1 out of 1 people found this review helpful. Did you? Yes No

  • Benjamin B.
  • 7/1/2014 10:04:05 PM
  • Tech Level: Somewhat High
  • Ownership: 1 day to 1 week
  • Verified Owner

5 out of 5 eggsNice little box

Pros: Small Size
Good Construction
Reasonable Price
Dual NIC's!!!

Cons: None

Other Thoughts: Using this as a firewall for a small business. First week since install. The box is performing well and was a breeze to setup.

Did you find this review helpful? Yes No

  • Kyle B.
  • 6/24/2014 5:18:18 PM
  • Tech Level: High
  • Ownership: 1 month to 1 year
  • Verified Owner

4 out of 5 eggsSolid Machine but tread lightly

Pros: -Small Light Weight and Powerful
-Easy to setup and use
-Windows 7 Works well with it!
-Solid machine once you get past the con's and don't install a 64 Bit OS. DO NOT!

Cons: -The Intel HD Drivers for this device DO NOT support Windows 64 bit, thus if you install 64 Bit windows 7 - You'll have to reformat and install 32 bit to get it work
-The Power cable provided with the device is too small to reach the hard drive, I had to spend an additional 20 dollars to get a proper sized power cable.

Other Thoughts: Seriously don't install a 64 bit OS.

1 out of 1 people found this review helpful. Did you? Yes No

  • Christopher A.
  • 6/21/2014 12:50:47 PM
  • Tech Level: High
  • Ownership: 1 day to 1 week
  • Verified Owner

3 out of 5 eggsNot Great for PFSENSE

Pros: It works ok with Pfsense and a little better with untangle.

Cons: Not sure if it is the Nic cards but my network performance with pfsense is very sluggish. I am hoping I can turn this little box into a Tv Box instead.

Other Thoughts: If you are buying this for Pfsense I would recommend getting something with dedicated nic cards and a little more processing power. However the poor network performance might be due to driver issues because with untangle things run much faster, and untangle is much more resource hungry than pfsense.

2 out of 2 people found this review helpful. Did you? Yes No

  • Anonymous
  • 6/16/2014 10:00:06 AM
  • Tech Level: High
  • Ownership: 1 month to 1 year

5 out of 5 eggsReally Nice Little Box

Pros: Great Box for router/ firewall, basic NAS, Voip server and overall testing.
i have ran IPfire, PFsense, FreeNAS, Openfiler and Asterisk with FreePBX. All worked excellently!

Cons: initially bought to run XBMC on, onboard graphics way to weak, i still rate it 5 stars because i found so many other uses for it

Other Thoughts: this little system is also an excellent learning tool depending on your implementation

1 out of 1 people found this review helpful. Did you? Yes No
