Is the CPU removable?

The equipment needed to remove (unsolder) this cpu is not something found outside an electronics repair facility. It's not removable without unsoldering the cpu from the motherboard. If you're purchasing this unit thinking you can easily upgrade the CPU it's probably not going to be economical for you to do so.

Out of stock

This item is currently out of stock and it may or may not be restocked.

Out of Stock

Add to wish list

Sold by Newegg

Shipped by Newegg

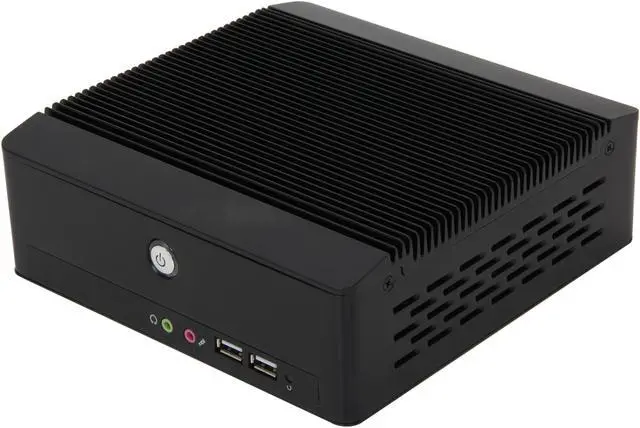

Main image of Habey BIS-6761 Fanless Intel Celeron 857 1.20GHz with COM/Serial Port

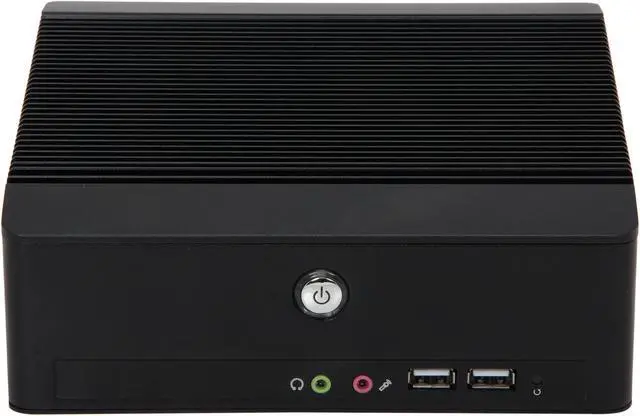

Alt view image 2 of 5 - Habey BIS-6761 Fanless Intel Celeron 857 1.20GHz with COM/Serial Port

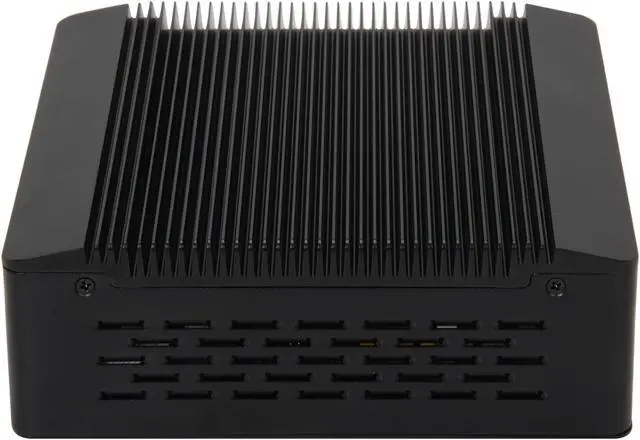

Alt view image 3 of 5 - Habey BIS-6761 Fanless Intel Celeron 857 1.20GHz with COM/Serial Port

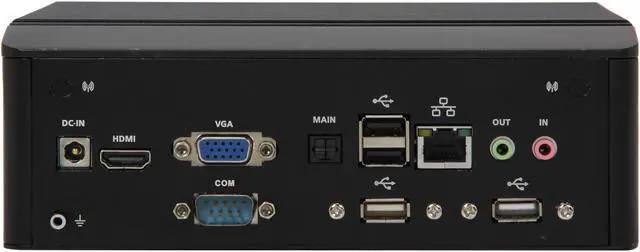

Alt view image 4 of 5 - Habey BIS-6761 Fanless Intel Celeron 857 1.20GHz with COM/Serial Port

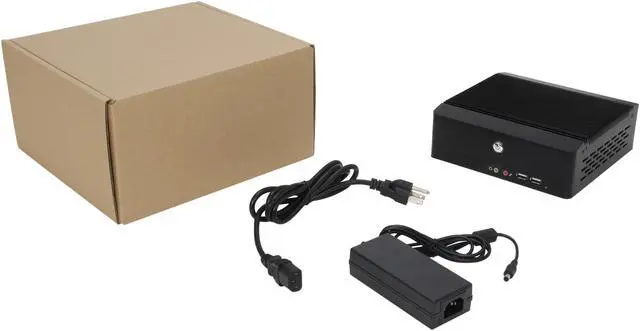

Alt view image 5 of 5 - Habey BIS-6761 Fanless Intel Celeron 857 1.20GHz with COM/Serial Port

Shop All Habey Products

Habey BIS-6761 Fanless Intel Celeron 857 1.20GHz with COM/Serial Port

(9) Write a Review

Intel Celeron 857 1.2GHz 2C/2T
No Hard Drive
+12V DC power supply

Specs

Reviews (9)

See all Q & A

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the Habey BIS-6761

Model
Brand	Habey
Model	BIS-6761

Details
LEDs	Power/ HDD indicator

Processor
CPU Type	Intel Celeron 857 1.2GHz 2C/2T
CPU Features	17W
Cache Memory	2MB
Chipset	Intel HM65

Memory
Memory Type	DDR3
Max Memory Capacity	4GB
Memory Features	1x DDRIII SODIMM 1066/1333MHz Slot

Storage
Hard Drive (Installed)	No Hard Drive
HDD Interface	SATA II

Graphic Controller
Graphic Type	intel HD Graphics

Networking
Ethernet Controller	1 x Gigabit Ethernet; RJ-45

Expansion & Ports
Expansion Slots	2x Mini PCIe slots (half size and full size slots)
Expansion Bays	1x 2.5" SATAII HDD/SSD Drive Bay, Bottom plate access to storage bay
Other ports	USB: 6x USB2.0 COM: 1x RS-232 HDMI: 1x HDMI, Display 1920x1080 VGA: 1x VGA, Display 1920x1080 Audio: Integrated ALC662-GR 6-channel HD audio, 2xLine-out, 2xMic-In

Software
Compatible/Certified OS	Windows XP/ Windows 7/ Windows XP Embedded, Windows Embedded Standard 7/ Win CE 6.0/ Linux Meego/ Linux Yacto/ VxWorks Wind River

Power
Power Characteristics	+12V DC power supply

Features
Features	System Control: Power On/Off Cooling System: Proprietary Fanless Thermal Design Materials: Aluminum + Steel Coating Processes: Aluminum Oxidation Mounting: 100x100mm VESA holes on case, Optional VESA Mount sold separately.

Dimensions & Weight
Dimensions	190 mm x 190 mm x 67 mm
Weight	3.6 lbs.

Additional Information
First Listed on Newegg	June 06, 2012

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 1 year
Limited Warranty period (labor): 1 year
Read full details

Return Policies

Return for refund within: 30 days

Return for replacement within: 30 days

This item is covered by Newegg.com's 30-Day Return Policy. Read full return policy for details.
