13th Intel H Series Processors
Intel Technology / Hybrid Architecture / Iris Xe Graphics
Superior Graphics Performance and Processing Power to Support Multitasking
With even more multitasking power and e-cores, it's time to work and play together. Stream video, multitask, play music, and encode video all while gaming on the go, powered by 13th Gen Intel® Core processors.
NPB5 features a powerful processor for fast and efficient computing tasks.
Small form factor fits easily on any desk or workspace.
Multiple USB ports, HDMI outputs, and Ethernet.
Built-in Wi-Fi and Bluetooth for easy wireless connectivity.
Perfect for office productivity, video conferencing, and media streaming.
Easily add SSDs or HDDs to increase storage capacity to suit your needs
Take your creativity to the next level with the 13th Gen Intel® Core processors. Accomplish demanding workloads with more performance at your fingertips. When you can do more, you can create more.
To upgrade the hardware, you only need to press and open the top cover.
- DDR5 Dual Channel Memory
Up to 64GB - M.2 2280 NVMe PCIe4.0 SSD
Up to 2 TB - 2.5-inch SATA 3.0 HDD
6Gb/s
- New active SSD Heat Sink Design and Side Cooling Vent
- A Liquid Metal Thermal Compound for Improved Cooling Efficiency
- 2 Heat Pipes and 2 Air-outlet for Efficient Heat Dissipation
Supports Quad Video Outputs
Working on multiple monitors at the same time gives you exceptional creating experience

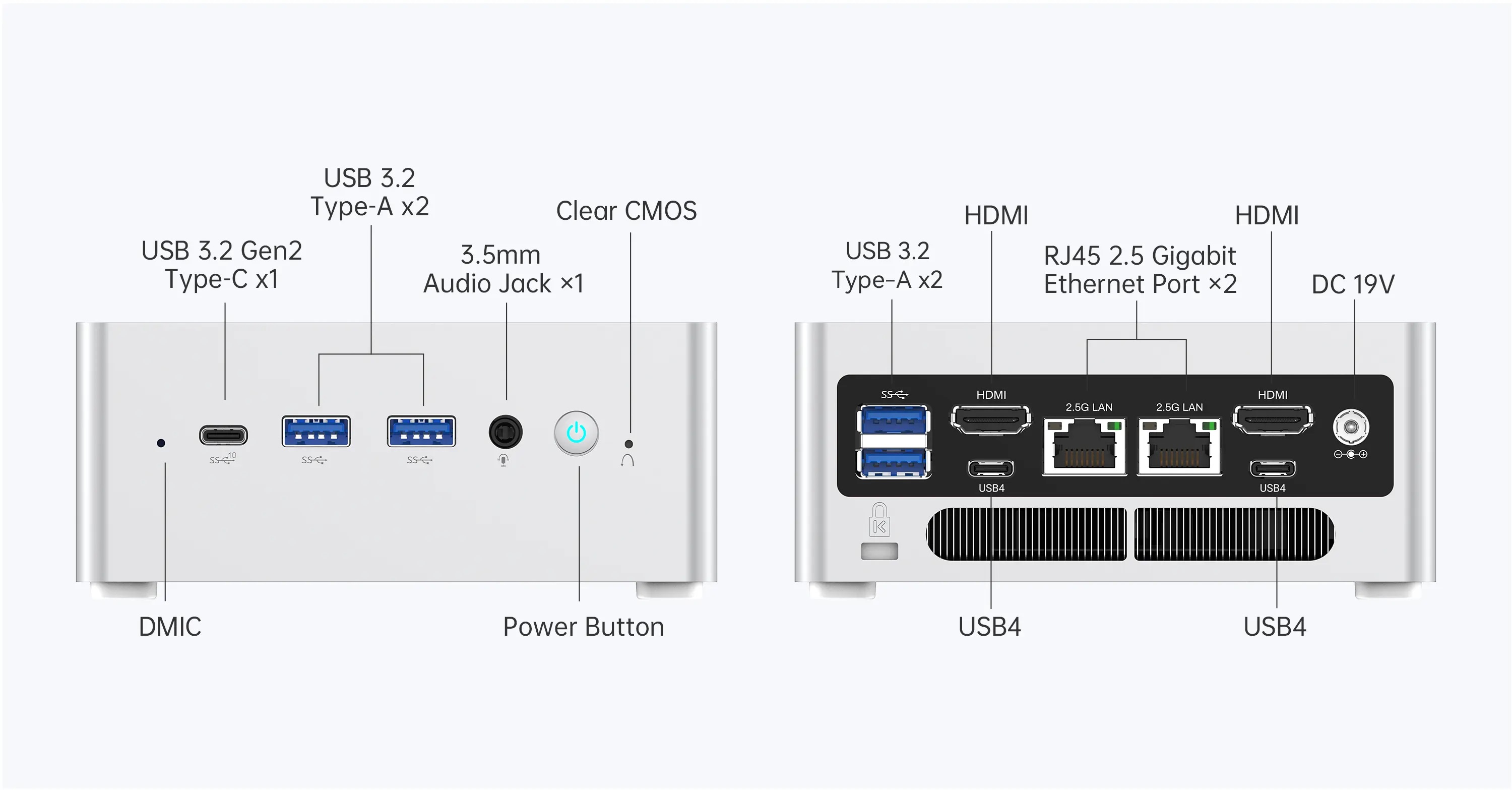

Ports & Buttons
VersatileInterfaces Meet Various Needs
| Products | |||
|---|---|---|---|
| Processor | Intel® Core i5-13500H Processor, 12 Cores/16 Threads (18M Cache, up to 4.7 GHz) | Intel® Core i7-12650H Processor, 10 Cores/16 Threads (24M Cache, up to 4.70 GHz) | Intel® Core i7-13700H Processor, 14 Cores/20 Threads (24M Cache, up to 5.0 GHz) |
| Graphics | Intel® Iris® Xe Graphics eligible (Graphics Frequency 1.45 GHz) | Intel® UHD Graphics for 12th Gen Intel® Processors (Graphics Frequency 1.40 GHz) | Intel® Iris® Xe Graphics eligible (Graphics Frequency 1.50 GHz) |
| Memory | DDR5 Dual channel (SODIMM Slots×2, up to 32GB) | DDR4 Dual channel (SODIMM Slots×2, up to 32GB) | DDR5 Dual channel (SODIMM Slots×2, up to 32GB) |
| Storage | M.2 2280 PCIe4.0 SSD ×1 (up to 2TB) | M.2 2280 PCIe4.0 SSD ×1 (up to 2TB) | M.2 2280 PCIe4.0 SSD ×1 (up to 2TB) |
| Storage Expansion | 2.5-inch SATA HDD Slot ×1 (SATA 3.0, 6.0Gb/s) | 2.5-inch SATA HDD Slot ×1 (SATA 3.0, 6.0Gb/s) | 2.5-inch SATA HDD Slot ×1 (SATA 3.0, 6.0Gb/s) |
| Wireless Connectivity | M.2 2230 WIFI Support (Wi-Fi 6E BlueTooth 5.2) | M.2 2230 WIFI Support (Wi-Fi BlueTooth) | M.2 2230 WIFI Support (Wi-Fi 6E BlueTooth 5.2) |
| Video Output | HDMI (4K@60Hz) ×2 USB4 (8K@60Hz)×2 | HDMI (4K@60Hz) ×2 USB-C (4K@60Hz) ×2 | HDMI (4K@60Hz) ×2 USB4 (8K@60Hz)×2 |
| Audio Output | HDMI ×2 Audio Jack ×1 | HDMI ×2 3.5mm Combo Jack ×1 | HDMI ×2 Audio Jack ×1 |
| Ports & Buttons | RJ45 Gigabit Ethernet Port ×2 USB3.2 Gen1 Type-A Port ×2 (Rear) USB4 Port ×2 (Rear) USB3.2 Gen2 Type-A Port ×2 (Front) USB3.2 Gen2 Type-C ×1 (Data Transfer) DC Jack ×1 HDMI ×2 Audio Jack ×1 DMIC ×1 Clear CMOS ×1 | RJ45 2.5 Gigabit Ethernet Port ×2 USB3.2 Gen1 Type-C ×1 (Data Transfer, Front) USB3.2 Type-C ×1 (DisplayPort) USB3.2 Type-C ×1 (Alt DP, Data Transfer) USB3.2 Gen2 Type-A ×4 HDMI ×2 DMIC ×1 3.5mm Combo Jack ×1 Clear CMOS ×1 | RJ45 Gigabit Ethernet Port ×2 USB3.2 Gen1 Type-A Port ×2 (Rear) USB4 Port ×2 (Rear) USB3.2 Gen2 Type-A Port ×2 (Front) USB3.2 Gen2 Type-C ×1 (Data Transfer) DC Jack ×1 HDMI ×2 Audio Jack ×1 DMIC ×1 Clear CMOS ×1 |
| System | Windows 11 | Windows 11 | Windows 11 |
