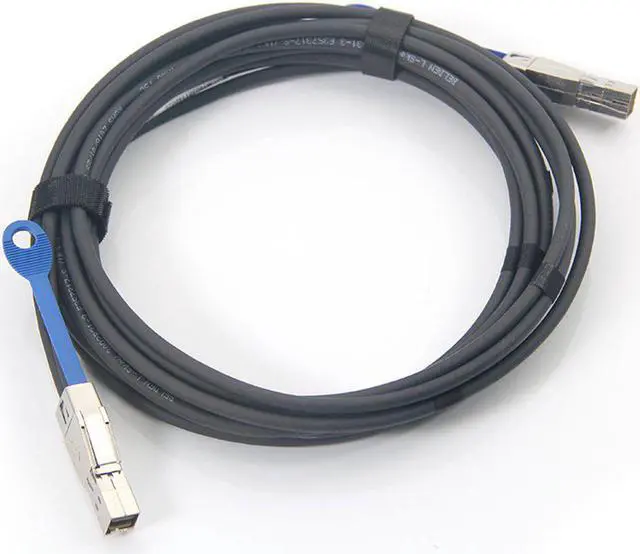

10Gtek 12G External Mini SAS HD SFF-8644 to SFF-8644 Cable, 1-m(3.3ft)

Product Description:
Mini SAS HD receptacle assembly is the next-generation SAS high-density high-speed I/O interface. This interface was adopted for the SAS 2.1 standard and proposed for SAS 3.0 standard, and is designed to support 6G and future 12G SAS applications. The assembly is offered in 4x, 8x, and 16x versions. The reduced size of the Mini SAS HD system provides additional space for system designers. While a low profile PCIe card can accept four 4x Mini SAS connectors, it can only accept two of Mini SAS connectors.
The passive Mini SAS HD copper cable assembly is up to 12Gbps data rates per channel. The EEPROM signature enables the host to identify what type and length of cable is connected to its port, and can be customized for any application. An improved latch design reduces the insertion force and increases the retention force.

Features:

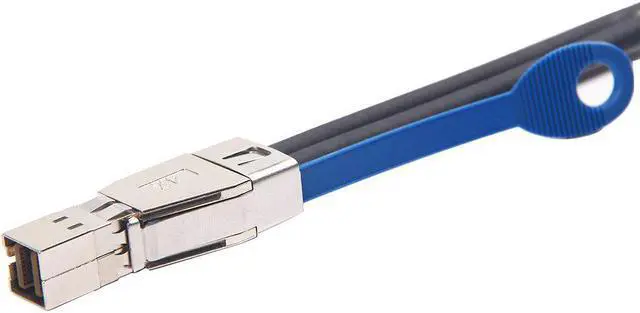

Connector A: SFF-8644 (4x HD Mini SAS)
Connector B: SFF-8644 (4x HD Mini SAS)
Data Rate: 12Gbps per channel
AWG30 Twinaxial 8-pair high-bandwidth low-skew wire
Impedance = 100 Ohms
Fully compliant to the latest SAS 2.1 AND SAS 3.0 interface specifications
Excellent EMI performance
Wide operating temperature range:
Standard: 0ºC to +70ºC
Industrial: -40ºC to +85ºC

Applications:
DATA Center
Servers, Storage racks, RAID systems
External Storage Systems
SAS/SATA HBA interfaces
Direct-attached storage (DAS)
Switches
